S00005888+03 Shangchai Xia Gong Starter Motor Wholesale

S00005888+03 Shangchai Loader Starter Wholesale Supply

Xia Gong loader parts may be requested through the machine model, Shangchai engine family or S00005888+03. Combining those identifiers with the three-hole flange image gives the importer a practical quotation basis and helps distinguish the unit from other 5.5kW Chinese heavy-equipment starters.

S12-55201 and M98R3515 expand the search, but they do not replace the installed product details. The 10T module-3.175 drive, Ø127 mounting circle and 47 mm drive distance should agree with the removed unit before an urgent loader order is dispatched.

S00005888+03 5.5kW 10T Starter Dimensions for Buyers

The 24V 5.5kW output suits heavy-equipment cranking, while ten teeth and module 3.175 define the pinion interface. Presenting the complete CW specification gives wholesalers a useful stock description and gives service teams a clear reference when comparing the replacement at site.

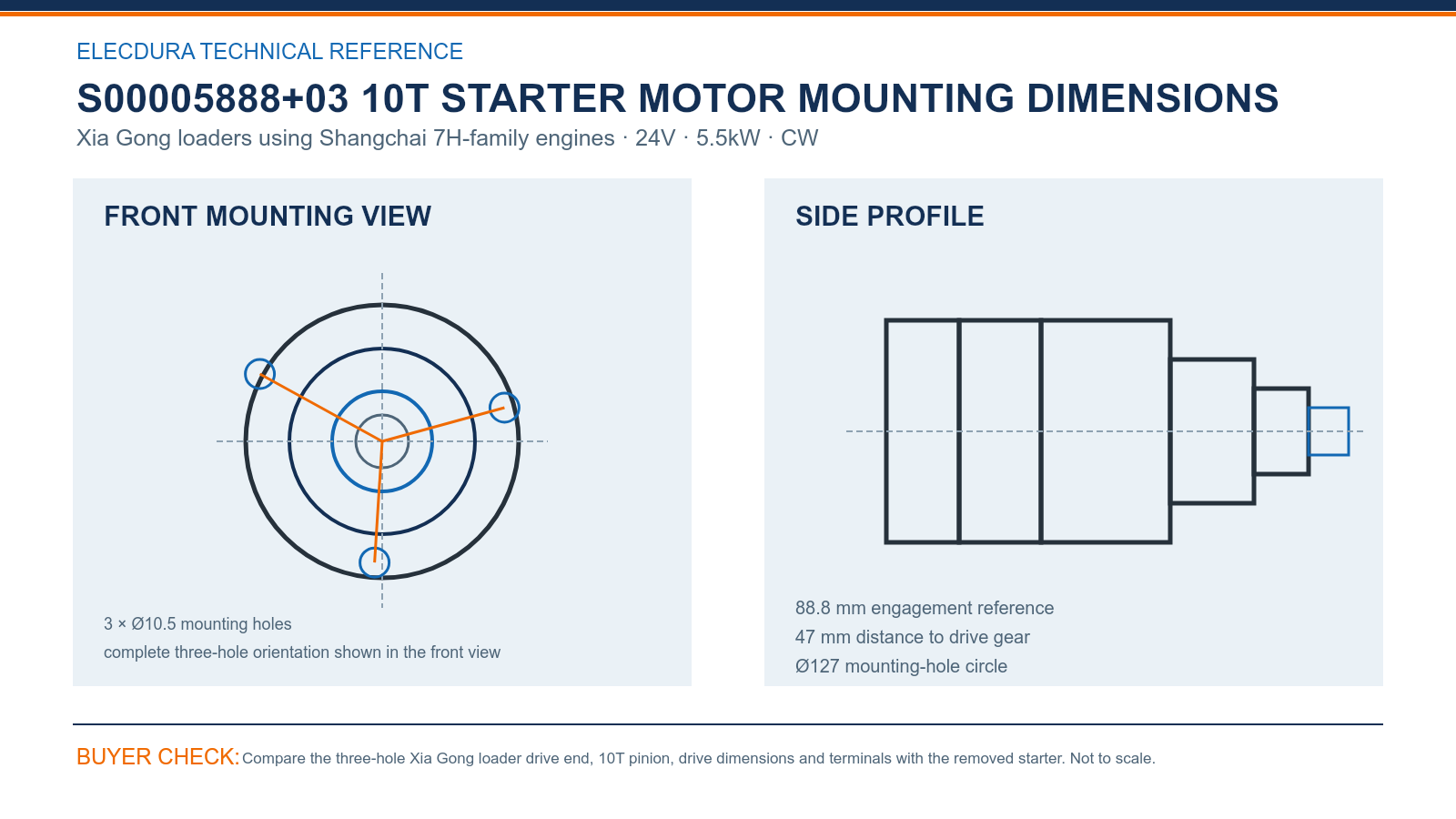

S00005888+03 Shangchai Xia Gong Starter Drawing for Loader Buyers — compare the drawing with the removed starter before placing a volume order.

The drawing highlights an 88.8 mm engagement reference, 47 mm distance to the drive gear and three Ø10.5 holes on an Ø127 circle. Photograph the loader starter square to the flange so the relatively small mounting holes and solenoid position can be compared accurately.

S00005888+03 S12-55201 M98R3515 Cross Reference

S12-55201, M98R3515, STQ2755LP and STQ2755MH connect Shangchai, Prestolite and Krauf purchasing records to S00005888+03. Keep the Xia Gong loader and engine information on the enquiry because the reference group alone does not describe every installation detail.

Construction-equipment distributors should record the machine model, engine plate and accepted flange image with the customer account. This gives branch staff a usable product history when stock is replenished or transferred to another depot during a loader breakdown.

S00005888+03 Xia Gong Starter Supply for Parts Importers

Elecdura can prepare samples, distributor quantities, neutral packaging and customer-branding review around the confirmed unit. Cartons should protect the three mounting ears, pinion and electrical posts; incoming inspection can sample these features before units are issued to field-service branches.

The Elecdura video presents starter assembly and electrical testing for B2B orders. Xia Gong and Shangchai parts buyers can use it when discussing factory capability and inspection needs while S00005888+03 remains the defined product for the recorded loader application.

S00005888+03 Starter FAQs for Xia Gong Loader Buyers

Which Xia Gong loader records help confirm S00005888+03?

Send the loader model and serial, Shangchai engine plate, build information and all markings from the old starter. Add square flange, pinion and terminal photographs. This gives the supplier a clear equipment context and helps distinguish S00005888+03 from other 24V 5.5kW starters used on Chinese loaders.

Can S12-55201 and M98R3515 support the product search?

Yes. S12-55201 provides another Shangchai route and M98R3515 provides a Prestolite route to the product family. Use them for sourcing and inventory searches, then retain S00005888+03, the Xia Gong application, 10T module-3.175 drive and the accepted Ø127 flange on the commercial order. Preserve the reference supplied by the customer.

Why should buyers verify the three Ø10.5 holes carefully?

Small differences in hole diameter or ear position can prevent a heavy starter from seating correctly even when the central housing looks similar. Photograph all three holes squarely and compare the Ø127 circle. The 88.8 mm engagement and 47 mm drive distance should be reviewed at the same time.

How do 10T and module 3.175 affect the loader match?

Ten teeth describe the pinion count, while module 3.175 describes the tooth size and pitch relationship. Both values must agree with the installed gear system. Keeping them beside the 5.5kW rating prevents a visually similar Chinese equipment starter with another drive from being selected for the loader.

What photographs are practical during a loader breakdown?

Before removal, photograph the starter in place to show cable routing and nearby structures. After removal, take front, pinion, label and terminal views in good light. Include the machine and engine plates. This small image set allows a distributor to work quickly without sacrificing the information needed for product comparison.

How should a construction-equipment branch label this stock?

Use S00005888+03, Shangchai or Xia Gong, 24V 5.5kW and 10T on the visible label. Store S12-55201, M98R3515, the flange image and machine records digitally. The short label helps picking, while the complete record protects against treating all Shangchai loader starters as interchangeable. Add the confirmed branch use where practical.

Which areas need protection during export shipment?

Support the starter body, shield the three mounting ears and cover the pinion, solenoid and electrical posts. Use a moisture barrier for long sea routes and secure pallet layers. Receiving should inspect any crushed carton because impact to a small mounting ear can affect installation even when the electrical test remains normal.

What enables a complete S00005888+03 wholesale quotation?

Provide the Xia Gong loader and Shangchai engine details, all starter references, clear mounting and terminal photographs, quantity, expected annual use, delivery date, packing request and destination. Elecdura can then price the defined 24V 5.5kW 10T version and discuss trial, replenishment or consolidated supply. Include any private-label requirement.

Request S00005888+03 Shangchai Starter Wholesale Pricing

Email the Xia Gong loader model, Shangchai engine plate, S00005888+03 and any related numbers, clear flange and terminal photographs, quantity, packing request and destination to info@elecdurauto.com. Elecdura will review the configuration and return wholesale pricing, lead time and supply choices.
