D11-101-12+C Shangchai 6114 Starter Motor Wholesale

D11-101-12+C Starter Motor Wholesale Application Support for Shangchai 6114 engine applications using the listed D11 reference

For Shangchai 6114 engine applications using the listed D11 reference, D11-101-12+C gives distributors a focused starting point for quotation and branch inventory. Confirm 24V, 8.0kW, 11T and CW, with particular attention to 24V 8.0kW 11T module-4 catalog configuration, before combining demand from different fleets or workshops.

Before comparing D11-101-12+C prices, state whether the request covers an initial sample, urgent breakdown demand or routine distributor replenishment. Include the full OE reference, application, photographs, quantity and destination so the offer remains connected to the physical unit the customer expects to receive.

D11-101-12+C Starter Motor Technical Data for Fleet Parts Buyers

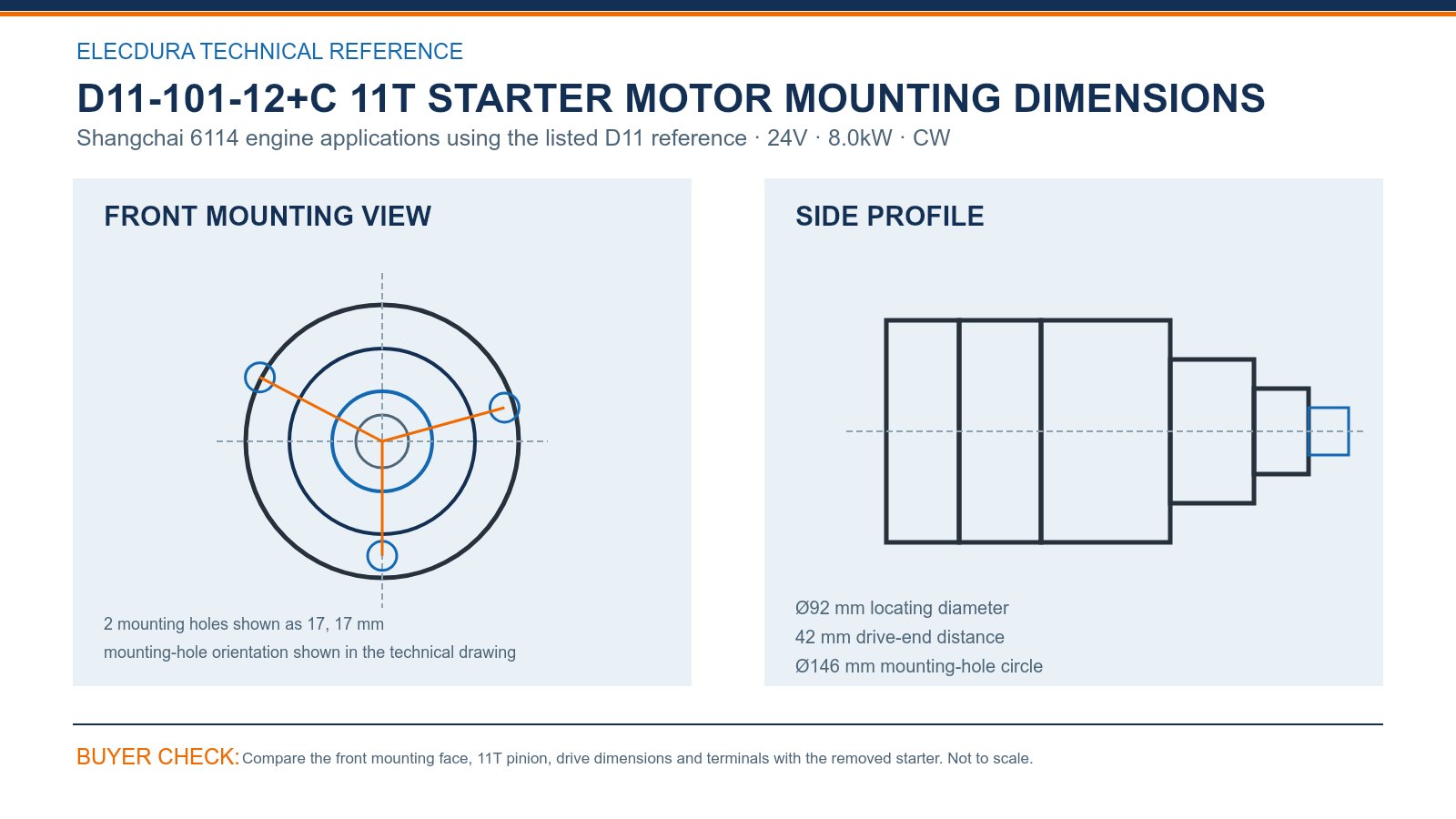

D11-101-12+C Shangchai 6114 engine applications using the listed D11 reference 24V 8.0kW 11T starter mounting dimensions.

Use the D11-101-12+C technical drawing to check Ø92 mm locating diameter, 42 mm drive-end distance and Ø146 mm mounting-hole circle. Add the 2 mounting holes shown as 17, 17 mm to the receiving sheet. These are practical controls for an approved sample because they can be measured before the starter is installed or released to branch stock.

After the D11-101-12+C mounting check, verify 24V, 8.0kW, 11T and CW with module 3.5. The final visual review covers the terminal studs, control connector and pinion. This prevents a physically related starter from being approved only because its reference appears in the same family.

D11-101-12+C Starter Motor Cross-Reference Review for Fleet Buyers

The D11-101-12+C cross-reference group includes D11-1O1-12+C. Use these numbers to search supplier systems, then confirm 24V, 8.0kW, 11T, CW, mounting geometry and terminals.

For D11-101-12+C, list and photograph each complete reference when pinions, drive positions or connectors differ. Elecdura can quote each physical starter independently.

D11-101-12+C Starter Motor Aftermarket Supply for Regional Distributors

Elecdura supports distributor orders from 20 pieces, normally with a 7–15 day lead time after order confirmation and an 18-month warranty under agreed sales terms. Availability, export packing and delivery timing are confirmed against the requested D11-101-12+C quantity, destination and required arrival date.

Buyers can state service urgency, supported equipment count and expected monthly use in the same RFQ. Elecdura can then discuss stock, production, packaging and staged delivery while maintaining the specified D11-101-12+C drive end and electrical rating throughout the order.

This video introduces Elecdura production and electrical testing for starter motors supplied to distributors and service networks. The commercial offer for D11-101-12+C continues to follow the stated application, electrical rating, pinion and mounting details so factory capability and product selection remain clearly connected.

D11-101-12+C Starter Motor Questions from Commercial Buyers

Which checks should follow an OE-number match for D11-101-12+C in a Shangchai 6114 service-network sourcing program?

A number match narrows the search but does not finish it. For D11-101-12+C, compare the stated application, electrical output, 11T drive, mounting geometry and terminal side. Buyers handling several references should list each complete number separately, allowing any genuinely different unit to receive its own offer and sample check.

Which dimensions in the D11-101-12+C drawing should receiving teams sample during a Shangchai 6114 service-network inspection?

For D11-101-12+C, check 2 mounting holes shown as 17, 17 mm, Ø92 mm locating diameter, Ø146 mm mounting-hole circle and 42 mm drive-end distance. Count the 11T pinion and photograph the terminal side. Record these checks against the approved sample without dismantling the unit.

How should a fleet workshop verify D11-101-12+C against the removed starter during service-network sourcing?

For D11-101-12+C in Shangchai 6114 engine applications using the listed D11 reference, confirm the machine or engine identity and read the full old-unit label. Check 11T, Ø146 mm mounting-hole circle, Ø92 mm locating diameter and terminal orientation. Treat a different drive end or connector position as a separate item when the stated application overlaps.

Which electrical conditions can imitate a failed D11-101-12+C starter motor during a Shangchai 6114 service-network electrical check?

Before fitting D11-101-12+C, verify battery condition, cable size and voltage drop at cranking current. Clean the mounting ground and inspect the ring gear and control circuit. A slow-crank complaint can come from weak batteries, poor connections or mechanical drag, so those causes should be separated from the starter itself.

What demand information helps set a sensible reorder level for D11-101-12+C in a Shangchai 6114 service-network program?

Build the forecast around actual equipment counts, failure history and the time needed to replenish each service location. For D11-101-12+C, keep the specified pinion and mounting interface visible in the stock record. This reduces emergency substitutions and gives purchasing a clearer basis for MOQ, packing and delivery discussions.

Which physical points should be checked before D11-101-12+C enters branch stock during a Shangchai 6114 service-network receiving check?

For D11-101-12+C, match carton and product labels to the purchase order, then sample 24V, 11T, 2 mounting holes shown as 17, 17 mm and terminal protection. Check the flange and pinion for shipping damage. Record lot numbers and arrival photographs, and isolate any different configuration before it is placed in saleable stock.

Which order conditions should be stated when asking about D11-101-12+C in a Shangchai 6114 service-network sourcing program?

A useful RFQ states D11-101-12+C, the machine or engine model, old-unit label, mounting and terminal photographs, requested quantity and delivery country. Include whether the demand is a sample, urgent service order or scheduled stock. Those details allow pricing to cover the correct unit and realistic shipping plan.

Which test results help investigate a returned D11-101-12+C starter in a Shangchai 6114 service-network review?

For a service review of D11-101-12+C, identify the shipment and unit, describe the starting condition and record installation details. Add photographs of the drive, flange and terminals plus battery, ground and positive-cable test results. If the unit was removed, protect it from additional damage and retain it until the review is complete.

D11-101-12+C Start a Starter Motor Wholesale Enquiry

Email info@elecdurauto.com with D11-101-12+C, the supported Shangchai 6114 engine applications using the listed D11 reference record, old-unit photographs, quantity, destination and required arrival date. Elecdura will use those details to confirm the 24V, 8.0kW, 11T CW starter and prepare wholesale pricing with MOQ, lead time, packing and freight.
