D11-101-50
D11-101-50 / D11-101-50-A
Elecdura
Available for qualified orders
20 pcs
7 - 15 Days
Neutral packaging / private-label review
18 Months
D11-101-50 / D11-101-50-A
Shangchai 4114 diesel-engine applications using a 24V 5.0kW 12T CW starter with a module-3 drive
Confirm 24V, 5.0kW, 12T, CW, module 3, two diameter-14 mounting holes, 151 mm mounting span, diameter-110 drive-end reference, 66 mm and 86 mm axial references, M12 reference and terminal layout against the removed starter.
| Quantity: | |
|---|---|
Construction-equipment distributors usually receive D11-101-50 enquiries from workshops that know the Shangchai 4114 engine but may not have a complete machine record. Combining the OE, engine designation and removed-starter photographs gives sales teams a useful starting point for a first quotation.
D11-101-50 and D11-101-50-A belong to the same purchasing search group, yet the offered unit should still match the twelve-tooth drive, asymmetric mounting face, axial dimensions and terminal arrangement. This comparison helps prevent a visually similar starter from entering urgent construction-equipment orders.
The required configuration is 24V, 5.0kW, 12T, module 3 and clockwise rotation. Keeping these electrical and drive values together on quotations, carton labels and receiving records gives buyers one consistent definition for Shangchai 4114 replacement stock.
Primary OE / Reference | D11-101-50 |
|---|---|
Application | Shangchai 4114 diesel-engine applications using a 24V 5.0kW 12T CW starter with a module-3 drive |
Voltage | 24V |
Rated Power | 5.0kW |
Pinion Teeth | 12T |
Pinion Module | 3 |
Rotation | CW |
OE / Cross Reference | D11-101-50 / D11-101-50-A |
Mounting Face | 2 x diameter-14 mounting holes; M12 reference shown beside the drive-end view |
Drive-End References | diameter-110 drive-end reference; 66 mm and 86 mm axial references; 151 mm mounting span shown in the front view |

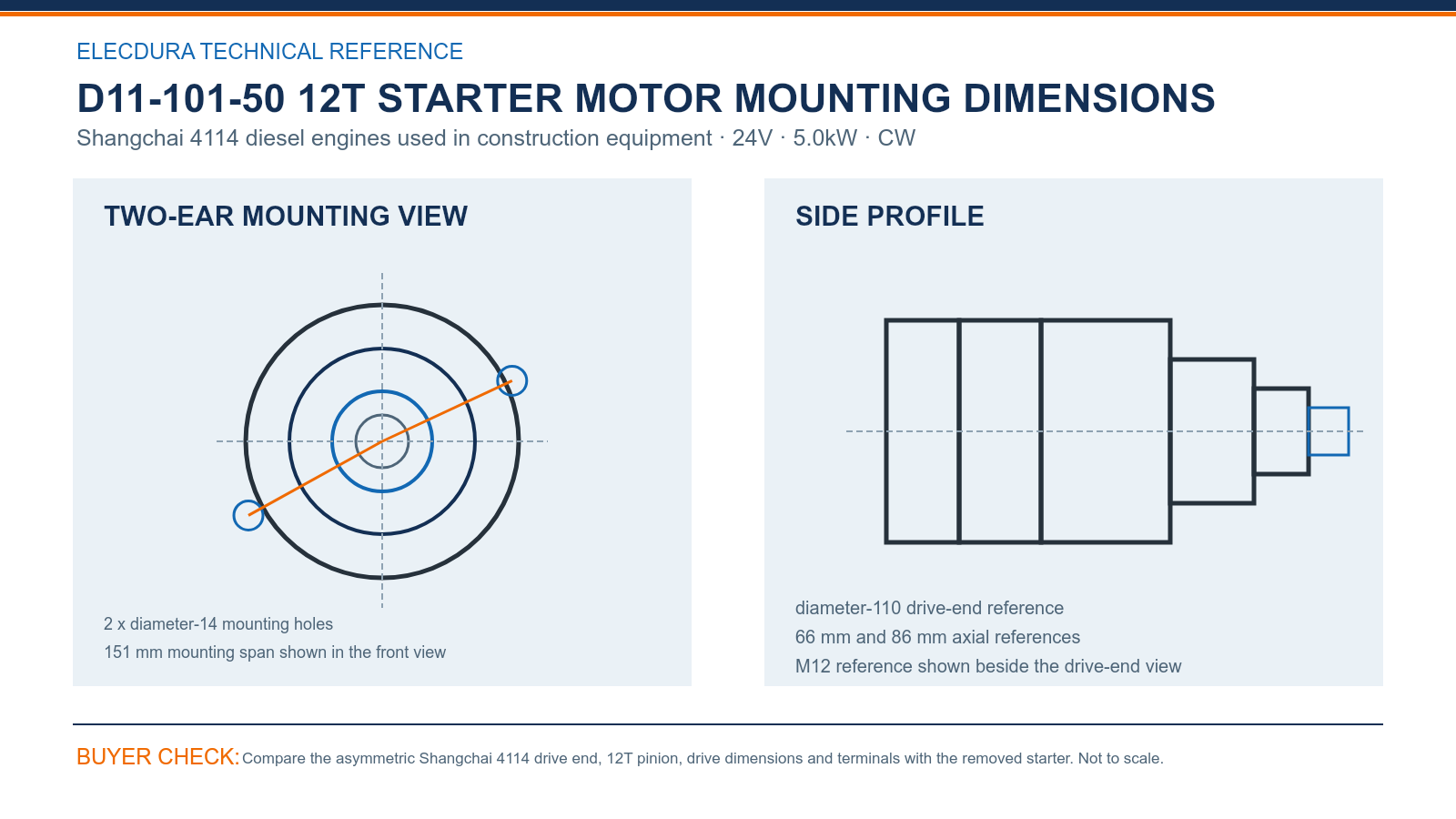

D11-101-50 Shangchai 4114 Starter Drawing for Construction Buyers — compare the drawing with the removed starter before placing a volume order.
Compare the two diameter-14 mounting holes, 151 mm mounting span, diameter-110 drive-end reference and the 66 mm and 86 mm axial values. A straight drive-end photograph and a side profile from the removed starter make these drawing checks faster for remote equipment enquiries.
Use D11-101-50 as the primary purchasing identity and retain D11-101-50-A as its close search reference. Pair both numbers with Shangchai 4114, the twelve-tooth pinion and complete product photographs so purchasing staff do not expand the item into unrelated Shangchai starter families.
The product can support construction-equipment distributors serving Shangchai 4114 engines when the machine details and physical interface agree. Keep the host machine, engine plate and matched photographs in each customer record so repeat orders follow the verified unit instead of a broad equipment description.
For the first wholesale shipment, sample the OE marking, twelve-tooth pinion, mounting holes, drive-end outline and terminal protection before units move to branch stock. Record the accepted image set and delivery lot so later replenishment can use the same practical receiving reference.
The Elecdura video shows starter-motor assembly and electrical testing for international distribution. Shangchai parts buyers can use it to review manufacturing and inspection capability while the D11-101-50 order remains tied to the stated rating, engine application and measured mounting interface.
Send the Shangchai 4114 engine plate, host machine model and serial information, plus every readable marking on the removed starter. Add straight photographs of the drive end, both body sides and terminals. This gives the supplier enough context to compare the exact construction-equipment installation without treating one engine name as proof across every machine.
Use D11-101-50 as the main quotation and stock identity, with D11-101-50-A retained as a related search reference. The two numbers should lead to the same physical comparison: 24V, 5.0kW, twelve teeth, module 3, clockwise rotation, the asymmetric mounting face and terminal layout. Store the matched photographs with the chosen item record.
Compare two diameter-14 mounting holes, the 151 mm mounting span, the diameter-110 drive-end reference and the 66 mm and 86 mm axial values. Include one square front view and one side profile of the removed starter so the buyer can review flange position and pinion reach together rather than judging the housing from an angled photograph.
Twelve teeth identify the pinion count, while module 3 describes the gear size and engagement form. Either value used alone can point to another starter that looks similar but does not suit the ring gear. Keep 12T, module 3 and clockwise rotation together in the quotation, carton label and receiving inspection for this Shangchai 4114 product.
Sample cartons from different positions in the shipment and compare the OE marking, 24V 5.0kW rating, twelve-tooth pinion, mounting holes and terminal arrangement with the accepted images. Inspect the drive nose, solenoid and studs for impact or moisture damage, then isolate any unit whose identity or physical condition does not match the receiving reference.
Test the 24V battery bank under load, measure voltage drop on positive and ground cables during cranking, and confirm relay and start-signal operation. Inspect the ring gear and cable connections as well. Recording these results helps a distributor separate vehicle-side faults from a starter complaint and supports a more useful after-sales discussion.
Use rigid inner supports that prevent the starter from moving inside the carton, with protection around the drive nose, pinion, mounting ears, solenoid and exposed terminals. Add moisture protection appropriate to the route and warehouse conditions. Mark the OE and 24V 5.0kW 12T rating clearly so mixed construction-parts shipments remain easy to receive.
Provide the Shangchai 4114 engine and machine details, both readable OE references, clear drive-end and terminal photographs, required quantity, annual forecast, packing preference, destination and target delivery date. State whether the order is for workshop replacement, dealer stock or fleet reserve. This information lets Elecdura prepare pricing and supply terms around a defined requirement.
Email the Shangchai 4114 engine and machine details, D11-101-50 or D11-101-50-A marking, clear drive-end, pinion and terminal photographs, order quantity, packing requirement and destination to info@elecdurauto.com. Elecdura will review the 24V 5.0kW 12T configuration and return wholesale price, lead time and shipping terms.
