Fiat 24V 4.5kW 9T Starter Motor Distributor Supply

Fiat 24V 4.5kW 9T Starter Motor Distributor Matching Service

When a Fiat starter label is damaged or unreadable, the product can still be discussed responsibly through its full specification and physical interface. This avoids creating an OE number that the old unit cannot support.

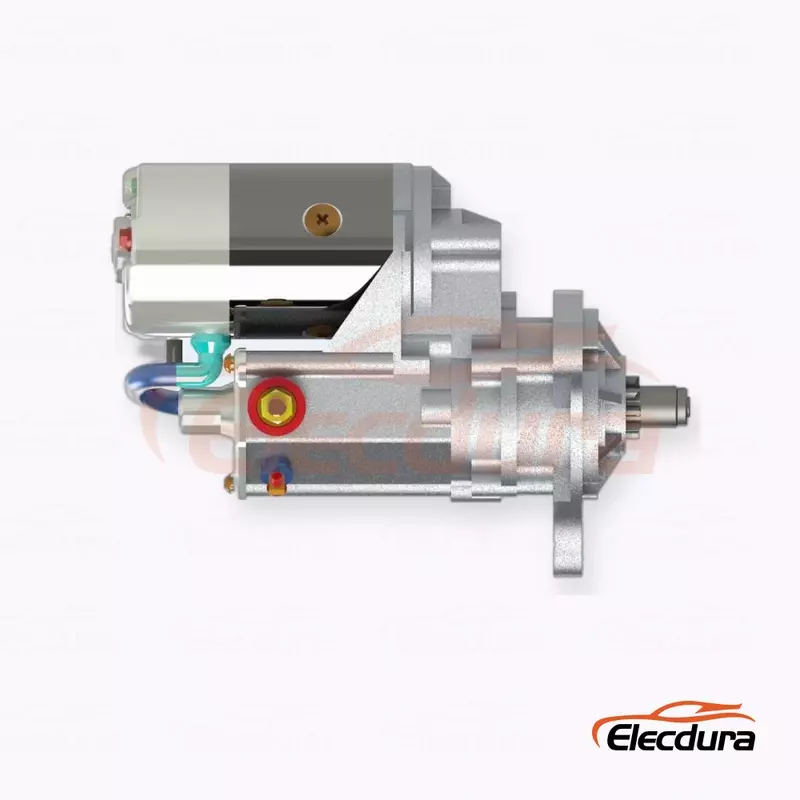

The Fiat brand and 24V rating do not make the starter universal. Buyers need a straight mounting view, pinion image, both body sides and terminal position before a specific replacement is proposed.

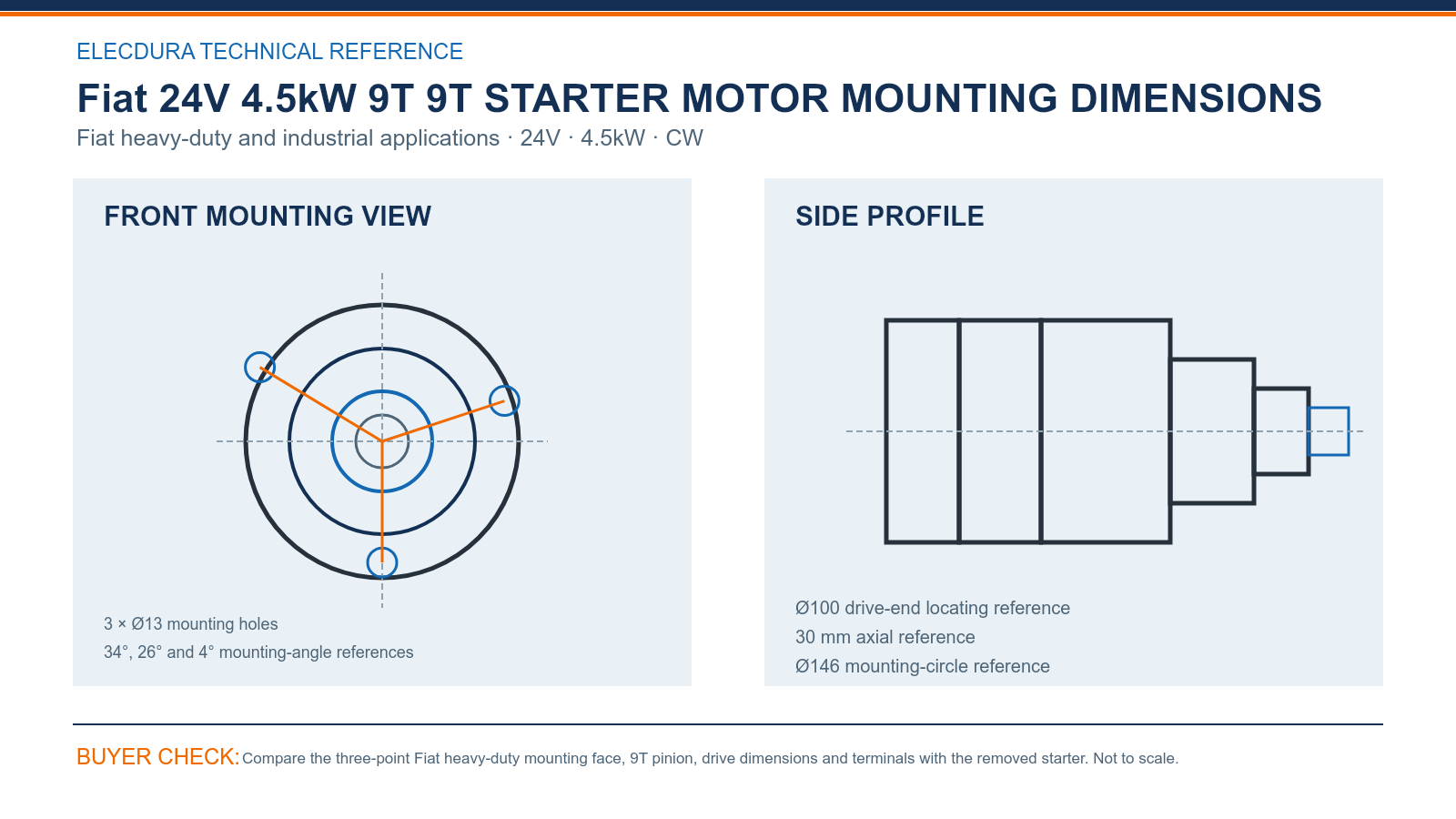

Fiat 24V 4.5kW 9T Starter Motor Drawing for Sample Comparison

The defined configuration is 24V, 4.5kW, 9T, module 3 and clockwise rotation. These values provide the first screening step, but the three-hole drive end completes the physical comparison.

Fiat 24V 4.5kW 9T Starter Motor Dimensions for Sample Matching — compare the drawing with the removed starter before placing a volume order.

Measure three Ø13 holes, the Ø146 mounting circle, Ø100 locating reference, 30 mm axial position and 34°, 26° and 4° mounting angles against the removed unit.

Fiat 24V 4.5kW 9T Starter Motor Fitment Scope for Buyers

No unsupported OE number is added to this product identity. A complete Fiat application description, measured dimensions and comparable photographs allow the buyer and Elecdura to discuss the actual product instead.

For an uncertain volume request, one physical sample may be the fastest route to a reliable match. After confirmation, the distributor can name the item from the full specification and accepted image.

Fiat 24V 4.5kW 9T Starter Motor B2B Supply and Video

Receiving staff should compare the sample, nine-tooth pinion, flange geometry and connection layout before units enter branch stock. That first inspection becomes the practical reference for later deliveries.

Elecdura's video shows starter-motor production and electrical testing for B2B supply. It helps Fiat buyers assess manufacturing capability while the product match continues to rely on the sample and measured interface.

Fiat 24V 4.5kW 9T Starter Motor FAQs for B2B Buyers

How can a Fiat buyer request this starter when the old OE number is unreadable?

A readable OE number is helpful but not essential for the first comparison. Send the Fiat machine or vehicle details, 24V 4.5kW 9T CW specification, straight mounting-face image, both body sides, pinion and terminals. Elecdura can then compare the actual interface without assigning an unsupported number.

Is this Fiat starter intended for every 24V Fiat machine?

No. Fiat covers many engines and machines with different starter constructions. This product is limited to the specified 24V 4.5kW 9T CW configuration and three-hole geometry. The buyer should provide the host application and removed-unit views before assuming that the unit fits another Fiat installation.

Which photographs are most useful for a number-free comparison?

Use straight mounting face, pinion, both body sides, solenoid terminals and any remaining label to build a side-by-side comparison with the removed starter. For Fiat 24V 4.5kW 9T, matching views should show the Fiat application, 9T drive, measured three-hole face and terminal layout without perspective distortion. This gives the technical team comparable evidence instead of casual angled images.

Which drawing values define the Fiat three-hole housing?

The Fiat 24V 4.5kW 9T physical comparison should cover 3 × Ø13 holes, Ø146 circle, Ø100 locating, 30 mm axial reference and 34°/26°/4° angles. Relate those dimensions to the Fiat application, 9T drive, measured three-hole face and terminal layout before accepting a similar-looking housing. This allows a physical match when the reference is missing. Include the confirmed Fiat 24V 4.5kW 9T configuration in later forecasts and repeat purchases.

When is a physical sample the best next step for this Fiat starter?

A physical sample is the best next step when the label is missing, the machine description is broad, or photographs cannot prove the mounting depth and terminal orientation. Comparing the sample before a volume order gives the distributor a clear product identity for receiving, shelf labels and future replenishment.

What drive details must be visible in the buyer's comparison?

Keep 9T, module 3 and CW together in the Fiat 24V 4.5kW 9T product description and purchase order. Compare the pinion details, CW rotation and measured mounting interface rather than relying on one headline value. This protects engagement and direction when the mounting outline alone looks correct. Attach the confirmed Fiat 24V 4.5kW 9T comparison to the quotation so receiving can check the same product.

How should a distributor name the confirmed item for repeat orders?

Plan and label Fiat 24V 4.5kW 9T stock from Fiat application, full specification, verified geometry and accepted product image. Keep the Fiat application, 9T drive, measured three-hole face and terminal layout visible on cartons, bin cards and branch transfers so urgent demand does not create a wrong substitution. This creates a repeatable identity without inventing an OE cross-reference.

What should accompany a sample-based Fiat wholesale enquiry?

A quotation request should include sample or measured dimensions, image set, required quantity, packing, destination and schedule. Keeping those details with Fiat 24V 4.5kW 9T lets sales address the product match and commercial terms in one response. This provides enough technical and commercial information for a responsible quotation. Use the confirmed Fiat 24V 4.5kW 9T combination on the purchase order and receiving sheet.

Request Fiat 24V 4.5kW 9T Starter Motor Pricing by Sample

Send the Fiat machine or vehicle details, any readable markings, a straight six-view photo set, measured mounting dimensions, quantity, packing needs and destination to info@elecdurauto.com. Elecdura will review the sample-based match and provide an appropriate distributor quotation.
