0695-06-00
0695-06-00
OE-Equivalent Replacement Quality
IATF 16949 / ISO 9001 / CE / RoHS
50 pcs
7 - 15 Days
12 Months
0695-06-00
Hydraulic systems using 0695-06-00 and the matching 19W lead-wire coil version
Confirm 12v or 24v, 19w, lead wire, coil bore and retaining method before installation.
| Quantity: | |
|---|---|

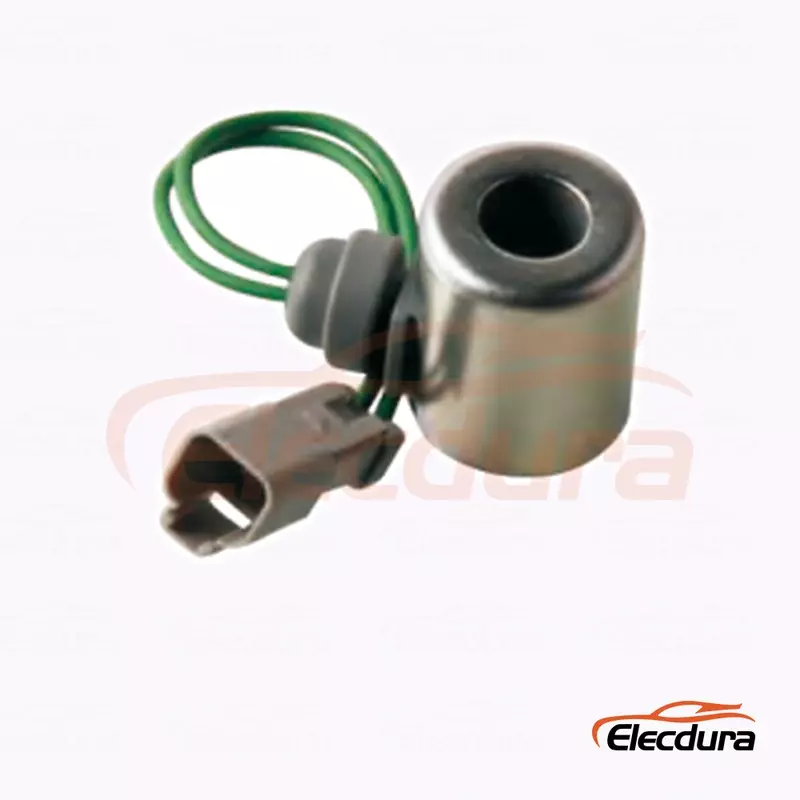

0695-06-00 is a hydraulic solenoid valve coil for Hydraulic systems using 0695-06-00 and the matching 19W lead-wire coil version. Buyers should confirm the full reference, 12v or 24v, lead wire, coil bore and body construction before approving replacement stock.
Specification | Confirmed Information |
|---|---|
Product Type | Hydraulic Solenoid Valve Coil |
Primary Reference | 0695-06-00 |
Cross References | 0695-06-00 |
Voltage | 12V or 24V |
Power | 19W |
Connector | Lead wire |
Insulation Class | H |
Application Scope | Hydraulic systems using 0695-06-00 and the matching 19W lead-wire coil version |
MOQ | 50 pcs |
Delivery Time | 7 to 15 Days |
Warranty | 12 Months |
Complete every control point below before a sample or bulk order is released.
Approval Point | Buyer Review |
|---|---|
Reference | 0695-06-00 |
Electrical | 12V or 24V; 19W; verify under load |
Connector | Lead wire |
Mechanical | Compare bore, height, body shape and retaining method |
Machine Evidence | Hydraulic systems using 0695-06-00 and the matching 19W lead-wire coil version |
Separate electrical command, component movement and final machine response so the actual wiring or hydraulic fault is not hidden by parts replacement.
Observed Condition | Recommended Check |
|---|---|
No magnetic pull | Check loaded voltage, ground, continuity and coil resistance. |
Intermittent operation | Inspect terminal retention, lead damage and heat-related winding faults. |
Excessive heating | Confirm voltage, wattage, duty cycle and free valve-stem movement. |
Connector damage | Inspect keying, seals, corrosion and harness side loading. |
Correct coil, no hydraulic response | Inspect the armature, spool, oil cleanliness and machine command. |
When a warm hydraulic system develops slow response, keep the verified measurements and test result in the service record. Approve the complete old marking, 12v or 24v rating, 19w power reference, lead wire, coil bore, body height and retaining method. A matching voltage alone does not prove fit. Send straight-on connector, top-bore and side-profile photographs with measurements so the replacement is selected from electrical and mechanical evidence.
When a serial-controlled overhaul is planned, keep the verified measurements and test result in the service record. Measure voltage directly across the energized coil while the machine issues the real hydraulic command. An unloaded harness reading can hide resistance at a corroded terminal, relay or ground path. Compare the loaded result with 12v or 24v, record polarity where suppression is present and correct the circuit before blaming a new coil for weak magnetic pull.
When a fleet contains two similar coil versions, keep the verified measurements and test result in the service record. Power affects current draw, heat generation and available magnetic force. A replacement with another wattage may fit the valve stem yet operate too weakly, run hotter or exceed a controller output. Confirm 19w from the old label or approved specification, then compare warm current and temperature during sample testing before releasing a bulk order.
When an emergency field repair is reviewed, keep the verified measurements and test result in the service record. Disconnect power and compare measured resistance at a stable temperature with an approved sample of the same 12v or 24v and 19w version. An open circuit indicates a broken winding, while an unusually low value suggests shorted turns. Resistance alone cannot confirm hydraulic valve movement, so complete a loaded-voltage and functional test as well.
When a hydraulic schematic uses different port labels, keep the verified measurements and test result in the service record. No. The coil produces magnetic force but the armature and hydraulic element must move freely. Inspect the stem for corrosion, contamination, impact damage and correct retaining hardware. If the valve remains stuck, a new coil may heat or appear weak even when its electrical condition is normal, leading to repeated unnecessary replacement.
When a fleet contains two similar coil versions, keep the verified measurements and test result in the service record. Current under the actual voltage provides a practical comparison with the approved sample and can reveal wiring resistance or an electrically different coil. Record cold and stabilized warm values because winding resistance changes with temperature. An abnormal current must be investigated together with voltage, resistance, connector condition and valve movement before the part is rejected.
When a machine returns after long storage, keep the verified measurements and test result in the service record. Record the returned label, machine information, supply voltage under command, coil resistance, current draw, connector condition, operating temperature and valve-stem movement. Photograph heat damage or oil ingress before disassembly. This evidence separates manufacturing defects from overvoltage, harness resistance, incorrect duty cycle or a stuck hydraulic element and supports a useful corrective action.
Send the complete old marking or component evidence, confirmed voltage, machine information, clear photos, measurements and required quantity for a fitment-focused B2B quotation.
