5002253-12-00
5002253-12-00
OE-Equivalent Replacement Quality
IATF 16949 / ISO 9001 / CE / RoHS
50 pcs
7 - 15 Days
12 Months
5002253-12-00
Automotive valve service using the full 5002253-12-00 coil suffix and matching 12V connector construction
Confirm 12v, 12.8w, insert connector, coil bore and retaining method before installation.
| Quantity: | |
|---|---|

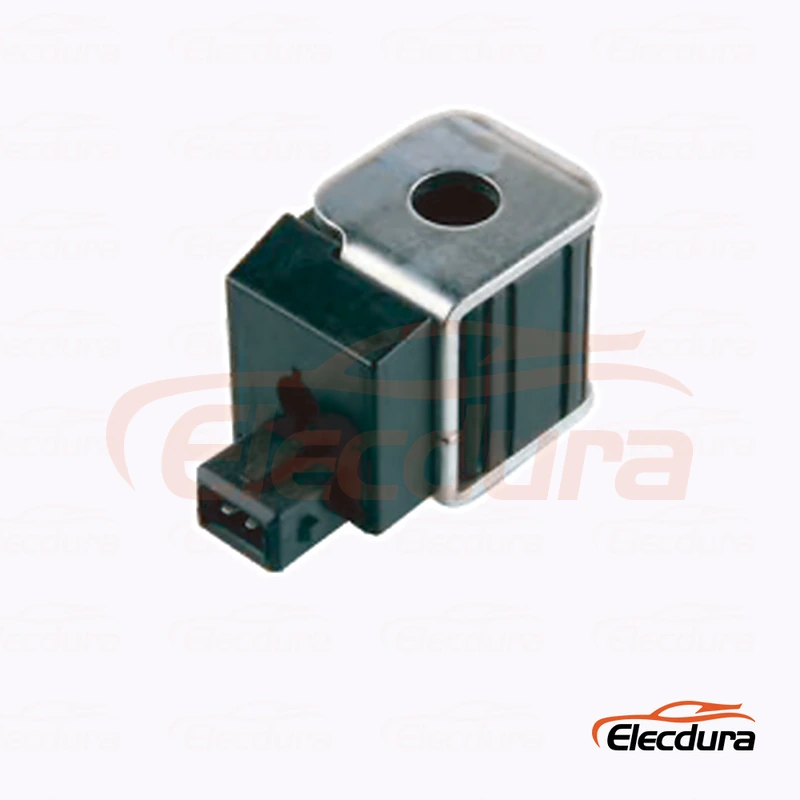

5002253-12-00 is a automotive hydraulic solenoid coil for Automotive valve service using the full 5002253-12-00 coil suffix and matching 12V connector construction. Buyers should confirm the full reference, 12v, insert connector, coil bore and body construction before approving replacement stock.
Specification | Confirmed Information |
|---|---|
Product Type | Automotive Hydraulic Solenoid Coil |
Primary Reference | 5002253-12-00 |
Cross References | 5002253-12-00 |
Voltage | 12V |
Power | 12.8W |
Connector | Insert connector |
Insulation Class | F/H |
Application Scope | Automotive valve service using the full 5002253-12-00 coil suffix and matching 12V connector construction |
MOQ | 50 pcs |
Delivery Time | 7 to 15 Days |
Warranty | 12 Months |
Complete every control point below before a sample or bulk order is released.
Approval Point | Buyer Review |
|---|---|
Reference | 5002253-12-00 |
Electrical | 12V; 12.8W; verify under load |
Connector | Insert connector |
Mechanical | Compare bore, height, body shape and retaining method |
Machine Evidence | Automotive valve service using the full 5002253-12-00 coil suffix and matching 12V connector construction |
Separate electrical command, component movement and final machine response so the actual wiring or hydraulic fault is not hidden by parts replacement.
Observed Condition | Recommended Check |
|---|---|
No magnetic pull | Check loaded voltage, ground, continuity and coil resistance. |
Intermittent operation | Inspect terminal retention, lead damage and heat-related winding faults. |
Excessive heating | Confirm voltage, wattage, duty cycle and free valve-stem movement. |
Connector damage | Inspect keying, seals, corrosion and harness side loading. |
Correct coil, no hydraulic response | Inspect the armature, spool, oil cleanliness and machine command. |
When warehouse stock must remain voltage-separated, keep the verified measurements and test result in the service record. Approve the complete old marking, 12v rating, 12.8w power reference, insert connector, coil bore, body height and retaining method. A matching voltage alone does not prove fit. Send straight-on connector, top-bore and side-profile photographs with measurements so the replacement is selected from electrical and mechanical evidence.
When a mixed-voltage shipment reaches receiving inspection, keep the verified measurements and test result in the service record. Measure voltage directly across the energized coil while the machine issues the real hydraulic command. An unloaded harness reading can hide resistance at a corroded terminal, relay or ground path. Compare the loaded result with 12v, record polarity where suppression is present and correct the circuit before blaming a new coil for weak magnetic pull.
When a warranty claim is reviewed, keep the verified measurements and test result in the service record. Compare pin count, key position, latch direction, cable exit, terminal size and seal arrangement. Similar coil bodies may use a Deutsch, Weatherpack, insert or lead-wire connection that is not electrically or mechanically interchangeable. Photograph the connector face beside a ruler and note any diode or polarity marking before purchasing or adapting the harness.
When a customer reports intermittent operation, keep the verified measurements and test result in the service record. Measure the internal bore diameter, overall height, outside width, shoulder position and retaining-nut clearance on the removed coil. Also record valve-stem length and connector orientation after installation. A coil can have the correct electrical rating but fail to seat fully or interfere with surrounding hardware when its mechanical envelope differs.
When cold-start commissioning is completed, keep the verified measurements and test result in the service record. Provide the complete old marking, measured voltage, connector-face photograph, bore and height dimensions, power reference, valve or machine application, quantity and destination. If the label is missing, include current draw and clear views from every side. This evidence allows technical approval and commercial quotation to proceed together without relying on appearance alone.
When a fleet contains two similar coil versions, keep the verified measurements and test result in the service record. Match the carton and coil labels to the purchase order, measure sample resistance, inspect connector keying and verify bore and height. Keep 12V, 24V and unusual voltage stock in separate labeled locations. A visual check alone is insufficient because several voltage versions can share the same molded body and connector.
When a repeat overheating case is investigated, keep the verified measurements and test result in the service record. Inspect the latch, cavity seals and terminal surfaces before connection. Keep moisture, hydraulic oil and cleaning chemicals away from the contact area, and never force a mismatched plug into the housing. After installation, confirm the connector locks without side loading and that nearby hardware does not press on the coil or cable exit.
Send the complete old marking or component evidence, confirmed voltage, machine information, clear photos, measurements and required quantity for a fitment-focused B2B quotation.
