OE-Equivalent Replacement Quality
IATF 16949 / ISO 9001 / CE / RoHS
50 pcs
7 - 15 Days
12 Months
Low-voltage hydraulic systems requiring a 6V Deutsch coil with the matching rectangular body and bore
Confirm 6v, not stated, deutsch connector, coil bore and retaining method before installation.
| Quantity: | |
|---|---|

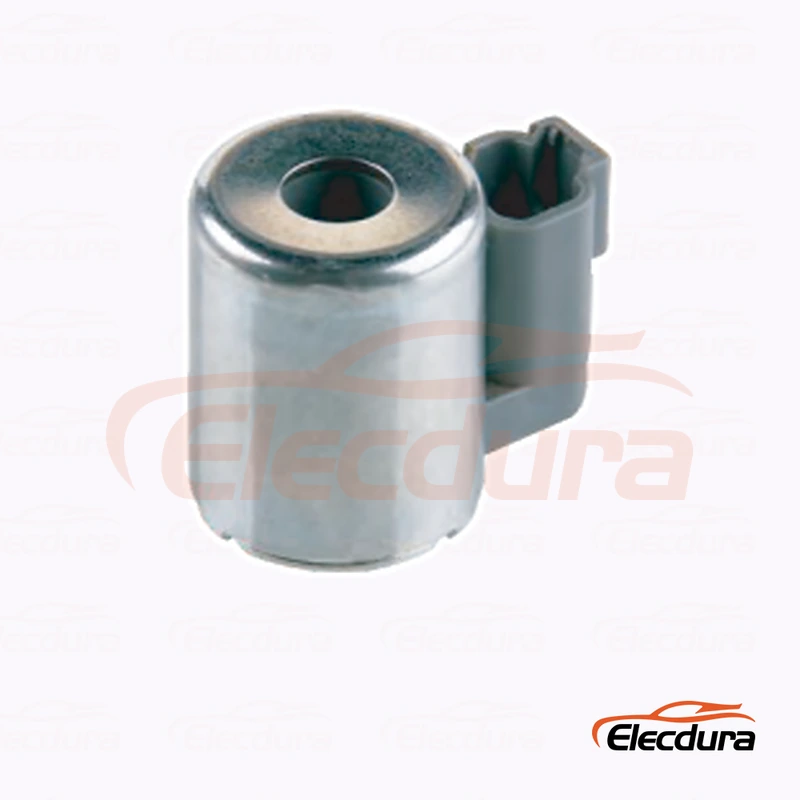

6V Hydraulic Solenoid Valve Coil is a hydraulic solenoid valve coil for Low-voltage hydraulic systems requiring a 6V Deutsch coil with the matching rectangular body and bore. Buyers should confirm old-coil evidence, 6v, deutsch connector, coil bore and body construction before approving replacement stock.
Specification | Confirmed Information |
|---|---|
Product Type | Hydraulic Solenoid Valve Coil |
Primary Reference | Construction-specific replacement |
Cross References | No verified public OE number assigned |
Voltage | 6V |
Power | Not stated |
Connector | Deutsch connector |
Insulation Class | F/H |
Application Scope | Low-voltage hydraulic systems requiring a 6V Deutsch coil with the matching rectangular body and bore |
MOQ | 50 pcs |
Delivery Time | 7 to 15 Days |
Warranty | 12 Months |
Complete every control point below before a sample or bulk order is released.
Approval Point | Buyer Review |
|---|---|
Reference | Use complete old-coil evidence |
Electrical | 6V; Not stated; verify under load |
Connector | Deutsch connector |
Mechanical | Compare bore, height, body shape and retaining method |
Machine Evidence | Low-voltage hydraulic systems requiring a 6V Deutsch coil with the matching rectangular body and bore |
Separate electrical command, component movement and final machine response so the actual wiring or hydraulic fault is not hidden by parts replacement.
Observed Condition | Recommended Check |
|---|---|
No magnetic pull | Check loaded voltage, ground, continuity and coil resistance. |
Intermittent operation | Inspect terminal retention, lead damage and heat-related winding faults. |
Excessive heating | Confirm voltage, wattage, duty cycle and free valve-stem movement. |
Connector damage | Inspect keying, seals, corrosion and harness side loading. |
Correct coil, no hydraulic response | Inspect the armature, spool, oil cleanliness and machine command. |
When a machine harness revision is compared, keep the verified measurements and test result in the service record. Approve the complete old marking, 6v rating, not stated power reference, deutsch connector, coil bore, body height and retaining method. A matching voltage alone does not prove fit. Send straight-on connector, top-bore and side-profile photographs with measurements so the replacement is selected from electrical and mechanical evidence.
When export packing is approved, keep the verified measurements and test result in the service record. Measure voltage directly across the energized coil while the machine issues the real hydraulic command. An unloaded harness reading can hide resistance at a corroded terminal, relay or ground path. Compare the loaded result with 6v, record polarity where suppression is present and correct the circuit before blaming a new coil for weak magnetic pull.
When the approved sample and new lot are compared, keep the verified measurements and test result in the service record. Compare pin count, key position, latch direction, cable exit, terminal size and seal arrangement. Similar coil bodies may use a Deutsch, Weatherpack, insert or lead-wire connection that is not electrically or mechanically interchangeable. Photograph the connector face beside a ruler and note any diode or polarity marking before purchasing or adapting the harness.
When contamination is found in the circuit, keep the verified measurements and test result in the service record. A plain winding may operate with either polarity, but a coil containing a diode or other suppression device can be polarity-sensitive. Reversed connection may prevent correct operation or damage the suppression component. Check markings and the equipment schematic before applying power, and keep pin assignments with the approved sample and production inspection record.
When a machine returns after long storage, keep the verified measurements and test result in the service record. Insulation class is one indicator of winding temperature capability, but it does not authorize overvoltage, blocked armature operation or continuous duty beyond the product design. Keep the catalogued class with voltage and wattage records. During sample testing, confirm actual stabilized temperature under the intended command cycle and installation environment.
When an old label is partly unreadable, keep the verified measurements and test result in the service record. Inspect the latch, cavity seals and terminal surfaces before connection. Keep moisture, hydraulic oil and cleaning chemicals away from the contact area, and never force a mismatched plug into the housing. After installation, confirm the connector locks without side loading and that nearby hardware does not press on the coil or cable exit.
When a buyer must approve a cross-reference, keep the verified measurements and test result in the service record. Use the full suffix, voltage, wattage, connector, bore, body shape and harness layout as separate controls. A shared base number may cover several constructions or electrical options. Keep a photograph and measured drawing of each approved version, and never combine inventory until the old unit and sample match on every controlled feature.
Send the complete old marking or component evidence, confirmed voltage, machine information, clear photos, measurements and required quantity for a fitment-focused B2B quotation.
