600103
600103 / 29961811-11-00
OE-Equivalent Replacement Quality
IATF 16949 / ISO 9001 / CE / RoHS
50 pcs
7 - 15 Days
12 Months
600103 / 29961811-11-00
Hydraulic systems using reference 600103 or 29961811-11-00 with the correct voltage and sealed connector
Confirm 12v or 24v, 14w, arm super seal connector, coil bore and retaining method before installation.
| Availability: | |
|---|---|
| Quantity: | |

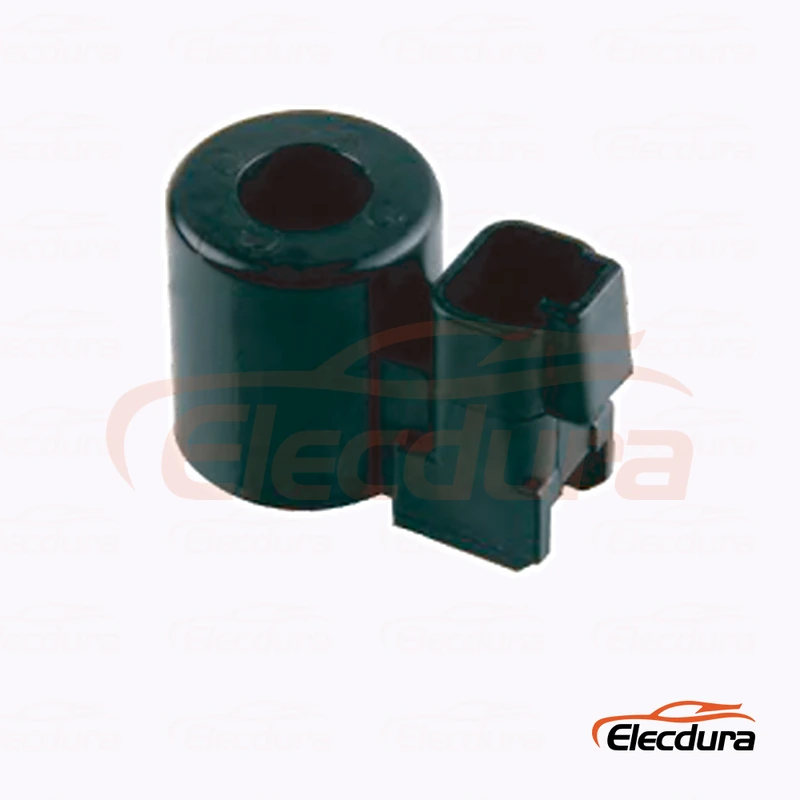

600103 is a hydraulic solenoid valve coil for Hydraulic systems using reference 600103 or 29961811-11-00 with the correct voltage and sealed connector. Buyers should confirm the full reference, 12v or 24v, arm super seal connector, coil bore and body construction before approving replacement stock.
Specification |
Confirmed Information |
|---|---|
Product Type |
Hydraulic Solenoid Valve Coil |
Primary Reference |
600103 |
Cross References |
600103 / 29961811-11-00 |
Voltage |
12V or 24V |
Power |
14W |
Connector |
Arm Super Seal connector |
Insulation Class |
H |
Application Scope |
Hydraulic systems using reference 600103 or 29961811-11-00 with the correct voltage and sealed connector |
MOQ |
50 pcs |
Delivery Time |
7 to 15 Days |
Warranty |
12 Months |
Complete every control point below before a sample or bulk order is released.
Approval Point |
Buyer Review |
|---|---|
Reference |
600103 / 29961811-11-00 |
Electrical |
12V or 24V; 14W; verify under load |
Connector |
Arm Super Seal connector |
Mechanical |
Compare bore, height, body shape and retaining method |
Machine Evidence |
Hydraulic systems using reference 600103 or 29961811-11-00 with the correct voltage and sealed connector |
Separate electrical command, component movement and final machine response so the actual wiring or hydraulic fault is not hidden by parts replacement.
Observed Condition |
Recommended Check |
|---|---|
No magnetic pull |
Check loaded voltage, ground, continuity and coil resistance. |
Intermittent operation |
Inspect terminal retention, lead damage and heat-related winding faults. |
Excessive heating |
Confirm voltage, wattage, duty cycle and free valve-stem movement. |
Connector damage |
Inspect keying, seals, corrosion and harness side loading. |
Correct coil, no hydraulic response |
Inspect the armature, spool, oil cleanliness and machine command. |
When a distributor prepares repeat stock, keep the verified measurements and test result in the service record. Approve the complete old marking, 12v or 24v rating, 14w power reference, arm super seal connector, coil bore, body height and retaining method. A matching voltage alone does not prove fit. Send straight-on connector, top-bore and side-profile photographs with measurements so the replacement is selected from electrical and mechanical evidence.
When a warranty claim is reviewed, keep the verified measurements and test result in the service record. Measure voltage directly across the energized coil while the machine issues the real hydraulic command. An unloaded harness reading can hide resistance at a corroded terminal, relay or ground path. Compare the loaded result with 12v or 24v, record polarity where suppression is present and correct the circuit before blaming a new coil for weak magnetic pull.
When a customer reports intermittent operation, keep the verified measurements and test result in the service record. Power affects current draw, heat generation and available magnetic force. A replacement with another wattage may fit the valve stem yet operate too weakly, run hotter or exceed a controller output. Confirm 14w from the old label or approved specification, then compare warm current and temperature during sample testing before releasing a bulk order.
When a distributor prepares repeat stock, keep the verified measurements and test result in the service record. Verify loaded supply voltage, current draw, duty cycle, connector resistance and whether the hydraulic armature reaches full travel. A stuck valve can keep magnetic demand high, while overvoltage or the wrong wattage can overheat the winding. Inspect oil contamination and valve movement before replacing the coil again so the root cause is corrected.
When a first article sample is approved, keep the verified measurements and test result in the service record. Insulation class is one indicator of winding temperature capability, but it does not authorize overvoltage, blocked armature operation or continuous duty beyond the product design. Keep the catalogued class with voltage and wattage records. During sample testing, confirm actual stabilized temperature under the intended command cycle and installation environment.
When export packing is approved, keep the verified measurements and test result in the service record. Examine the cable exit for cracking, strain, oil ingress and conductor damage near the coil body. Flex the harness gently while monitoring continuity, then inspect the remote connector and terminal seals. Do not pull on the leads during installation, and secure the harness so vibration or sharp edges cannot reproduce an intermittent fault.
When a new supplier lot enters dimensional inspection, keep the verified measurements and test result in the service record. Use the full suffix, voltage, wattage, connector, bore, body shape and harness layout as separate controls. A shared base number may cover several constructions or electrical options. Keep a photograph and measured drawing of each approved version, and never combine inventory until the old unit and sample match on every controlled feature.
Send the complete old marking or component evidence, confirmed voltage, machine information, clear photos, measurements and required quantity for a fitment-focused B2B quotation.
