DHF10-232A
DHF10-232A / 25/220992
OE-Equivalent Replacement Quality
IATF 16949 / ISO 9001 / CE / RoHS
50 pcs
7 - 15 Days
12 Months
DHF10-232A / 25/220992
Perkins and compatible hydraulic cartridge service using DHF10-232A with the matching 12V coil
Confirm 12v, 8w, insert connector, coil bore and retaining method before installation.
| Availability: | |
|---|---|
| Quantity: | |

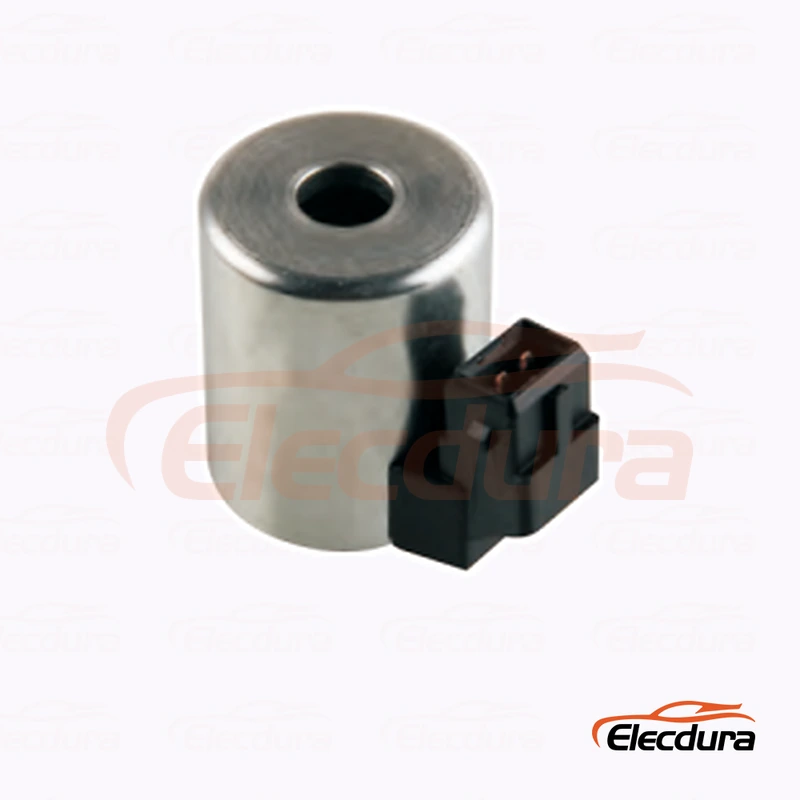

DHF10-232A is a hydraulic cartridge valve solenoid coil for Perkins and compatible hydraulic cartridge service using DHF10-232A with the matching 12V coil. Buyers should confirm the full reference, 12v, insert connector, coil bore and body construction before approving replacement stock.
Specification | Confirmed Information |
|---|---|
Product Type | Hydraulic Cartridge Valve Solenoid Coil |
Primary Reference | DHF10-232A |
Cross References | DHF10-232A / 25/220992 |
Voltage | 12V |
Power | 8W |
Connector | Insert connector |
Insulation Class | F/H |
Application Scope | Perkins and compatible hydraulic cartridge service using DHF10-232A with the matching 12V coil |
MOQ | 50 pcs |
Delivery Time | 7 to 15 Days |
Warranty | 12 Months |
Complete every control point below before a sample or bulk order is released.
Approval Point | Buyer Review |
|---|---|
Reference | DHF10-232A / 25/220992 |
Electrical | 12V; 8W; verify under load |
Connector | Insert connector |
Mechanical | Compare bore, height, body shape and retaining method |
Machine Evidence | Perkins and compatible hydraulic cartridge service using DHF10-232A with the matching 12V coil |
Separate electrical command, component movement and final machine response so the actual wiring or hydraulic fault is not hidden by parts replacement.
Observed Condition | Recommended Check |
|---|---|
No magnetic pull | Check loaded voltage, ground, continuity and coil resistance. |
Intermittent operation | Inspect terminal retention, lead damage and heat-related winding faults. |
Excessive heating | Confirm voltage, wattage, duty cycle and free valve-stem movement. |
Connector damage | Inspect keying, seals, corrosion and harness side loading. |
Correct coil, no hydraulic response | Inspect the armature, spool, oil cleanliness and machine command. |
When cold-start commissioning is completed, keep the verified measurements and test result in the service record. Approve the complete old marking, 12v rating, 8w power reference, insert connector, coil bore, body height and retaining method. A matching voltage alone does not prove fit. Send straight-on connector, top-bore and side-profile photographs with measurements so the replacement is selected from electrical and mechanical evidence.
When a remote service kit is prepared, keep the verified measurements and test result in the service record. Measure voltage directly across the energized coil while the machine issues the real hydraulic command. An unloaded harness reading can hide resistance at a corroded terminal, relay or ground path. Compare the loaded result with 12v, record polarity where suppression is present and correct the circuit before blaming a new coil for weak magnetic pull.
When a technician checks current draw under load, keep the verified measurements and test result in the service record. Compare pin count, key position, latch direction, cable exit, terminal size and seal arrangement. Similar coil bodies may use a Deutsch, Weatherpack, insert or lead-wire connection that is not electrically or mechanically interchangeable. Photograph the connector face beside a ruler and note any diode or polarity marking before purchasing or adapting the harness.
When a distributor prepares repeat stock, keep the verified measurements and test result in the service record. Measure the internal bore diameter, overall height, outside width, shoulder position and retaining-nut clearance on the removed coil. Also record valve-stem length and connector orientation after installation. A coil can have the correct electrical rating but fail to seat fully or interfere with surrounding hardware when its mechanical envelope differs.
When a machine harness revision is compared, keep the verified measurements and test result in the service record. Insulation class is one indicator of winding temperature capability, but it does not authorize overvoltage, blocked armature operation or continuous duty beyond the product design. Keep the catalogued class with voltage and wattage records. During sample testing, confirm actual stabilized temperature under the intended command cycle and installation environment.
When a controller output fault is suspected, keep the verified measurements and test result in the service record. Examine the cable exit for cracking, strain, oil ingress and conductor damage near the coil body. Flex the harness gently while monitoring continuity, then inspect the remote connector and terminal seals. Do not pull on the leads during installation, and secure the harness so vibration or sharp edges cannot reproduce an intermittent fault.
When a new supplier lot enters dimensional inspection, keep the verified measurements and test result in the service record. Current under the actual voltage provides a practical comparison with the approved sample and can reveal wiring resistance or an electrically different coil. Record cold and stabilized warm values because winding resistance changes with temperature. An abnormal current must be investigated together with voltage, resistance, connector condition and valve movement before the part is rejected.
Send the complete old marking or component evidence, confirmed voltage, machine information, clear photos, measurements and required quantity for a fitment-focused B2B quotation.
