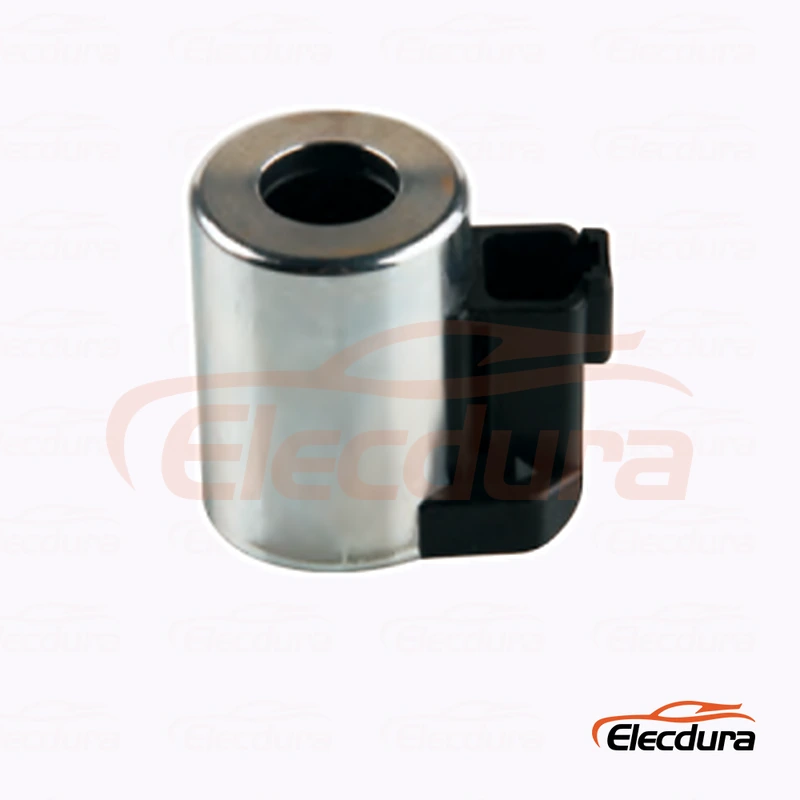

24V Hydraulic Solenoid Valve Coil is a hydraulic solenoid valve coil for Hydraulic systems requiring a 24V square Deutsch coil with the same bore, connector key and mounting envelope. Buyers should confirm old-coil evidence, 24v, deutsch connector, coil bore and body construction before approving replacement stock.
Specification | Confirmed Information |
|---|---|
Product Type | Hydraulic Solenoid Valve Coil |
Primary Reference | Construction-specific replacement |
Cross References | No verified public OE number assigned |
Voltage | 24V |
Power | Not stated |
Connector | Deutsch connector |
Insulation Class | F/H |
Application Scope | Hydraulic systems requiring a 24V square Deutsch coil with the same bore, connector key and mounting envelope |
MOQ | 50 pcs |
Delivery Time | 7 to 15 Days |
Warranty | 12 Months |
Complete every control point below before a sample or bulk order is released.
Approval Point | Buyer Review |
|---|---|
Reference | Use complete old-coil evidence |
Electrical | 24V; Not stated; verify under load |
Connector | Deutsch connector |
Mechanical | Compare bore, height, body shape and retaining method |
Machine Evidence | Hydraulic systems requiring a 24V square Deutsch coil with the same bore, connector key and mounting envelope |
Separate electrical command, component movement and final machine response so the actual wiring or hydraulic fault is not hidden by parts replacement.
Observed Condition | Recommended Check |
|---|---|
No magnetic pull | Check loaded voltage, ground, continuity and coil resistance. |
Intermittent operation | Inspect terminal retention, lead damage and heat-related winding faults. |
Excessive heating | Confirm voltage, wattage, duty cycle and free valve-stem movement. |
Connector damage | Inspect keying, seals, corrosion and harness side loading. |
Correct coil, no hydraulic response | Inspect the armature, spool, oil cleanliness and machine command. |
When a technician checks current draw under load, keep the verified measurements and test result in the service record. Approve the complete old marking, 24v rating, not stated power reference, deutsch connector, coil bore, body height and retaining method. A matching voltage alone does not prove fit. Send straight-on connector, top-bore and side-profile photographs with measurements so the replacement is selected from electrical and mechanical evidence.
When a distributor prepares repeat stock, keep the verified measurements and test result in the service record. Measure voltage directly across the energized coil while the machine issues the real hydraulic command. An unloaded harness reading can hide resistance at a corroded terminal, relay or ground path. Compare the loaded result with 24v, record polarity where suppression is present and correct the circuit before blaming a new coil for weak magnetic pull.
When a remote service kit is prepared, keep the verified measurements and test result in the service record. Compare pin count, key position, latch direction, cable exit, terminal size and seal arrangement. Similar coil bodies may use a Deutsch, Weatherpack, insert or lead-wire connection that is not electrically or mechanically interchangeable. Photograph the connector face beside a ruler and note any diode or polarity marking before purchasing or adapting the harness.
When a machine returns after long storage, keep the verified measurements and test result in the service record. Disconnect power and compare measured resistance at a stable temperature with an approved sample of the same 24v and not stated version. An open circuit indicates a broken winding, while an unusually low value suggests shorted turns. Resistance alone cannot confirm hydraulic valve movement, so complete a loaded-voltage and functional test as well.
When an old label is partly unreadable, keep the verified measurements and test result in the service record. Install one sample on the correct valve stem, confirm connector engagement and retaining clearance, then record cold current, warm current, operating temperature and hydraulic response through several command cycles. Compare results with the removed coil. Retain the approved sample and test sheet so later lots can be inspected against the same acceptance criteria.
When a return analysis starts without machine records, keep the verified measurements and test result in the service record. No. The coil produces magnetic force but the armature and hydraulic element must move freely. Inspect the stem for corrosion, contamination, impact damage and correct retaining hardware. If the valve remains stuck, a new coil may heat or appear weak even when its electrical condition is normal, leading to repeated unnecessary replacement.
When export packing is approved, keep the verified measurements and test result in the service record. Inspect the latch, cavity seals and terminal surfaces before connection. Keep moisture, hydraulic oil and cleaning chemicals away from the contact area, and never force a mismatched plug into the housing. After installation, confirm the connector locks without side loading and that nearby hardware does not press on the coil or cable exit.
Send the complete old marking or component evidence, confirmed voltage, machine information, clear photos, measurements and required quantity for a fitment-focused B2B quotation.
