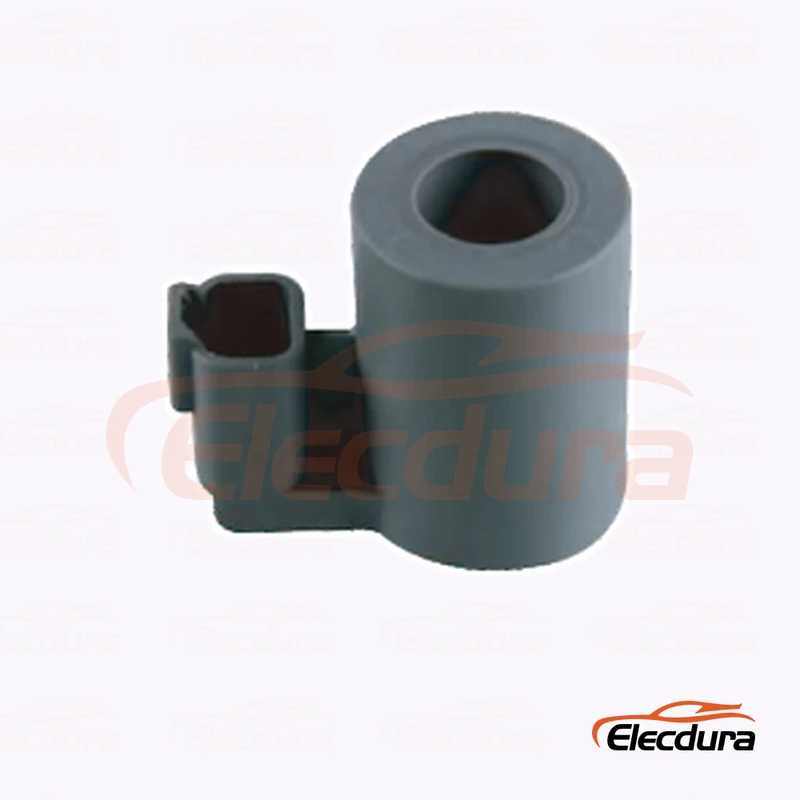

48956909-02-00
Hydraulic systems using the complete 48956909-02-00 reference and matching high-power 12V Deutsch coil
Confirm 12v, 115.2w, deutsch connector, coil bore and retaining method before installation.
| Quantity: | |
|---|---|
48956909-02-00 is a hydraulic solenoid valve coil for Hydraulic systems using the complete 48956909-02-00 reference and matching high-power 12V Deutsch coil. Buyers should confirm the full reference, 12v, deutsch connector, coil bore and body construction before approving replacement stock.
Specification | Confirmed Information |
|---|---|
Product Type | Hydraulic Solenoid Valve Coil |
Primary Reference | 48956909-02-00 |
Cross References | 48956909-02-00 |
Voltage | 12V |
Power | 115.2W |
Connector | Deutsch connector |
Insulation Class | F/H |
Application Scope | Hydraulic systems using the complete 48956909-02-00 reference and matching high-power 12V Deutsch coil |
MOQ | 50 pcs |
Delivery Time | 7 to 15 Days |
Warranty | 12 Months |
Complete every control point below before a sample or bulk order is released.
Approval Point | Buyer Review |
|---|---|
Reference | 48956909-02-00 |
Electrical | 12V; 115.2W; verify under load |
Connector | Deutsch connector |
Mechanical | Compare bore, height, body shape and retaining method |
Machine Evidence | Hydraulic systems using the complete 48956909-02-00 reference and matching high-power 12V Deutsch coil |
Separate electrical command, component movement and final machine response so the actual wiring or hydraulic fault is not hidden by parts replacement.
Observed Condition | Recommended Check |
|---|---|
No magnetic pull | Check loaded voltage, ground, continuity and coil resistance. |
Intermittent operation | Inspect terminal retention, lead damage and heat-related winding faults. |
Excessive heating | Confirm voltage, wattage, duty cycle and free valve-stem movement. |
Connector damage | Inspect keying, seals, corrosion and harness side loading. |
Correct coil, no hydraulic response | Inspect the armature, spool, oil cleanliness and machine command. |
When an installer measures unexpected voltage drop, keep the verified measurements and test result in the service record. Approve the complete old marking, 12v rating, 115.2w power reference, deutsch connector, coil bore, body height and retaining method. A matching voltage alone does not prove fit. Send straight-on connector, top-bore and side-profile photographs with measurements so the replacement is selected from electrical and mechanical evidence.
When a buyer must approve a cross-reference, keep the verified measurements and test result in the service record. Measure voltage directly across the energized coil while the machine issues the real hydraulic command. An unloaded harness reading can hide resistance at a corroded terminal, relay or ground path. Compare the loaded result with 12v, record polarity where suppression is present and correct the circuit before blaming a new coil for weak magnetic pull.
When a repeat overheating case is investigated, keep the verified measurements and test result in the service record. Compare pin count, key position, latch direction, cable exit, terminal size and seal arrangement. Similar coil bodies may use a Deutsch, Weatherpack, insert or lead-wire connection that is not electrically or mechanically interchangeable. Photograph the connector face beside a ruler and note any diode or polarity marking before purchasing or adapting the harness.
When the approved sample and new lot are compared, keep the verified measurements and test result in the service record. Disconnect power and compare measured resistance at a stable temperature with an approved sample of the same 12v and 115.2w version. An open circuit indicates a broken winding, while an unusually low value suggests shorted turns. Resistance alone cannot confirm hydraulic valve movement, so complete a loaded-voltage and functional test as well.
When a machine harness revision is compared, keep the verified measurements and test result in the service record. Provide the complete old marking, measured voltage, connector-face photograph, bore and height dimensions, power reference, valve or machine application, quantity and destination. If the label is missing, include current draw and clear views from every side. This evidence allows technical approval and commercial quotation to proceed together without relying on appearance alone.
When a customer reports intermittent operation, keep the verified measurements and test result in the service record. Insulation class is one indicator of winding temperature capability, but it does not authorize overvoltage, blocked armature operation or continuous duty beyond the product design. Keep the catalogued class with voltage and wattage records. During sample testing, confirm actual stabilized temperature under the intended command cycle and installation environment.
When a connector cavity shows corrosion, keep the verified measurements and test result in the service record. Record the returned label, machine information, supply voltage under command, coil resistance, current draw, connector condition, operating temperature and valve-stem movement. Photograph heat damage or oil ingress before disassembly. This evidence separates manufacturing defects from overvoltage, harness resistance, incorrect duty cycle or a stuck hydraulic element and supports a useful corrective action.
Send the complete old marking or component evidence, confirmed voltage, machine information, clear photos, measurements and required quantity for a fitment-focused B2B quotation.
