20693871-19-00
Hydraulic systems using the complete 20693871-19-00 coil reference and the correct voltage version
Confirm 12v or 24v, 18w, lead wire, coil bore and retaining method before installation.
| Availability: | |
|---|---|
| Quantity: | |

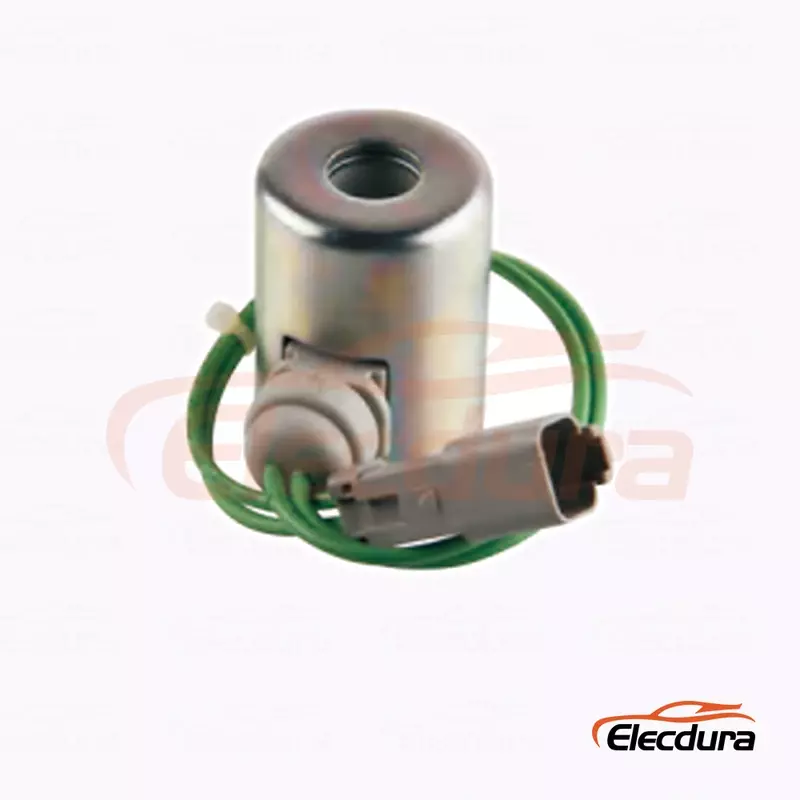

20693871-19-00 is a hydraulic solenoid valve coil for Hydraulic systems using the complete 20693871-19-00 coil reference and the correct voltage version. Buyers should confirm the full reference, 12v or 24v, lead wire, coil bore and body construction before approving replacement stock.
Specification | Confirmed Information |
|---|---|
Product Type | Hydraulic Solenoid Valve Coil |
Primary Reference | 20693871-19-00 |
Cross References | 20693871-19-00 |
Voltage | 12V or 24V |
Power | 18W |
Connector | Lead wire |
Insulation Class | F/H |
Application Scope | Hydraulic systems using the complete 20693871-19-00 coil reference and the correct voltage version |
MOQ | 50 pcs |
Delivery Time | 7 to 15 Days |
Warranty | 12 Months |
Complete every control point below before a sample or bulk order is released.
Approval Point | Buyer Review |
|---|---|
Reference | 20693871-19-00 |
Electrical | 12V or 24V; 18W; verify under load |
Connector | Lead wire |
Mechanical | Compare bore, height, body shape and retaining method |
Machine Evidence | Hydraulic systems using the complete 20693871-19-00 coil reference and the correct voltage version |
Separate electrical command, component movement and final machine response so the actual wiring or hydraulic fault is not hidden by parts replacement.
Observed Condition | Recommended Check |
|---|---|
No magnetic pull | Check loaded voltage, ground, continuity and coil resistance. |
Intermittent operation | Inspect terminal retention, lead damage and heat-related winding faults. |
Excessive heating | Confirm voltage, wattage, duty cycle and free valve-stem movement. |
Connector damage | Inspect keying, seals, corrosion and harness side loading. |
Correct coil, no hydraulic response | Inspect the armature, spool, oil cleanliness and machine command. |
When a controller output fault is suspected, keep the verified measurements and test result in the service record. Approve the complete old marking, 12v or 24v rating, 18w power reference, lead wire, coil bore, body height and retaining method. A matching voltage alone does not prove fit. Send straight-on connector, top-bore and side-profile photographs with measurements so the replacement is selected from electrical and mechanical evidence.
When the approved sample and new lot are compared, keep the verified measurements and test result in the service record. Measure voltage directly across the energized coil while the machine issues the real hydraulic command. An unloaded harness reading can hide resistance at a corroded terminal, relay or ground path. Compare the loaded result with 12v or 24v, record polarity where suppression is present and correct the circuit before blaming a new coil for weak magnetic pull.
When a machine harness revision is compared, keep the verified measurements and test result in the service record. Compare pin count, key position, latch direction, cable exit, terminal size and seal arrangement. Similar coil bodies may use a Deutsch, Weatherpack, insert or lead-wire connection that is not electrically or mechanically interchangeable. Photograph the connector face beside a ruler and note any diode or polarity marking before purchasing or adapting the harness.
When a controller output fault is suspected, keep the verified measurements and test result in the service record. Verify loaded supply voltage, current draw, duty cycle, connector resistance and whether the hydraulic armature reaches full travel. A stuck valve can keep magnetic demand high, while overvoltage or the wrong wattage can overheat the winding. Inspect oil contamination and valve movement before replacing the coil again so the root cause is corrected.
When a hydraulic schematic uses different port labels, keep the verified measurements and test result in the service record. A plain winding may operate with either polarity, but a coil containing a diode or other suppression device can be polarity-sensitive. Reversed connection may prevent correct operation or damage the suppression component. Check markings and the equipment schematic before applying power, and keep pin assignments with the approved sample and production inspection record.
When contamination is found in the circuit, keep the verified measurements and test result in the service record. Match the carton and coil labels to the purchase order, measure sample resistance, inspect connector keying and verify bore and height. Keep 12V, 24V and unusual voltage stock in separate labeled locations. A visual check alone is insufficient because several voltage versions can share the same molded body and connector.
When a technician checks current draw under load, keep the verified measurements and test result in the service record. Examine the cable exit for cracking, strain, oil ingress and conductor damage near the coil body. Flex the harness gently while monitoring continuity, then inspect the remote connector and terminal seals. Do not pull on the leads during installation, and secure the harness so vibration or sharp edges cannot reproduce an intermittent fault.
Send the complete old marking or component evidence, confirmed voltage, machine information, clear photos, measurements and required quantity for a fitment-focused B2B quotation.
