48937807-22-00
48937807-22-00 / 48937807-B
OE-Equivalent Replacement Quality
IATF 16949 / ISO 9001 / CE / RoHS
50 pcs
7 - 15 Days
12 Months
48937807-22-00 / 48937807-B
Perkins hydraulic or engine control service using the matching 48937807 24V coil construction
Confirm 24v, 16.8w, insert connector, coil bore and retaining method before installation.
| Quantity: | |
|---|---|

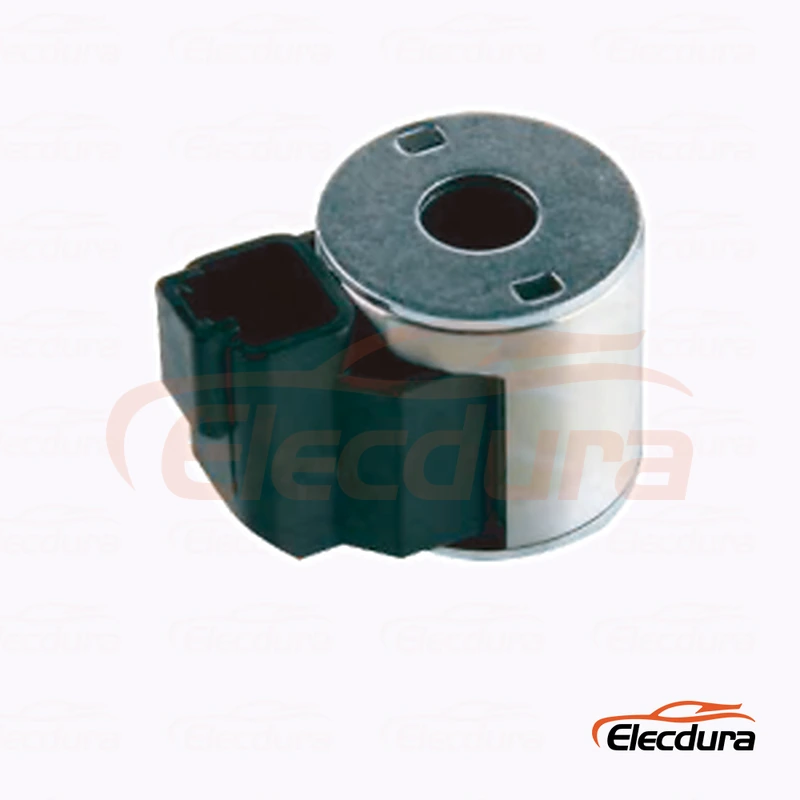

48937807-22-00 is a hydraulic solenoid valve coil for Perkins hydraulic or engine control service using the matching 48937807 24V coil construction. Buyers should confirm the full reference, 24v, insert connector, coil bore and body construction before approving replacement stock.
Specification | Confirmed Information |
|---|---|
Product Type | Hydraulic Solenoid Valve Coil |
Primary Reference | 48937807-22-00 |
Cross References | 48937807-22-00 / 48937807-B |
Voltage | 24V |
Power | 16.8W |
Connector | Insert connector |
Insulation Class | F/H |
Application Scope | Perkins hydraulic or engine control service using the matching 48937807 24V coil construction |
MOQ | 50 pcs |
Delivery Time | 7 to 15 Days |
Warranty | 12 Months |
Complete every control point below before a sample or bulk order is released.
Approval Point | Buyer Review |
|---|---|
Reference | 48937807-22-00 / 48937807-B |
Electrical | 24V; 16.8W; verify under load |
Connector | Insert connector |
Mechanical | Compare bore, height, body shape and retaining method |
Machine Evidence | Perkins hydraulic or engine control service using the matching 48937807 24V coil construction |
Separate electrical command, component movement and final machine response so the actual wiring or hydraulic fault is not hidden by parts replacement.
Observed Condition | Recommended Check |
|---|---|
No magnetic pull | Check loaded voltage, ground, continuity and coil resistance. |
Intermittent operation | Inspect terminal retention, lead damage and heat-related winding faults. |
Excessive heating | Confirm voltage, wattage, duty cycle and free valve-stem movement. |
Connector damage | Inspect keying, seals, corrosion and harness side loading. |
Correct coil, no hydraulic response | Inspect the armature, spool, oil cleanliness and machine command. |
When a first article sample is approved, keep the verified measurements and test result in the service record. Approve the complete old marking, 24v rating, 16.8w power reference, insert connector, coil bore, body height and retaining method. A matching voltage alone does not prove fit. Send straight-on connector, top-bore and side-profile photographs with measurements so the replacement is selected from electrical and mechanical evidence.
When a repeat overheating case is investigated, keep the verified measurements and test result in the service record. Measure voltage directly across the energized coil while the machine issues the real hydraulic command. An unloaded harness reading can hide resistance at a corroded terminal, relay or ground path. Compare the loaded result with 24v, record polarity where suppression is present and correct the circuit before blaming a new coil for weak magnetic pull.
When an installer measures unexpected voltage drop, keep the verified measurements and test result in the service record. Compare pin count, key position, latch direction, cable exit, terminal size and seal arrangement. Similar coil bodies may use a Deutsch, Weatherpack, insert or lead-wire connection that is not electrically or mechanically interchangeable. Photograph the connector face beside a ruler and note any diode or polarity marking before purchasing or adapting the harness.
When a buyer must approve a cross-reference, keep the verified measurements and test result in the service record. Measure the internal bore diameter, overall height, outside width, shoulder position and retaining-nut clearance on the removed coil. Also record valve-stem length and connector orientation after installation. A coil can have the correct electrical rating but fail to seat fully or interfere with surrounding hardware when its mechanical envelope differs.
When a sample moves into volume production, keep the verified measurements and test result in the service record. Install one sample on the correct valve stem, confirm connector engagement and retaining clearance, then record cold current, warm current, operating temperature and hydraulic response through several command cycles. Compare results with the removed coil. Retain the approved sample and test sheet so later lots can be inspected against the same acceptance criteria.
When a distributor prepares repeat stock, keep the verified measurements and test result in the service record. Check terminal retention, harness movement, ground quality and voltage at the coil while the fault occurs. Heat can open a damaged winding, and vibration can interrupt a loose pin or broken lead. If electrical input remains stable, inspect the valve armature for contamination or sticking that changes as oil temperature and viscosity vary.
When a return analysis starts without machine records, keep the verified measurements and test result in the service record. Use the full suffix, voltage, wattage, connector, bore, body shape and harness layout as separate controls. A shared base number may cover several constructions or electrical options. Keep a photograph and measured drawing of each approved version, and never combine inventory until the old unit and sample match on every controlled feature.
Send the complete old marking or component evidence, confirmed voltage, machine information, clear photos, measurements and required quantity for a fitment-focused B2B quotation.
