DG4V3-03-00
DG4V3-03-00 / DG4V-3
OE-Equivalent Replacement Quality
IATF 16949 / ISO 9001 / CE / RoHS
50 pcs
7 - 15 Days
12 Months
DG4V3-03-00 / DG4V-3
Eaton Vickers DG4V-3 directional valve service using the matching 12V Deutsch coil construction
Confirm 12v, 30.84w, deutsch connector, coil bore and retaining method before installation.
| Availability: | |
|---|---|
| Quantity: | |

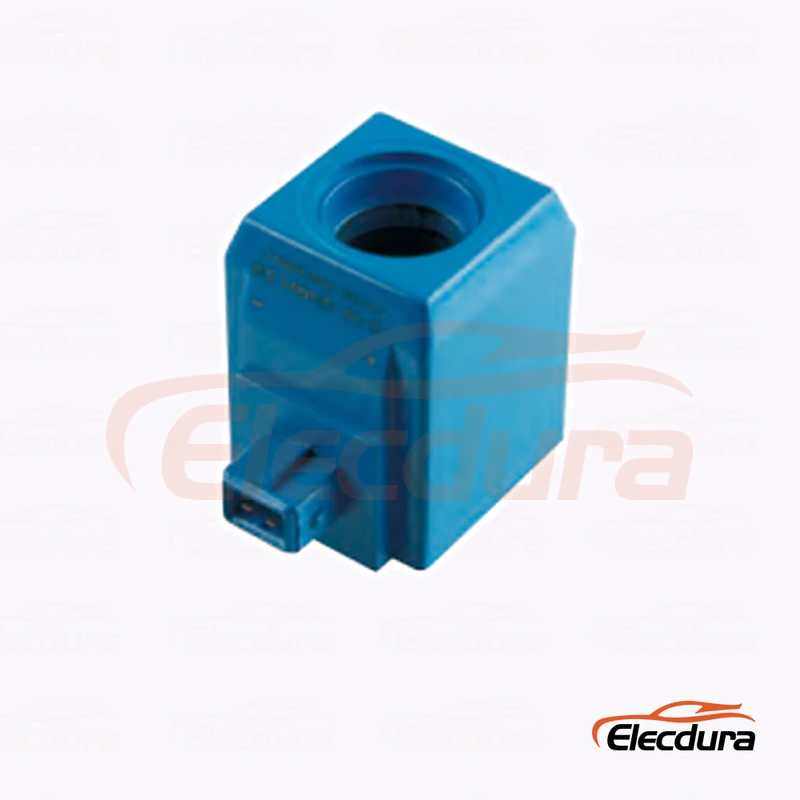

DG4V3-03-00 is a directional valve solenoid coil for Eaton Vickers DG4V-3 directional valve service using the matching 12V Deutsch coil construction. Buyers should confirm the full reference, 12v, deutsch connector, coil bore and body construction before approving replacement stock.
Specification | Confirmed Information |
|---|---|
Product Type | Directional Valve Solenoid Coil |
Primary Reference | DG4V3-03-00 |
Cross References | DG4V3-03-00 / DG4V-3 |
Voltage | 12V |
Power | 30.84W |
Connector | Deutsch connector |
Insulation Class | F/H |
Application Scope | Eaton Vickers DG4V-3 directional valve service using the matching 12V Deutsch coil construction |
MOQ | 50 pcs |
Delivery Time | 7 to 15 Days |
Warranty | 12 Months |
Complete every control point below before a sample or bulk order is released.
Approval Point | Buyer Review |
|---|---|
Reference | DG4V3-03-00 / DG4V-3 |
Electrical | 12V; 30.84W; verify under load |
Connector | Deutsch connector |
Mechanical | Compare bore, height, body shape and retaining method |
Machine Evidence | Eaton Vickers DG4V-3 directional valve service using the matching 12V Deutsch coil construction |
Separate electrical command, component movement and final machine response so the actual wiring or hydraulic fault is not hidden by parts replacement.
Observed Condition | Recommended Check |
|---|---|
No magnetic pull | Check loaded voltage, ground, continuity and coil resistance. |
Intermittent operation | Inspect terminal retention, lead damage and heat-related winding faults. |
Excessive heating | Confirm voltage, wattage, duty cycle and free valve-stem movement. |
Connector damage | Inspect keying, seals, corrosion and harness side loading. |
Correct coil, no hydraulic response | Inspect the armature, spool, oil cleanliness and machine command. |
When an emergency field repair is reviewed, keep the verified measurements and test result in the service record. Approve the complete old marking, 12v rating, 30.84w power reference, deutsch connector, coil bore, body height and retaining method. A matching voltage alone does not prove fit. Send straight-on connector, top-bore and side-profile photographs with measurements so the replacement is selected from electrical and mechanical evidence.
When an old label is partly unreadable, keep the verified measurements and test result in the service record. Measure voltage directly across the energized coil while the machine issues the real hydraulic command. An unloaded harness reading can hide resistance at a corroded terminal, relay or ground path. Compare the loaded result with 12v, record polarity where suppression is present and correct the circuit before blaming a new coil for weak magnetic pull.
When a return analysis starts without machine records, keep the verified measurements and test result in the service record. Compare pin count, key position, latch direction, cable exit, terminal size and seal arrangement. Similar coil bodies may use a Deutsch, Weatherpack, insert or lead-wire connection that is not electrically or mechanically interchangeable. Photograph the connector face beside a ruler and note any diode or polarity marking before purchasing or adapting the harness.
When an emergency field repair is reviewed, keep the verified measurements and test result in the service record. Verify loaded supply voltage, current draw, duty cycle, connector resistance and whether the hydraulic armature reaches full travel. A stuck valve can keep magnetic demand high, while overvoltage or the wrong wattage can overheat the winding. Inspect oil contamination and valve movement before replacing the coil again so the root cause is corrected.
When a serial-controlled overhaul is planned, keep the verified measurements and test result in the service record. Inspect the latch, cavity seals and terminal surfaces before connection. Keep moisture, hydraulic oil and cleaning chemicals away from the contact area, and never force a mismatched plug into the housing. After installation, confirm the connector locks without side loading and that nearby hardware does not press on the coil or cable exit.
When a valve body was replaced during an earlier repair, keep the verified measurements and test result in the service record. Current under the actual voltage provides a practical comparison with the approved sample and can reveal wiring resistance or an electrically different coil. Record cold and stabilized warm values because winding resistance changes with temperature. An abnormal current must be investigated together with voltage, resistance, connector condition and valve movement before the part is rejected.
When a warm hydraulic system develops slow response, keep the verified measurements and test result in the service record. Record the returned label, machine information, supply voltage under command, coil resistance, current draw, connector condition, operating temperature and valve-stem movement. Photograph heat damage or oil ingress before disassembly. This evidence separates manufacturing defects from overvoltage, harness resistance, incorrect duty cycle or a stuck hydraulic element and supports a useful corrective action.
Send the complete old marking or component evidence, confirmed voltage, machine information, clear photos, measurements and required quantity for a fitment-focused B2B quotation.
