121-1491
121-1491 / KWE5K-31/40D30
OE-Equivalent Replacement Quality
IATF 16949 / ISO 9001 / CE / RoHS
50 pcs
7 - 15 Days
12 Months
121-1491 / KWE5K-31/40D30
Caterpillar hydraulic pump control using 121-1491 and the matching KWE5K-31/40D30 construction
Confirm 24v, connector, flange mounted kawasaki valve body, seals and hydraulic circuit before installation.
| Quantity: | |
|---|---|

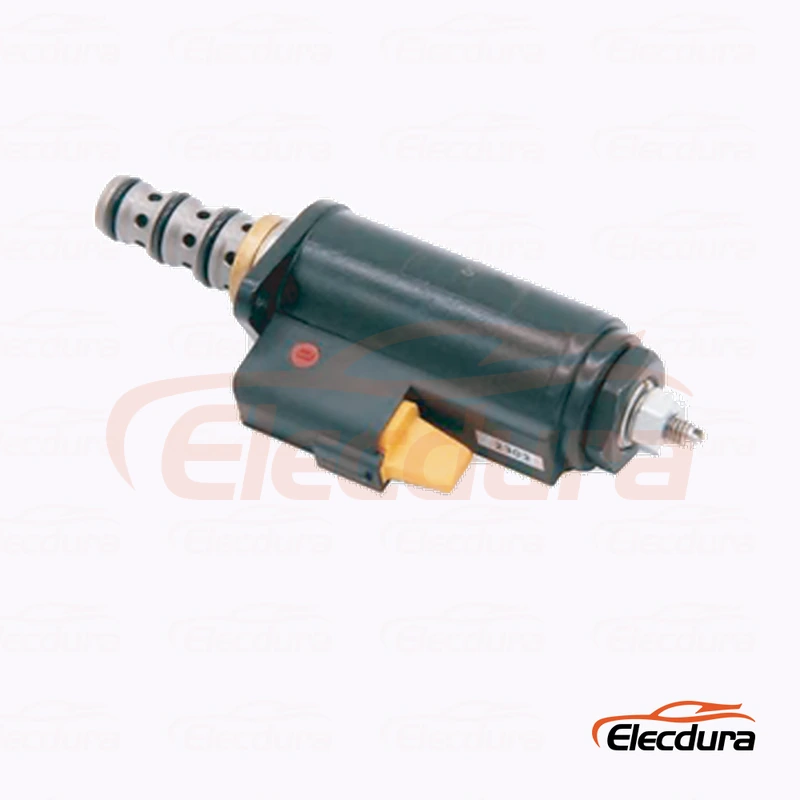

121-1491 is a hydraulic pump solenoid valve for Caterpillar hydraulic pump control using 121-1491 and the matching KWE5K-31/40D30 construction. Buyers should confirm the full reference, 24v, integral connector, flange mounted kawasaki valve body before approving replacement stock.
Specification | Confirmed Information |
|---|---|
Product Type | Hydraulic Pump Solenoid Valve |
Primary Reference | 121-1491 |
Cross References | 121-1491 / KWE5K-31/40D30 |
Electrical Version | 24V |
Working Pressure Reference | 41 bar |
Interface | Flange mounted Kawasaki valve body |
Application Scope | Caterpillar hydraulic pump control using 121-1491 and the matching KWE5K-31/40D30 construction |
MOQ | 50 pcs |
Delivery Time | 7 to 15 Days |
Warranty | 12 Months |

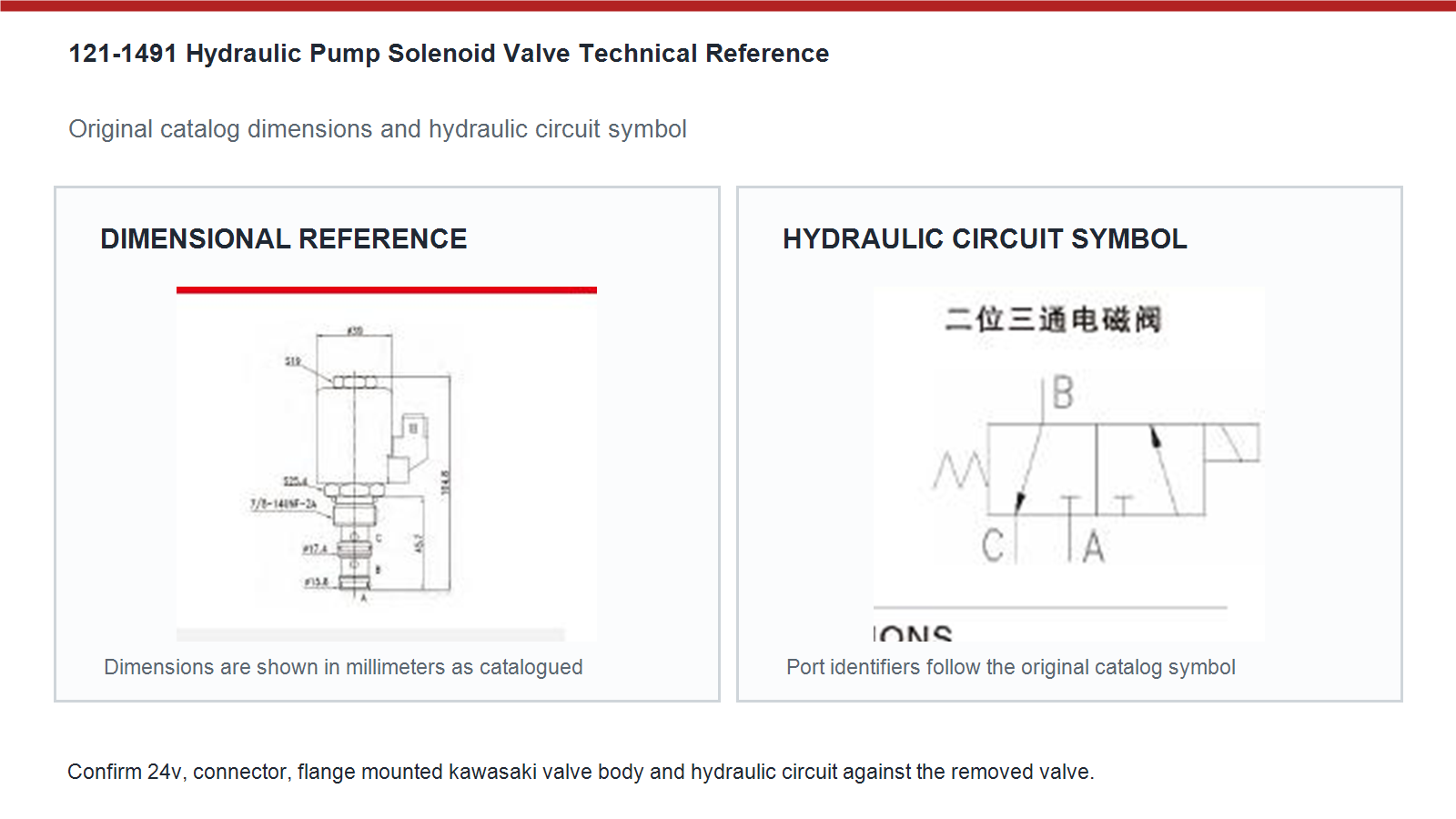

Use the original catalog dimensional reference and hydraulic symbol to compare the valve with the removed component and machine schematic before purchase approval.
Complete every control point below before a sample or bulk order is released.
Approval Point | Buyer Review |
|---|---|
Reference | 121-1491 / KWE5K-31/40D30 |
Electrical | 24V; verify at the loaded connector |
Mechanical | Compare flange mounted kawasaki valve body, sealing positions and installed clearance |
Hydraulic | Confirm normal state, energized state and port relationship |
Machine Evidence | Caterpillar hydraulic pump control using 121-1491 and the matching KWE5K-31/40D30 construction |
Separate electrical command, component movement and final machine response so the actual wiring or hydraulic fault is not hidden by parts replacement.
Observed Condition | Recommended Check |
|---|---|
No movement | Check loaded connector voltage, ground, controller command and coil resistance. |
Slow response | Inspect oil cleanliness, filter condition, viscosity and valve movement. |
Reversed response | Stop operation and compare normal and energized port logic. |
External leakage | Inspect seals, valve surface, bore condition and seating depth. |
Repeated heating | Confirm voltage, duty cycle, connector resistance and full movement. |
When a controller output fault is suspected, keep the verified measurements and test result in the service record. Use the complete old marking, 24v electrical version, connector face, flange mounted kawasaki valve body, sealing positions and the machine hydraulic schematic. A reference alone cannot prove that the normal and energized flow paths match. Record the machine model, serial number and removed-valve photographs with the approved sample so repeat orders follow the same engineering basis.
When the approved sample and new lot are compared, keep the verified measurements and test result in the service record. Read the voltage marking on the removed coil and measure supply at the loaded connector while the controller commands the valve. Do not infer voltage only from battery count because converters, harness changes and mixed fleets can produce another coil supply. Keep the confirmed value on the inquiry, purchase order, carton label and incoming inspection record.
When a first article sample is approved, keep the verified measurements and test result in the service record. Treat 41 bar as a component reference that must remain within the actual circuit requirement, not as permission to ignore the machine service data. Confirm which ports see pressure in both switching states, review return pressure and verify the cavity or flange. Pressure capability cannot correct a wrong spool function, cartridge depth or manifold relationship.
When a repeat overheating case is investigated, keep the verified measurements and test result in the service record. Two valves can share a coil diameter and connector while using different cartridge lengths, sealing lands, spring forces or port logic. Compare flange mounted kawasaki valve body, overall length, installed depth, connector direction and hydraulic symbol. A part that mounts correctly but routes pressure differently can create weak response, reversed movement or continuous pump loading.
When a distributor prepares repeat stock, keep the verified measurements and test result in the service record. Compare the connector face, key position, pin count, latch direction and cable exit with the removed component. Also determine whether suppression is built into the coil because it can affect controller diagnostics. Photograph the connector straight on beside a ruler and include terminal condition in the RFQ when several harness revisions exist in the fleet.
When a warranty claim is reviewed, keep the verified measurements and test result in the service record. Reuse is not recommended when the service procedure specifies new seals or the old rings show flattening, cuts or heat damage. Confirm material compatibility with the hydraulic oil, clean the flange mounted kawasaki valve body and inspect the bore for scoring. Lubricate seals without twisting and follow the equipment torque procedure rather than forcing the valve past resistance.
When a customer reports intermittent operation, keep the verified measurements and test result in the service record. Confirm physical fit, connector engagement, coil current, external leakage and machine response in both normal and energized states. Record warm-oil behavior and response time as well as cold-start operation. Retain the approved label photographs, measurements and test results so the production lot can be checked against the same objective acceptance record.
Send the complete old marking or component evidence, confirmed voltage, machine information, clear photos, measurements and required quantity for a fitment-focused B2B quotation.
