00262411
00262411 / 225-0300
OE-Equivalent Replacement Quality
IATF 16949 / ISO 9001 / CE / RoHS
50 pcs
7 - 15 Days
12 Months
00262411 / 225-0300
Caterpillar hydraulic control service using reference 00262411 or 225-0300
Confirm 12v, connector, cartridge shown in catalog drawing, seals and hydraulic circuit before installation.
| Quantity: | |
|---|---|
00262411 is a 12V two position three way hydraulic solenoid valve for Caterpillar hydraulic control service using reference 00262411 or 225-0300. Buyers should confirm the complete old marking, electrical version, connector, cartridge shown in catalog drawing and hydraulic function before approving replacement stock.
Specification | Value |
|---|---|
Product Type | Two Position Three Way Hydraulic Solenoid Valve |
Primary Reference | 00262411 |
Cross References | 00262411 / 225-0300 |
Electrical Version | 12V |
Working Pressure Reference | Confirm from machine data |
Interface | Cartridge shown in catalog drawing |
Application Scope | Caterpillar hydraulic control service using reference 00262411 or 225-0300 |
MOQ | 50 pcs |
Delivery Time | 7 to 15 Days |
Warranty | 12 Months |

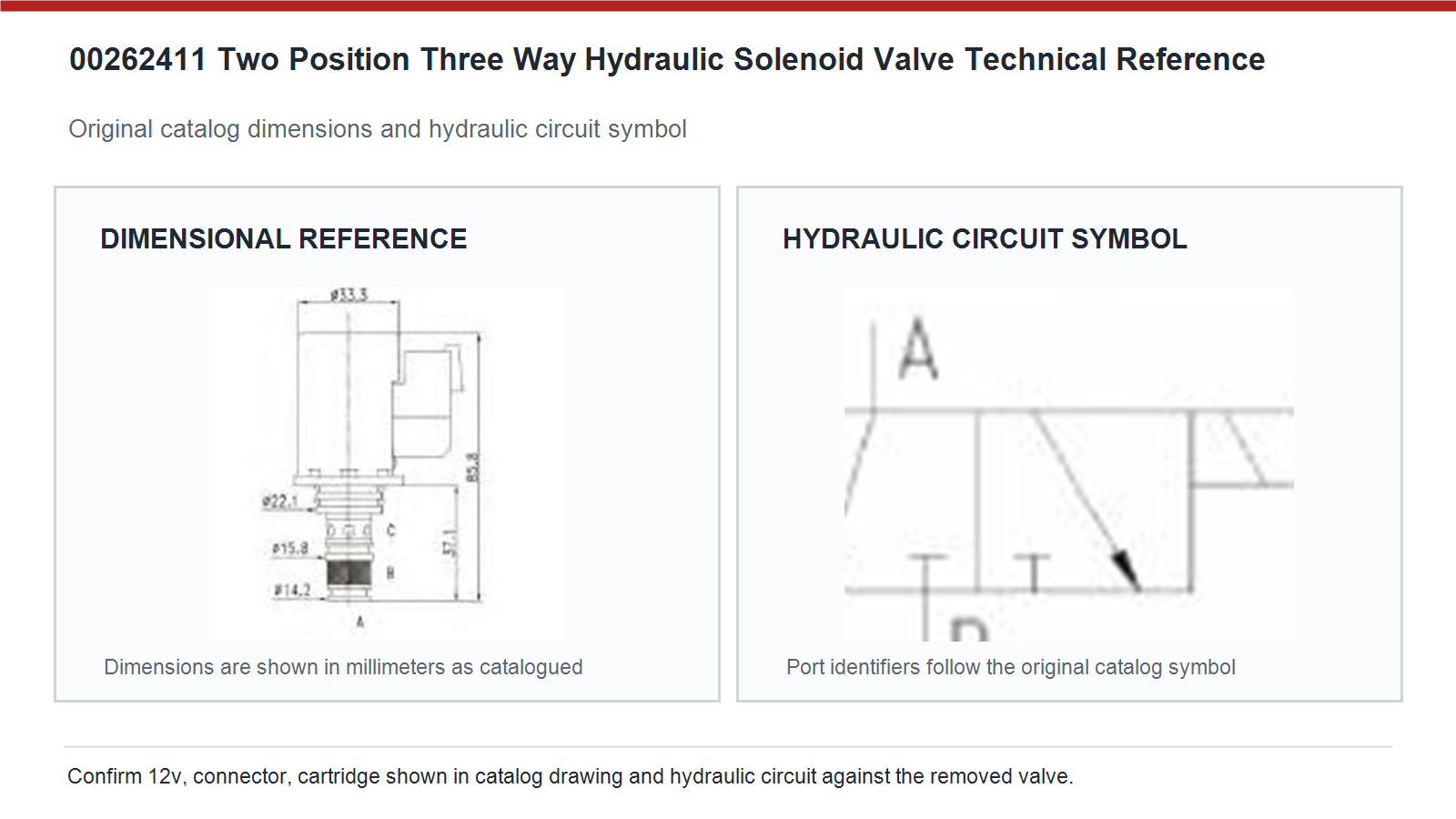

Use the original catalog dimensional reference and hydraulic symbol to compare the valve with the removed component and the machine schematic before purchase approval.
Complete every control point below before a sample or bulk order is released.
Approval Point | Buyer Review |
|---|---|
Reference | 00262411 / 225-0300 |
Electrical | 12V; verify at the loaded connector during the actual command |
Mechanical | Compare cartridge shown in catalog drawing, cartridge length, seals and installed clearance |
Hydraulic | Confirm normal state, energized state and manifold port relationship |
Machine Evidence | Caterpillar hydraulic control service using reference 00262411 or 225-0300 |
Separate electrical command, cartridge movement and machine response so the actual wiring or hydraulic fault is not hidden by a parts replacement.
Observed Condition | Recommended Check |
|---|---|
No movement | Check loaded connector voltage, ground, controller command and coil resistance. |
Slow response | Inspect oil cleanliness, filter condition, viscosity and cartridge movement. |
Reversed response | Stop operation and compare normal and energized port logic with the original valve. |
External leakage | Inspect seals, cartridge surface, manifold bore and correct seating depth. |
Repeated heating | Confirm voltage, duty cycle, connector resistance and full magnetic movement. |
During a coil replacement is considered without changing the cartridge, keep the verified reference, measurements and test result in the service record. Approve 00262411 from the complete old valve marking, 12v electrical version, connector keying, cartridge shown in catalog drawing, sealing lands and normal hydraulic state. A shared equipment model does not prove interchangeability because pump and manifold revisions can change during production. Send the machine model, serial number and clear removed part photos with the inquiry.
During an incoming production lot is released, keep the verified reference, measurements and test result in the service record. Read the coil label first and measure voltage at the connector while the real machine command is active. The working reference for this page is 12V. Do not infer voltage only from battery count because converters, harness changes and mixed voltage fleets can create misleading assumptions. Record the verified value on the purchase order and incoming inspection label.
During a cross border quotation needs technical approval, keep the verified reference, measurements and test result in the service record. The Confirm from machine data figure is a catalog or verified product reference, not permission to ignore the equipment hydraulic schematic. Confirm which ports see pressure in both de-energized and energized states, review return line conditions and follow the machine service limits. Pressure capability does not correct a wrong spool function, cartridge depth or manifold port relationship.
During a controller output fault is suspected, keep the verified reference, measurements and test result in the service record. Two valves can share a coil diameter and connector yet use different cartridge lengths, metering notches, spring forces or port logic. In Caterpillar service, compare the full reference, manifold bore, installed depth, connector direction and hydraulic symbol. A valve that screws in but routes pressure differently can create weak response, reversed motion or continuous pump loading.
During a pilot passage blockage is investigated, keep the verified reference, measurements and test result in the service record. Fine debris can restrict the moving element, damage sealing lands or block a pilot passage even when the coil energizes normally. Review the equipment filtration requirement, inspect the removed valve for particles and flush the affected circuit when contamination is found. Replacing 00262411 without correcting dirty oil can reproduce slow response, sticking or repeated coil stress soon after installation.
During a warm oil response complaint is diagnosed, keep the verified reference, measurements and test result in the service record. Treat every suffix as an engineering identifier until its meaning is proven. A suffix can change voltage, connector, spring calibration, spool geometry or mounting details while the base model remains similar. Keep the complete old marking on the quotation and do not shorten 00262411 / 225-0300 in purchasing records. Accept a cross reference only after dimensional, electrical and hydraulic checks agree.
During export packing is approved, keep the verified reference, measurements and test result in the service record. The spring side of the circuit symbol defines what the machine does when electrical power is absent. That state can hold, unload, block or route pilot pressure, and the wrong choice may create movement or pump load at startup. Compare the original schematic with the catalog symbol and verify the safe normal condition before energizing the replacement in the machine.
Send the complete old valve marking, confirmed voltage, machine model and serial number, connector photos, interface dimensions and required quantity for a fitment focused B2B quotation.
