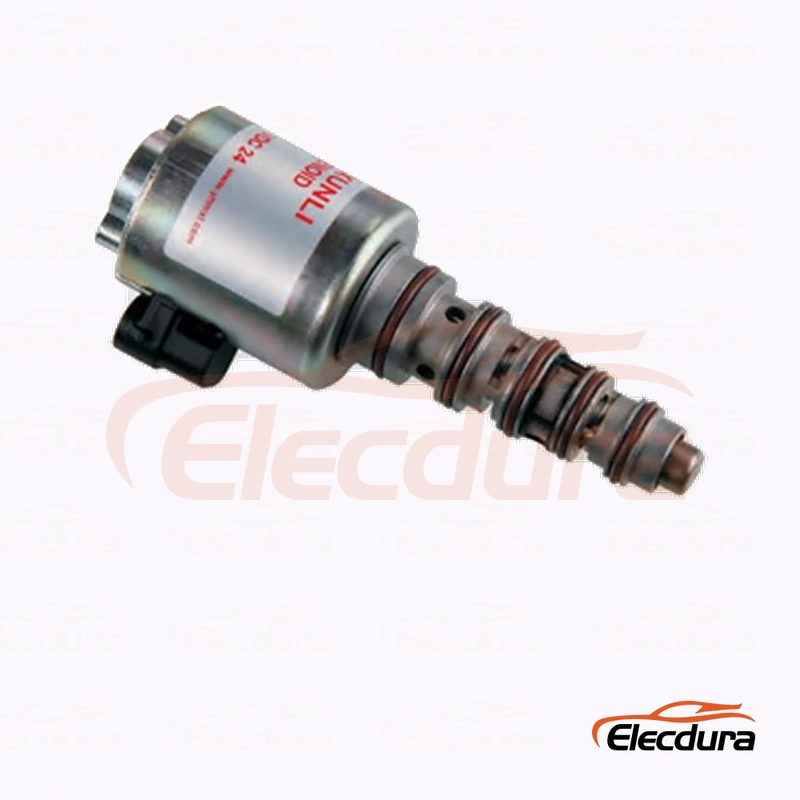

5032-6F089-13A
Caterpillar oil control circuits using the matching four port OCV cartridge
Confirm 24v, connector, four port ocv cartridge, seals and hydraulic circuit before installation.
| Quantity: | |
|---|---|
5032-6F089-13A is a 24V ocv hydraulic solenoid valve for Caterpillar oil control circuits using the matching four port OCV cartridge. Buyers should confirm the complete old marking, electrical version, connector, four port ocv cartridge and hydraulic function before approving replacement stock.
Specification | Value |
|---|---|
Product Type | OCV Hydraulic Solenoid Valve |
Primary Reference | 5032-6F089-13A |
Cross References | 5032-6F089-13A |
Electrical Version | 24V |
Working Pressure Reference | 6 bar |
Interface | Four port OCV cartridge |
Application Scope | Caterpillar oil control circuits using the matching four port OCV cartridge |
MOQ | 50 pcs |
Delivery Time | 7 to 15 Days |
Warranty | 12 Months |

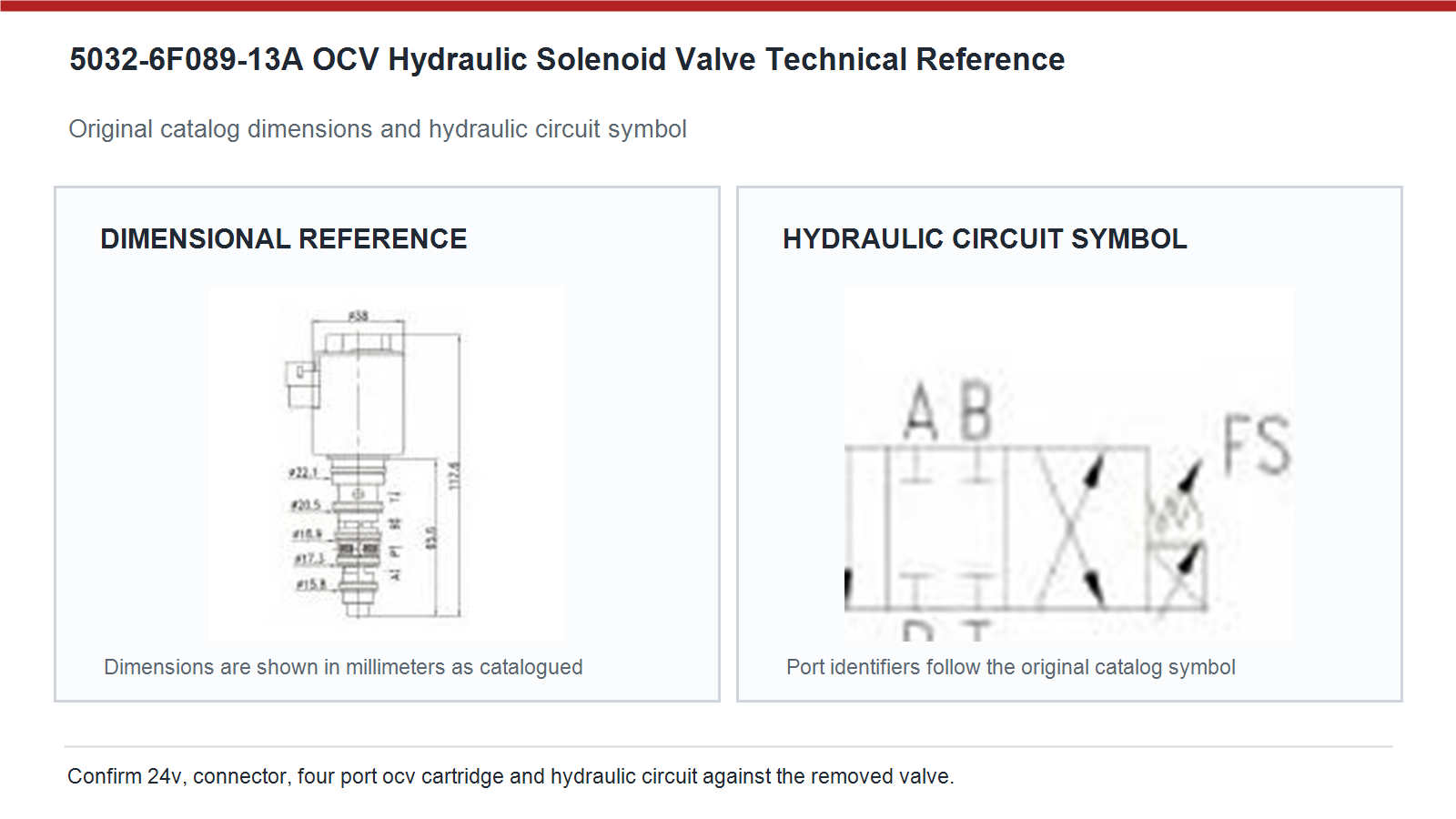

Use the original catalog dimensional reference and hydraulic symbol to compare the valve with the removed component and the machine schematic before purchase approval.
Complete every control point below before a sample or bulk order is released.
Approval Point | Buyer Review |
|---|---|
Reference | 5032-6F089-13A |
Electrical | 24V; verify at the loaded connector during the actual command |
Mechanical | Compare four port ocv cartridge, cartridge length, seals and installed clearance |
Hydraulic | Confirm normal state, energized state and manifold port relationship |
Machine Evidence | Caterpillar oil control circuits using the matching four port OCV cartridge |
Separate electrical command, cartridge movement and machine response so the actual wiring or hydraulic fault is not hidden by a parts replacement.
Observed Condition | Recommended Check |
|---|---|
No movement | Check loaded connector voltage, ground, controller command and coil resistance. |
Slow response | Inspect oil cleanliness, filter condition, viscosity and cartridge movement. |
Reversed response | Stop operation and compare normal and energized port logic with the original valve. |
External leakage | Inspect seals, cartridge surface, manifold bore and correct seating depth. |
Repeated heating | Confirm voltage, duty cycle, connector resistance and full magnetic movement. |
During a removed label is partly unreadable, keep the verified reference, measurements and test result in the service record. Approve 5032-6F089-13A from the complete old valve marking, 24v electrical version, connector keying, four port ocv cartridge, sealing lands and normal hydraulic state. A shared equipment model does not prove interchangeability because pump and manifold revisions can change during production. Send the machine model, serial number and clear removed part photos with the inquiry.
During an emergency field repair is evaluated, keep the verified reference, measurements and test result in the service record. Read the coil label first and measure voltage at the connector while the real machine command is active. The working reference for this page is 24V. Do not infer voltage only from battery count because converters, harness changes and mixed voltage fleets can create misleading assumptions. Record the verified value on the purchase order and incoming inspection label.
During a maintenance planner builds critical spare stock, keep the verified reference, measurements and test result in the service record. Two valves can share a coil diameter and connector yet use different cartridge lengths, metering notches, spring forces or port logic. In Caterpillar service, compare the full reference, manifold bore, installed depth, connector direction and hydraulic symbol. A valve that screws in but routes pressure differently can create weak response, reversed motion or continuous pump loading.
During a hydraulic manifold is rebuilt, keep the verified reference, measurements and test result in the service record. Use the drawing to compare overall length, thread or flange position, sealing diameters and connector clearance with the removed component. Read the spring side of the hydraulic symbol as the normal state and the solenoid side as the energized state. Port letters are catalog identifiers and must be reconciled with the equipment schematic before commissioning.
During a service team tests the de-energized state, keep the verified reference, measurements and test result in the service record. Verify commanded voltage under load, coil duty cycle, connector resistance and whether the hydraulic element reaches its intended position. Low voltage can prevent full magnetic pull, while excessive voltage or continuous energization can overheat the winding. Contamination that restricts cartridge movement can also increase operating stress, so correct the electrical or hydraulic root cause before fitting another coil.
During a repeat coil heating case is investigated, keep the verified reference, measurements and test result in the service record. Compare the connector face, key position, pin count, latch direction and cable exit with the removed component. Also check whether suppression is built into the coil because this can affect controller diagnostics. Photograph the connector straight on beside a ruler and include the terminal condition in the RFQ, especially when several Caterpillar harness revisions are used in the same fleet.
During a hydraulic manifold is rebuilt, keep the verified reference, measurements and test result in the service record. Treat every suffix as an engineering identifier until its meaning is proven. A suffix can change voltage, connector, spring calibration, spool geometry or mounting details while the base model remains similar. Keep the complete old marking on the quotation and do not shorten 5032-6F089-13A in purchasing records. Accept a cross reference only after dimensional, electrical and hydraulic checks agree.
Send the complete old valve marking, confirmed voltage, machine model and serial number, connector photos, interface dimensions and required quantity for a fitment focused B2B quotation.
