17YJ90048 Caterpillar Two Position Two Way Hydraulic Solenoid Valve for Heavy Equipment B2B Supply

17YJ90048 Caterpillar Two Position Two Way Hydraulic Solenoid Valve Supplier for B2B Replacement

17YJ90048 is a 12V or 24V two position two way hydraulic solenoid valve for Caterpillar hydraulic manifolds using the longer threaded 3/4-16 cartridge configuration. Buyers should confirm the complete old marking, electrical version, connector, 3/4-16 unf-2a and hydraulic function before approving replacement stock.

17YJ90048 Two Position Two Way Hydraulic Solenoid Valve Specifications for Wholesale Buyers

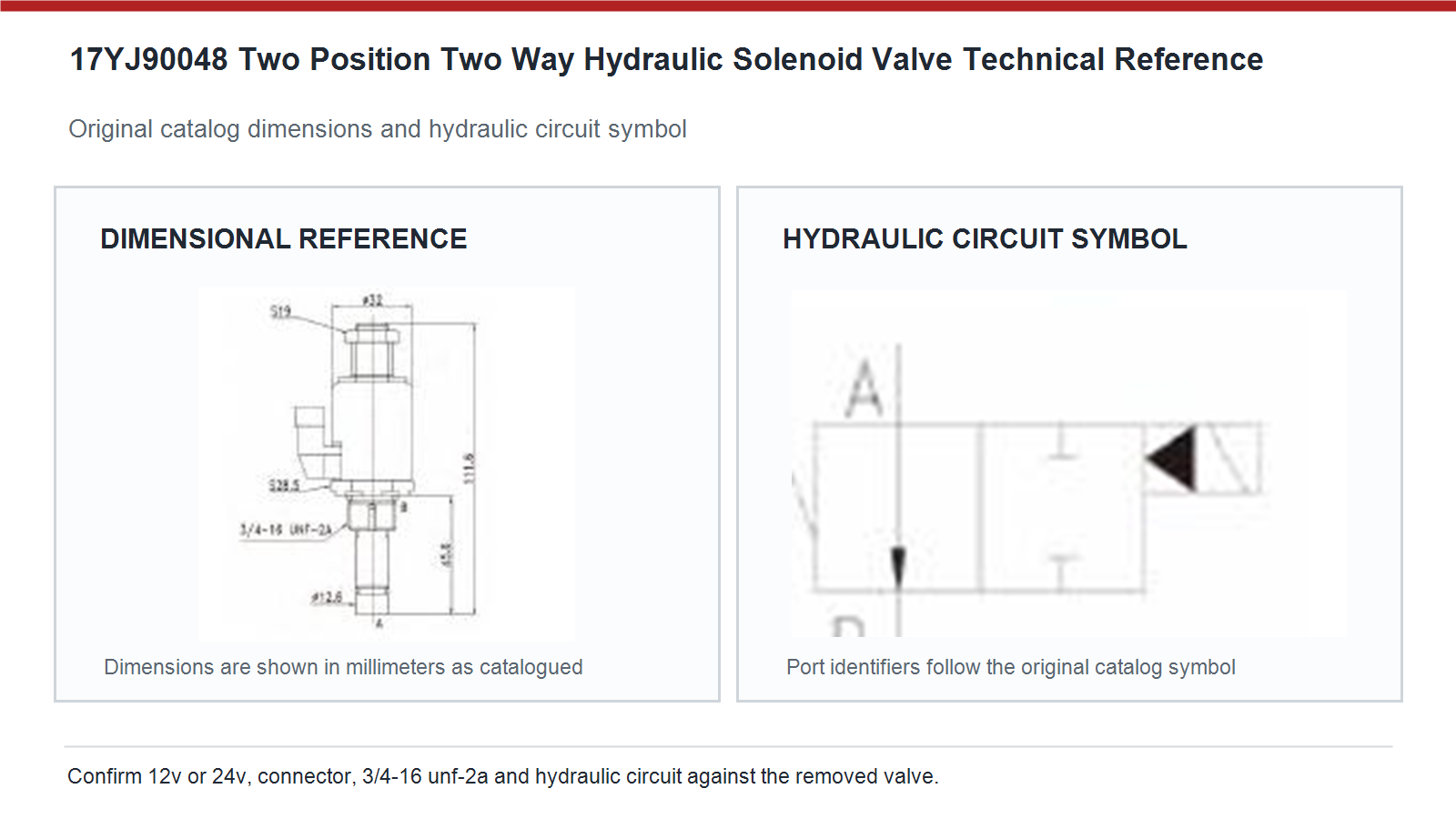

17YJ90048 Two Position Two Way Hydraulic Solenoid Valve Dimensions and Hydraulic Circuit

Use the original catalog dimensional reference and hydraulic symbol to compare the valve with the removed component and the machine schematic before purchase approval.

17YJ90048 Heavy Equipment Solenoid Valve Matching Guide

Complete every control point below before a sample or bulk order is released.

17YJ90048 Hydraulic Solenoid Valve Service Diagnostics

Separate electrical command, cartridge movement and machine response so the actual wiring or hydraulic fault is not hidden by a parts replacement.

17YJ90048 Two Position Two Way Hydraulic Solenoid Valve Technical FAQ

What must be matched before ordering 17YJ90048 as a two position two way hydraulic solenoid valve during a serial controlled overhaul is prepared?

During a serial controlled overhaul is prepared, keep the verified reference, measurements and test result in the service record. Approve 17YJ90048 from the complete old valve marking, 12v or 24v electrical version, connector keying, 3/4-16 unf-2a, sealing lands and normal hydraulic state. A shared equipment model does not prove interchangeability because pump and manifold revisions can change during production. Send the machine model, serial number and clear removed part photos with the inquiry.

How should technicians confirm the voltage for the 17YJ90048 two position two way hydraulic solenoid valve during a service team tests the de-energized state?

During a service team tests the de-energized state, keep the verified reference, measurements and test result in the service record. Read the coil label first and measure voltage at the connector while the real machine command is active. The working reference for this page is 12V or 24V. Do not infer voltage only from battery count because converters, harness changes and mixed voltage fleets can create misleading assumptions. Record the verified value on the purchase order and incoming inspection label.

What does the 220 bar pressure reference mean for 17YJ90048 during a machine serial range cannot be confirmed?

During a machine serial range cannot be confirmed, keep the verified reference, measurements and test result in the service record. The 220 bar figure is a catalog or verified product reference, not permission to ignore the equipment hydraulic schematic. Confirm which ports see pressure in both de-energized and energized states, review return line conditions and follow the machine service limits. Pressure capability does not correct a wrong spool function, cartridge depth or manifold port relationship.

Why can a valve similar to 17YJ90048 fail in Caterpillar equipment during fleet stock is replenished for planned service?

During fleet stock is replenished for planned service, keep the verified reference, measurements and test result in the service record. Two valves can share a coil diameter and connector yet use different cartridge lengths, metering notches, spring forces or port logic. In Caterpillar service, compare the full reference, manifold bore, installed depth, connector direction and hydraulic symbol. A valve that screws in but routes pressure differently can create weak response, reversed motion or continuous pump loading.

How can premature coil heating be prevented on the 17YJ90048 two position two way hydraulic solenoid valve during a first article sample is reviewed?

During a first article sample is reviewed, keep the verified reference, measurements and test result in the service record. Verify commanded voltage under load, coil duty cycle, connector resistance and whether the hydraulic element reaches its intended position. Low voltage can prevent full magnetic pull, while excessive voltage or continuous energization can overheat the winding. Contamination that restricts cartridge movement can also increase operating stress, so correct the electrical or hydraulic root cause before fitting another coil.

What incoming inspection points matter for a bulk order of 17YJ90048 two position two way hydraulic solenoid valve during contaminated hydraulic oil has been discovered?

During contaminated hydraulic oil has been discovered, keep the verified reference, measurements and test result in the service record. Check the printed reference and voltage against the purchase order, then sample connector keying, overall length, mounting interface, seal count and coil resistance. Keep voltage or suffix variants physically separated and traceable. For the first production lot, compare one unit with the approved old component before releasing the remaining quantity to warehouse stock or field service.

When is machine serial number evidence essential for the 17YJ90048 two position two way hydraulic solenoid valve during a manifold bore shows possible wear?

During a manifold bore shows possible wear, keep the verified reference, measurements and test result in the service record. Serial number evidence is essential whenever the same equipment family used more than one pump, manifold or electrical harness. Use it with the parts diagram rather than as a substitute for physical checks. If the old valve label is damaged, collect connector, mounting, cartridge and installed location photos so the application can be narrowed without guessing from the machine name alone.

Request a Bulk Quote for 17YJ90048 Two Position Two Way Hydraulic Solenoid Valve

Send the complete old valve marking, confirmed voltage, machine model and serial number, connector photos, interface dimensions and required quantity for a fitment focused B2B quotation.
