16T33S025750
Heavy equipment hydraulic manifolds using the same complete reference, cartridge envelope and two way circuit
Confirm 12v, connector, catalogued screw-in cartridge interface, seals and hydraulic circuit before installation.
| Availability: | |
|---|---|
| Quantity: | |
16T33S025750 is a two position two way hydraulic solenoid valve for Heavy equipment hydraulic manifolds using the same complete reference, cartridge envelope and two way circuit. Buyers should confirm the full reference, 12v, integral connector, catalogued screw-in cartridge interface before approving replacement stock.
Specification | Confirmed Information |
|---|---|
Product Type | Two Position Two Way Hydraulic Solenoid Valve |
Primary Reference | 16T33S025750 |
Cross References | 16T33S025750 |
Electrical Version | 12V |
Working Pressure Reference | 240 bar |
Interface | Catalogued screw-in cartridge interface |
Application Scope | Heavy equipment hydraulic manifolds using the same complete reference, cartridge envelope and two way circuit |
MOQ | 50 pcs |
Delivery Time | 7 to 15 Days |
Warranty | 12 Months |

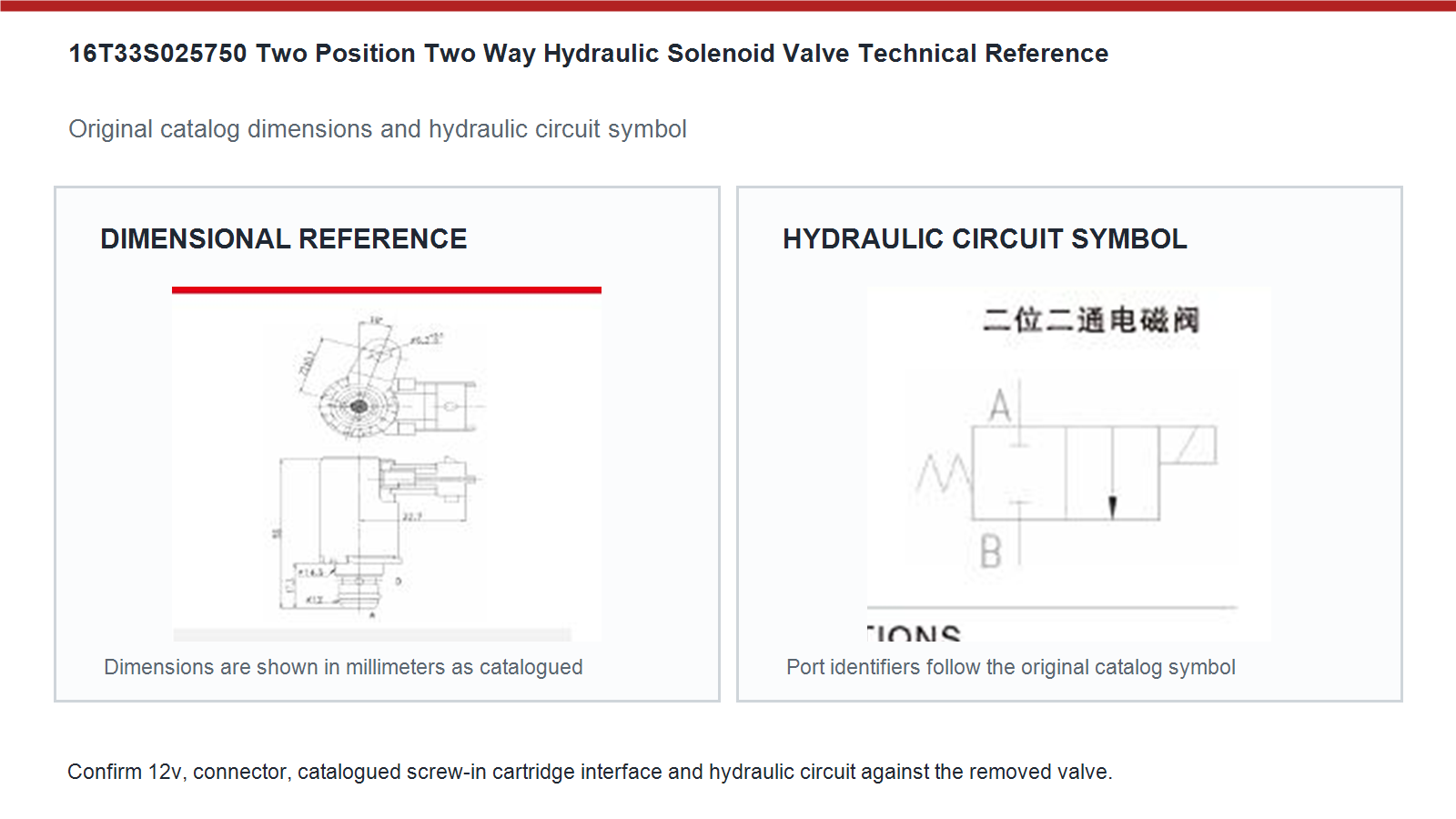

Use the original catalog dimensional reference and hydraulic symbol to compare the valve with the removed component and machine schematic before purchase approval.
Complete every control point below before a sample or bulk order is released.
Approval Point | Buyer Review |
|---|---|
Reference | 16T33S025750 |
Electrical | 12V; verify at the loaded connector |
Mechanical | Compare catalogued screw-in cartridge interface, sealing positions and installed clearance |
Hydraulic | Confirm normal state, energized state and port relationship |
Machine Evidence | Heavy equipment hydraulic manifolds using the same complete reference, cartridge envelope and two way circuit |
Separate electrical command, component movement and final machine response so the actual wiring or hydraulic fault is not hidden by parts replacement.
Observed Condition | Recommended Check |
|---|---|
No movement | Check loaded connector voltage, ground, controller command and coil resistance. |
Slow response | Inspect oil cleanliness, filter condition, viscosity and valve movement. |
Reversed response | Stop operation and compare normal and energized port logic. |
External leakage | Inspect seals, valve surface, bore condition and seating depth. |
Repeated heating | Confirm voltage, duty cycle, connector resistance and full movement. |
When a valve body was replaced during an earlier repair, keep the verified measurements and test result in the service record. Use the complete old marking, 12v electrical version, connector face, catalogued screw-in cartridge interface, sealing positions and the machine hydraulic schematic. A reference alone cannot prove that the normal and energized flow paths match. Record the machine model, serial number and removed-valve photographs with the approved sample so repeat orders follow the same engineering basis.
When a machine returns after long storage, keep the verified measurements and test result in the service record. Read the voltage marking on the removed coil and measure supply at the loaded connector while the controller commands the valve. Do not infer voltage only from battery count because converters, harness changes and mixed fleets can produce another coil supply. Keep the confirmed value on the inquiry, purchase order, carton label and incoming inspection record.
When cold-start commissioning is completed, keep the verified measurements and test result in the service record. Treat 240 bar as a component reference that must remain within the actual circuit requirement, not as permission to ignore the machine service data. Confirm which ports see pressure in both switching states, review return pressure and verify the cavity or flange. Pressure capability cannot correct a wrong spool function, cartridge depth or manifold relationship.
When a remote service kit is prepared, keep the verified measurements and test result in the service record. Two valves can share a coil diameter and connector while using different cartridge lengths, sealing lands, spring forces or port logic. Compare catalogued screw-in cartridge interface, overall length, installed depth, connector direction and hydraulic symbol. A part that mounts correctly but routes pressure differently can create weak response, reversed movement or continuous pump loading.
When a customer reports intermittent operation, keep the verified measurements and test result in the service record. Fine debris can restrict the moving element, damage sealing lands or block a pilot passage even when the coil energizes normally. Review the filtration requirement, inspect the removed valve for particles and flush the affected circuit when contamination is found. Replacing the valve without correcting dirty oil can reproduce slow response, sticking or repeated electrical stress.
When a new supplier lot enters dimensional inspection, keep the verified measurements and test result in the service record. Treat every suffix as an engineering identifier until its meaning is proven. It can change voltage, connector, spring calibration, spool geometry or mounting details while the base model looks similar. Keep 16T33S025750 in purchasing records and accept a cross-reference only after dimensional, electrical and hydraulic checks agree.
When an incoming production lot is released, keep the verified measurements and test result in the service record. The spring side of the circuit symbol defines what the machine does when electrical power is absent. That state can hold, unload, block or route pilot pressure, and the wrong selection may create movement or pump load at startup. Compare the original schematic with the catalog symbol and verify the safe normal condition before energizing the replacement.
Send the complete old marking or component evidence, confirmed voltage, machine information, clear photos, measurements and required quantity for a fitment-focused B2B quotation.
