S1283S John Deere 4520 D358 Starter Motor Wholesale

S1283S Starter Motor Wholesale Application Support for John Deere 4520 and International 1420 D358

For John Deere 4520 and International 1420 D358, S1283S gives distributors a focused starting point for quotation and branch inventory. Confirm 12V, 4.5kW, 10T and CW, with particular attention to compact agricultural drive end for John Deere 4520 and International D358 equipment, before combining demand from different fleets or workshops.

Separate different old-unit numbers from the S1283S enquiry and attach images for each configuration. State which line is a sample and which is a replenishment quantity, together with destination and timing. This gives the quotation a practical fitment boundary and a realistic packing and delivery plan.

S1283S Starter Motor Mounting Reference for Commercial Buyers

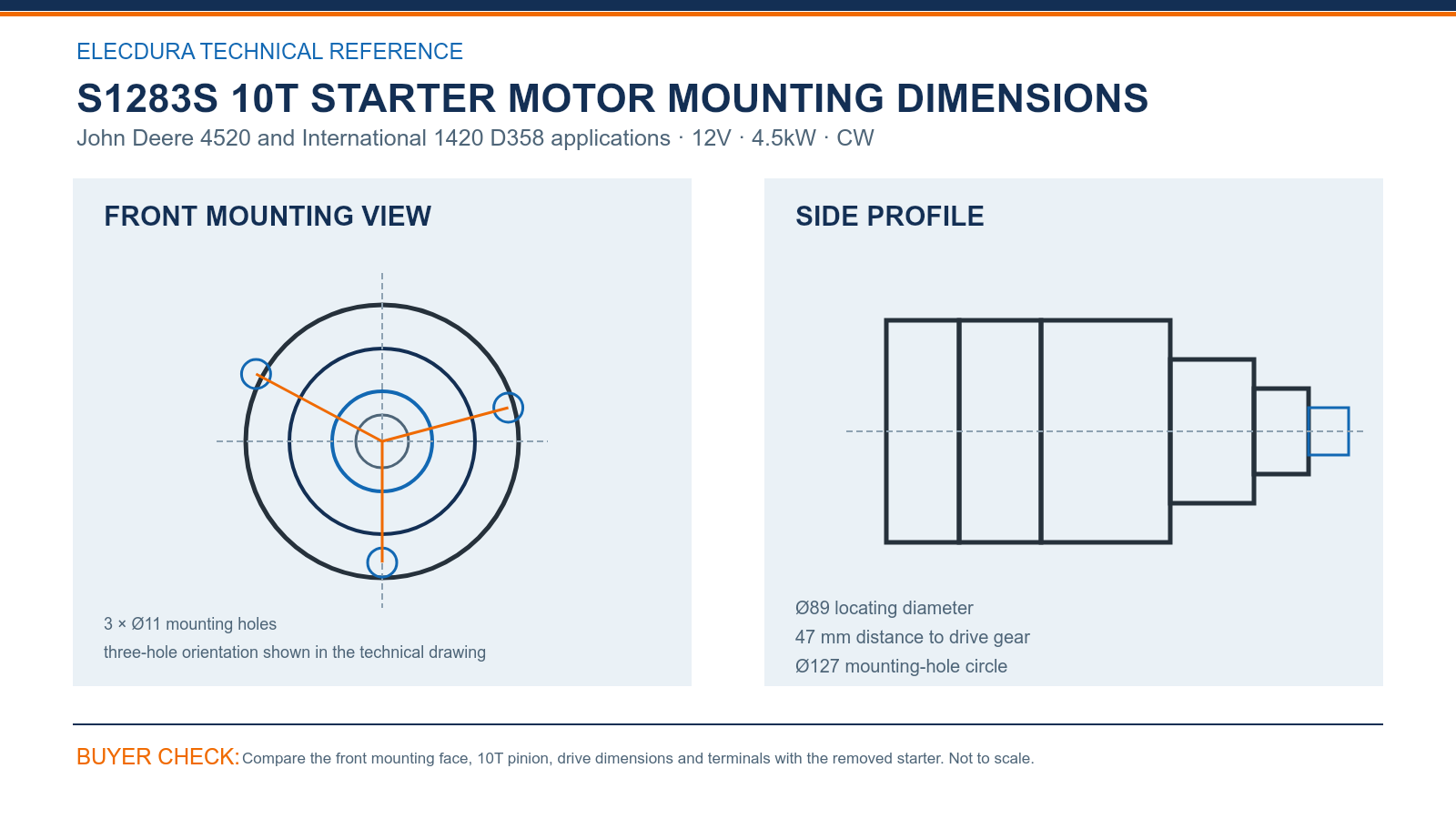

S1283S John Deere 4520 International D358 12V 4.5kW 10T starter dimensions.

Check the S1283S drawing against the removed starter at the mounting face and drive end. The critical references are 3 × Ø11 mounting holes, Ø89 locating diameter, Ø127 mounting-hole circle and 47 mm distance to drive gear. A physical mismatch should stop the unit from entering ordinary stock until the application is clarified.

The S1283S drive-end decision is completed by 10T and CW, together with 12V and 4.5kW. Confirm main-terminal and control-terminal positions under the actual cable routing. Similar dimensions do not compensate for the wrong rotation, pinion or electrical rating.

S1283S Starter Motor Cross-Reference Boundary for Importers

The S1283S cross-reference group includes S1283S, 9X0353, 3913017, 10461023, 10461039, 10461087, 10461183. These numbers improve search coverage across fleets and supplier systems, but they do not replace a check of 12V, 4.5kW, 10T, CW, mounting geometry and terminals.

If a mixed S1283S enquiry contains different pinions, drive positions or connector layouts, list each complete reference and photograph separately. Elecdura can then return distinct offers instead of placing unlike starters under one broad reference family.

S1283S Starter Motor Wholesale Ordering and Export Support

Elecdura can prepare S1283S orders for regional inventory, fleet workshops or industrial service demand. The standard starting point is 20 pieces, normally 7–15 days after order confirmation, with an 18-month warranty under agreed terms and packing selected for the destination and shipment method.

Buyers can state service urgency, supported equipment count and expected monthly use in the same RFQ. Elecdura can then discuss stock, production, packaging and staged delivery while maintaining the specified S1283S drive end and electrical rating throughout the order.

For supplier evaluation, the video presents Elecdura starter-motor assembly and testing. A S1283S order should still be released against the complete OE number, John Deere 4520 and International 1420 D358 details, electrical specification and physical comparison, giving purchasing both capability information and a clear product boundary.

S1283S Starter Motor Questions from Commercial Buyers

Which photographs and readings help Elecdura review S1283S after installation in a John Deere 4520 D358 service-network review?

Keep the carton or product traceability code and note when and where S1283S was installed. A review should include symptoms, operating time, old and replacement-unit photographs, cable and battery readings and any ring-gear observations. Complete evidence allows technical support to respond without repeated requests for basic information.

Before removing S1283S, what should the workshop test under load in a John Deere 4520 D358 service-network workshop?

Before fitting S1283S, verify battery condition, cable size and voltage drop at cranking current. Clean the mounting ground and inspect the ring gear and control circuit. A slow-crank complaint can come from weak batteries, poor connections or mechanical drag, so those causes should be separated from the starter itself.

Why does S1283S require a physical comparison for John Deere applications during service-network sourcing?

For S1283S, ask the workshop for the removed starter label and the exact equipment record. Match 12V, 4.5kW, 10T and CW, then compare the locating diameter, mounting holes and terminals. If one of those items changes, request another quotation instead of accepting the similar housing.

Do all references listed with S1283S identify an interchangeable unit in a John Deere 4520 D358 service-network sourcing program?

The references identify a related sourcing family, not automatic interchangeability. Use S1283S, 9X0353, 3913017, 10461023, 10461039 to locate possible matches, then confirm 12V, 4.5kW, 10T, CW and the mounting face. Any difference in drive position, terminal layout or locating diameter requires a separate product decision.

Which mounting-face points distinguish the specified S1283S version during a John Deere 4520 D358 service-network inspection?

Place the removed starter and S1283S on the same mounting-face orientation. Compare Ø89 locating diameter, Ø127 mounting-hole circle, the 3 × Ø11 mounting holes and the 47 mm distance to drive gear. The drawing is a dimensional reference rather than a scale template, so use suitable measuring tools and verify the terminals separately.

How can S1283S stock be separated by application risk in a John Deere 4520 D358 service-network program?

Separate planned maintenance demand from breakdown coverage and new-account stock. Share the number of supported machines, recent S1283S usage, transfer time between branches and the desired reserve. The resulting order can combine immediate units and scheduled replenishment while keeping the application and physical specification clearly identified.

Which first-lot checks protect a distributor receiving S1283S during a John Deere 4520 D358 service-network receiving check?

For S1283S, count the cartons, compare labels and inspect selected units for flange, pinion and terminal damage. The sample should match 3 × Ø11 mounting holes, Ø89 locating diameter and the specified 10T drive. Hold any exception outside normal inventory until purchasing and the supplier agree on the correct disposition.

Which commercial details belong in an export enquiry for S1283S in a John Deere 4520 D358 service-network sourcing program?

Send the complete OE number, exact John Deere 4520 and International 1420 D358 details, removed-unit photographs, quantity and destination. Add the required arrival date, carton marking, payment preference and any sample request. Elecdura can then quote the specified 12V 4.5kW 10T CW starter with packing, lead time, warranty and freight options.

S1283S Email for Starter Motor B2B Pricing

A complete RFQ for S1283S should state the application, removed-unit number, physical photographs, quantity, destination and delivery target. Send these details to info@elecdurauto.com for a direct response on the correct 12V 4.5kW 10T CW starter, MOQ, packaging, warranty and shipping choices.
