S1066 Bobcat 975 John Deere Starter Motor Wholesale

S1066 Bobcat 975 John Deere Starter Motor B2B Supply

Cotton-picking seasons and construction repairs create very different stocking patterns. A dealer can serve both channels with S1066 only when the machine model, old reference and distinctive two-hole face have been verified for each customer group.

Do not replace the two-ear housing with a common three-hole Delco-style starter. Confirm two Ø12.5 holes on an Ø105 circle, the Ø82.5 locating diameter and 33 mm drive position before the item enters seasonal reserve stock.

S1066 Two-Hole Starter Specifications and Technical Drawing

The defined electrical and drive combination is 12V, 2.5kW, 10T, module 2.54 and clockwise rotation. Present it as one line on supplier offers and warehouse labels so the compact face is not paired with a nearby but incorrect pinion.

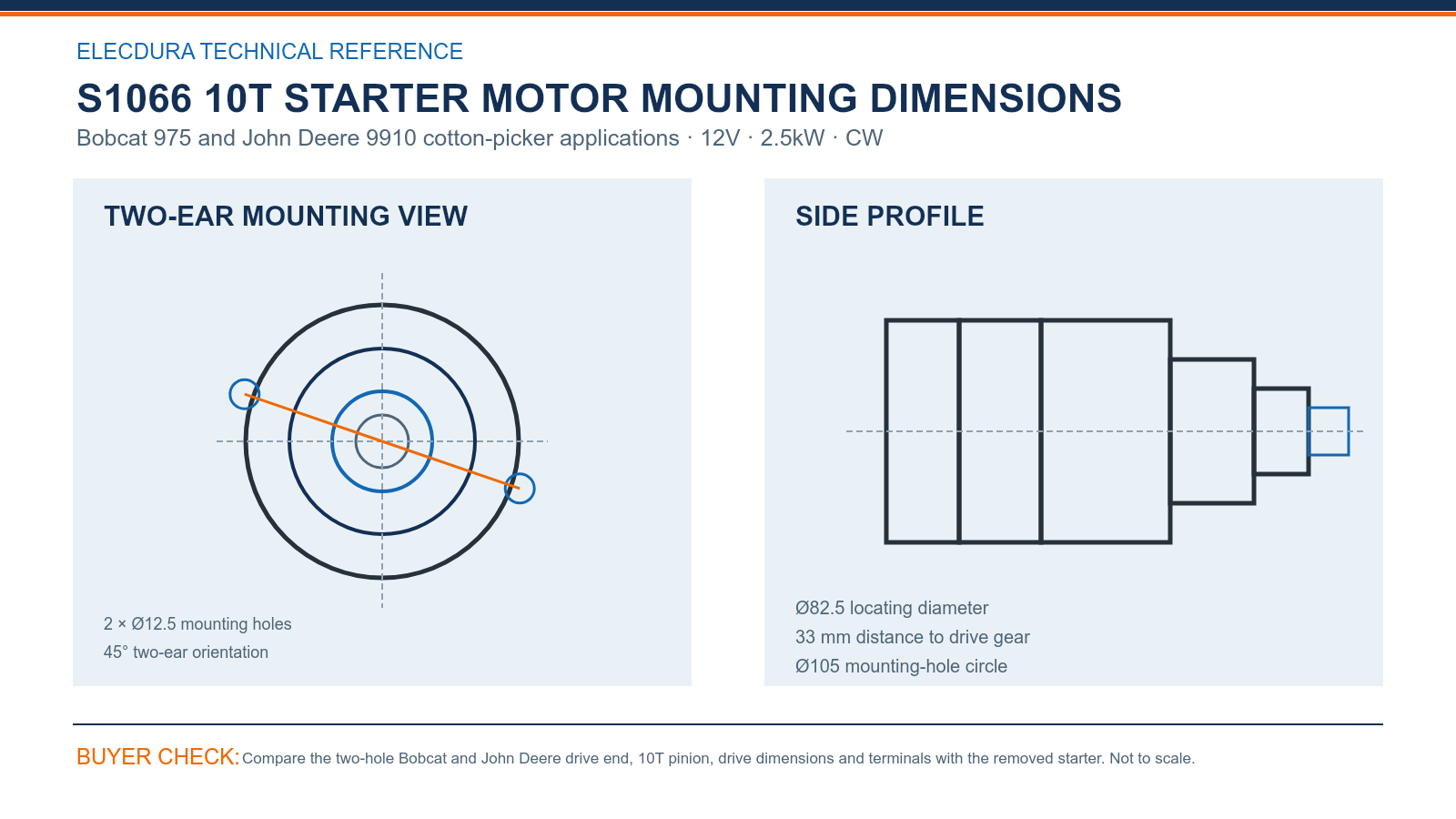

S1066 Bobcat John Deere Two-Hole Starter Drawing for Dealers — compare the drawing with the removed starter before placing a volume order.

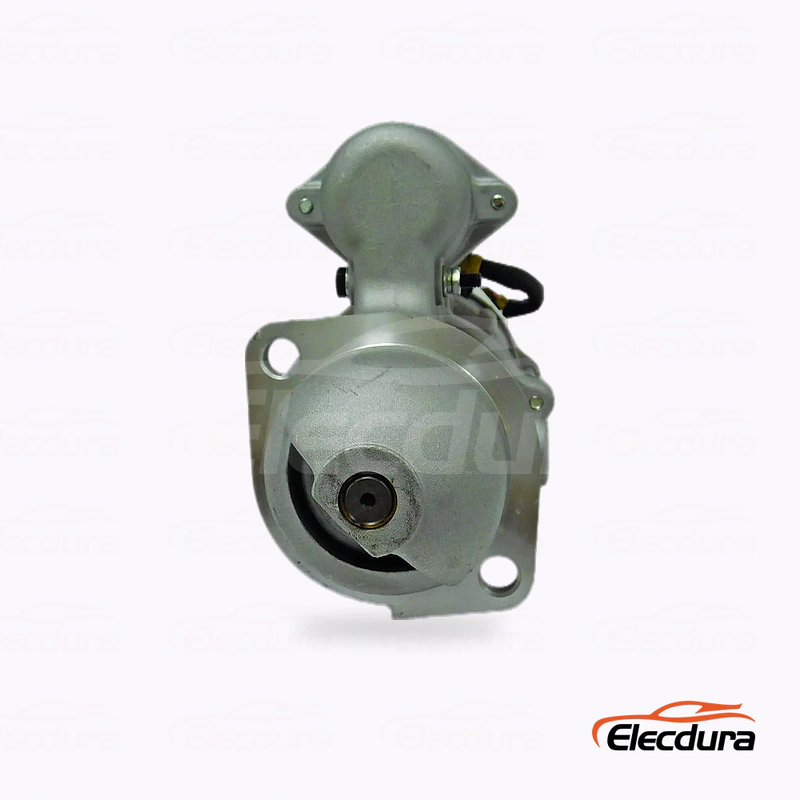

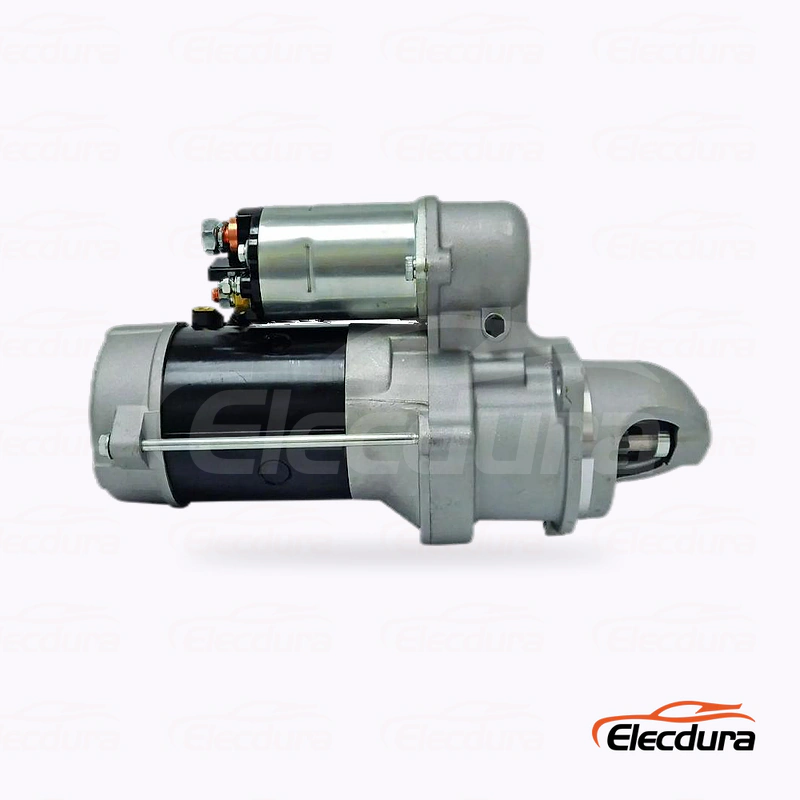

The technical drawing highlights a 45° two-ear orientation. A straight front image should show both mounting holes and the locating shoulder, while a side view confirms the 33 mm drive reference and cable clearance around the solenoid.

S1066 John Deere Bobcat Reference Matching for Dealers

RE49033, RE509658, SE501428 and TY25994 support John Deere purchasing searches; 10461443 and 1998346 connect the product to Delco channels. Preserve the full old-unit marking because one short John Deere number can appear in several reman systems.

Bobcat 975 service stock and John Deere 9910 harvest reserve should remain visible as separate quantities. Combining freight is possible after fitment confirmation, but different branch labels and forecast dates make the shared S1066 supply easier to manage.

S1066 Seasonal Starter Stock and Production Video

Agricultural buyers can schedule pre-season samples before the main order. Check the two-hole face, ten-tooth pinion, terminal protection and carton marks, then retain one accepted unit or image set for rapid comparison during the operating season.

The production video gives equipment dealers a view of Elecdura assembly and electrical testing. It supports supplier evaluation while the seasonal S1066 program still relies on machine-specific forecasts, two-hole inspection and documented receiving samples.

S1066 Starter Motor FAQ for Agricultural and Bobcat Dealers

What makes the S1066 two-ear drive end important?

For S1066 fitment, compare the two Ø12.5 holes, Ø105 circle, 10T module-2.54 drive and machine identity with the removed starter, using the drawing and square photographs rather than judging the housing from one angled view. Keep S1066, the two Ø12.5 holes, Ø105 circle, 10T module-2.54 drive and machine identity and 12V, 2.5kW, 10T, module 2.54 and CW rotation together from enquiry through receiving.

How should a John Deere 9910 dealer forecast S1066 stock?

During S1066 receiving, label each bin and carton for Bobcat 975 and John Deere 9910 cotton-picker applications with S1066, the electrical rating, pinion and housing version instead of a broad engine-family name. Compare the two Ø12.5 holes, Ø105 circle, 10T module-2.54 drive and machine identity, then carry 12V, 2.5kW, 10T, module 2.54 and CW rotation into the purchase order and stock description.

What information identifies an S1066 for a Bobcat 975?

When reviewing S1066 returns, include the engine or machine model, old-starter numbers, mounting photographs, the two Ø12.5 holes, Ø105 circle, 10T module-2.54 drive and machine identity, quantity, packing request and destination. A dependable S1066 match combines the two Ø12.5 holes, Ø105 circle, 10T module-2.54 drive and machine identity with 12V, 2.5kW, 10T, module 2.54 and CW rotation, not one visible feature.

Which John Deere references are useful for S1066 sourcing?

For S1066 wholesale pricing, use S1066 as search references for Bobcat 975 and John Deere 9910 cotton-picker applications, then keep the exact physical comparison attached to S1066. This ties the two Ø12.5 holes, Ø105 circle, 10T module-2.54 drive and machine identity to 12V, 2.5kW, 10T, module 2.54 and CW rotation when the item moves into branch stock.

Can Bobcat and John Deere S1066 orders share export freight?

For S1066 matching, yes, S1066 can support the Bobcat 975 and John Deere 9910 cotton-picker applications parts search, but the numbers do not prove interchangeability by themselves. Confirm the two Ø12.5 holes, Ø105 circle, 10T module-2.54 drive and machine identity and keep the 12V, 2.5kW, 10T, module 2.54 and CW rotation values visible on the quotation.

What should be verified on an S1066 pre-season sample?

For this S1066 application, start with Bobcat 975 and John Deere 9910 cotton-picker applications, the complete S1066 marking and clear photographs of the removed starter from matching angles. Pair the two Ø12.5 holes, Ø105 circle, 10T module-2.54 drive and machine identity with the 12V, 2.5kW, 10T, module 2.54 and CW rotation set in purchasing and receiving records.

Why must a three-hole starter be kept out of an S1066 bin?

When comparing S1066, start with Bobcat 975 and John Deere 9910 cotton-picker applications, the complete S1066 marking and clear photographs of the removed starter from matching angles. This checks the two Ø12.5 holes, Ø105 circle, 10T module-2.54 drive and machine identity while preserving the 12V, 2.5kW, 10T, module 2.54 and CW rotation definition for the buyer.

Which details support a firm seasonal S1066 quotation?

When stocking S1066, include the engine or machine model, old-starter numbers, mounting photographs, the two Ø12.5 holes, Ø105 circle, 10T module-2.54 drive and machine identity, quantity, packing request and destination. For S1066, physical evidence must support the two Ø12.5 holes, Ø105 circle, 10T module-2.54 drive and machine identity and the 12V, 2.5kW, 10T, module 2.54 and CW rotation combination.

Request S1066 Agricultural Starter Motor Pricing

Email the Bobcat 975 or John Deere 9910 model and serial information, complete old-starter number, two-hole flange, pinion and terminal photographs, seasonal quantity, required date and destination to info@elecdurauto.com. Elecdura will prepare a focused B2B offer.
