RE38632 Cummins 6BT Starter Motor Wholesale Supply

RE38632 Starter Motor B2B Fitment Guide for Cummins 6BT 5.9L engine

Cummins engine distributors, John Deere parts dealers and electrical wholesalers can use RE38632 as the commercial identity for the starter required in Cummins 6BT 5.9L engine. The order should preserve the 10T pinion and the supplier-defined 24V 6.0kW 10T product for the 6BT 5.9L reference group, avoiding a broad substitution based only on engine family or overall housing appearance.

Send the full RE38632 application and old-unit identification rather than only a truck or engine brand. With mounting and terminal photos, quantity, destination and arrival target, Elecdura can discuss the correct starter, MOQ, packing, warranty and shipping route without unnecessary follow-up.

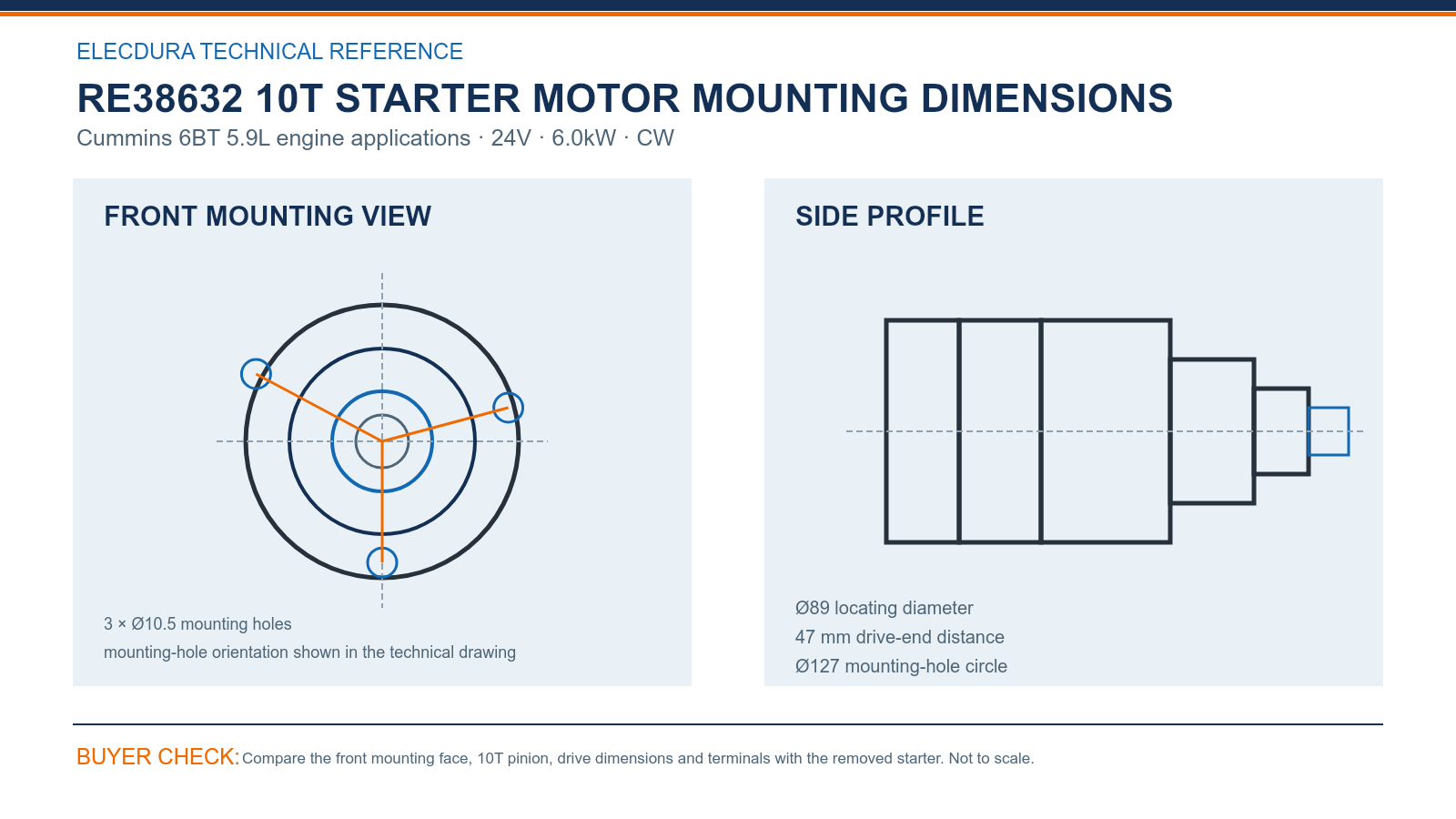

RE38632 Starter Motor Drive-End Drawing for Aftermarket Distributors

For RE38632 first-lot sampling, place the old and new starters in the same front-facing position. Check 3 × Ø10.5 mounting holes, Ø89 locating diameter, Ø127 mounting-hole circle and 47 mm drive-end distance. Keeping those values with arrival photographs gives purchasing a reusable physical record for later replenishment.

After the RE38632 mounting check, verify 24V, 6.0kW, 10T and CW. The final visual review covers the terminal studs, control connector and pinion. This prevents a physically related starter from being approved only because its reference appears in the same family.

RE38632 Starter Motor OE Number Guide for Aftermarket Supply

1. Search group: 112256, 10461015, 10478814, 10478819, 10479179, 10479180, 10479181 can help distributor teams locate the relevant starter family.
2. Order boundary: Confirm the complete reference with 24V, 6.0kW, 10T, CW, the drawing and terminal photographs before accepting one physical unit.

RE38632 Starter Motor Bulk Order Packing and Lead-Time Support

For a bulk order of RE38632, Elecdura confirms availability, packing, lead time and freight against the required quantity and destination. Standard terms begin at 20 pieces, normally require 7–15 days after confirmation and include an 18-month warranty under the final sales agreement.

For multi-branch supply, show which quantity is needed immediately and which can follow as planned replenishment. The accepted RE38632 sample, dimensional record and terminal photographs can then support carton marking, receiving checks and repeat orders across the customer’s network.

B2B buyers can use the video to review Elecdura’s starter-motor assembly and test process. The approved RE38632 configuration remains defined by 24V, 6.0kW, 10T, CW, mounting geometry and terminals, which should be retained in the purchase record.

RE38632 Starter Motor Questions from Commercial Buyers

What traceability details should accompany a warranty enquiry for RE38632 in a Cummins 6BT dealer review for mixed Cummins and Deere reference control?

Keep the carton or product traceability code and note when and where RE38632 was installed. A review should include symptoms, operating time, old and replacement-unit photographs, cable and battery readings and any ring-gear observations. Complete evidence allows technical support to respond without repeated requests for basic information.

Why is the RE38632 reference match only the start of product selection in a Cummins 6BT dealer sourcing program for mixed Cummins and Deere reference control?

Use the complete alternate number, not a shortened series, and attach photographs of the removed unit. The RE38632 group is acceptable only when 24V, 6.0kW, 10T, CW and the physical interface agree. A reference conflict should be clarified before samples or bulk quantities are released.

Which details separate RE38632 from similar starters used around Cummins 6BT 5.9L engine during dealer sourcing for mixed Cummins and Deere reference control?

For RE38632, ask the workshop for the removed starter label and the exact equipment record. Match 24V, 6.0kW, 10T and CW, then compare the locating diameter, mounting holes and terminals. If one of those items changes, request another quotation instead of accepting the similar housing.

What workshop readings are useful when diagnosing a starting complaint involving RE38632 in a Cummins 6BT dealer workshop for mixed Cummins and Deere reference control?

Load-test the battery set and measure voltage drop on the positive and ground circuits while cranking. Inspect cable lugs, chassis grounds, the start-control signal and ring-gear condition before replacing RE38632. These checks distinguish a starter fault from low battery capacity, resistance or a control-circuit problem.

Why is a straight mounting-face photo useful for confirming RE38632 during a Cummins 6BT dealer inspection for mixed Cummins and Deere reference control?

Place the removed starter and RE38632 on the same mounting-face orientation. Compare Ø89 locating diameter, Ø127 mounting-hole circle, the 3 × Ø10.5 mounting holes and the 47 mm drive-end distance. The drawing is a dimensional reference rather than a scale template, so use suitable measuring tools and verify the terminals separately.

Can urgent service demand and routine RE38632 replenishment share one enquiry in a Cummins 6BT dealer program for mixed Cummins and Deere reference control?

Separate planned maintenance demand from breakdown coverage and new-account stock. Share the number of supported machines, recent RE38632 usage, transfer time between branches and the desired reserve. The resulting order can combine immediate units and scheduled replenishment while keeping the application and physical specification clearly identified.

How can a buyer quarantine a mismatched RE38632 unit quickly during a Cummins 6BT dealer receiving check for mixed Cummins and Deere reference control?

For RE38632, count the cartons, compare labels and inspect selected units for flange, pinion and terminal damage. The sample should match 3 × Ø10.5 mounting holes, Ø89 locating diameter and the specified 10T drive. Hold any exception outside normal inventory until purchasing and the supplier agree on the correct disposition.

What should be included in a wholesale enquiry for RE38632 in a Cummins 6BT dealer sourcing program for mixed Cummins and Deere reference control?

Send the complete OE number, exact Cummins 6BT 5.9L engine details, removed-unit photographs, quantity and destination. Add the required arrival date, carton marking, payment preference and any sample request. Elecdura can then quote the specified 24V 6.0kW 10T CW starter with packing, lead time, warranty and freight options.

RE38632 Request a Starter Motor Fleet Supply Quote

Email info@elecdurauto.com with RE38632, the supported Cummins 6BT 5.9L engine record, old-unit photographs, quantity, destination and required arrival date. Elecdura will use those details to confirm the 24V, 6.0kW, 10T CW starter and prepare wholesale pricing with MOQ, lead time, packing and freight.
