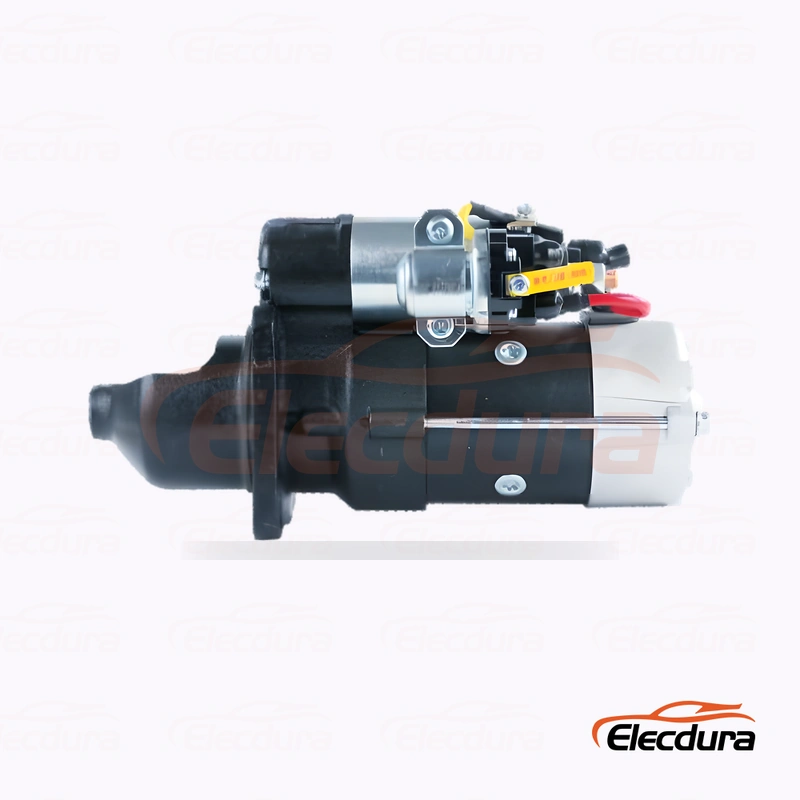

5286774 Cummins Starter Motor 24V 7.0kW 10T

5286774 Industrial Diesel Engine Starter Motor for CUMMINS ISB220405.9L

For inventory buyers updating a customer item master, this industrial diesel engine starter motor serves CUMMINS ISB220405.9L replacement demand under reference 5286774. Its 24V system, 7.0kW rating and 10T drive help importers and distributors identify the required version before discussing volume supply.

For fleet-parts buyers reviewing customer demand, the product is positioned for professional aftermarket supply, with product identification, fitment boundaries, inspection options and commercial terms visible before the buyer requests pricing.

5286774 Starter Motor Specifications and Technical Drawing

For fleet-parts buyers preparing a technical RFQ, the product identity combines 5286774, CUMMINS ISB220405.9L, 24V, 7.0kW and 10T. Keeping those facts together helps buyers separate this starter from adjacent versions.

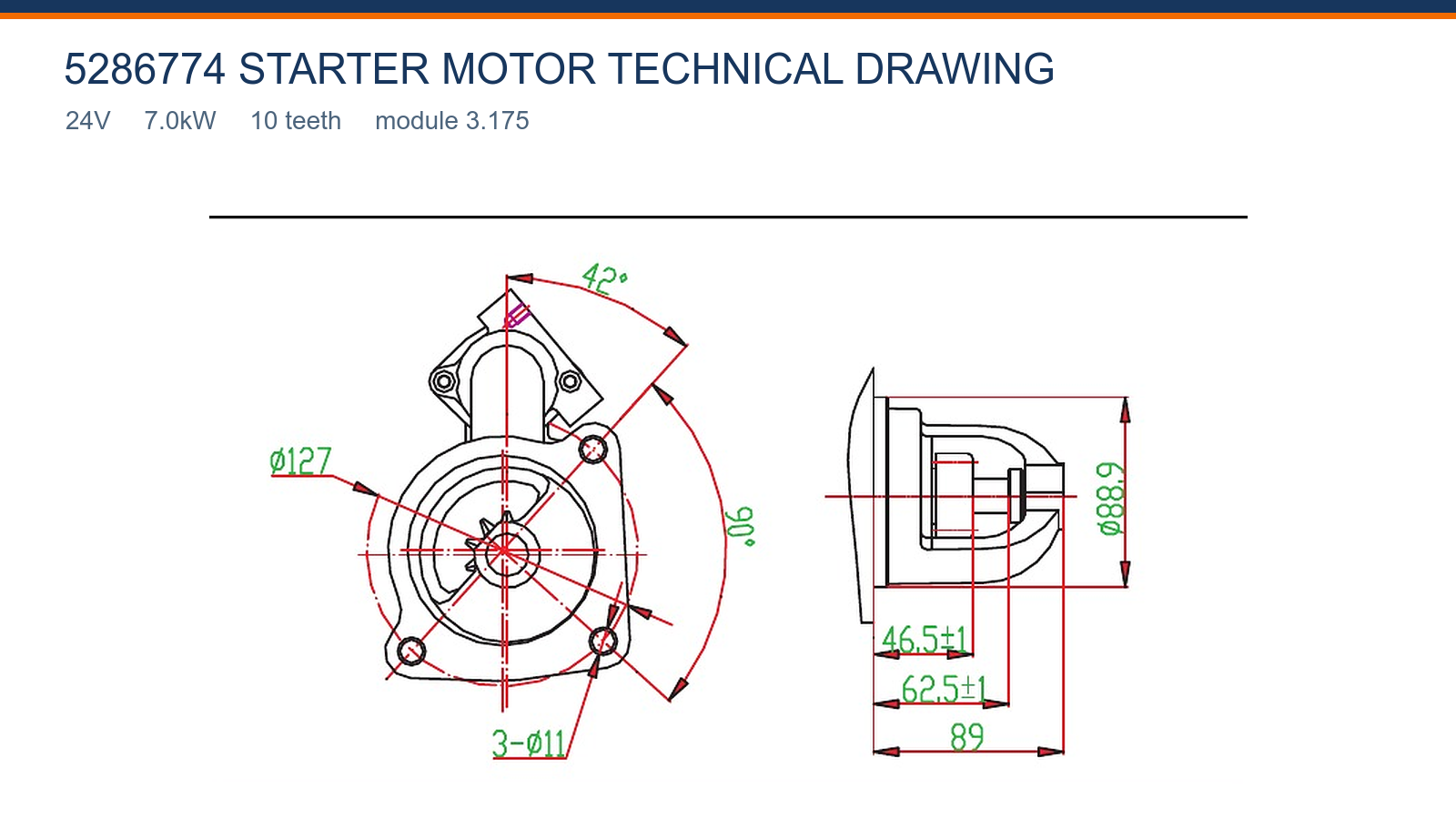

For technical sales teams checking version-defining data, the source-faithful technical drawing records the available mounting information for 5286774, including 3×Ø11, 46.5±1 mm, 62.5±1 mm; use the printed values together with the product views because the drawing supports comparison and should not be scaled from the screen.

5286774 Aftermarket Replacement and Application

For equipment-parts dealers preparing an OE-based quote, use 5286774 as the primary product identity for CUMMINS ISB220405.9L. The cross-reference group 5286774 supports aftermarket matching, while the electrical rating and drive-end configuration distinguish the exact version supplied here.

For purchasing teams separating similar housings, start with the complete reference and application, then compare the 10T drive, flange shape and terminal orientation. A physical difference should be resolved before volume pricing is accepted.

5286774 Wholesale Supply for Distributors and Importers

For distributors defining label requirements, distributor supply for 5286774 can include neutral packaging, customer-brand review and order-specific labels. Current commercial guidance is 20 pcs MOQ, 7–15 days subject to confirmation and an 18-month warranty under agreed terms.

For aftermarket product managers preparing distributor pricing, the order can specify testing scope, sampling level, label content and packing details. Reference-label, drive-end and terminal-protection photos may also be requested before shipment for the agreed product version.

5286774 Starter Motor Buyer FAQ

What should receiving teams compare on 10T and module 3.175 when the old starter is available?

For service-parts networks separating similar housings, the supplied drive uses 10 teeth with module 3.175. Count the old pinion teeth and compare outside diameter, rest position and engagement depth at inquiry stage. The 3.175 module is part of the gear definition, so another pitch must not be combined on the one stock line. This check protects the ring gear from an incorrect mesh.

What should receiving teams compare on 5286774 rear-terminal photograph during an application review?

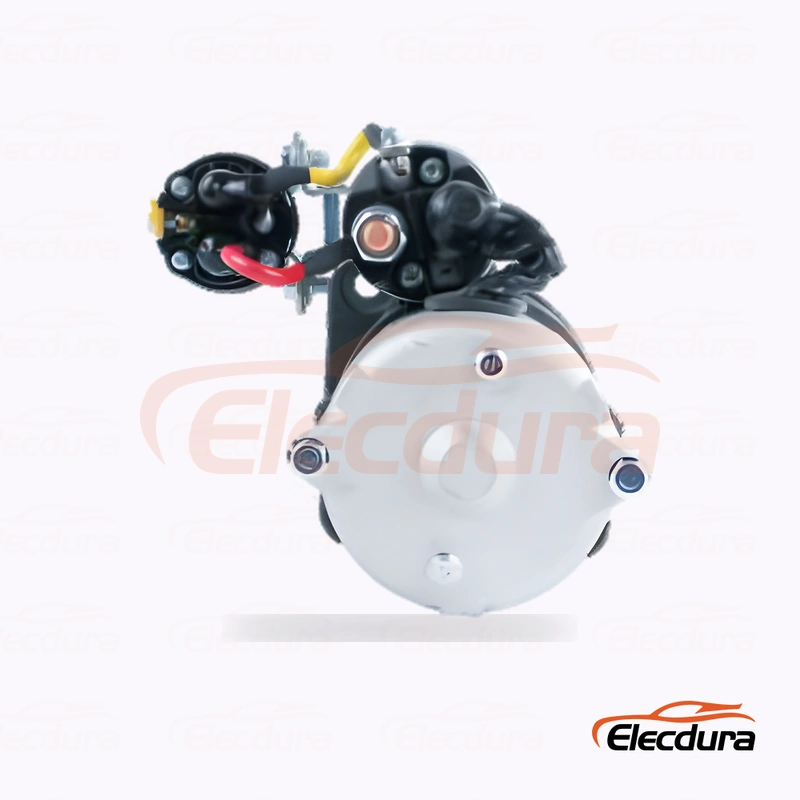

For importers evaluating a direct replacement, use the rear view of 5286774 to identify battery and signal terminals, their direction and the clearance around each stud. Match the customer's photograph from the same orientation and consider cable routing in CUMMINS ISB220405.9L. A correct drive end with an unusable terminal position is not a complete fitment match.

What should receiving teams compare on CUMMINS ISB220405.9L cranking condition for repeatable sourcing?

For product managers reviewing drive-end geometry, before replacing the starter on CUMMINS ISB220405.9L, test battery state, voltage drop across positive and ground paths, the start signal and ring-gear condition. Note cranking voltage and any abnormal noise. Those observations help distinguish a supply-circuit or engine-load problem from a fault in the 24V, 7.0kW starter and make a technical inquiry easier to resolve.

What must be matched before quoting 5286774 inquiry package when confirming the offer line?

For fleet-parts buyers opening a first stocking order, A useful inquiry for 5286774 includes quantity, destination, required date, CUMMINS ISB220405.9L, the full old-unit number and clear photos of the label, drive end, mounting interface and connection points. State neutral or private-label packaging needs at the same time. Elecdura can then quote the 24V, 7.0kW, 10T version against one clear technical purchasing line.

Which check should lead 10-tooth pinion identification before an installation slot is booked?

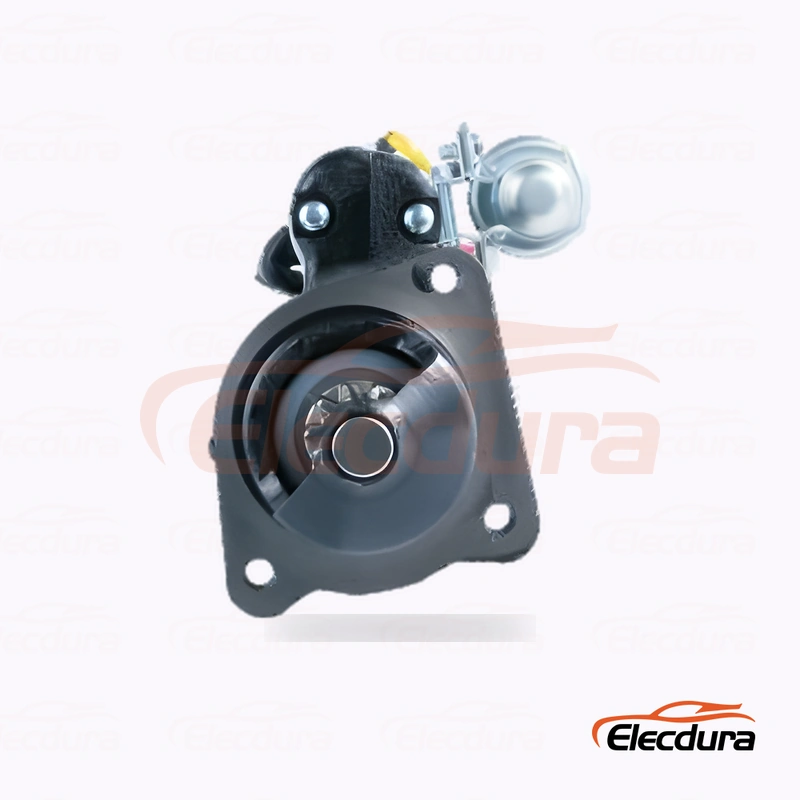

For equipment-parts dealers preparing a technical RFQ, count all 10 teeth on the 5286774 pinion and compare the gear diameter with the removed starter. Tooth count is a fast screening point, but engagement depth, pitch and rest position still need agreement. If the old unit carries another count, treat it as a different drive version and review the ring gear before fitting.

How can a buyer screen 5286774 locating face for warehouse identification?

For purchasing teams checking version-defining data, the 5286774 flange should sit flat against the CUMMINS ISB220405.9L mounting surface without being pulled into place by the bolts. Clean both faces and compare the locating shoulder, hole pattern and any stated diameters. Rocking, a visible gap or bolt misalignment indicates that the version check is incomplete and installation should stop.

How should a distributor confirm 5286774 technical claim evidence when the old starter is available?

For distributors planning a repeat order, retain the unit label, affected quantity, carton condition, installation photos and cranking-voltage results. Add close images of the drive and terminals and note the CUMMINS ISB220405.9L equipment. This evidence helps separate transport damage, an electrical-system problem, incorrect fitment and a starter fault without relying on a general description of failure.

How should a workshop distinguish 5286774 inside a mixed starter shipment for a documented fitment decision?

For aftermarket product managers planning mixed-model inventory, give each carton line its own reference, 24V, 7.0kW and 10T marking. The packing list should preserve those same fields. Receiving can then compare labels and drive-end appearance without opening every carton, while any mixed or unclear unit is isolated for review.

Request a Wholesale Quote for 5286774 Industrial Diesel Engine Starter Motor

For engine-parts specialists opening a first trade order, send 5286774, the CUMMINS ISB220405.9L application, required quantity, destination and packaging preference. Add old-unit photos when available. Elecdura will review the 24V, 7.0kW, 10T version and prepare a product-specific wholesale quotation.
