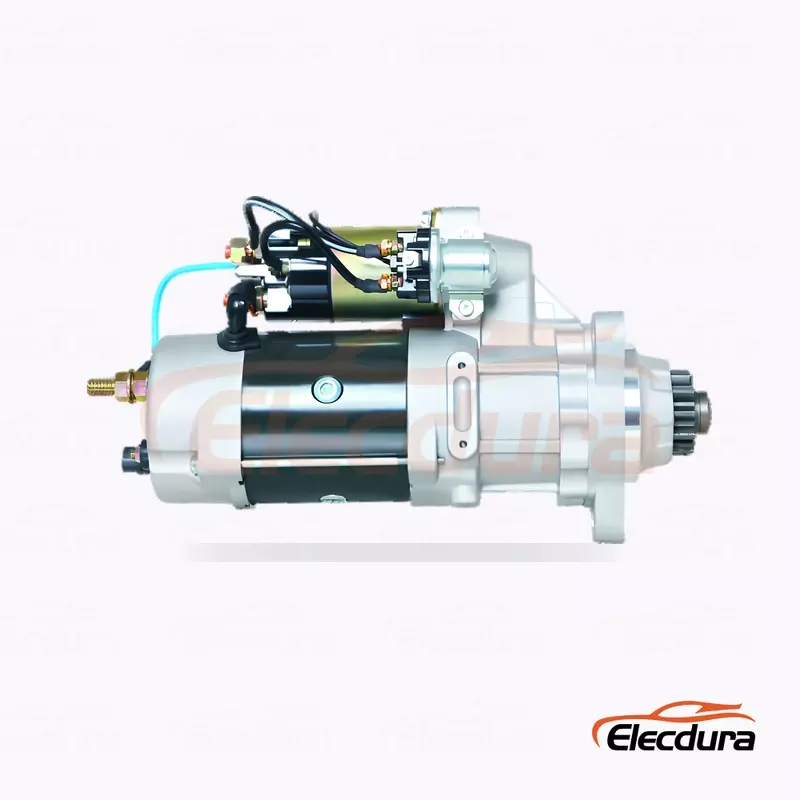

8200330-12V-9.0KW-11T-4.233M Cummins Starter Motor

8200330-12V-9.0KW-11T-4.233M Construction Equipment Starter Motor for CUMMINS QSM11-C (Hyundai 455LC-7)

For wholesale program managers planning mixed-model inventory, 8200330-12V-9.0KW-11T-4.233M supports excavator, loader and off-highway replacement programs for CUMMINS QSM11-C (Hyundai 455LC-7). This construction equipment starter motor is defined by its 12V electrical system, 9.0kW output and 11T pinion, giving distributors a practical basis for quotation and stock matching.

For sales teams updating a customer item master, the commercial value is a clearly identified starter rather than a generic visual match. Buyers can use the OE group, application, product images and technical data together, while neutral packaging and private-label review can be discussed for qualified bulk orders.

8200330-12V-9.0KW-11T-4.233M Starter Motor Specifications and Technical Drawing

For purchasing teams comparing nearby starter versions, this reference group can cover nearby starter versions. Keep 8200330-12V-9.0KW-11T-4.233M, 12V, 9.0kW and 11T together on the RFQ, then compare the flange, drive end and terminal layout before treating another number as a direct replacement.

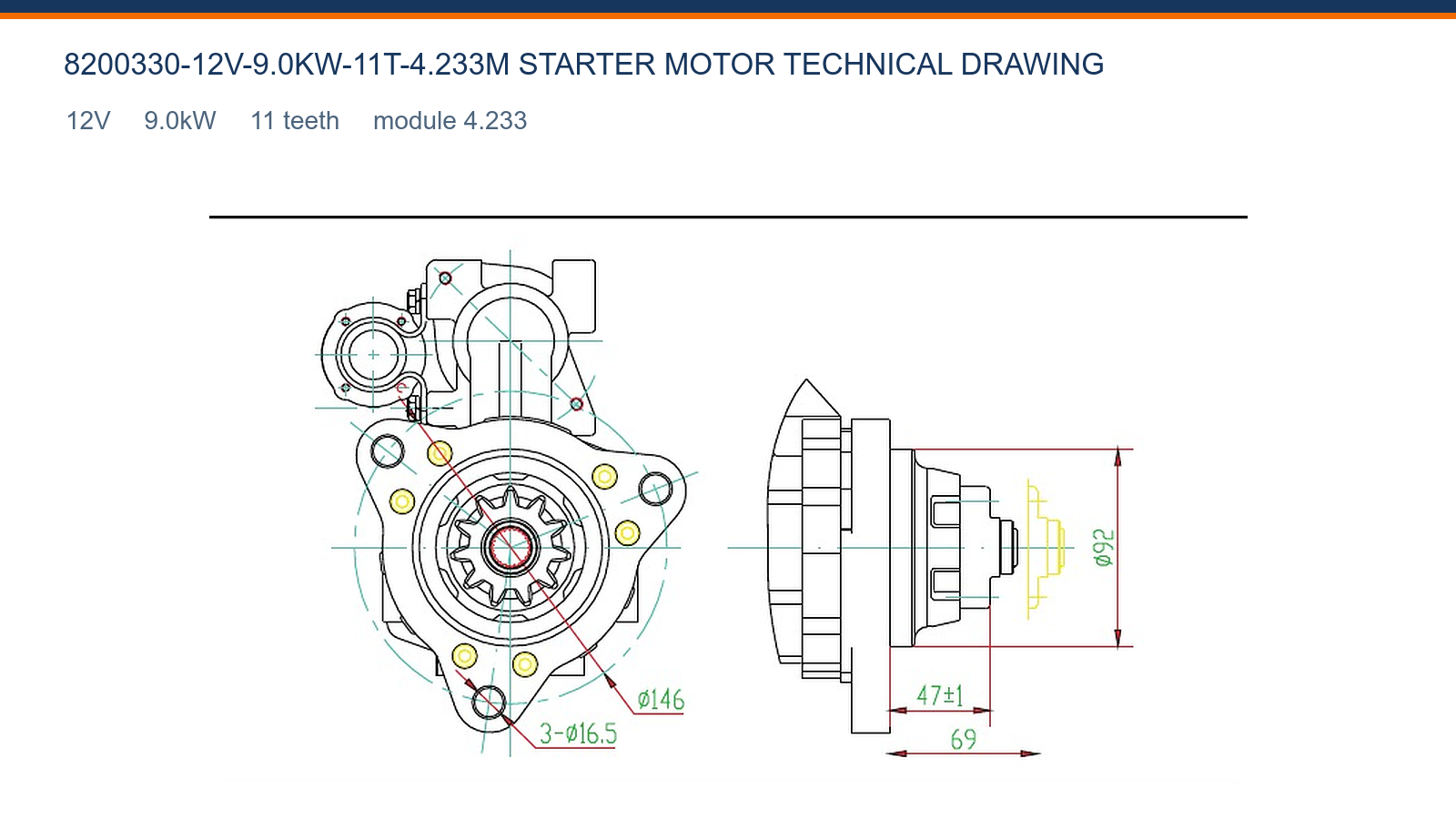

For distributors preparing a technical RFQ, the source-faithful technical drawing records the available mounting information for 8200330-12V-9.0KW-11T-4.233M, including 3×Ø16.5, Ø146, 47±1 mm; use the printed values together with the product views because the drawing supports comparison and should not be scaled from the screen.

8200330-12V-9.0KW-11T-4.233M Aftermarket Replacement and Application

For service-parts networks checking application evidence, use 8200330-12V-9.0KW-11T-4.233M as the primary product identity for CUMMINS QSM11-C (Hyundai 455LC-7). The cross-reference group 8200330-12V-9.0KW-11T-4.233M, 8200330, 8200724, 6837 supports aftermarket matching, while the electrical rating and drive-end configuration distinguish the exact version supplied here.

For importers preparing an OE-based quote, product photos and the stated specifications should be reviewed together. If the old starter uses another pinion, mounting face or rear connection, keep that configuration on a separate RFQ until it is identified.

8200330-12V-9.0KW-11T-4.233M Wholesale Supply for Distributors and Importers

For inventory buyers setting packaging requirements, 8200330-12V-9.0KW-11T-4.233M is available for professional aftermarket supply to construction-equipment parts distributors, importers and fleet suppliers. Ask for wholesale pricing with quantity, destination and packaging requirements; standard terms are 20 pcs MOQ, 7–15 days after confirmation and 18 months warranty.

For fleet-parts buyers planning replenishment, Elecdura can align product identification, electrical testing and packaging records with the buyer's order. The exact inspection scope depends on the agreed quantity and market requirements and should be stated before production planning.

8200330-12V-9.0KW-11T-4.233M Starter Motor Buyer FAQ

How should a distributor confirm 8200330-12V-9.0KW-11T-4.233M carton identification when preparing a product query?

For aftermarket wholesalers building a new starter range, ask that unit and carton labels repeat the agreed reference, 12V, 9.0kW and 11T where the packaging format permits. Add the customer's barcode and destination marks before production. Clear identification allows distributors to receive, bin and pick this version without opening packaging or relying on a generic starter description.

How should a distributor confirm CUMMINS QSM11-C (Hyundai 455LC-7) previously replaced starter for a documented fitment decision?

For fitment reviewers checking repeat-order specifications, ask whether the starter removed from CUMMINS QSM11-C (Hyundai 455LC-7) is original or an earlier replacement. If it has been substituted before, the visible unit may not represent the equipment's initial build. Use its label and geometry together with 8200330-12V-9.0KW-11T-4.233M, 12V, 9.0kW and 11T before turning that history into a bulk stocking decision.

Which check should lead 12V and 9.0kW when the unit taken from service is available?

For application specialists matching the unit taken from service, 8200330-12V-9.0KW-11T-4.233M is defined as 12V and 9.0kW. Confirm the machine electrical system and the old starter rating together, because the stated voltage separates electrical-system versions while starter power contributes to usable cranking performance. Battery condition, cable size and ground integrity should also suit this rating; a different voltage or output is a separate product, even when the housings appear similar.

How can an importer validate Ø146 for warehouse identification?

For replacement-parts sellers reviewing drive-end geometry, 8200330-12V-9.0KW-11T-4.233M shows Ø146. Measure each diameter at the same shoulder or circle indicated in the drawing, rather than taking an unrelated outside-housing dimension. The locating feature centers the starter at the ring gear, so a diameter mismatch can matter even when the bolt holes appear to align.

Which detail separates 8200330-12V-9.0KW-11T-4.233M cartons and units before a purchase order is released?

For warehouse planners opening a first commercial order, sample cartons from different positions in the shipment and compare the 8200330-12V-9.0KW-11T-4.233M labels, 12V marking, 11-tooth pinion, flange shape and terminal protection with the procurement specification. Photograph any mixed marking, damaged terminal or different drive end during the pre-fit check, and isolate those pieces so the rest of the lot can be assessed consistently.

How should a workshop distinguish 8200330-12V-9.0KW-11T-4.233M drive-end photograph for repeatable sourcing?

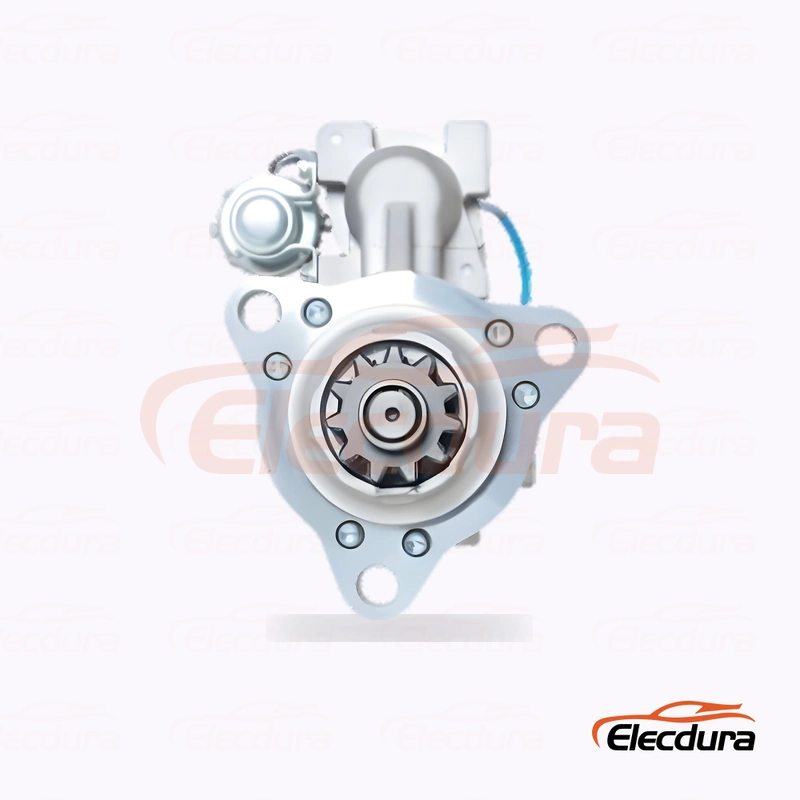

For importers preparing a technical RFQ, the drive-end image for 8200330-12V-9.0KW-11T-4.233M should be used to count 11 teeth and compare the flange, locating shoulder and pinion rest position. View the customer's old starter from the same angle and lighting. An oblique view can make the pinion and hole pattern difficult to judge, so obtain a square-on drive-end photo.

Which check should lead 9.0kW output on CUMMINS QSM11-C (Hyundai 455LC-7) when the old starter is available?

For product managers evaluating a direct replacement, the 9.0kW rating belongs to the 8200330-12V-9.0KW-11T-4.233M configuration used for CUMMINS QSM11-C (Hyundai 455LC-7). Verify the old-unit rating and investigate battery voltage, cable drop and engine turning resistance before choosing another output. A higher or lower kW figure is not an automatic upgrade; it can indicate a separate starter design with different electrical and mechanical requirements.

Which comparison prevents a mismatch for 11-tooth pinion identification when several versions look alike?

For maintenance suppliers comparing the flange and terminals, count all 11 teeth on the 8200330-12V-9.0KW-11T-4.233M pinion and compare the gear diameter with the removed starter. Tooth count is a fast screening point, but engagement depth, pitch and rest position still need agreement. If the old unit carries another count, treat it as a different drive version and review the ring gear before fitting.

Request a Wholesale Quote for 8200330-12V-9.0KW-11T-4.233M Construction Equipment Starter Motor

For private-label buyers preparing distributor pricing, ask for a quote on 8200330-12V-9.0KW-11T-4.233M with the full CUMMINS QSM11-C (Hyundai 455LC-7) record, quantity and packaging plan. We will verify the requested 12V, 9.0kW and 11T configuration and return the relevant wholesale terms.
