CUMMINS 6CT 24V 9.0kW 12T Starter Motor

CUMMINS 6CT 24V 9.0kW 12T Industrial Diesel Engine Starter Motor for CUMMINS 6CT

For importers planning replenishment, built for CUMMINS 6CT, this industrial diesel engine starter motor combines 24V operation, 9.0kW rated power and a 12T drive. Elecdura supplies CUMMINS 6CT 24V 9.0kW 12T for diesel-engine and generator-set replacement programs, including distributor stock and planned replenishment.

For inventory buyers reviewing customer demand, the commercial value is a clearly identified starter rather than a generic visual match. Buyers can use the OE group, application, product images and technical data together, while neutral packaging and private-label review can be discussed for qualified bulk orders.

CUMMINS 6CT 24V 9.0kW 12T Starter Motor Specifications and Technical Drawing

For engine-parts specialists preparing a technical RFQ, the key version difference is the mounting and housing clocking. Compare 65°, 3×120° spacing and 3×Ø13.5 with the original unit in hand so the pinion alignment and cable access remain correct.

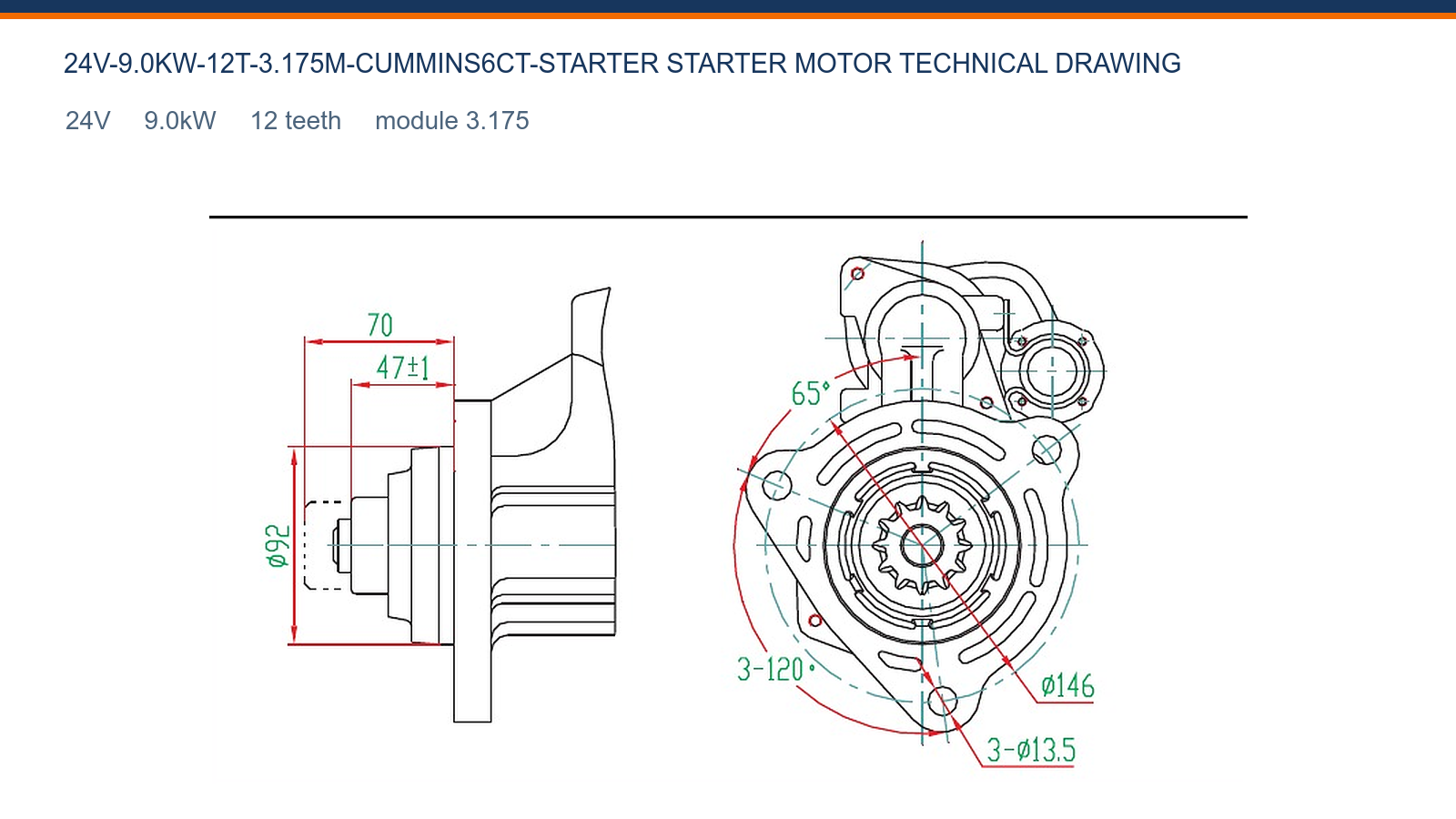

For fleet-parts buyers checking version-defining data, the source-faithful technical drawing records the available mounting information for CUMMINS 6CT 24V 9.0kW 12T, including 3×Ø13.5, 47±1 mm, 65°, 3×120° spacing; use the printed values together with the product views because the drawing supports comparison and should not be scaled from the screen.

CUMMINS 6CT 24V 9.0kW 12T Aftermarket Replacement and Application

For maintenance suppliers preparing an OE-based quote, this aftermarket starter motor is organized around CUMMINS 6CT 24V 9.0kW 12T for CUMMINS 6CT. Related numbers remain useful search and purchasing references, but Elecdura treats a changed rating, pinion, flange or terminal layout as a separate version for quotation.

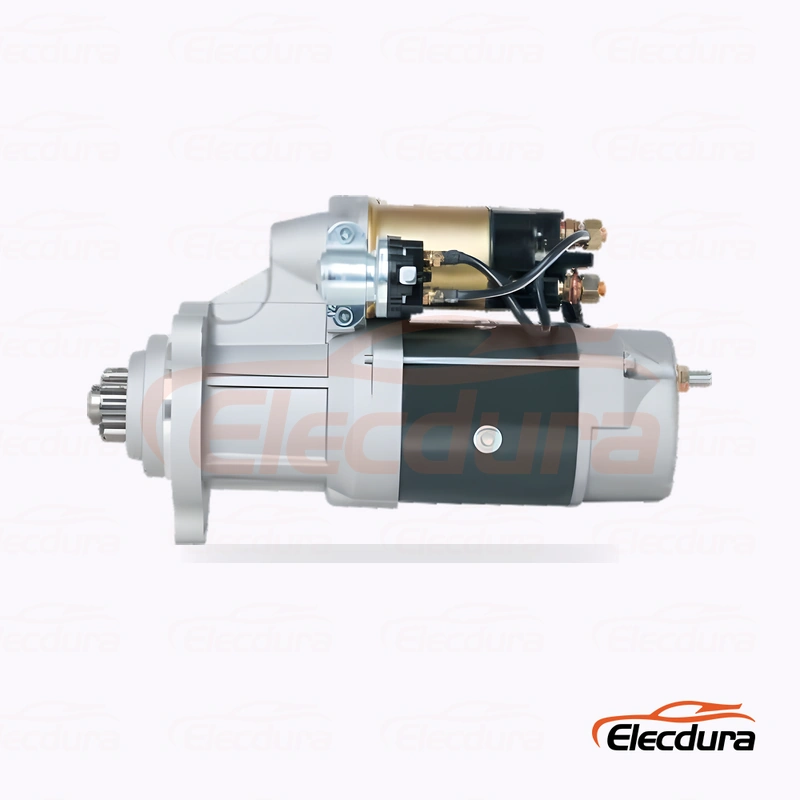

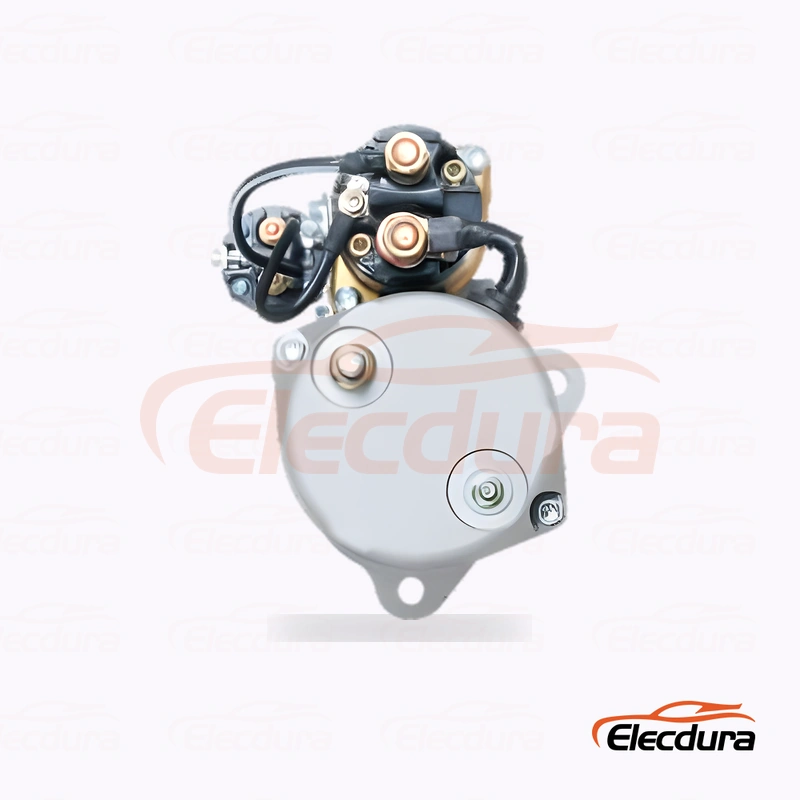

For equipment-parts dealers separating similar housings, the starter removed from the machine should agree with the approved drive-end, side and rear views. Confirm the 12T pinion and module 3.175, then keep any different flange or terminal layout outside the current quotation line.

CUMMINS 6CT 24V 9.0kW 12T Wholesale Supply for Distributors and Importers

For purchasing teams defining label requirements, CUMMINS 6CT 24V 9.0kW 12T is available for professional aftermarket supply to diesel-engine distributors, generator-set suppliers and industrial parts importers. Ask for wholesale pricing with quantity, destination and packaging requirements; standard terms are 20 pcs MOQ, 7–15 days after confirmation and 18 months warranty.

For distributors confirming commercial terms, the order specification may include armature, solenoid, no-load or load testing together with label and packaging requirements. This gives receiving teams practical points for sampling a batch without treating appearance alone as proof of fitment.

CUMMINS 6CT 24V 9.0kW 12T Starter Motor Buyer FAQ

How can an importer validate CUMMINS 6CT 24V 9.0kW 12T technical claim evidence when the existing starter is available?

For sales teams requesting production pricing, retain the unit label, affected quantity, carton condition, installation photos and cranking-voltage results. Add close images of the drive and terminals and note the CUMMINS 6CT equipment. This evidence helps separate transport damage, an electrical-system problem, incorrect fitment and a starter fault without relying on a general description of failure.

How should a distributor confirm CUMMINS 6CT 24V 9.0kW 12T locating face for warehouse identification?

For service-parts networks evaluating a direct replacement, the CUMMINS 6CT 24V 9.0kW 12T flange should sit flat against the CUMMINS 6CT mounting surface without being pulled into place by the bolts. Clean both faces and compare the locating shoulder, hole pattern and any stated diameters. Rocking, a visible gap or bolt misalignment indicates that the version check is incomplete and installation should stop.

How can an importer validate CUMMINS 6CT 24V 9.0kW 12T drive-end photograph during an application review?

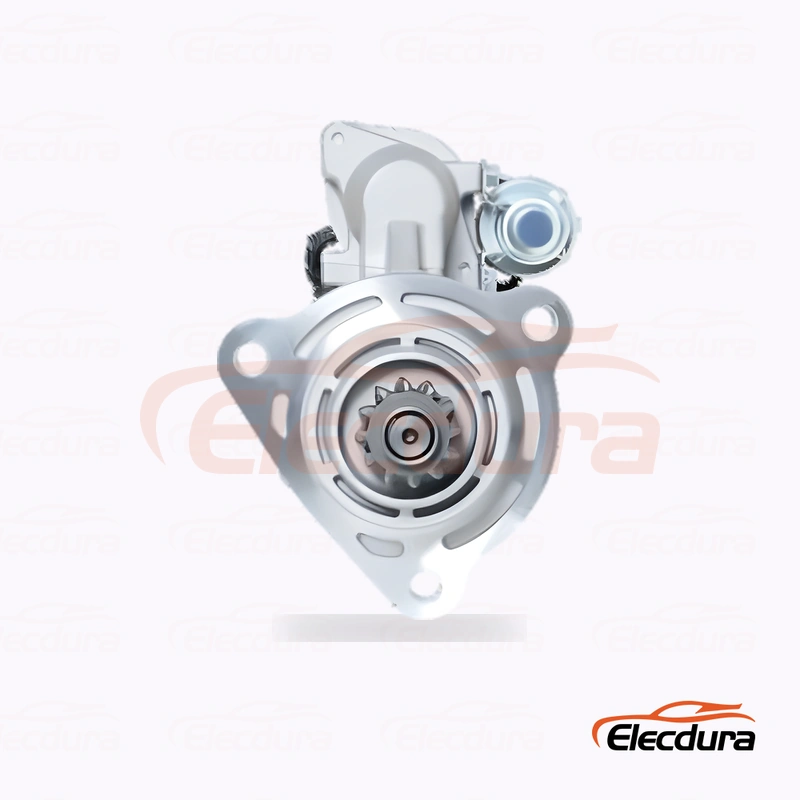

For importers comparing the flange and terminals, the drive-end image for CUMMINS 6CT 24V 9.0kW 12T should be used to count 12 teeth and compare the flange, locating shoulder and pinion rest position. View the customer's old starter from the same angle and lighting. An uneven camera angle can mask the pinion and bolt positions; clear frontal framing supports a better replacement decision.

Which specification deserves priority for 12-tooth pinion identification before an installation slot is booked?

For product managers comparing nearby starter versions, count all 12 teeth on the CUMMINS 6CT 24V 9.0kW 12T pinion and compare the gear diameter with the removed starter. Tooth count is a fast screening point, but engagement depth, pitch and rest position still need agreement. If the old unit carries another count, treat it as a different drive version and review the ring gear before fitting.

What must be matched before quoting 12T and module 3.175 when the removed unit is available?

For maintenance suppliers preparing a technical RFQ, the supplied drive uses 12 teeth with module 3.175. Count the old pinion teeth and compare outside diameter, rest position and engagement depth prior to purchase. The 3.175 module is part of the gear definition, so another pitch must not be combined on the one stock line. This check protects the ring gear from an incorrect mesh.

What must be matched before quoting CUMMINS 6CT 24V 9.0kW 12T ring-gear engagement during an application review?

For equipment-parts dealers checking version-defining data, review the 12T pinion, module 3.175, rest position and available axial dimensions as one engagement set. Inspect the ring gear for wear before fitting. A correct bolt pattern cannot protect the gear if pitch or projection differs, so drive geometry should be resolved before the starter is energized.

How can a buyer screen CUMMINS 6CT previously replaced starter when several versions look alike?

For purchasing teams confirming electrical ratings, ask whether the starter removed from CUMMINS 6CT is original or an earlier replacement. If it has been substituted before, the visible unit may not represent the equipment's initial build. Use its label and geometry together with CUMMINS 6CT 24V 9.0kW 12T, 24V, 9.0kW and 12T before turning that history into a bulk stocking decision.

Which check should lead 47±1 mm before comparing delivery options?

For distributors checking repeat-order specifications, use 47±1 mm when comparing CUMMINS 6CT 24V 9.0kW 12T. Measure from the drawing's indicated faces and keep pinion rest position separate from overall body length. These axial values influence how the drive sits and engages, so the set should agree with the removed starter before a fleet or distributor quantity is released.

Request a Wholesale Quote for CUMMINS 6CT 24V 9.0kW 12T Industrial Diesel Engine Starter Motor

For aftermarket product managers opening a first B2B purchase, prepare the RFQ with CUMMINS 6CT 24V 9.0kW 12T, the complete application, quantity, target delivery and packaging requirements. We will respond with the defined 24V 9.0kW 12T starter motor line rather than a generic substitute.
