8200330-24V-9.0KW-11T-4.233M Cummins Starter Motor

8200330-24V-9.0KW-11T-4.233M Construction Equipment Starter Motor for CUMMINS QSM11-C (Hyundai 455LC-7)

For regional parts suppliers planning replenishment, 8200330-24V-9.0KW-11T-4.233M supports excavator, loader and off-highway replacement programs for CUMMINS QSM11-C (Hyundai 455LC-7). This construction equipment starter motor is defined by its 24V electrical system, 9.0kW output and 11T pinion, giving distributors a practical basis for quotation and stock matching.

For aftermarket wholesalers preparing distributor pricing, accurate version control reduces avoidable returns and mixed stock. The gallery, technical drawing where available, and order information below give commercial and technical teams a shared basis for the RFQ.

8200330-24V-9.0KW-11T-4.233M Starter Motor Specifications and Technical Drawing

For product managers preparing a technical RFQ, this reference group can cover nearby starter versions. Keep 8200330-24V-9.0KW-11T-4.233M, 24V, 9.0kW and 11T together on the RFQ, then compare the flange, drive end and terminal layout before treating another number as a direct replacement.

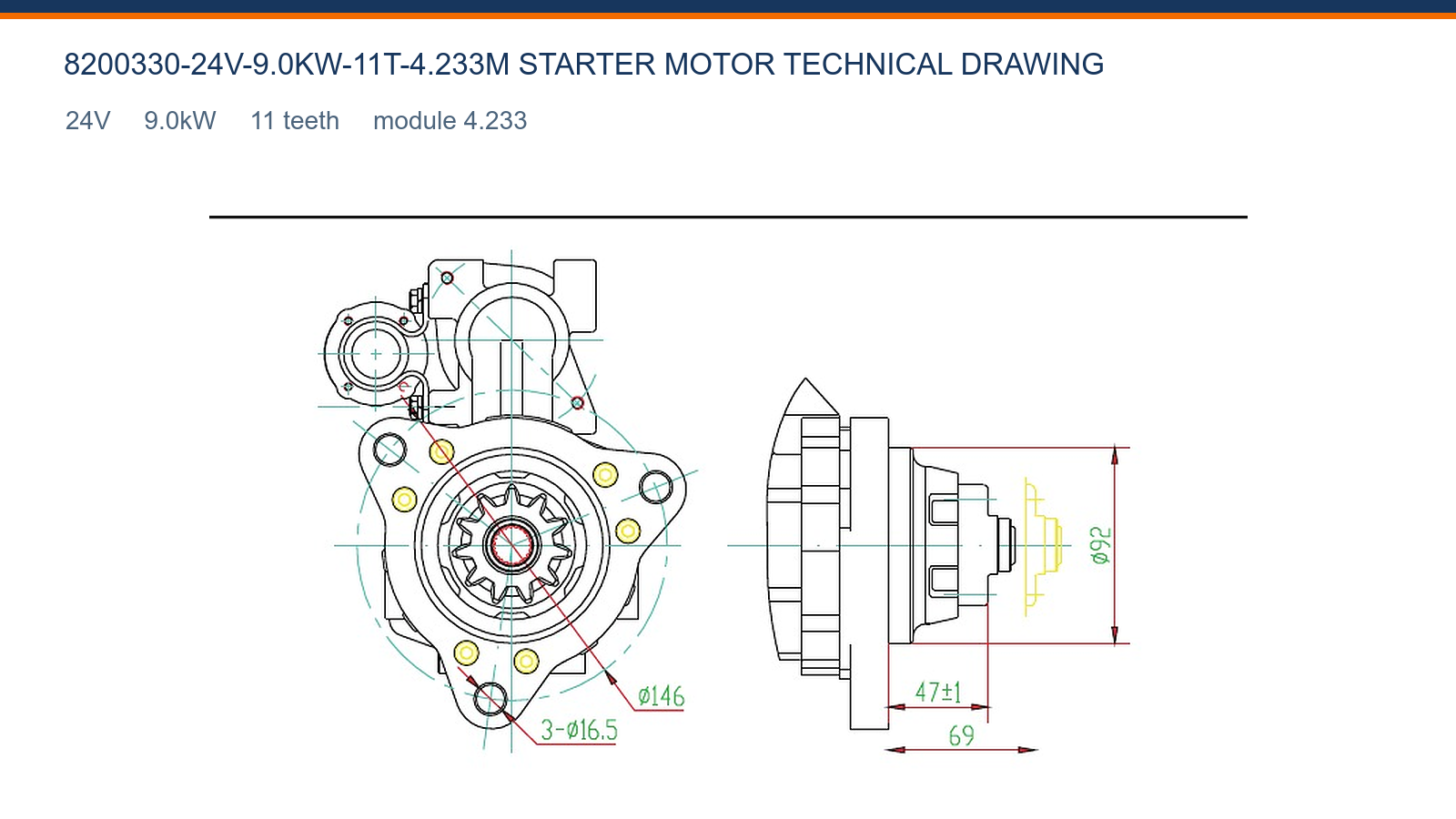

For maintenance suppliers checking version-defining data, the source-faithful technical drawing records the available mounting information for 8200330-24V-9.0KW-11T-4.233M, including Ø146, 47±1 mm; use the printed values together with the product views because the drawing supports comparison and should not be scaled from the screen.

8200330-24V-9.0KW-11T-4.233M Aftermarket Replacement and Application

For fitment reviewers preparing an OE-based quote, CUMMINS QSM11-C (Hyundai 455LC-7) is the stated application for 8200330-24V-9.0KW-11T-4.233M. Buyers comparing 8200330-24V-9.0KW-11T-4.233M, 8200330, 8200724, 6837 should confirm that the original unit in hand shares the same 24V system, 9.0kW output and 11T drive before adding the item to a distributor order.

For application specialists separating similar housings, product photos and the stated specifications should be reviewed together. If the old starter uses another pinion, mounting face or rear connection, keep that configuration on a separate RFQ until it is identified.

8200330-24V-9.0KW-11T-4.233M Wholesale Supply for Distributors and Importers

For sales teams defining label requirements, distributor supply for 8200330-24V-9.0KW-11T-4.233M can include neutral packaging, customer-brand review and order-specific labels. Current commercial guidance is 20 pcs MOQ, 7–15 days subject to confirmation and an 18-month warranty under agreed terms.

For warehouse planners confirming commercial terms, the order can specify testing scope, sampling level, label content and packing details. Reference-label, drive-end and terminal-protection photos may also be requested before shipment for the agreed product version.

8200330-24V-9.0KW-11T-4.233M Starter Motor Buyer FAQ

What should purchasing verify first for 11-tooth pinion identification when checking a replacement proposal?

For technical buyers separating similar housings, count all 11 teeth on the 8200330-24V-9.0KW-11T-4.233M pinion and compare the gear diameter with the removed starter. Tooth count is a fast screening point, but engagement depth, pitch and rest position still need agreement. If the old unit carries another count, treat it as a different drive version and review the ring gear before fitting.

How should a workshop distinguish mounting-hole pattern when several versions look alike?

For engine-parts specialists evaluating a direct replacement, A complete mounting-hole callout is not stated for 8200330-24V-9.0KW-11T-4.233M. Photograph the old flange straight on and provide hole count, bore diameter and center spacing from the same datum. Those measured points let purchasing separate close housings without transferring hole data from another starter or assuming that a similar silhouette will bolt in.

Which detail separates CUMMINS QSM11-C (Hyundai 455LC-7) production changes before comparing delivery options?

For fleet-parts buyers comparing the flange and terminals, CUMMINS QSM11-C (Hyundai 455LC-7) may appear across equipment years or engine revisions, so the application name is an entry point rather than the sole proof of fitment. Match 8200330-24V-9.0KW-11T-4.233M, 24V, 9.0kW and 11T to the original unit in hand. A changed suffix, flange or terminal layout should open a separate review for that machine.

How should a distributor confirm 8200330-24V-9.0KW-11T-4.233M side-profile photograph when the existing starter is available?

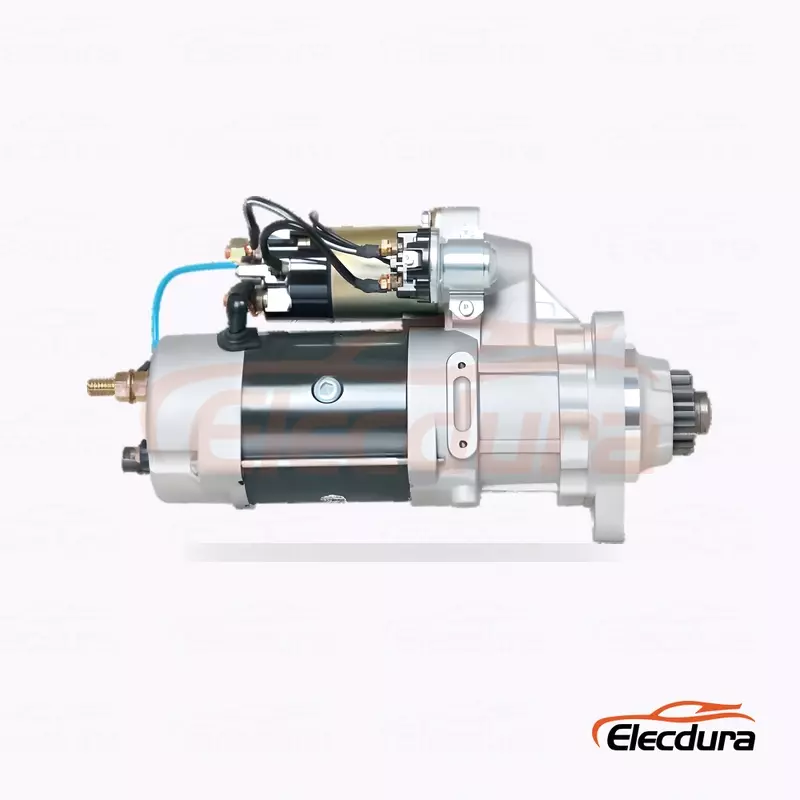

For technical sales teams reviewing a replacement proposal, the side profile of 8200330-24V-9.0KW-11T-4.233M shows body length, solenoid placement and the relationship between flange and drive. Compare it with a square side view of the removed starter, then use 47±1 mm where available. This angle helps reveal a housing or projection difference that a front-only photograph can miss.

Which detail separates 8200330-24V-9.0KW-11T-4.233M drive-end photograph before comparing delivery options?

For fitment reviewers preparing a technical RFQ, the drive-end image for 8200330-24V-9.0KW-11T-4.233M should be used to count 11 teeth and compare the flange, locating shoulder and pinion rest position. Compare an equally framed drive-end photo of the old unit. A side view alone may hide the deciding tooth and mounting information, so keep the direct drive-end view with the RFQ.

What should receiving teams compare on 8200330-24V-9.0KW-11T-4.233M terminal access during an application review?

For application specialists checking version-defining data, compare the rear housing and terminal direction in the approved product views for 8200330-24V-9.0KW-11T-4.233M. The battery cable and start-signal lead must reach without sharp bends, rubbing or contact with hot and moving parts. If the body can be clocked differently within the same reference family, confirm the actual terminal position before stock is committed to the order.

How can an importer validate 11T and module 4.233 for a first trade order?

For replacement-parts sellers confirming electrical ratings, the supplied drive uses 11 teeth with module 4.233. Count the old pinion teeth and compare outside diameter, rest position and engagement depth before stock is committed. The 4.233 module is part of the gear definition, so another pitch must not be combined on the single RFQ position. This check protects the ring gear from an incorrect mesh.

Which detail separates 8200330-24V-9.0KW-11T-4.233M, 8200330, 8200724, 6837 before accepting a substitute?

For service-parts networks checking repeat-order specifications, 8200330-24V-9.0KW-11T-4.233M, 8200330, 8200724, 6837 should be treated as one inquiry group only after the real component is compared. Ask the customer for the complete label and clear views of the drive end, flange and terminals. If a suffix, housing shape or terminal clocking differs, keep it as a separate priced item instead of assuming that the shared number guarantees interchangeability.

Request a Wholesale Quote for 8200330-24V-9.0KW-11T-4.233M Construction Equipment Starter Motor

For importers planning mixed-model inventory, to source 8200330-24V-9.0KW-11T-4.233M for a distributor or importer program, send the OE group, CUMMINS QSM11-C (Hyundai 455LC-7), planned volume and destination. Elecdura will confirm the quoted starter configuration, commercial terms and available inspection support.
