3957597 Cummins Starter Motor 24V 5.5kW 10T

3957597 Industrial Diesel Engine Starter Motor for CUMMINS 6CT8.3

For sourcing managers updating a customer item master, 3957597 gives diesel-engine distributors, generator-set suppliers and industrial parts importers a defined aftermarket starter motor for CUMMINS 6CT8.3. The supplied version combines 24V, 5.5kW and 10T for OE-reference matching, wholesale quotation and repeat purchasing.

For wholesale program managers reviewing customer demand, distributors can quote the exact application and starter configuration without turning the page into a generic component guide. Elecdura can also review customer labels, carton requirements and inspection documents for planned orders.

3957597 Starter Motor Specifications and Technical Drawing

For equipment-parts dealers preparing a technical RFQ, the product identity combines 3957597, CUMMINS 6CT8.3, 24V, 5.5kW and 10T. Keeping those facts together helps buyers separate this starter from adjacent versions.

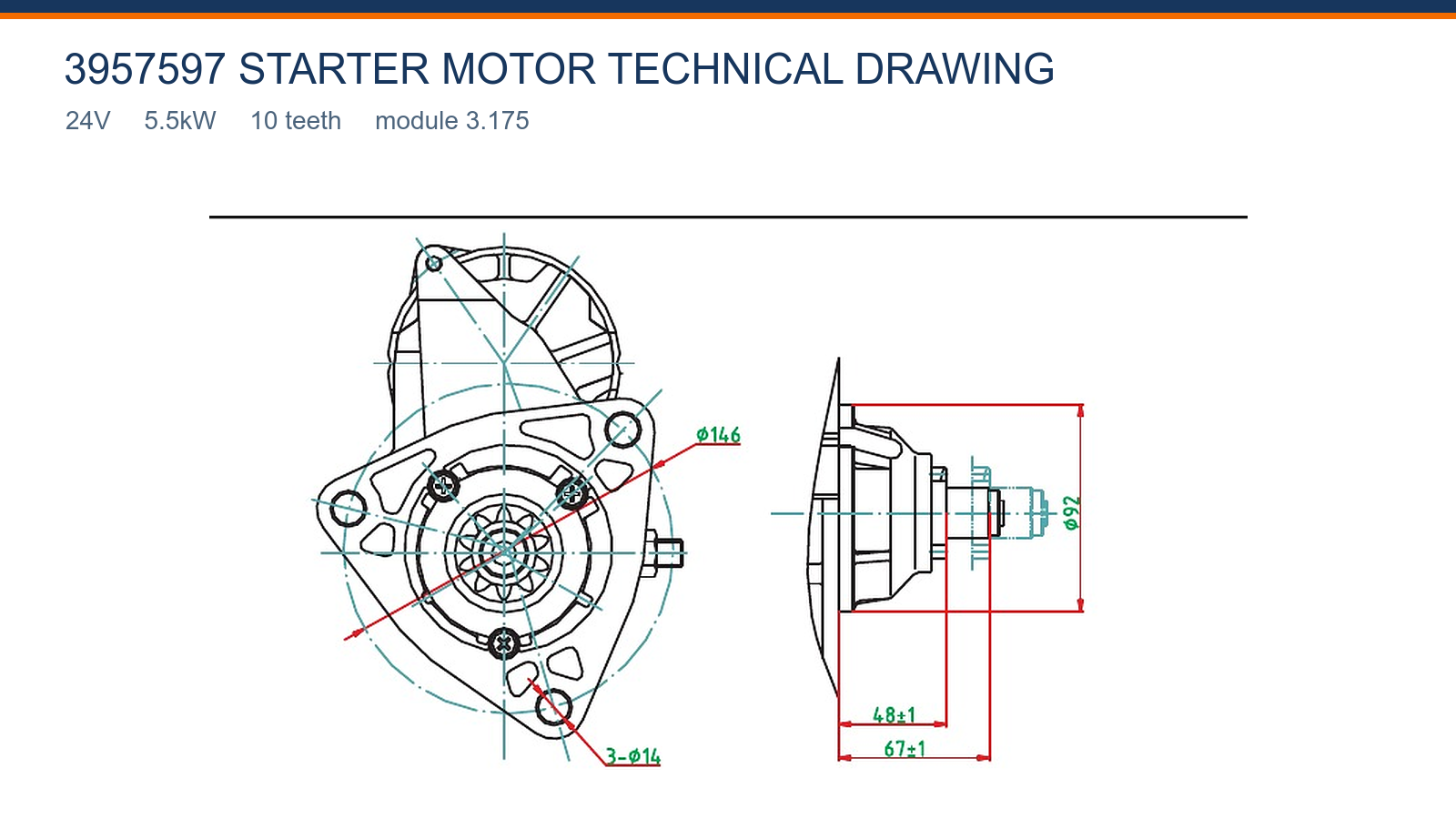

For purchasing teams checking version-defining data, the source-faithful technical drawing records the available mounting information for 3957597, including 48±1 mm, 67±1 mm; use the printed values together with the product views because the drawing supports comparison and should not be scaled from the screen.

3957597 Aftermarket Replacement and Application

For replacement-parts sellers preparing an OE-based quote, send 3957597, 428000-1340, the full CUMMINS 6CT8.3 description and photos of the starter being removed. These details allow the quotation to stay product-specific when related numbers appear on more than one housing version.

For service-parts networks separating similar housings, before a purchase order is released, compare the removed starter's mounting face, 10T drive and terminal direction with the approved gallery. Module 3.175 is part of the pinion definition. Any conflicting physical feature should remain on a separate RFQ line until the correct replacement is confirmed.

3957597 Wholesale Supply for Distributors and Importers

For importers defining label requirements, importers planning 3957597 stock can request volume pricing, neutral or reviewed private-label packaging and agreed inspection records. Standard guidance is 20 pcs minimum, 7–15 days after confirmation and 18 months warranty under sales terms.

For inventory buyers preparing distributor pricing, batch consistency should be controlled through the agreed reference, electrical rating, pinion, packaging and inspection points. Elecdura can discuss test documentation and pre-shipment photos that match the needs of the distributor or importer.

3957597 Starter Motor Buyer FAQ

Which specification deserves priority for CUMMINS 6CT8.3 production changes during an application review?

For fleet-parts buyers separating similar housings, CUMMINS 6CT8.3 may appear across equipment years or engine revisions, so the application name is an entry point rather than the sole proof of fitment. Match 3957597, 24V, 5.5kW and 10T to the starter being replaced. A changed suffix, flange or terminal layout should open a separate review for that machine.

What should purchasing verify first for 24V and 5.5kW during fitment review?

For technical sales teams evaluating a direct replacement, 3957597 is defined as 24V and 5.5kW. Confirm the machine electrical system and the old starter rating together, because the voltage rating must match the installed network while rated power influences available cranking effort. Battery condition, cable size and ground integrity should also suit this rating; a different voltage or output is a separate product, even when the housings appear similar.

How can a buyer screen 3957597 ring-gear engagement during an application review?

For fitment reviewers reviewing drive-end geometry, review the 10T pinion, module 3.175, rest position and available axial dimensions as one engagement set. Inspect the ring gear for wear before fitting. A correct bolt pattern cannot protect the gear if pitch or projection differs, so drive geometry should be resolved before the starter is energized.

How can a buyer screen 3957597 order testing for repeatable sourcing?

For wholesale program managers opening a first bulk order, Elecdura can discuss armature, solenoid, no-load and load testing for 3957597. State the required report format, sampling expectation and acceptance points in the RFQ. Testing should use the stated 24V and 5.5kW configuration, while identity and mounting checks remain separate because electrical results do not prove physical interchangeability.

What evidence best identifies 3957597 terminal access for warehouse identification?

For replacement-parts sellers preparing a technical RFQ, compare the rear housing and terminal direction in the approved product views for 3957597. The battery cable and start-signal lead must reach without sharp bends, rubbing or contact with hot and moving parts. If the body can be clocked differently within the same reference family, confirm the actual terminal position before stock is committed to the order.

Which specification deserves priority for 3957597 drive-end photograph during an application review?

For service-parts networks checking version-defining data, the drive-end image for 3957597 should be used to count 10 teeth and compare the flange, locating shoulder and pinion rest position. Use the same viewing angle when recording the unit taken from service. A poorly aligned photo can obscure drive and flange details; request another image before approving a near-match.

How should a workshop distinguish 3957597 side-profile photograph before a purchase order is released?

For importers confirming electrical ratings, the side profile of 3957597 shows body length, solenoid placement and the relationship between flange and drive. Compare it with a square side view of the removed starter, then use 48±1 mm and 67±1 mm where available. This angle helps reveal a housing or projection difference that a front-only photograph can miss.

Which detail separates 24V system compatibility before an installation slot is booked?

For product managers reviewing a replacement proposal, 3957597 is a 24V starter and must be connected only to the matching machine electrical system. Read the voltage marking on the old unit and verify the battery arrangement before the PO is released. A housing can look correct while the winding and solenoid are designed for another voltage, so appearance must not override the electrical label.

Request a Wholesale Quote for 3957597 Industrial Diesel Engine Starter Motor

For fleet-parts buyers opening a first wholesale order, request pricing for 3957597 by sharing the application, quantity, delivery country and any neutral or private-label packaging needs. Clear label, drive-end, flange and terminal photos help confirm the exact starter before the offer is issued.
