3103914-24V-9.0KW-11T-4.233M Cummins Starter Motor

3103914-24V-9.0KW-11T-4.233M Industrial Diesel Engine Starter Motor for CUMMINS NH, K6 (NT855)

For aftermarket wholesalers planning replenishment, this aftermarket industrial diesel engine starter motor is specified for CUMMINS NH, K6 (NT855) with 24V, 9.0kW and 11T. The page keeps the replacement identity, technical definition and bulk order information in one place.

For sourcing managers reviewing customer demand, this page is designed to support a distributor decision: identify the correct replacement, confirm the key specification, define packaging and inspection needs, and request one consistent quotation for the required quantity.

3103914-24V-9.0KW-11T-4.233M Starter Motor Specifications and Technical Drawing

For maintenance suppliers preparing a technical RFQ, the key version difference is the mounting and housing clocking. Compare 3×120° spacing and 3×Ø17 with the removed unit so the pinion alignment and cable access remain correct.

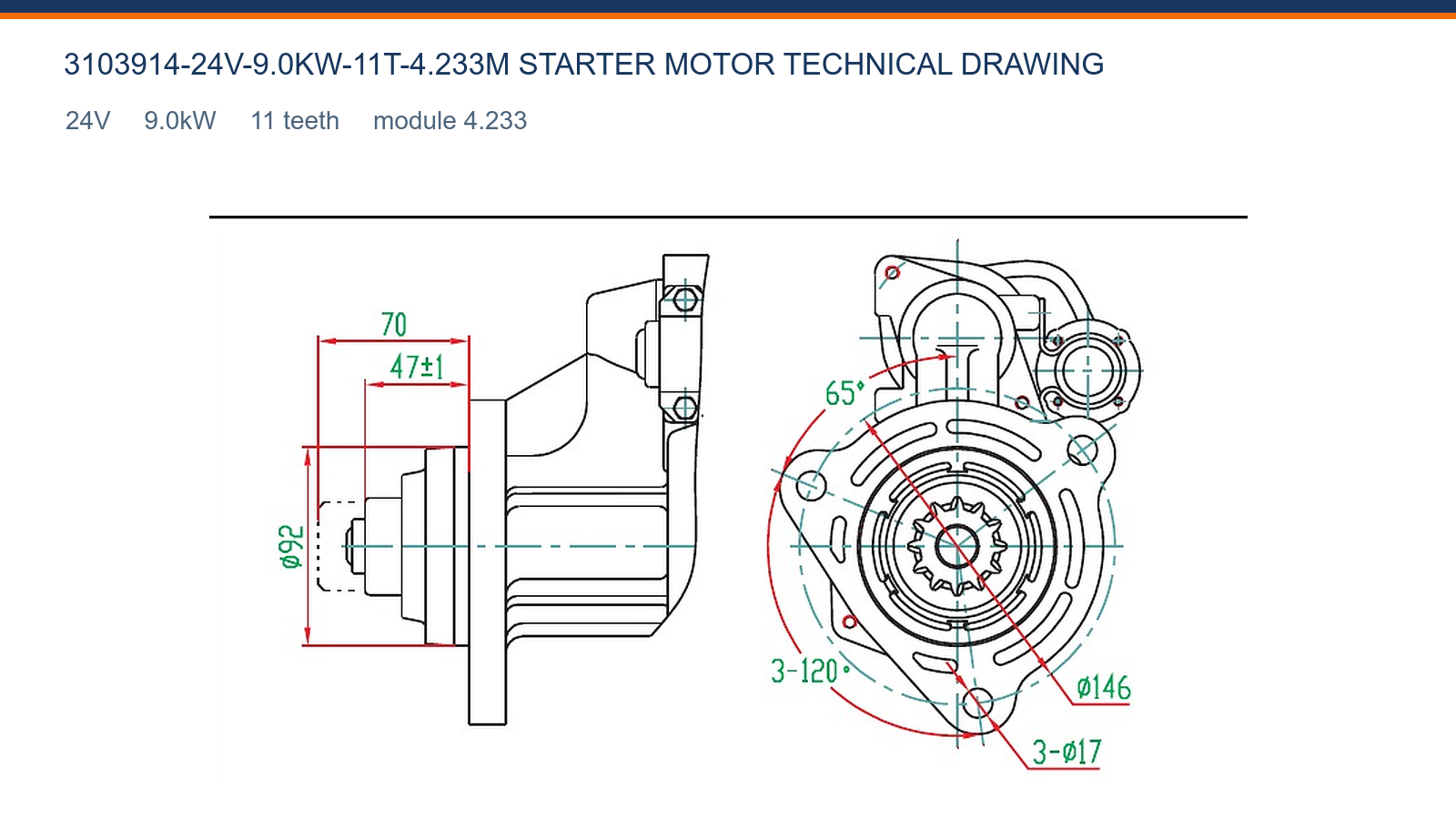

For equipment-parts dealers checking version-defining data, the source-faithful technical drawing records the available mounting information for 3103914-24V-9.0KW-11T-4.233M, including 3×Ø17, Ø146, 47±1 mm, 3×120° spacing; use the printed values together with the product views because the drawing supports comparison and should not be scaled from the screen.

3103914-24V-9.0KW-11T-4.233M Aftermarket Replacement and Application

For application specialists preparing an OE-based quote, 3103914-24V-9.0KW-11T-4.233M, 3103914 forms the usable OE and cross-reference group for this product, while CUMMINS NH, K6 (NT855) is the stated application. Cross-reference numbers help buyers find the product, but a direct replacement should still agree on voltage, output, pinion and the visible mounting configuration.

For replacement-parts sellers separating similar housings, A direct replacement decision should combine the OE group with physical comparison. Check the mounting face, 11T drive and cable-stud direction, and ask for a separate review when one of those features differs.

3103914-24V-9.0KW-11T-4.233M Wholesale Supply for Distributors and Importers

For warehouse planners defining label requirements, wholesale enquiries for 3103914-24V-9.0KW-11T-4.233M can combine product matching with packaging and inspection planning. Elecdura offers neutral packaging and private-label review for qualified orders, with 20 pcs MOQ, 7–15 days subject to confirmation and an 18-month warranty under agreed terms.

For importers confirming commercial terms, define the reference group, accepted product version, inspection request and packaging standard before production. Those records help both sides manage replenishment and resolve any receiving question efficiently.

3103914-24V-9.0KW-11T-4.233M Starter Motor Buyer FAQ

Which specification deserves priority for Ø146 before a purchase order is released?

For engine-parts specialists separating similar housings, 3103914-24V-9.0KW-11T-4.233M shows Ø146. Measure each diameter at the same shoulder or circle indicated in the drawing, rather than taking an unrelated outside-housing dimension. The locating feature centers the starter at the ring gear, so a diameter mismatch can matter even when the bolt holes appear to align.

Which comparison prevents a mismatch for 3103914-24V-9.0KW-11T-4.233M drive-end photograph during an application review?

For fleet-parts buyers evaluating a direct replacement, the drive-end image for 3103914-24V-9.0KW-11T-4.233M should be used to count 11 teeth and compare the flange, locating shoulder and pinion rest position. Photograph the removed starter from the same straight-on angle under even lighting. A side-on or oblique photo can hide tooth count and hole location, so request a straight-on image when the deciding features are unclear.

How should a distributor confirm CUMMINS NH, K6 (NT855) cranking condition for repeatable sourcing?

For technical sales teams comparing the flange and terminals, before replacing the starter on CUMMINS NH, K6 (NT855), test battery state, voltage drop across positive and ground paths, the start signal and ring-gear condition. Note cranking voltage and any abnormal noise. Those observations help distinguish a supply-circuit or engine-load problem from a fault in the 24V, 9.0kW starter and make a product query easier to resolve.

What should receiving teams compare on 24V and 9.0kW during fitment review?

For fitment reviewers comparing nearby starter versions, 3103914-24V-9.0KW-11T-4.233M is defined as 24V and 9.0kW. Confirm the machine electrical system and the old starter rating together, because the voltage must agree with the machine system while output supports the required engine-starting load. Battery condition, cable size and ground integrity should also suit this rating; a different voltage or output is a separate product, even when the housings appear similar.

Which comparison prevents a mismatch for 3103914-24V-9.0KW-11T-4.233M technical claim evidence when the old starter is available?

For wholesale program managers confirming an incoming batch, retain the unit label, affected quantity, carton condition, installation photos and cranking-voltage results. Add close images of the drive and terminals and note the CUMMINS NH, K6 (NT855) equipment. This evidence helps separate transport damage, an electrical-system problem, incorrect fitment and a starter fault without relying on a general description of failure.

Which specification deserves priority for CUMMINS NH, K6 (NT855) for warehouse identification?

For replacement-parts sellers checking version-defining data, CUMMINS NH, K6 (NT855) identifies the intended engine or generator-set family, but it should not be used by itself. Pair the application with 3103914-24V-9.0KW-11T-4.233M, the 24V electrical system and the 11-tooth drive. That combination lets purchasing exclude nearby versions used on another engine build, chassis revision or equipment configuration ahead of commercial and delivery confirmation.

What should receiving teams compare on 9.0kW output on CUMMINS NH, K6 (NT855) during fitment review?

For service-parts networks confirming electrical ratings, the 9.0kW rating belongs to the 3103914-24V-9.0KW-11T-4.233M configuration used for CUMMINS NH, K6 (NT855). Verify the old-unit rating and investigate battery voltage, cable drop and engine turning resistance before choosing another output. A higher or lower kW figure is not an automatic upgrade; it can indicate a separate starter design with different electrical and mechanical requirements.

What must be matched before quoting 47±1 mm before comparing delivery options?

For importers checking repeat-order specifications, use 47±1 mm when comparing 3103914-24V-9.0KW-11T-4.233M. Measure from the drawing's indicated faces and keep pinion rest position separate from overall body length. These axial values influence how the drive sits and engages, so the set should agree with the removed starter before a fleet or distributor quantity is released.

Request a Wholesale Quote for 3103914-24V-9.0KW-11T-4.233M Industrial Diesel Engine Starter Motor

For inventory buyers opening a first distributor purchase, provide 3103914-24V-9.0KW-11T-4.233M, CUMMINS NH, K6 (NT855), expected order quantity and destination. Include photos or measurements when the old starter differs in suffix or mounting appearance, and Elecdura will review the correct version before pricing.
