CUMMINS ISG 11.8L 24V 8.5kW 11T Starter Motor

CUMMINS ISG 11.8L 24V 8.5kW 11T Industrial Diesel Engine Starter Motor for CUMMINS ISG 11.8L

For warehouse planners planning replenishment, this aftermarket industrial diesel engine starter motor is specified for CUMMINS ISG 11.8L with 24V, 8.5kW and 11T. The page keeps the replacement identity, technical definition and commercial order information in one place.

For importers preparing distributor pricing, importers can use the same reference and specification bundle from enquiry through receiving. That continuity helps sales, purchasing and warehouse teams keep a repeat-order item separate from similar housings with another electrical or drive configuration.

CUMMINS ISG 11.8L 24V 8.5kW 11T Starter Motor Specifications and Technical Drawing

For technical buyers preparing a technical RFQ, the 11T pinion and module 4.233 are important replacement identifiers. Match them with the flange and drive projection to protect the ring gear from an incorrect tooth pitch or engagement depth.

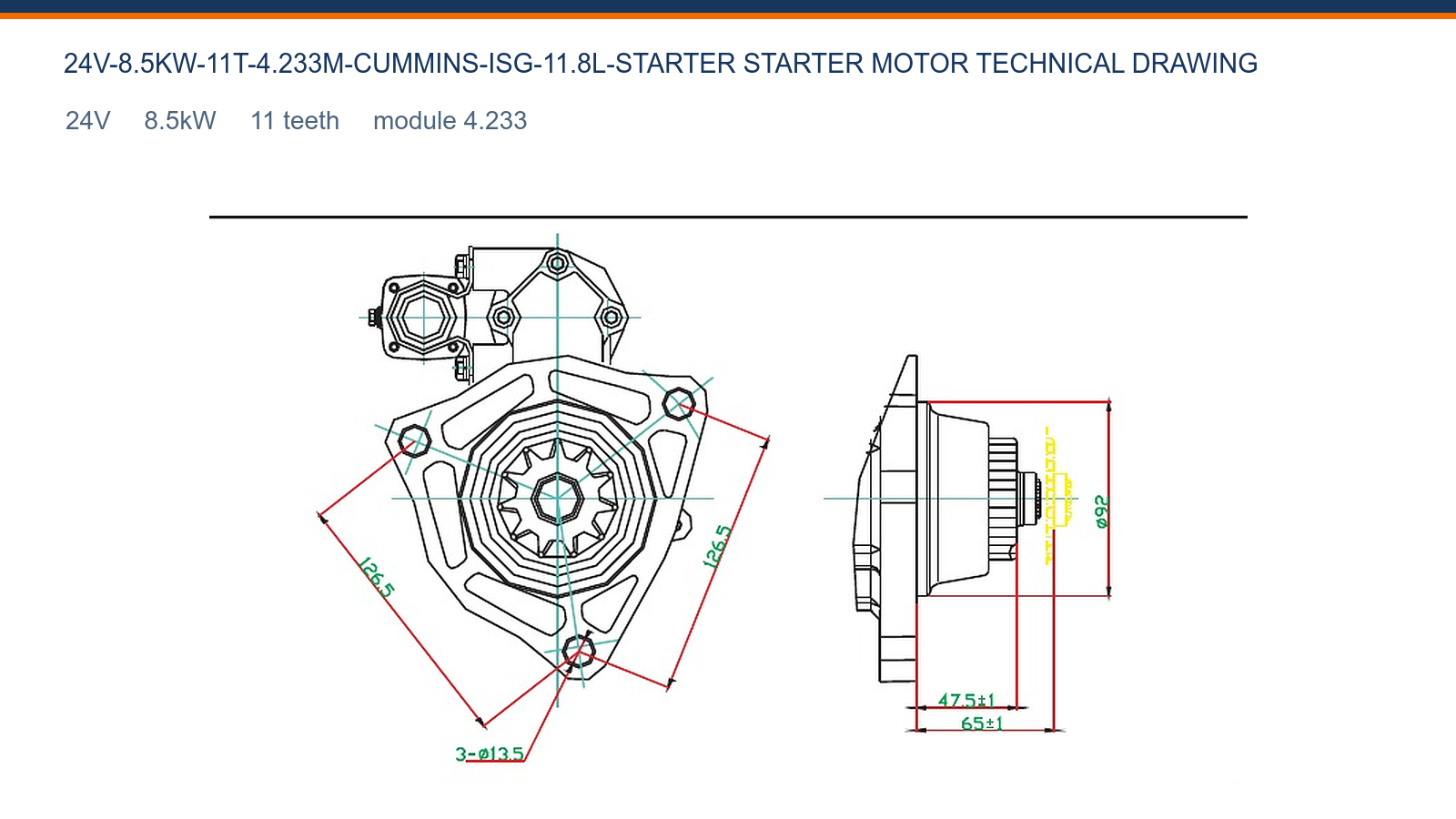

For engine-parts specialists checking version-defining data, the source-faithful technical drawing records the available mounting information for CUMMINS ISG 11.8L 24V 8.5kW 11T, including 47.5±1 mm, 65±1 mm; use the printed values together with the product views because the drawing supports comparison and should not be scaled from the screen.

CUMMINS ISG 11.8L 24V 8.5kW 11T Aftermarket Replacement and Application

For product managers preparing an OE-based quote, send CUMMINS ISG 11.8L 24V 8.5kW 11T, the full CUMMINS ISG 11.8L description and photos of the starter being removed. These details allow the quotation to stay product-specific when related numbers appear on more than one housing version.

For maintenance suppliers separating similar housings, do not merge a close-looking unit into this order only because the main number is related. The 11T drive, module 4.233, flange and terminals should agree with the version shown here.

CUMMINS ISG 11.8L 24V 8.5kW 11T Wholesale Supply for Distributors and Importers

For private-label buyers defining label requirements, buyers can discuss 20 pcs MOQ, production planning around 7–15 days after confirmation, neutral cartons or private-label packaging, and an 18-month warranty under the agreed sales terms.

For purchasing teams confirming commercial terms, available quality support includes armature, solenoid, no-load and load testing. Buyers may define sampling, report format, reference labels, terminal protection and carton marks before production so the shipment can be checked against the approved order specification.

CUMMINS ISG 11.8L 24V 8.5kW 11T Starter Motor Buyer FAQ

What should receiving teams compare on CUMMINS ISG 11.8L 24V 8.5kW 11T replenishment before stock is assigned?

For wholesale program managers requesting production pricing, keep CUMMINS ISG 11.8L 24V 8.5kW 11T, 24V, 8.5kW, 11T, the application description and the agreed packaging on the same replenishment line. Add dated photos when the equipment fleet changes or a different original unit in hand appears. This gives purchasing and warehouse teams enough detail to avoid silently merging a new version into established stock.

Which comparison prevents a mismatch for module 4.233 before a purchase order is released?

For replacement-parts sellers evaluating a direct replacement, module 4.233 is part of the gear geometry for CUMMINS ISG 11.8L 24V 8.5kW 11T. Confirm it together with the 11-tooth count and pinion diameter; another module changes tooth pitch even when the number of teeth is unchanged. The old starter or ring-gear specification should therefore support the module match before a substitute is accepted.

What must be matched before quoting CUMMINS ISG 11.8L 24V 8.5kW 11T side-profile photograph when the existing starter is available?

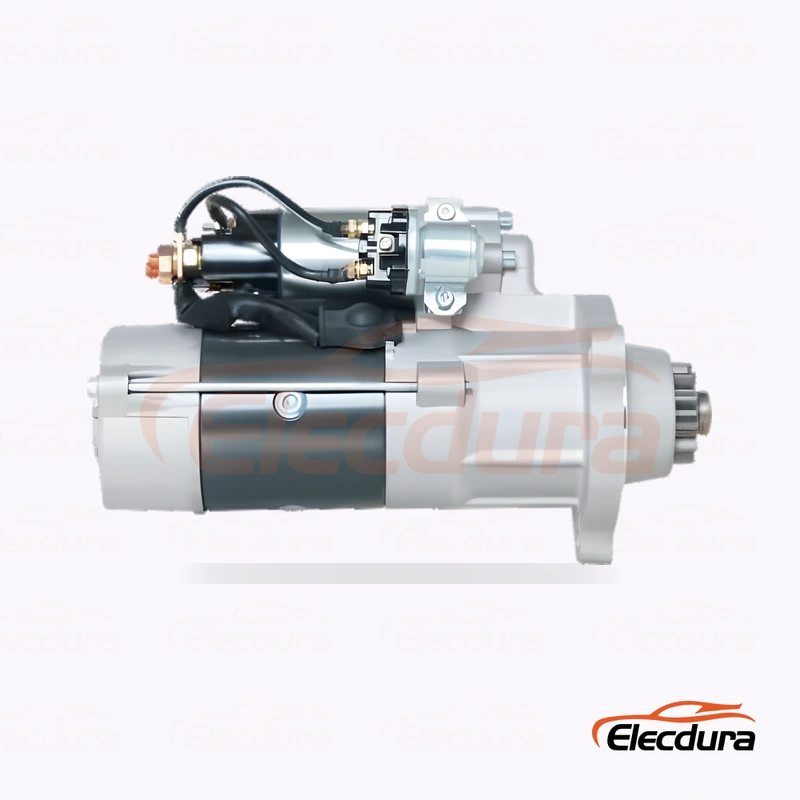

For service-parts networks comparing the flange and terminals, the side profile of CUMMINS ISG 11.8L 24V 8.5kW 11T shows body length, solenoid placement and the relationship between flange and drive. Compare it with a square side view of the removed starter, then use 47.5±1 mm and 65±1 mm where available. This angle helps reveal a housing or projection difference that a front-only photograph can miss.

What evidence best identifies CUMMINS ISG 11.8L 24V 8.5kW 11T order testing before accepting a substitute?

For importers planning mixed-model inventory, Elecdura can discuss armature, solenoid, no-load and load testing for CUMMINS ISG 11.8L 24V 8.5kW 11T. State the required report format, sampling expectation and acceptance points in the RFQ. Testing should use the stated 24V and 8.5kW configuration, while identity and mounting checks remain separate because electrical results do not prove physical interchangeability.

What evidence best identifies 47.5±1 mm and 65±1 mm when confirming the quoted item?

For product managers preparing a technical RFQ, use the supplied technical drawing to compare 47.5±1 mm and 65±1 mm. Take each measurement from the same face shown or described, then compare the locating shoulder, bolt pattern and drive-end projection as one set. A single matching diameter is not enough if the hole pattern or axial reach places the pinion differently.

How should a distributor confirm CUMMINS ISG 11.8L 24V 8.5kW 11T among Cummins versions before a purchase order is released?

For maintenance suppliers checking version-defining data, CUMMINS ISG 11.8L 24V 8.5kW 11T should remain separate from another Cummins starter whenever voltage, output, tooth count, module, flange geometry or terminal position changes. For this line, retain 24V, 8.5kW and 11T together in the purchasing description. That specification bundle gives sales, warehouse and technical teams one consistent basis for reviewing alternatives.

What evidence best identifies CUMMINS ISG 11.8L 24V 8.5kW 11T rear-terminal photograph before comparing delivery options?

For equipment-parts dealers confirming electrical ratings, use the rear view of CUMMINS ISG 11.8L 24V 8.5kW 11T to identify battery and signal terminals, their direction and the clearance around each stud. Match the customer's photograph from the same orientation and consider cable routing in CUMMINS ISG 11.8L. A correct drive end with an unusable terminal position is not a complete fitment match.

What evidence best identifies CUMMINS ISG 11.8L 24V 8.5kW 11T stock identification for a first bulk order?

For purchasing teams setting packaging requirements, label the storage location with CUMMINS ISG 11.8L 24V 8.5kW 11T, 24V, 8.5kW and 11T, and keep a verified drive-end and rear-view image with the item master. Do not combine similar-looking Cummins units when a module, mounting reference or terminal orientation differs. Clear version separation supports faster picking and reduces returns caused by near-match stock.

Request a Wholesale Quote for CUMMINS ISG 11.8L 24V 8.5kW 11T Industrial Diesel Engine Starter Motor

For distributors planning mixed-model inventory, request pricing for CUMMINS ISG 11.8L 24V 8.5kW 11T by sharing the application, quantity, delivery country and any neutral or private-label packaging needs. Clear label, drive-end, flange and terminal photos help confirm the exact starter before the offer is issued.
