246-31210 John Deere 4045HDW 24V 7.8kW Starter Motor Wholesale

246-31210 John Deere 4045HDW Starter for Machinery Distributors

A 4045HDW enquiry should carry the complete engine designation rather than a broad 4045 description. Adding the engine plate, host machine and 246-31210 or S-80667 marking gives the supplier enough context to quote the high-output product and discuss quantity, packing and timing.

Lower-output starters also appear around John Deere 4045 applications. Confirm 24V 7.8kW, the 10T module-3.175 drive, three Ø12 mounting holes, Ø127 mounting-circle reference, 89 mm engagement position and 47 mm drive-gear distance before volume purchasing.

246-31210 24V 7.8kW Starter Drawing and Mounting Positions

This product combines 24V, 7.8kW, 10T, module 3.175 and clockwise rotation. Keeping the high-output rating beside the 4045HDW designation is essential for quotations and warehouse labels because engine-family wording alone does not describe the required cranking platform.

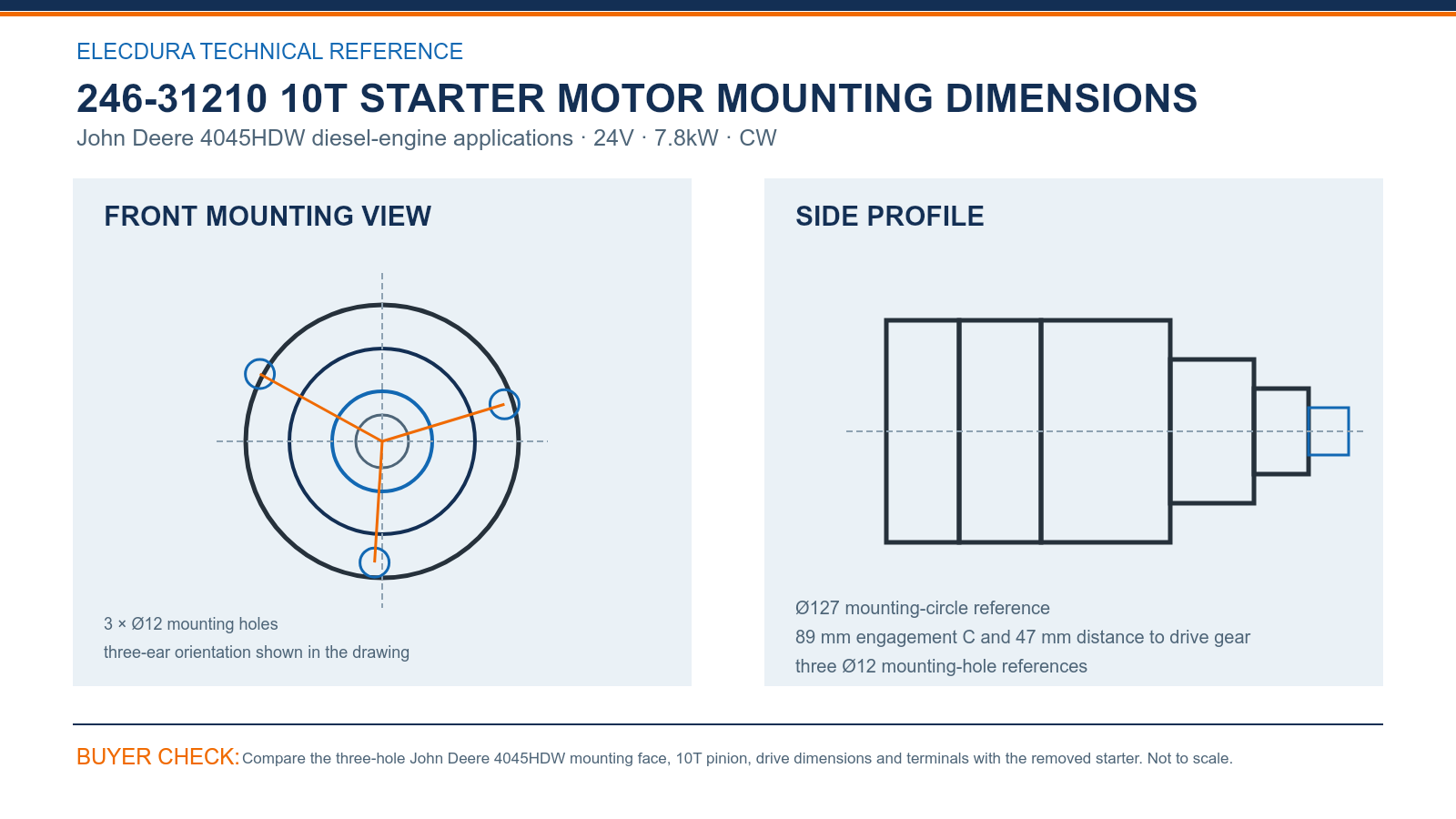

246-31210 John Deere 4045HDW Starter Motor Dimensions — compare the drawing with the removed starter before placing a volume order.

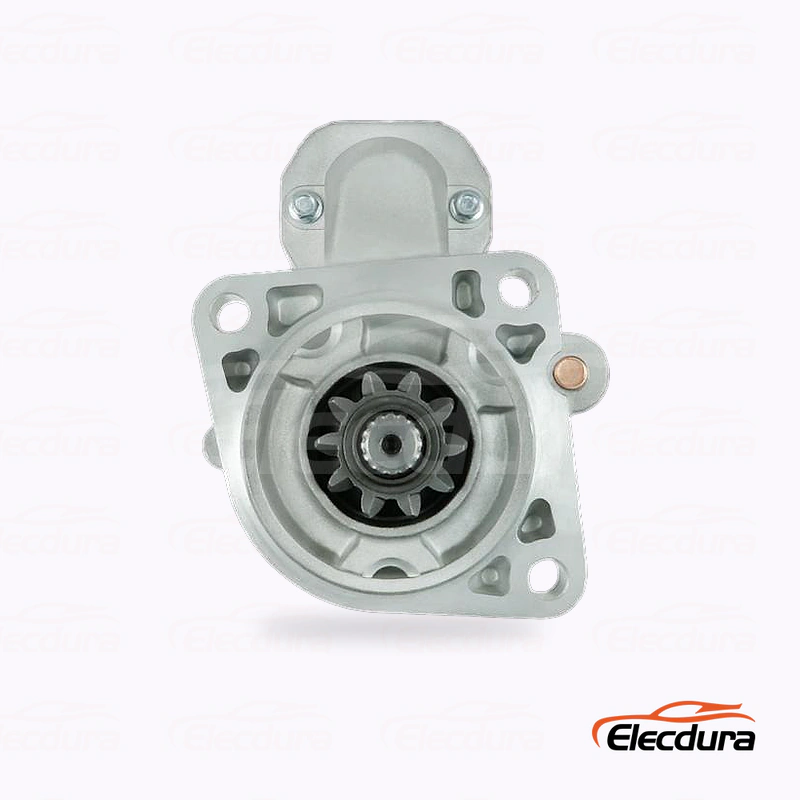

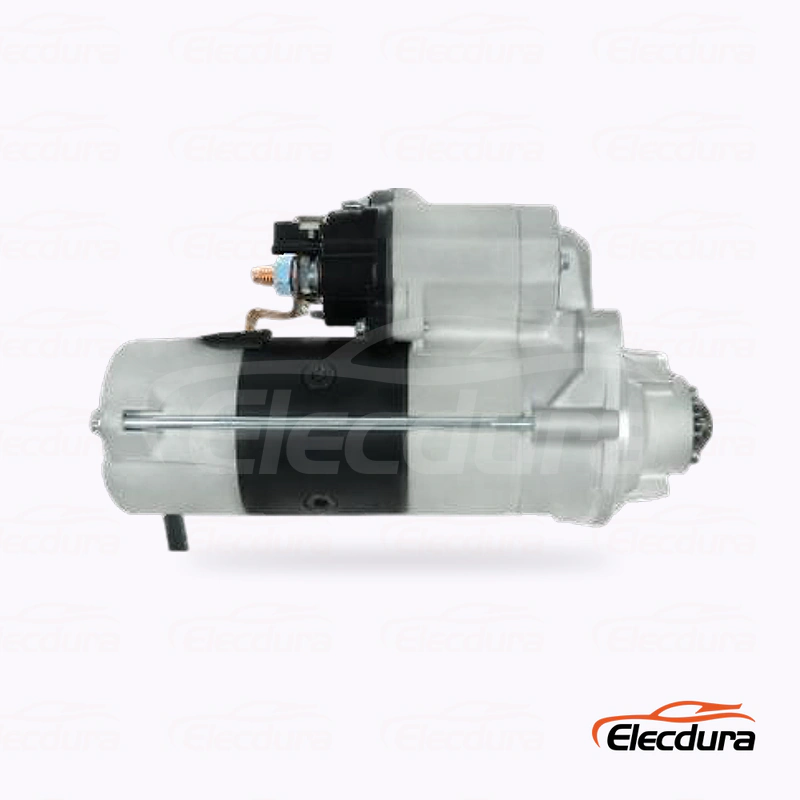

Use the drawing to compare the three Ø12 hole positions on the Ø127 reference, then check the 89 mm engagement C and 47 mm distance to the drive gear. Square front and side images should show the complete flange and all cable connections.

246-31210 Reference Matching for Deere 4045HDW Buyers

The searchable number set is deliberately concise: 246-31210 and S-80667. Buyers should strengthen the enquiry with the full 4045HDW engine plate, machine model, rating label and removed-starter photographs rather than adding unrelated Deere references to make the list appear broader.

A machinery distributor can establish one stock line after a trusted sample matches the high-output rating, pinion, three-hole pattern and terminals. Demand should still be recorded by machine family and service location so replenishment reflects real 4045HDW use instead of a general Deere forecast.

246-31210 Starter Supply Planning for High-Output Engine Stock

Agree on a first-lot comparison covering tooth count, mounting positions, drive dimensions, terminal protection and sampled electrical tests. For heavy starters moving through regional warehouses, secure the body and pinion separately and show 246-31210, 4045HDW and 7.8kW on the outer label.

The video below presents Elecdura starter assembly and electrical testing for wholesale orders. John Deere engine-parts buyers can use it when defining sample checks, carton identification, branding and scheduled supply for the 246-31210 high-output line.

246-31210 Starter Motor FAQs for B2B Buyers

Why must the full 4045HDW designation appear with 246-31210?

The broader 4045 family includes starters with different outputs. Writing 4045HDW in full beside 246-31210, the host machine and 24V 7.8kW 10T rating gives purchasing a precise high-output line. Add the engine plate and old-unit views so a shorter Deere description does not replace the actual installation information.

Are 246-31210 and S-80667 enough for an initial search?

They form the defined reference pair for this product, but a buyer should not expand the list with unrelated Deere numbers. Add the 4045HDW engine plate, machine model, rating label and straight starter photographs. A concise, accurate set is more useful for wholesale matching than a long cross-reference group assembled without physical agreement.

How should buyers read the 246-31210 mounting positions?

Compare the three Ø12 hole positions around the Ø127 reference, then check the 89 mm engagement C and 47 mm distance to the drive gear on a trusted sample. Take a square flange photograph and a clear side view. These measured positions give the high-output Deere request a practical physical basis.

What prevents a lower-output 4045 starter from replacing 246-31210?

Keep 24V, 7.8kW, 10T, module 3.175 and clockwise rotation together on every enquiry and purchase order. Then compare the three-hole face and terminals. The full 4045HDW identity and high-output rating prevent an engine-family match from becoming a reason to substitute a lower-output starter with a similar outline.

What belongs in a first-sample review for 246-31210?

Check the rating label, count ten teeth, compare all three mounting positions and measured drive distances, inspect the locating surface and show every terminal. Record the sample photographs with the 4045HDW engine data. Once these points agree, the same baseline can support volume pricing, packing decisions and receiving instructions.

How can distributors forecast 246-31210 without broad fitment claims?

Track confirmed 4045HDW machines, previous starter consumption, customer service regions and supplier lead time. Keep demand separated by host equipment even when the physical product is shared. This preserves useful sales history and helps purchasing place a realistic reserve order without presenting 246-31210 as a universal John Deere 4045 starter.

What carton identification is useful for 246-31210?

Show 246-31210, John Deere 4045HDW, 24V 7.8kW and 10T clearly, and protect the pinion and terminal studs from inner-carton movement. For regional distribution, add destination or branch labels. These details help warehouses recognize the high-output product and keep it apart from lower-output Deere stock during urgent picking.

What should be emailed for 246-31210 wholesale terms?

Send the complete 4045HDW engine plate, host machine, 246-31210 or S-80667 marking, rating label, straight mounting, pinion and terminal photographs, first-order quantity, forecast, branding need and destination. Elecdura can compare the 7.8kW three-hole starter and reply with wholesale price breaks, sample options, packing and production lead time.

Request 246-31210 John Deere Starter Motor Wholesale Pricing

Email the John Deere 4045HDW engine plate, host equipment, full 246-31210 or S-80667 marking, rating label, straight flange and terminal photographs, quantity, forecast and destination to info@elecdurauto.com. Elecdura will compare the 7.8kW configuration and prepare wholesale pricing, packing choices and lead time.
