10461163 John Deere Volvo Starter Motor Wholesale

10461163 Starter Motor Wholesale Fitment for John Deere and Volvo heavy-equipment

John Deere and Volvo equipment-parts importers, rebuilders and regional distributors use 10461163 to keep John Deere and Volvo heavy-equipment demand tied to one 12V, 7.3kW, 12T CW configuration. The practical distinction is the large three-hole drive end with a 47 mm pinion position, which should be checked before a similar heavy-duty housing is accepted.

Build the 10461163 RFQ around the complete removed-unit number, exact machine or engine information, mounting-face and terminal-side photographs, quantity and delivery point. These details let Elecdura quote the specified starter, export packing and timing without turning the offer into a general application guess.

10461163 Starter Motor Specifications and Drawing for Wholesale Buyers

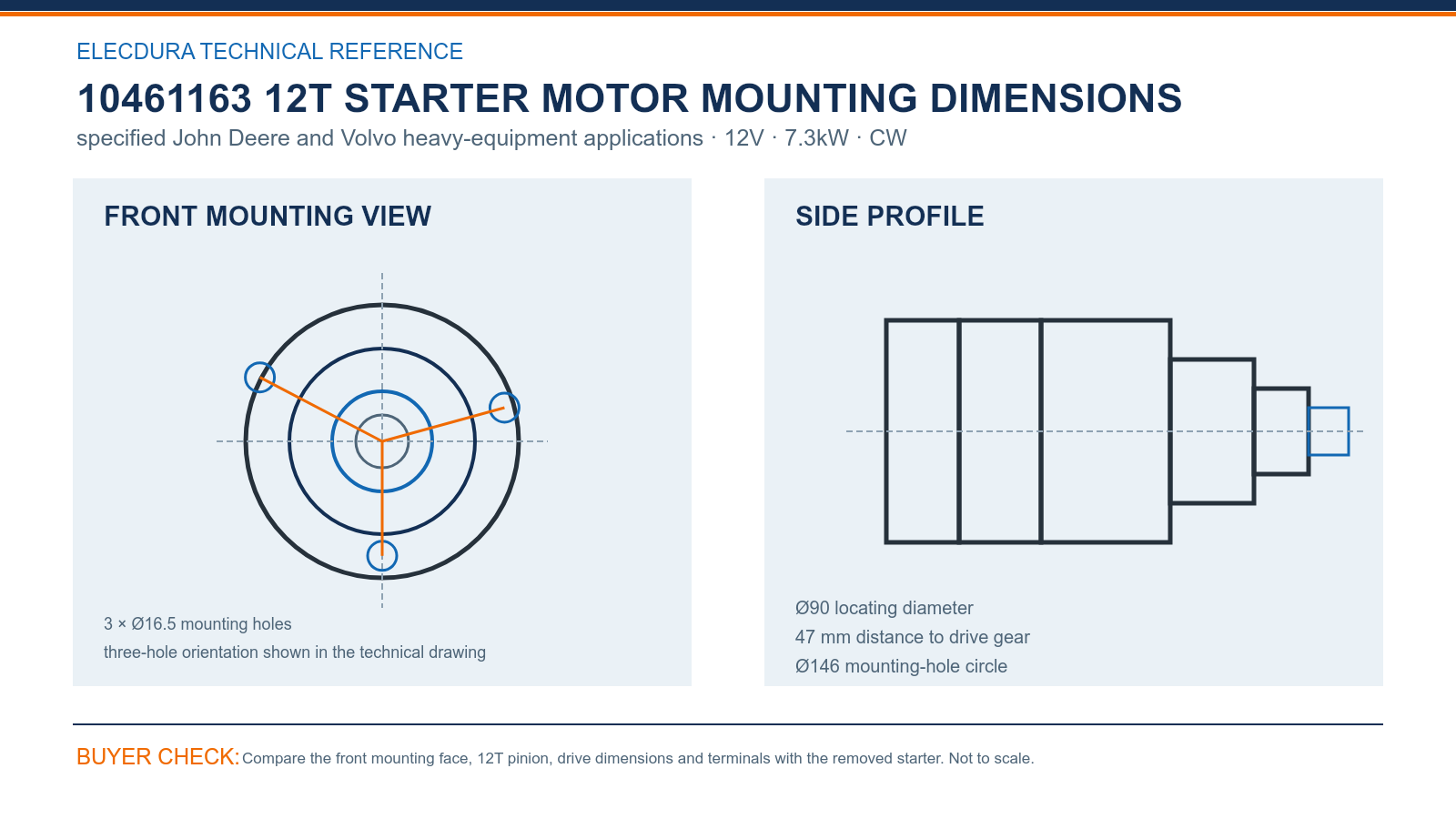

10461163 John Deere Volvo 12V 7.3kW 12T starter mounting dimensions.

Compare 10461163 at the 3 × Ø16.5 mounting holes, Ø146 mounting-hole circle and Ø90 locating diameter. The 47 mm distance to drive gear helps verify where the pinion sits relative to the flange, while a straight terminal-side photograph confirms whether the main and control connections remain accessible after installation.

For 10461163, count the 12T pinion and confirm module 3.175, CW rotation, 12V and 7.3kW. The terminal side and solenoid clearance must also agree with the installation. A different pinion or cable position should be quoted separately, even when major cross-references overlap.

10461163 Starter Motor OE Cross-References for Distributor Enquiries

1. Search group: 10461163, 10461215, 10461266, 19011514, 8200084, 8200298, 8200329 can help distributor teams locate the relevant starter family.

2. Order boundary: Confirm the complete reference with 12V, 7.3kW, 12T, CW, the drawing and terminal photographs before accepting one physical unit.

10461163 Starter Motor Wholesale Supply and Export Planning

Elecdura supports distributor orders from 20 pieces, normally with a 7–15 day lead time after order confirmation and an 18-month warranty under agreed sales terms. Availability, export packing and delivery timing are confirmed against the requested 10461163 quantity, destination and required arrival date.

Heavy units need flange protection, terminal covers and a first-lot dimensional sampling plan. Buyers should also state whether the order supports a single workshop, several branches or a fleet contract, allowing samples, safety stock, carton labels and staged dispatch to be planned around the actual service requirement.

The video introduces Elecdura starter-motor assembly and electrical testing for B2B supply programs. Selection of 10461163 remains tied to the stated John Deere and Volvo heavy-equipment application, 12T drive, mounting interface and terminals, while the video helps distributor teams review production and testing capability.

10461163 Starter Motor Questions from Commercial Buyers

What should a distributor match before ordering 10461163 for John Deere and Volvo heavy-equipment during fleet sourcing?

Use the complete removed-unit number and exact John Deere and Volvo heavy-equipment record. Compare the 12T pinion, 3 × Ø16.5 mounting holes, Ø90 locating diameter and terminal side with the old starter. A housing resemblance is insufficient when the drive position, mounting face or cable connection differs.

What is the safe way to order 10461163 from an alternate OE number in a John Deere Volvo fleet sourcing program?

Cross-references help purchasing teams search different brand systems, but the order should still resolve to one physical starter. Compare the candidate number with the 10461163 electrical rating, pinion and drawing. Keep unmatched housings, terminal positions or drive ends on separate RFQ lines so the supplier can price them correctly.

Which electrical conditions can imitate a failed 10461163 starter motor in a John Deere Volvo fleet workshop?

Before fitting 10461163, verify battery condition, cable size and voltage drop at cranking current. Clean the mounting ground and inspect the ring gear and control circuit. A slow-crank complaint can come from weak batteries, poor connections or mechanical drag, so those causes should be separated from the starter itself.

How does the 10461163 mounting drawing support product approval during a John Deere Volvo fleet inspection?

For 10461163, use a straight front view to compare the 3 × Ø16.5 mounting holes and Ø146 mounting-hole circle; use the side view for Ø90 locating diameter and 47 mm distance to drive gear. Complete the check with 12T, CW and terminal orientation. This combination is more reliable than an angled overall photograph alone.

How can branches reduce emergency transfers of 10461163 stock in a John Deere Volvo fleet program?

Heavy units need flange protection, terminal covers and a first-lot dimensional sampling plan. Add recent usage, equipment population, transfer time and service level. Elecdura can then separate sample, emergency and replenishment quantities and plan packing or staged delivery around the buyer’s schedule.

Which arrival photographs help trace a shipment of 10461163 during a John Deere Volvo fleet receiving check?

Receiving should verify the 10461163 label, quantity and packaging before opening sampled cartons. Compare the 12T drive, Ø90 locating diameter, mounting holes and terminal side with the approved record. Any damage, missing protection or physical mismatch should be quarantined with photographs and lot details for prompt review.

How can an importer obtain an accurate delivered price for 10461163 in a John Deere Volvo fleet sourcing program?

Provide the full reference and application, not only a broad brand name. Attach front, side and terminal views of the removed starter and state quantity, destination, required date and packaging needs. For 10461163, Elecdura will respond with the matching specification, MOQ, availability, commercial terms and freight choices.

Which installation facts help review unusual performance from 10461163 in a John Deere Volvo fleet review?

Submit the purchase reference, lot number, installation date and hours in service, then describe the symptom and operating conditions. Photographs and cranking-circuit measurements should accompany the report. This structured record gives Elecdura enough context to evaluate 10461163 without assuming that every no-crank complaint originates inside the starter.

10461163 Request Starter Motor Wholesale Pricing

Send the complete 10461163 reference, John Deere and Volvo heavy-equipment details, removed-unit label and photographs, quantity, destination and required arrival date. Email info@elecdurauto.com to discuss the specified 12V, 7.3kW, 12T CW starter, MOQ, packing, lead time, warranty and freight.
