10461657 John Deere 750C Starter Motor Wholesale

10461657 Starter Motor Distributor Application Guide for John Deere 750C crawler

For a fleet parts team, 10461657 identifies one John Deere 750C crawler requirement. The supplier-defined 24V 6.0kW 10T module-3.175 starter for the 750C crawler record provides a clear fitment boundary for sample, stock and replacement reviews.

A useful enquiry pairs 10461657 with the equipment record, old-starter label and clear front, side and terminal images. Add the order quantity, destination and required date so technical selection, sample planning, carton marking and freight options can be addressed in one response.

10461657 Starter Motor Mounting Dimensions for Distributor Approval

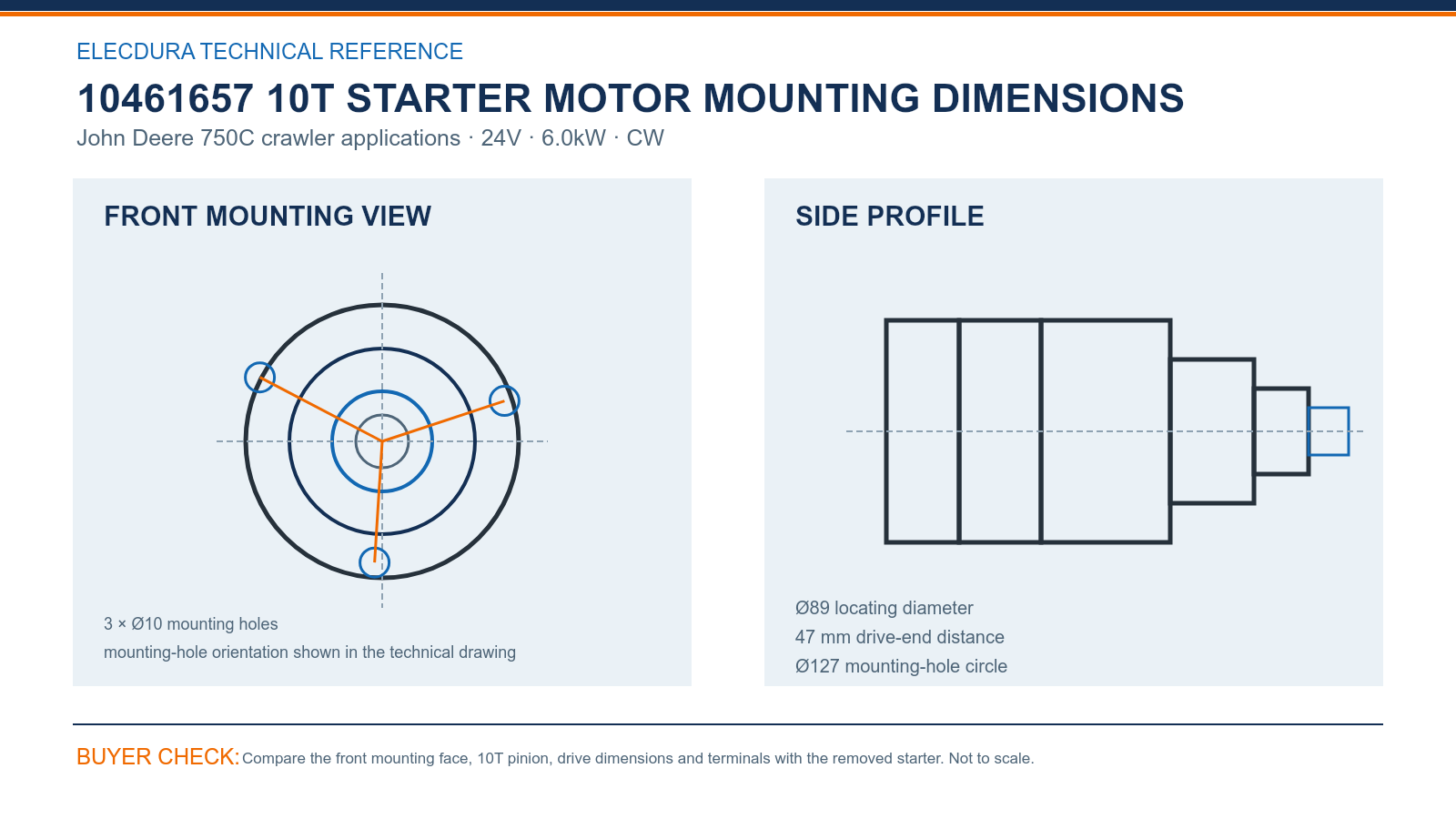

Use the 10461657 technical drawing to check Ø89 locating diameter, 47 mm drive-end distance and Ø127 mounting-hole circle. Add the 3 × Ø10 mounting holes to the receiving sheet. These are practical controls for an approved sample because they can be measured before the starter is installed or released to branch stock.

Complete the 10461657 comparison with 24V, 6.0kW, the 10T drive, module 3.175 and CW rotation. Review pinion condition, terminal location and available cable clearance together. These controls prevent a valid OE search result from being treated as automatic physical interchangeability.

10461657 Starter Motor Reference Group for Wholesale Sourcing

• Use the full number: Start with 10461657, RE15718, STD7240LP, 17371N, retaining prefixes, suffixes and separators in the RFQ.
• Confirm the hardware: The final match requires the stated electrical rating, drive, mounting interface and terminal side; unmatched versions should remain separate.

10461657 Starter Motor Distributor Stock and Delivery Support

MOQ begins at 20 pieces, with normal lead time of 7–15 days after order confirmation and an 18-month warranty under agreed terms. For 10461657, the offer can distinguish samples, available stock and production quantities while confirming carton protection and the shipment plan for the destination.

Confirm the 750C machine and 10461657 identity before accepting differently rated public alternatives. Once that boundary is fixed, purchasing can separate urgent units from routine replenishment and define branch quantities, stock labels and freight timing without encouraging an unverified substitute.

Elecdura’s video shows starter-motor production and electrical testing used to support wholesale orders. It provides supplier-capability context for 10461657; the product decision itself still depends on the complete reference, 24V 6.0kW rating, drive end, mounting face and terminal layout.

10461657 Starter Motor Questions from Commercial Buyers

Which first-lot checks protect a distributor receiving 10461657 during a John Deere 750C branch receiving check?

For 10461657, count the cartons, compare labels and inspect selected units for flange, pinion and terminal damage. The sample should match 3 × Ø10 mounting holes, Ø89 locating diameter and the specified 10T drive. Hold any exception outside normal inventory until purchasing and the supplier agree on the correct disposition.

Can a purchasing team consolidate every 10461657 reference into one stock line in a John Deere 750C branch sourcing program?

The references identify a related sourcing family, not automatic interchangeability. Use 10461657, RE15718, STD7240LP, 17371N to locate possible matches, then confirm 24V, 6.0kW, 10T, CW and the mounting face. Any difference in drive position, terminal layout or locating diameter requires a separate product decision.

How can an importer avoid mixing 10461657 with a similar drive-end version during branch sourcing?

For 10461657, begin with the machine, truck or engine identification, then read the full old-unit label. The physical check should cover 10T, Ø127 mounting-hole circle, Ø89 locating diameter and terminal orientation. Treat a different drive end or connector position as a separate item, even when an application description overlaps.

Before removing 10461657, what should the workshop test under load in a John Deere 750C branch workshop?

Before fitting 10461657, verify battery condition, cable size and voltage drop at cranking current. Clean the mounting ground and inspect the ring gear and control circuit. A slow-crank complaint can come from weak batteries, poor connections or mechanical drag, so those causes should be separated from the starter itself.

What physical controls belong on a first-lot check for 10461657 during a John Deere 750C branch inspection?

For 10461657, use a straight front view to compare the 3 × Ø10 mounting holes and Ø127 mounting-hole circle; use the side view for Ø89 locating diameter and 47 mm drive-end distance. Complete the check with 10T, CW and terminal orientation. This combination is more reliable than an angled overall photograph alone.

How should John Deere distributors plan stock for 10461657 in a John Deere 750C branch program?

Keep crawler downtime stock and the approved 24V product record separate from other Deere starters. Add recent usage, equipment population, transfer time and service level. Elecdura can then separate sample, emergency and replenishment quantities and plan packing or staged delivery around the buyer’s schedule.

What information should accompany a distributor RFQ for 10461657 in a John Deere 750C branch sourcing program?

A useful RFQ states 10461657, the machine or engine model, old-unit label, mounting and terminal photographs, requested quantity and delivery country. Include whether the demand is a sample, urgent service order or scheduled stock. Those details allow pricing to cover the correct unit and realistic shipping plan.

What evidence separates an electrical-system fault from a concern involving 10461657 in a John Deere 750C branch review?

For a service review of 10461657, identify the shipment and unit, describe the starting condition and record installation details. Add photographs of the drive, flange and terminals plus battery, ground and positive-cable test results. If the unit was removed, protect it from additional damage and retain it until the review is complete.

10461657 Send a Starter Motor Distributor Enquiry

For a focused 10461657 quotation, share the machine or engine record, old-starter number, mounting and terminal images, order volume, delivery country and timing. You can email the RFQ directly to info@elecdurauto.com; Elecdura will reply with the matching specification, availability, packing and commercial terms.
