AM876224 John Deere 4TNV86 12V 2.5kW 15T Starter Motor Wholesale

AM876224 John Deere 4TNV86 Starter Motor Wholesale for Dealers

Agricultural equipment often reaches workshops in concentrated planting and harvest periods, so the correct starter must already be identifiable in stock. An AM876224 enquiry should state the John Deere machine, Yanmar engine and seasonal quantity, allowing importers to plan dealer reserve without confusing lower-tooth-count units.

This configuration combines 2.5kW output with a 15T module-2.54 pinion. Compare the two Ø13 holes at the 75° orientation, Ø95 locating diameter and 22/34 mm drive references; a familiar John Deere or Yanmar number alone does not confirm the required high-tooth-count nose.



AM876224 12V 2.5kW 15T Starter Data and Mounting Drawing

Keep 12V, 2.5kW, 15T, module 2.54 and clockwise rotation together on the item description. These values define the electrical platform and gear interface agricultural dealers need when allocating units to field-service vans, branch counters and workshop replenishment.

AM876224 John Deere 4TNV86 Starter Dimensions for Dealers — compare the drawing with the removed starter before placing a volume order.

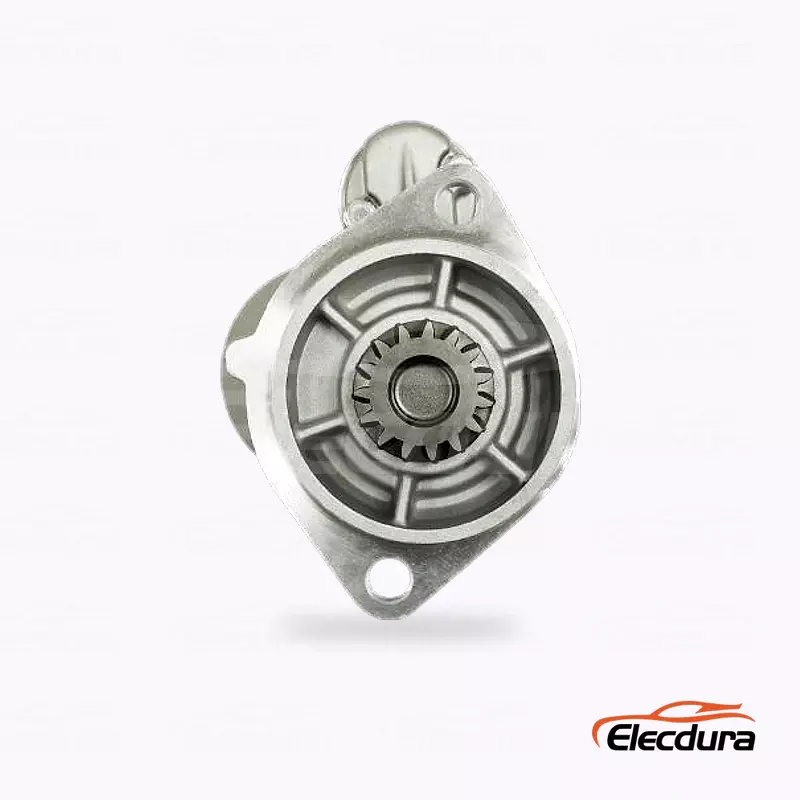

The straight drive-end view should show two Ø13 mounting holes on the Ø120 face, with the upper ear aligned to the 75° reference. Check the Ø95 locating diameter plus the 22 mm pinion-side and 34 mm nose-to-face dimensions before approving stock for a busy service season.



AM876224 and AM875415 Matching for John Deere Parts Buyers

AM876224 may be searched with AM875415, AM878189, 121254-77010 and S13-41 family numbers. Keep the John Deere machine and Yanmar engine beside the references, since the shared search group spans applications that require a physical match rather than number-only substitution.

Dealers can estimate reserve quantity from active machine population, service territory, seasonal workload and replenishment lead time. Once the 15T two-hole version is verified, separate branch allocations can be planned around local field demand without expanding the fitment statement to every John Deere compact machine.



AM876224 Starter Motor Supply for Seasonal Agricultural Service

Inspect the first lot for the 2.5kW label, fifteen-tooth pinion, ear orientation, terminal studs and nose protection. Seasonal parts networks benefit from cartons marked with AM876224, 4TNV86 and 15T, because technicians may collect units quickly during peak field operations.

Elecdura’s starter production video helps agricultural-parts buyers review assembly and electrical testing before a seasonal order. Use it to align sample checks, carton labels, replenishment timing and delivery splits for John Deere dealer locations.



AM876224 John Deere 4TNV86 Starter Motor FAQs for Agricultural Buyers

How can a John Deere dealer identify AM876224 before the busy season?

Combine the John Deere machine model, Yanmar 4TNV86 or 3TNE88 engine, complete AM876224 family number and the 12V 2.5kW 15T rating. Add front and terminal photographs of the removed starter. This package gives purchasing a defined high-tooth-count item before seasonal demand rises, rather than relying on a broad compact-equipment description.



Why does the 15T pinion matter when sourcing AM876224?

The fifteen-tooth module-2.54 drive is a primary separator within a reference family that includes several Yanmar and John Deere starters. Confirm the tooth count with 2.5kW output and clockwise rotation, then compare the mounting face. A starter with the right voltage but another pinion can create an engagement problem and an avoidable field-service return.



How should dealers forecast AM876224 reserve stock for field service?

Review active machines by branch, expected seasonal hours, previous no-start calls, mobile-service response time and import lead time. High-use territories may need a service-van unit plus shelf reserve, while lower-use branches can draw from a central pool. Keep AM876224, 4TNV86 and 15T on the allocation so reserve stock remains tied to the confirmed version.



Which photographs are most useful for checking AM876224 geometry?

Request a square drive-end image showing both Ø13 holes and the 75° upper-ear orientation, followed by a side view of the pinion, 22/34 mm positions and terminal studs. Include the rating label in a separate close-up. These views let a buyer compare the Ø95 locating and Ø120 face references without distortion from an angled product photograph.



How should AM875415 be used when quoting AM876224?

AM875415 is a useful related number and may help locate the same broad John Deere and Yanmar family. Keep AM876224 as the lead reference, then add the machine, engine, 2.5kW label and fifteen-tooth drive. The number relationship improves search coverage, while the physical and rating details determine whether the offered starter suits this specific requirement.



What should be checked when AM876224 stock arrives before harvest?

Inspect labels, fifteen-tooth pinions, mounting-ear angle, solenoid terminals, free drive movement and protective packing across a representative sample. Compare the lot with the accepted front and side photographs, then mark branch cartons clearly. Completing these checks before peak demand helps field technicians collect the right high-tooth-count starter without delaying a machine already needed for seasonal work.



Which electrical checks should precede AM876224 replacement?

Test battery condition, loaded positive and ground voltage drop, start-signal voltage, cable tightness and ring-gear condition. Note crank speed and whether the solenoid engages. Addressing these causes before fitting the 2.5kW starter protects the replacement from excessive resistance or repeated engagement problems and gives the distributor better information if after-sales support is later required.



What should an importer include in an AM876224 branch-stock quotation?

List the John Deere machine and Yanmar engine by branch, complete old-starter markings, 12V 2.5kW 15T label, mounting and terminal photographs, quantities, required dates and destinations. Explain whether units are for seasonal reserve or current repairs. Elecdura can then discuss price breaks, carton marking, production timing and delivery splits for the confirmed two-hole configuration.



Request AM876224 John Deere Starter Motor Wholesale Terms

Email the John Deere machine model, Yanmar 4TNV86 or 3TNE88 engine details, complete AM876224 family marking, rating label, mounting-face and terminal photographs, quantity by branch and delivery date to info@elecdurauto.com. Elecdura will review the 15T configuration and return wholesale terms.
