129612-77011 Yanmar 4CX 24V 4.5kW 15T Starter Motor Wholesale

129612-77011 Yanmar 4CX Starter Motor for Project and Industrial Supply

Industrial projects often purchase initial spares before equipment enters service and need the same configuration again years later. A useful 129612-77011 request records the 4CX engine plate, equipment package, project site, first quantity, future forecast and housing photographs so the accepted product remains traceable beyond the first delivery.

Do not reduce the match to 15 teeth or the shared S25-166 family. Confirm 24V, 4.5kW, module 2.54, CW rotation, two Ø13 holes, Ø120 circle, 95 mm engagement and 19 mm drive position, then compare the alternate housing and terminal side shown for this housing version.

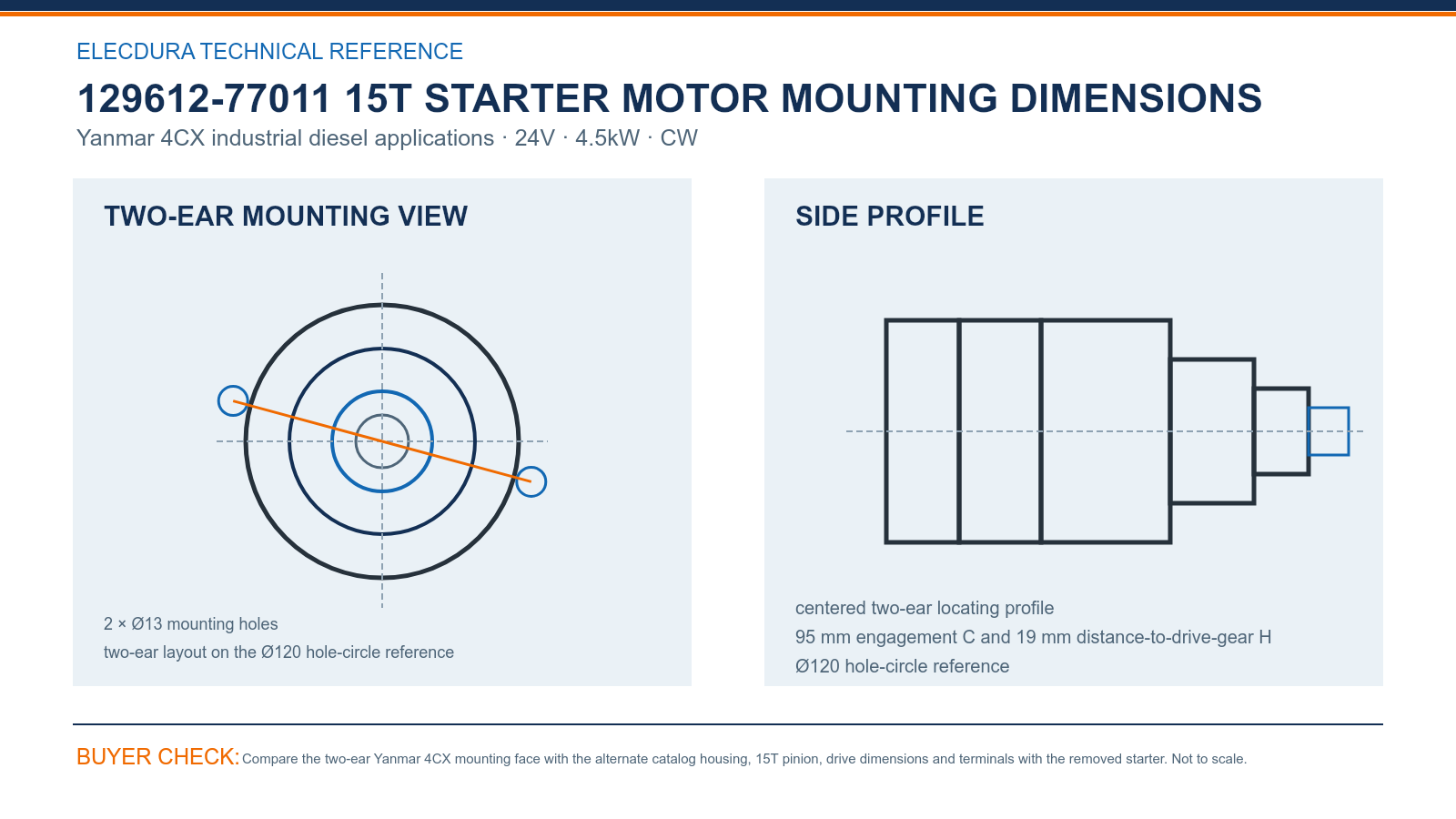

129612-77011 15T Starter Drawing for Alternate Housing Identification

Put 129612-77011, Yanmar 4CX, 24V, 4.5kW, 15T and CW on the purchase line and sample label. The full suffix gives warehouses a distinct identity, while the complete electrical and drive specification prevents an otherwise similar two-ear Yanmar starter from entering the project allocation.

129612-77011 Yanmar 4CX Starter Dimensions for Project Spares Buyers — compare the drawing with the removed starter before placing a volume order.

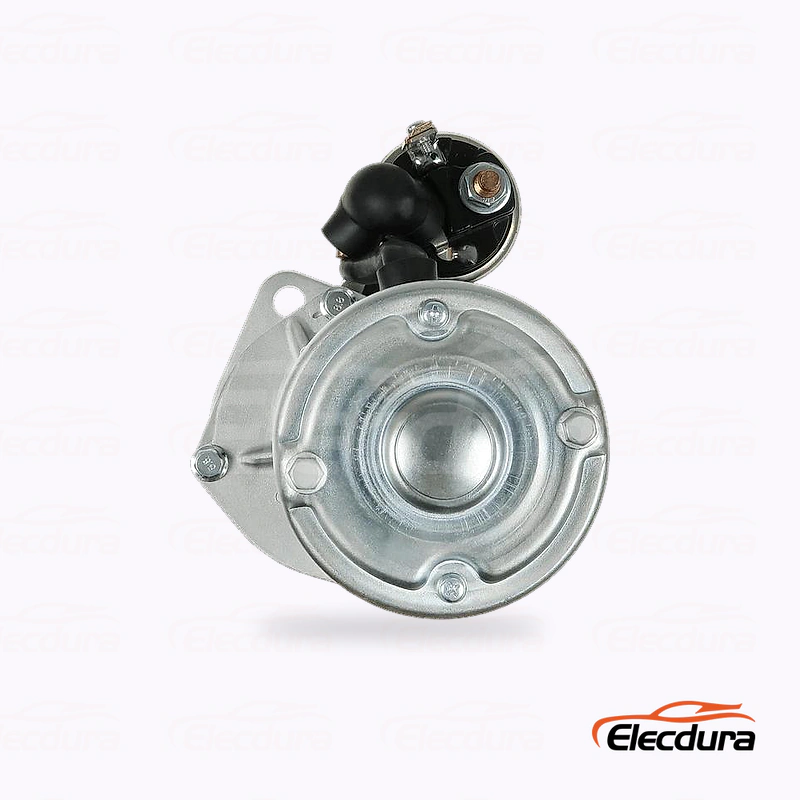

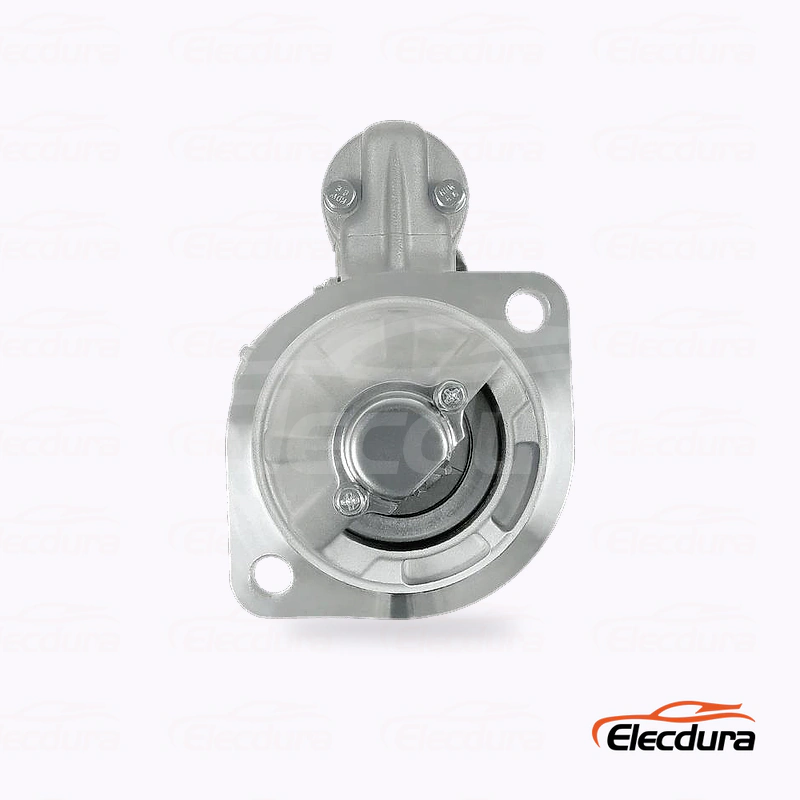

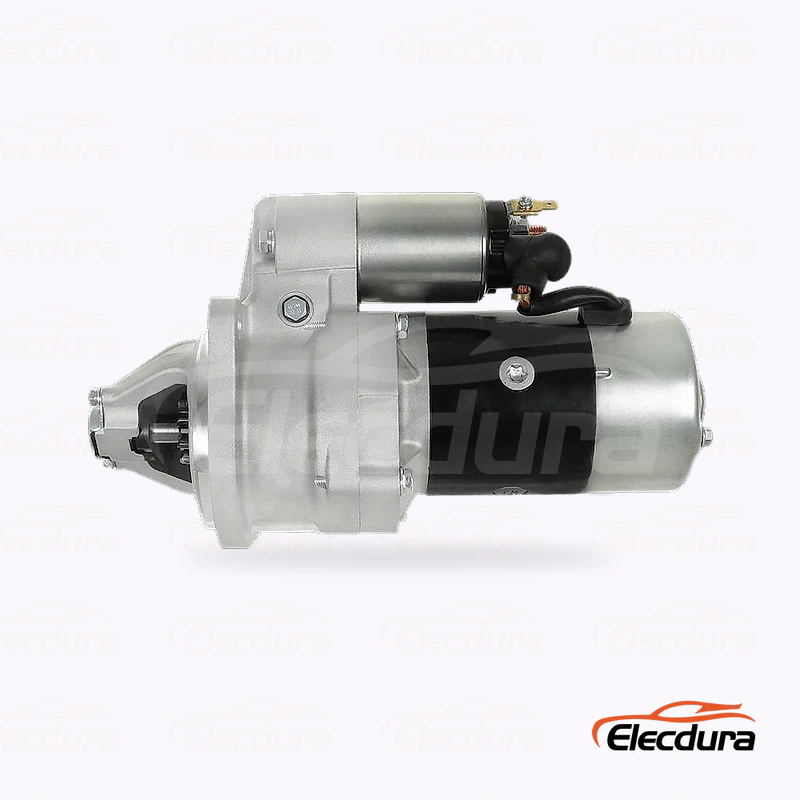

Compare the removed unit with the two-ear Ø120 face, 95 mm engagement and 19 mm pinion position. Retain front, side and terminal views that show the housing presentation clearly, because the shared reference group alone does not explain which housing construction belongs to this product line.

129612-77011 Suffix and Housing define Within the S25-166 Family

129612-77011 shares S25-166, S25-166A, 129612-77010, 20513063 and STH3487ML with a related Yanmar product. this product listing uses the complete 77011 suffix and its housing version as the lead identity, helping buyers maintain two distinct records where the supplier presents separate physical cards.

Allocate 129612-77011 quantities by project, site and commissioning schedule, then identify any emergency reserve separately. When the accepted unit is moved between locations, keep the 4CX engine, suffix and housing images with the transfer so later teams understand which physical product belongs to the installed equipment.

129612-77011 Project Allocation, Receiving and Repeat-Lot Support

Receiving inspectors should compare rating labels, suffix markings, fifteen-tooth pinions, two-ear faces, terminal positions and packing supports against the accepted sample. Record any housing change before dispatch, because a project spares store may not discover a mismatch until months after delivery when the unit is urgently needed.

Project-spares teams can use the following Elecdura production video to understand starter assembly and electrical test routines. It supports sample, traceability and packaging discussions, while the 129612-77011 suffix, 4CX engine data and alternate housing version continue to define this specific supply line.

129612-77011 Yanmar 4CX Starter Questions for Industrial Project Buyers

Why is 129612-77011 kept as a separate product from 129612-77010?

The stated product source presents a separate card and housing image, while the complete 77011 suffix gives purchasing a distinct lead identity. The reference group and headline specifications overlap, so buyers should retain the specific housing, terminal and application photos for each item. Separate records prevent one accepted sample from silently governing both physical products.

Which 4CX project data should accompany a 129612-77011 request?

Send the Yanmar engine plate, equipment package, project or site name, complete old-starter suffix and required installation schedule. Add front, side, pinion and terminal photographs. This information lets the distributor connect the alternate housing version to one 4CX project and preserve the match for commissioning spares and later maintenance stock.

How should the two-ear geometry be checked on the alternate housing?

Compare both Ø13 holes on the Ø120 circle, the 95 mm engagement and 19 mm drive position from square front and side views. Include the locating face and terminal orientation. These measurements show whether the alternate housing still matches the installed interface instead of assuming that shared 15T and S25-166 references prove fitment.

What role does the full 77011 suffix play in warehouse traceability?

Use 129612-77011 on sample tags, cartons, bin cards, receiving reports and project allocations. The suffix separates this product from 129612-77010 in searches and historical orders. Pair it with the 4CX engine, 24V 4.5kW 15T specification and accepted housing image so future staff understand which physical version was supplied.

How should a project buyer allocate 129612-77011 spares across sites?

List installed quantity, commissioning reserve, scheduled-maintenance stock and emergency units by site. Consider resupply time, local workshop capability and the consequence of a delayed start. Keep the 77011 suffix and accepted housing attached to every transfer so a spare moved between projects does not lose the evidence that originally supported its match.

Which housing changes should trigger renewed review before a repeat order?

A changed drive-end casting, mounting-ear shape, locating surface, solenoid orientation, terminal position or body length should stop automatic dispatch. Compare the new sample with the accepted 129612-77011 images and drawing. Even when the rating and cross-references remain the same, a visible physical change can affect installation clearance or project traceability.

What should receiving staff document on the first 129612-77011 lot?

Record carton identity, rating labels, suffix markings, fifteen-tooth pinions, two-ear faces, terminal positions and packing condition across a sample. Photograph the lot against the accepted alternate housing. Quarantine mixed or changed units before dispatch, because project spares may remain stored until an urgent need makes a late mismatch expensive.

What commercial information enables a project-spares quotation?

Email the 4CX engine and equipment data, full 129612-77011 reference, old-unit or accepted-sample images, quantity by project, future forecast, required dates, destination and packing instructions. State any inspection or labeling requirement. Elecdura can then review the alternate housing configuration and return distributor pricing, production timing and shipment planning for the documented project.

Request 129612-77011 Yanmar 4CX Starter Motor Distributor Pricing

Email the Yanmar 4CX engine plate, full 129612-77011 or S25-166 marking, front, side, pinion and terminal photographs, project quantity, future forecast, destination and required date to info@elecdurauto.com. Elecdura will review the alternate housing configuration and return distributor pricing, packing and lead time.
