8970324642 Isuzu 4HF1 24V 4.0kW Starter Motor Wholesale

8970324642 Isuzu 4HF1 Starter Motor Value for Multi-Branch Buyers

For an Isuzu distributor, the value of this product listing is not another broad 4HF1 description; it is a distinct 8970324642 stock definition. The 4.0kW rating and elongated two-hole face give purchasing staff the details needed to separate it.

The reference group overlaps with other 4HF1 starters, including products with another housing or power description. Do not merge their accepted samples. Confirm the full 8970324642 number, 4.0kW rating, CCW direction, Ø15 holes and long triangular drive end.

8970324642 4.0kW CCW Ratings and Elongated Mounting Drawing

The required combination is 24V, 4.0kW, 11T, module 3 and counter-clockwise rotation. Keeping this set unchanged helps purchasing distinguish the elongated 8970324642 unit from another 4HF1 starter in the same reference family.

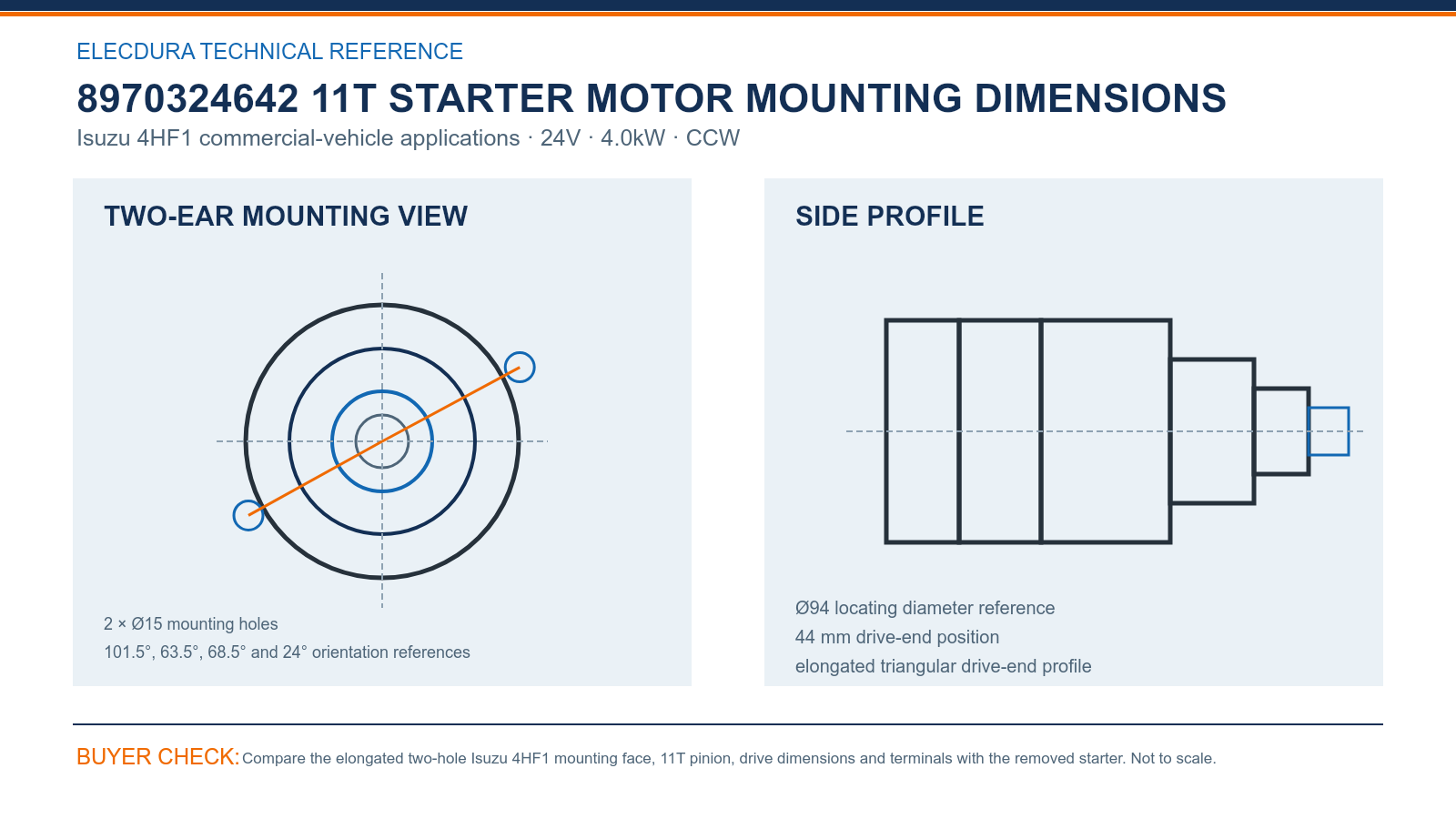

8970324642 Isuzu 4HF1 Starter Dimensions for Variant Separation — compare the drawing with the removed starter before placing a volume order.

Use the 101.5-degree, 63.5-degree, 68.5-degree and 24-degree references to recognize the elongated face, then compare the Ø94 locating diameter and 44 mm drive position. Straight images of both mounting and terminal sides should accompany a first order.

8970324642 Variant Separation for Isuzu Parts Procurement

S25-163, S25-505, 18960N, 113675 and 8970324640 support the wider cross-reference search. The sellable identity here remains 8970324642 with the 4.0kW rating and documented elongated drive end.

If a branch already stocks another 4HF1 starter, create a separate bin image and physical-description note for 8970324642. The distinction should remain visible in search results, quotations, transfers and returns instead of living only in one technician's memory.

8970324642 Branch Stock Support and Production Video

During receiving, compare the long face, two Ø15 holes, Ø94 location, 11T pinion, CCW marking and terminal arrangement with the accepted images. Quarantine mixed housings before relabeling cartons or sending stock to another branch.

Elecdura's video introduces assembly and electrical testing for B2B starter programs. Buyers can review production and testing capability while maintaining a separate 8970324642 product definition, first-lot comparison and branch labeling plan.

8970324642 Variant FAQs for Isuzu 4HF1 Parts Distributors

Why is 8970324642 kept separate from an existing 8970324640 product?

8970324642 is kept separate because the sellable definition is the complete suffix, 24V 4.0kW CCW rating and elongated Ø15-hole housing. An existing 8970324640 listing may share search references but does not prove the same output or body. Separate product identities prevent stock, quotation and reorder errors.

Which features identify the elongated 4HF1 mounting face?

Identify the unit by the elongated drive-end housing, Ø15 mounting holes, locating face, 11T pinion position and the relationship between the solenoid and mounting ears. Use square front and full side photographs so overall form is visible. The complete 8970324642 marking and 4.0kW label should appear in the same comparison.

Why must the stated 4.0kW rating remain on this product?

The 4.0kW value distinguishes this item from nearby 4HF1 starters commonly grouped under another output. Removing it would make the product description ambiguous for purchasing and receiving. Keep 24V, 4.0kW, 11T, module 3 and CCW together on the quotation, purchase order and warehouse label. Use the same definition for branch stock and future replenishment.

How should shared S25-163 references be handled in purchasing?

Treat S25-163 references as search aids, not automatic proof that every listed housing is interchangeable. Purchasing should attach the complete 8970324642 suffix, 4HF1 vehicle details, 4.0kW CCW specification and elongated mounting photographs. If any of those points differ, request a separate comparison before adding quantity.

What photographs are needed before approving a branch transfer?

Provide a straight drive-end image, a full-length side image, a terminal-side image and a clear rating-label image. Include a ruler where overall length or mounting positions need comparison. The photographs must show the Ø15-hole face and elongated housing clearly enough for another branch to identify the same 8970324642 configuration.

Which receiving checks can detect mixed 4HF1 housings?

Sample units across the shipment and compare housing length, 4.0kW labels, CCW markings, 11T pinions, mounting holes and terminal positions. Watch for cartons carrying a shared reference but containing a compact or differently rated 4HF1 starter. Hold any mismatch before the lot is distributed to branches.

How should an Isuzu distributor organize two nearby starter variants?

Create separate item names, bins and reference images for 8970324642 and the nearby 4HF1 variant. Put output, rotation and housing form on each label rather than storing both under a generic Isuzu description. Sales quotations and branch transfers should carry the same complete number used on the inspected starter.

What should an importer email for 8970324642 B2B pricing?

Email the 4HF1 engine and vehicle details, complete 8970324642 marking, rating-label photograph, square mounting and full side views, quantity, packing preference, destination and required date. Explain whether the purchase supports stock replenishment or a specific fleet. Elecdura can then return B2B pricing for the elongated 4.0kW version.

Request 8970324642 Isuzu 4HF1 Starter Motor B2B Pricing

Send the complete 8970324642 or related old-unit number, Isuzu 4HF1 vehicle details, straight mounting and terminal photographs, measured drive end, quantity and destination to info@elecdurauto.com. Elecdura will review this 4.0kW CCW variant and prepare B2B pricing.
