8972251980 Isuzu 4BG1 Excavator Starter Motor Wholesale

8972251980 Isuzu 4BG1 Starter Supply for Excavator Parts Buyers

Excavator distributors often serve multiple John Deere and Hitachi models around the same engine family. Using 8972251980 with the 4BG1 identity and compact housing gives sales teams a defined product while machine-specific notes remain attached to each enquiry.

The 8972251980/1991/2001 group contains more than one physical presentation and power description. This item should be checked as the 4.5kW compact version, using its two-hole face, 20 mm drive position and actual terminal layout before jobsite dispatch.

8972251980 4.5kW Ratings and Compact Mounting Dimensions

The specified set is 24V, 4.5kW, 11T, module 3 and clockwise rotation. These values should remain together from online search to quotation, because a shared OE family does not make every 4BG1 housing interchangeable.

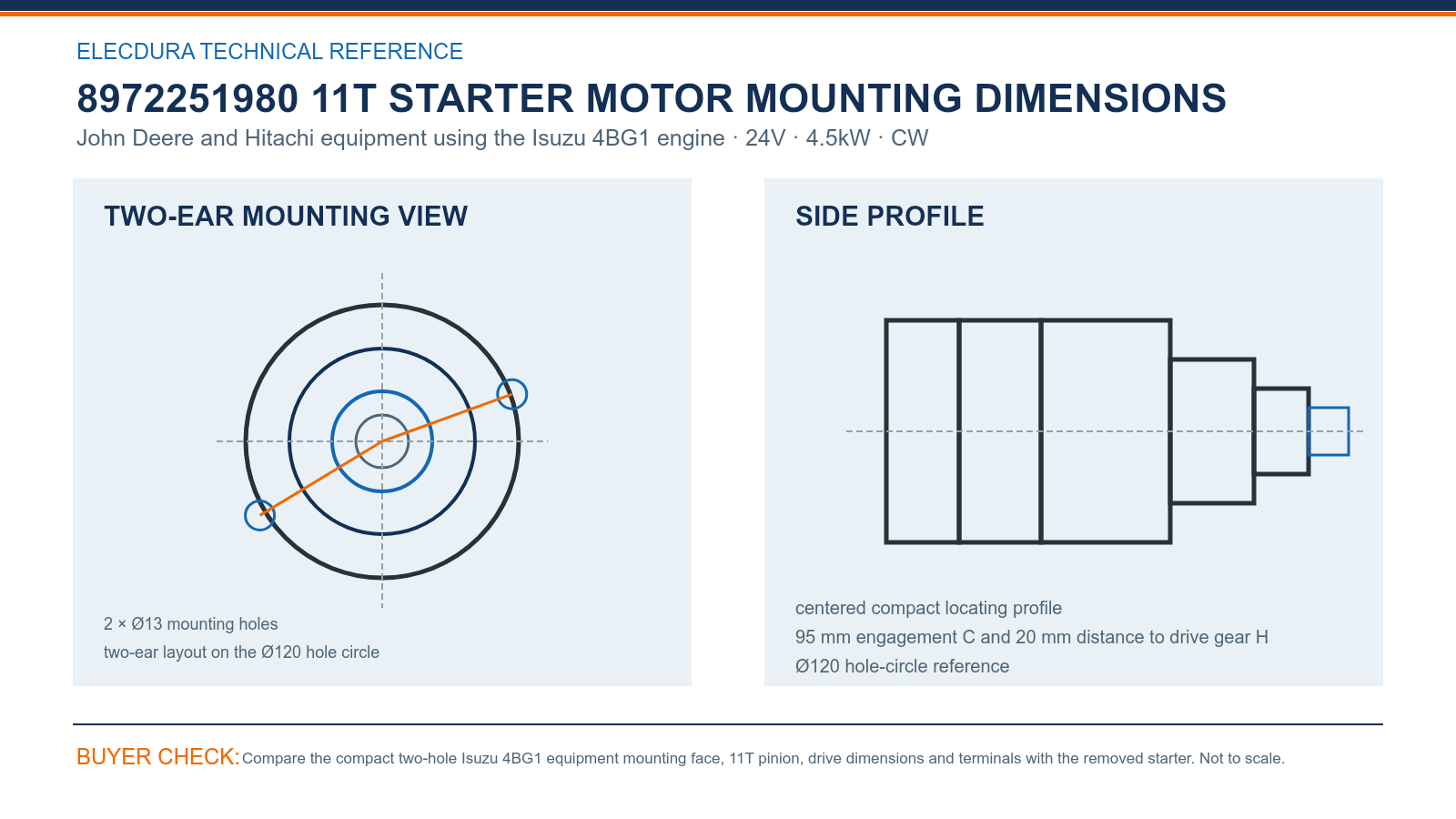

8972251980 Isuzu 4BG1 Starter Dimensions for Excavator Buyers — compare the drawing with the removed starter before placing a volume order.

Compare the two Ø13 holes on the Ø120 circle, 95 mm engagement and 20 mm distance to the drive gear. A side photograph that shows overall housing length is important when several 4BG1 starters share the same mounting dimensions.

8972251980 Equipment and OE Matching for Dealer Networks

The cross-reference group includes 8972251980, 8972251991, 8972252001, S25-176, S25-177B, 114378 and New Holland numbers. Buyers should state the machine model and accepted housing, not only the shared reference list.

Dealer networks can assign 8972251980 to verified machines and retain separate entries for the longer or lower-output variants. This makes emergency picking faster without hiding the physical distinction that matters at the workshop.

8972251980 Jobsite Stock Support and Manufacturing Video

For remote jobsites, protect the pinion, drive end and terminals during transport, then compare a sample with accepted compact-housing images before branch distribution. Lot photographs and machine allocation improve traceability when stock moves between service locations.

Elecdura's production video presents starter assembly and electrical testing for B2B supply. Construction-equipment buyers can assess manufacturing capability together with jobsite packing, branch stock, inspection and delivery requirements for 8972251980.

8972251980 Starter Motor FAQs for Excavator Parts Distributors

Which John Deere or Hitachi machine details support an 8972251980 request?

Send the John Deere or Hitachi machine model, serial details, Isuzu 4BG1 engine plate and complete old-starter markings. Add square mounting, full side and terminal photographs. These details help separate the compact 8972251980 housing from other 4BG1 starters before a dealer commits stock for a remote jobsite.

How does the compact housing distinguish this 4BG1 product?

The compact body changes the space occupied behind the mounting face and separates this unit from the long-housing 4BG1 version. Compare the full side profile, 95 mm engagement reference, 11T drive and terminal position. A shared engine or OE family does not remove the need to verify housing length.

Can 8972251991 and 8972252001 be used as cross-reference searches?

Yes, 8972251991 and 8972252001 can support a cross-reference search, but they identify nearby variants rather than guaranteed substitutes. Keep 8972251980 tied to its 4.5kW rating, compact housing, 11T drive and machine details. The long-housing and 3.5kW versions should remain separate in purchasing and stock. Attach the selected compact-housing images to the buyer's quotation.

What mounting dimensions should be checked before jobsite dispatch?

Check the mounting-hole pattern, locating diameter, 95 mm engagement reference, drive position and the body clearance behind the face. Confirm the 11T pinion and terminal orientation from matching photographs. Completing these checks before dispatch reduces the risk of sending a compact 4BG1 starter that cannot fit the machine compartment.

How should a dealer allocate starter stock across remote service branches?

Allocate stock from the number of supported machines, travel time to each service branch, recent failure demand and replenishment lead time. Keep one clearly identified 8972251980 reserve where remote breakdown exposure is highest. Review consumption by branch so emergency stock is replenished without mixing the compact and long-housing variants.

Which packaging areas need protection for construction-equipment delivery?

Protect the mounting ears, locating face, pinion, solenoid and main terminals with fitted supports that prevent movement inside the carton. Use moisture protection for long routes and avoid pressure on the compact housing. Receiving should photograph any crushed carton or shifted unit before it travels onward to a construction site.

What should receiving staff record on the first 8972251980 lot?

Record the rating label, 11T pinion, compact housing profile, mounting dimensions, terminal orientation and carton condition from several first-lot units. Link those photographs to 8972251980 and the delivery lot. This gives receiving and service branches a consistent comparison when later shipments arrive for John Deere or Hitachi machines.

Which project and quantity details support a wholesale quotation?

Provide the machine models, project location, 4BG1 engine details, quantity by site, required delivery dates and packaging needs. Add complete starter references and photographs of the accepted compact housing. Elecdura can then quote 8972251980 and plan staged deliveries without combining it with other 4BG1 variants used in the same fleet.

Request 8972251980 Isuzu 4BG1 Starter Motor Wholesale Terms

Send the John Deere or Hitachi machine model, Isuzu 4BG1 engine plate, complete old-starter numbers, compact-housing photographs, quantity by branch and destination to info@elecdurauto.com. Elecdura will review 8972251980 and prepare wholesale supply terms.
