8980450270 Isuzu 4JJ1 24V 4.0kW Starter Motor Wholesale

8980450270 Isuzu 4JJ1 Starter Motor Value for Wholesale Buyers

Isuzu truck-parts importers can use 8980450270 as a strong purchasing identity for 4JJ1 demand, then separate customer orders by truck model, engine plate and delivery branch. That gives sales teams a practical product definition for both urgent replacements and planned stock.

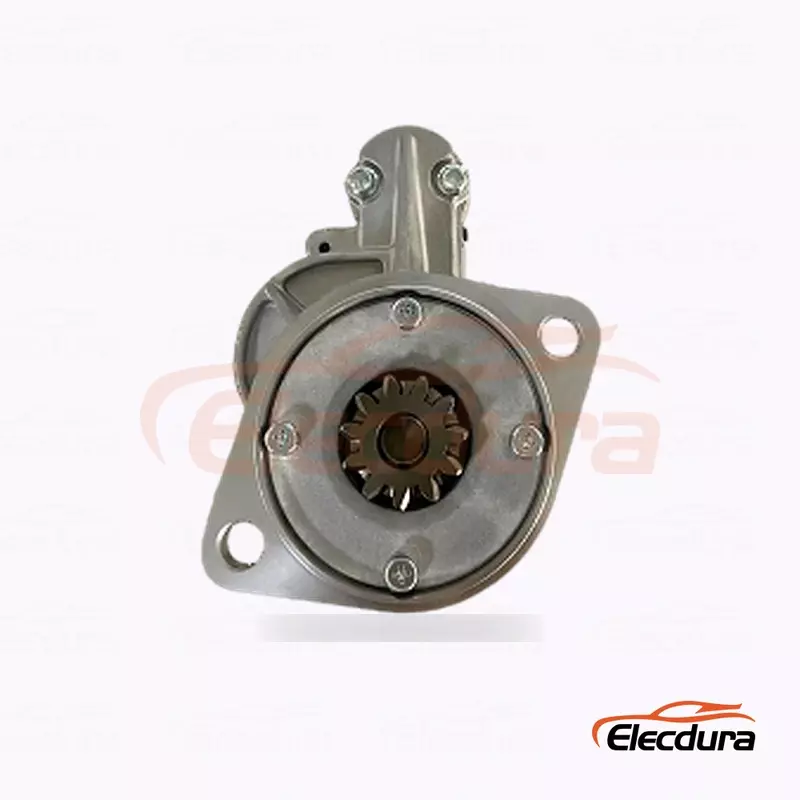

The 8980450270 family includes several suffixes and S25-514 references, so a number match should be paired with the actual drive end. Compare the two Ø13 holes, locating face, eleven-tooth pinion and terminal position before allocating stock to a 4JJ1 customer.

8980450270 Starter Motor Specifications and 4JJ1 Mounting Dimensions

This product is defined as 24V, 4.0kW, 11T, module 3 and clockwise rotation. Keeping the electrical rating and drive data together on the quotation helps purchasing avoid a similar 4JJ1 starter with a different output or gear interface.

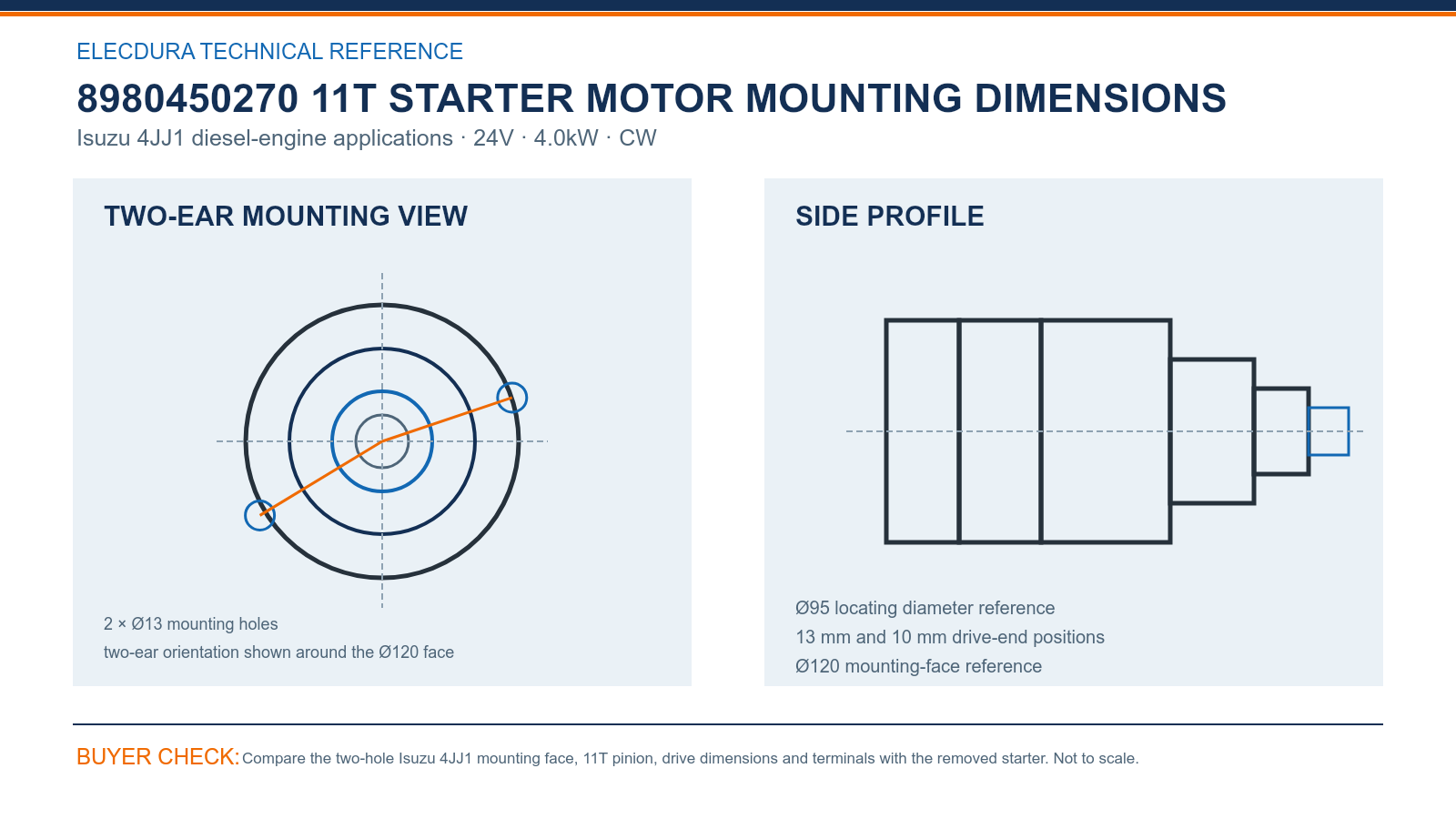

8980450270 Isuzu 4JJ1 Starter Dimensions for Truck Parts Buyers — compare the drawing with the removed starter before placing a volume order.

Use the drawing to compare the Ø120 mounting face, Ø95 locating reference and the 13 mm and 10 mm drive-end positions. Square front and side photographs from the removed unit make these checks faster for an importer handling several Isuzu truck configurations.

8980450270 OE Matching for Isuzu Truck Parts Distribution

The main search group includes 8980450270 through 8980450273, S25-514 variants, 116315 and 30227N. Buyers should place the complete number and 4JJ1 engine identity on each purchase-order line rather than shortening the request to an Isuzu starter.

For branch networks, keep the confirmed 4JJ1 truck details and accepted mounting photographs beside the product code. This preserves the original match when the same customer reorders, while allowing a new vehicle or suffix to receive its own technical comparison.

8980450270 Fleet Supply Support and Starter Production Video

A first incoming lot can be sampled for the 11T pinion, two-hole face, locating surface, terminals and rating labels. Recording those checks against the delivery lot gives fleet distributors a useful baseline for later replenishment and after-sales communication.

The video below introduces Elecdura starter-motor assembly and electrical testing for B2B supply. Isuzu distributors can review production capability alongside their requirements for carton labeling, incoming inspection, delivery timing and repeat 8980450270 availability.

8980450270 Starter Motor FAQs for Isuzu 4JJ1 Buyers

Which 4JJ1 information should accompany an 8980450270 enquiry?

Include the Isuzu truck model, 4JJ1 engine plate, electrical system voltage, every readable old-starter number and straight photographs of the mounting face and terminals. Add the required quantity and destination. These details let Elecdura compare the two Ø13 holes, Ø120 face and 11T drive before preparing a wholesale quotation.

How do 8980450271 and 8980450272 support the OE search?

8980450271 and 8980450272 are useful search references within the same number family. They should remain linked to the 4JJ1 engine and the complete 8980450270 product definition, because a suffix match alone does not confirm the two-hole face, 11T pinion, terminal position or 24V 4.0kW rating.

Which dimensions separate this two-hole drive end from nearby Isuzu starters?

The decisive dimensions are the two Ø13 mounting holes, Ø120 mounting-face reference, Ø95 locating diameter and the 13 mm and 10 mm drive-end positions. Compare those points from a square front view, then confirm the 11T module-3 pinion and terminal orientation. A similar Isuzu housing can differ at any of these interfaces.

Why should 4.0kW and 11T remain together on the quotation?

The 4.0kW rating describes cranking output, while the 11T pinion defines the gear interface. Keeping both values on the quotation prevents a buyer from receiving a starter that appears suitable electrically but does not match the ring gear. The 24V system, module 3 and clockwise rotation should remain beside them.

What should a truck-parts branch check on its first incoming lot?

On the first incoming lot, sample units from more than one carton. Check the 24V 4.0kW label, 11T pinion, two Ø13 holes, locating face, solenoid terminals and visible shipping condition against the agreed product details. Retain the photographs with the lot number so later branch deliveries can follow the same comparison.

How can a fleet distributor plan 8980450270 reserve stock?

Set reserve stock from the number of active 4JJ1 trucks, recent starter demand, replenishment lead time and the service level each branch must support. Keep 8980450270 in its own bin with the two-hole face and 4.0kW 11T identity visible. Review consumption before increasing the next wholesale order.

Which electrical faults should a 4JJ1 workshop test before replacement?

Test battery voltage under cranking load, positive-cable voltage drop, engine-to-chassis grounds, starter relay operation and the ring gear before replacing the unit. A weak supply circuit can imitate starter failure. Send the readings with the 8980450270 enquiry so the workshop issue and the required 4JJ1 starter are not confused.

What commercial details help Elecdura quote 8980450270 efficiently?

Send the engine plate, truck model, complete old-unit references, clear front and terminal-side photographs, required quantity, packing preference, destination and requested delivery date. State whether the order is for branch stock or a named fleet. Elecdura can then quote the 8980450270 configuration and plan supply around the buyer's actual demand.

Request 8980450270 Isuzu 4JJ1 Starter Motor Wholesale Pricing

Email the Isuzu 4JJ1 engine plate, truck model, complete old-starter numbers, clear mounting and terminal photographs, quantity, packing request and destination to info@elecdurauto.com. Elecdura will review the 8980450270 configuration and return wholesale pricing with supply timing.
