10461001 John Deere 9500 Starter Motor Wholesale

10461001 Starter Motor Fleet Replacement Supply for John Deere 9500 combine

10461001 supports John Deere 9500 combine sourcing where buyers need a defined electrical and drive-end match. Its 12V, 4.5kW, 10T CW specification must remain linked to the 10-tooth module-3.175 drive and agricultural flange specified for the John Deere 9500 catalog record; a visually related unit may belong on a different RFQ line.

Before comparing 10461001 prices, state whether the request covers an initial sample, urgent breakdown demand or routine distributor replenishment. Include the full OE reference, application, photographs, quantity and destination so the offer remains connected to the physical unit the customer expects to receive.

10461001 Starter Motor Technical Data for Fleet Parts Buyers

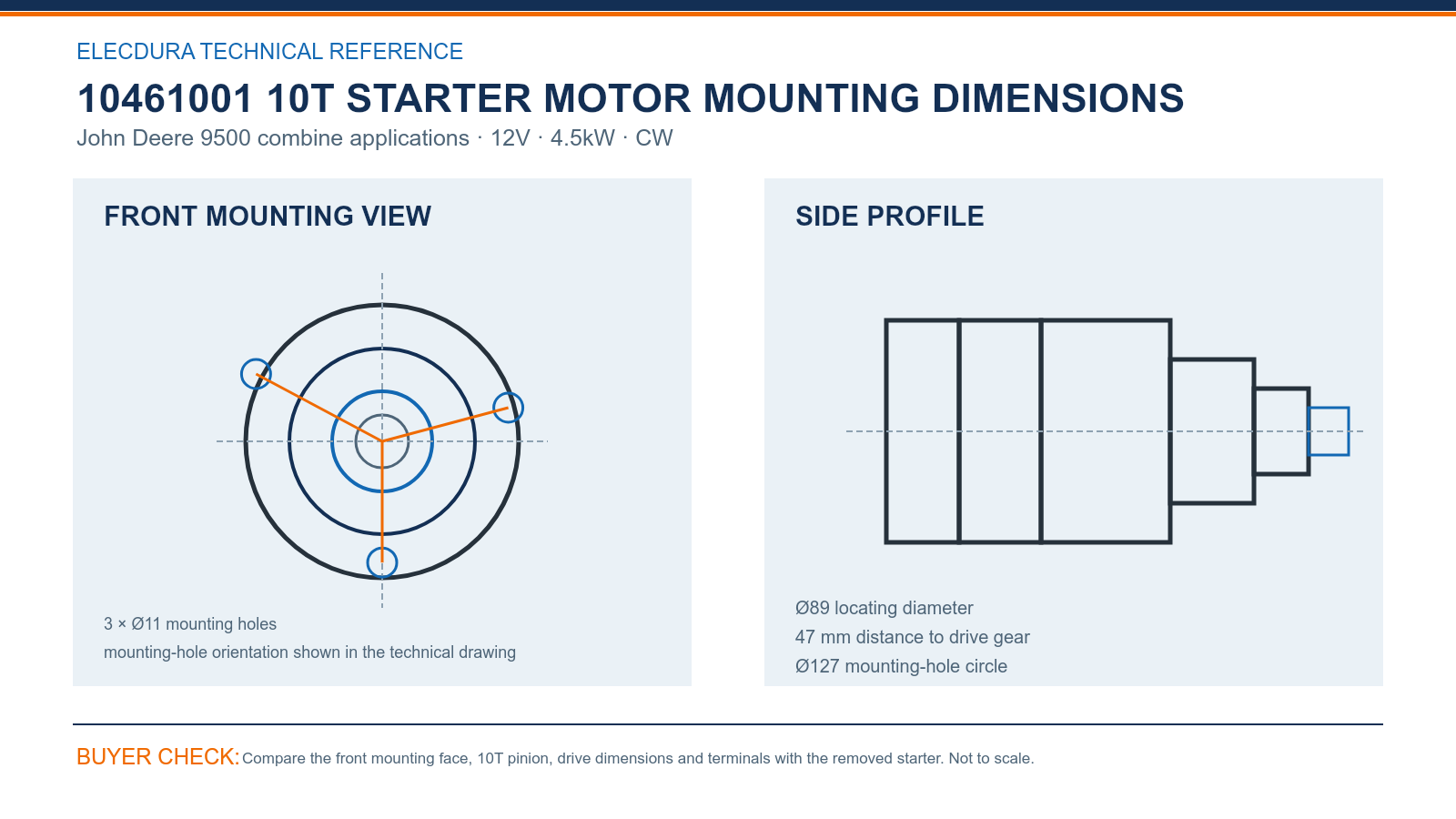

The 10461001 dimensional review starts at the mounting face: verify 3 × Ø11 mounting holes, Ø127 mounting-hole circle and Ø89 locating diameter. Then compare the 47 mm distance to drive gear. The drawing is not a scale template, so record actual measurements and review terminal orientation separately.

For 10461001, electrical and mechanical identity must agree: 12V, 4.5kW, 10T, module 3.175 and CW. Check the terminals and solenoid position before installation. If the old unit differs at one of these points, keep it outside the defined stock line.

10461001 Starter Motor Cross-Reference Review for Fleet Buyers

The 10461001 cross-reference group includes 111224, 9X0353, 3913017, 10461001, 10461002, 10461004, 10461039. These numbers improve search coverage across fleets and supplier systems, but they do not replace a check of 12V, 4.5kW, 10T, CW, mounting geometry and terminals.

If a mixed 10461001 enquiry contains different pinions, drive positions or connector layouts, list each complete reference and photograph separately. Elecdura can then return distinct offers instead of placing unlike starters under one broad reference family.

10461001 Starter Motor Fleet Supply and Replenishment Support

Wholesale planning for 10461001 can cover a sample stage, routine replenishment and urgent service demand. Elecdura normally works from 20 pieces, confirms a 7–15 day lead time after order approval and provides an 18-month warranty under the agreed commercial terms.

Stock planning should reflect the supported John Deere 9500 combine population, recent consumption and transfer time between service locations. Keeping 10461001, the 10T drive and the approved mounting interface visible in the inventory record reduces emergency substitution and improves later reorder accuracy.

The production video gives importers and fleet buyers a view of Elecdura starter assembly and electrical checks. For 10461001, use it alongside the product-specific reference, application and physical controls on this page, rather than treating a general factory presentation as evidence of fitment.

10461001 Starter Motor Questions from Commercial Buyers

Before removing 10461001, what should the workshop test under load in a John Deere 9500 workshop workshop?

Before fitting 10461001, verify battery condition, cable size and voltage drop at cranking current. Clean the mounting ground and inspect the ring gear and control circuit. A slow-crank complaint can come from weak batteries, poor connections or mechanical drag, so those causes should be separated from the starter itself.

Why does 10461001 require a physical comparison for John Deere applications during workshop sourcing?

For 10461001, ask the workshop for the removed starter label and the exact equipment record. Match 12V, 4.5kW, 10T and CW, then compare the locating diameter, mounting holes and terminals. If one of those items changes, request another quotation instead of accepting the similar housing.

Do all references listed with 10461001 identify an interchangeable unit in a John Deere 9500 workshop sourcing program?

The references identify a related sourcing family, not automatic interchangeability. Use 111224, 9X0353, 3913017, 10461001, 10461002 to locate possible matches, then confirm 12V, 4.5kW, 10T, CW and the mounting face. Any difference in drive position, terminal layout or locating diameter requires a separate product decision.

Which mounting-face points distinguish the specified 10461001 version during a John Deere 9500 workshop inspection?

Place the removed starter and 10461001 on the same mounting-face orientation. Compare Ø89 locating diameter, Ø127 mounting-hole circle, the 3 × Ø11 mounting holes and the 47 mm distance to drive gear. The drawing is a dimensional reference rather than a scale template, so use suitable measuring tools and verify the terminals separately.

How can 10461001 stock be separated by application risk in a John Deere 9500 workshop program?

Separate planned maintenance demand from breakdown coverage and new-account stock. Share the number of supported machines, recent 10461001 usage, transfer time between branches and the desired reserve. The resulting order can combine immediate units and scheduled replenishment while keeping the application and physical specification clearly identified.

Which first-lot checks protect a distributor receiving 10461001 during a John Deere 9500 workshop receiving check?

For 10461001, count the cartons, compare labels and inspect selected units for flange, pinion and terminal damage. The sample should match 3 × Ø11 mounting holes, Ø89 locating diameter and the specified 10T drive. Hold any exception outside normal inventory until purchasing and the supplier agree on the correct disposition.

Which commercial details belong in an export enquiry for 10461001 in a John Deere 9500 workshop sourcing program?

Send the complete OE number, exact John Deere 9500 combine details, removed-unit photographs, quantity and destination. Add the required arrival date, carton marking, payment preference and any sample request. Elecdura can then quote the specified 12V 4.5kW 10T CW starter with packing, lead time, warranty and freight options.

Which photographs and readings help Elecdura review 10461001 after installation in a John Deere 9500 workshop review?

Keep the carton or product traceability code and note when and where 10461001 was installed. A review should include symptoms, operating time, old and replacement-unit photographs, cable and battery readings and any ring-gear observations. Complete evidence allows technical support to respond without repeated requests for basic information.

10461001 Ask for Starter Motor Export Pricing

Prepare the 10461001 enquiry with the exact application, full removed-unit reference, front and terminal-side photos, quantity, destination and target date. Send it to info@elecdurauto.com so Elecdura can return a technically defined offer covering samples or bulk supply, export packing, warranty and delivery options.
