8200141 Hyundai D4AL Starter Motor Wholesale Supply

8200141 Starter Motor B2B Fitment Guide for Hyundai D4AL

Hyundai commercial-vehicle distributors, Doosan parts suppliers and regional starter wholesalers can use 8200141 as the commercial identity for the starter required in Hyundai D4AL. The order should preserve the 10T pinion and the 10-tooth module-3.175 drive for the Hyundai D4AL catalog record despite overlap with the S1236S family, avoiding a broad substitution based only on engine family or overall housing appearance.

Send the full 8200141 application and old-unit identification rather than only a truck or engine brand. With mounting and terminal photos, quantity, destination and arrival target, Elecdura can discuss the correct starter, MOQ, packing, warranty and shipping route without unnecessary follow-up.

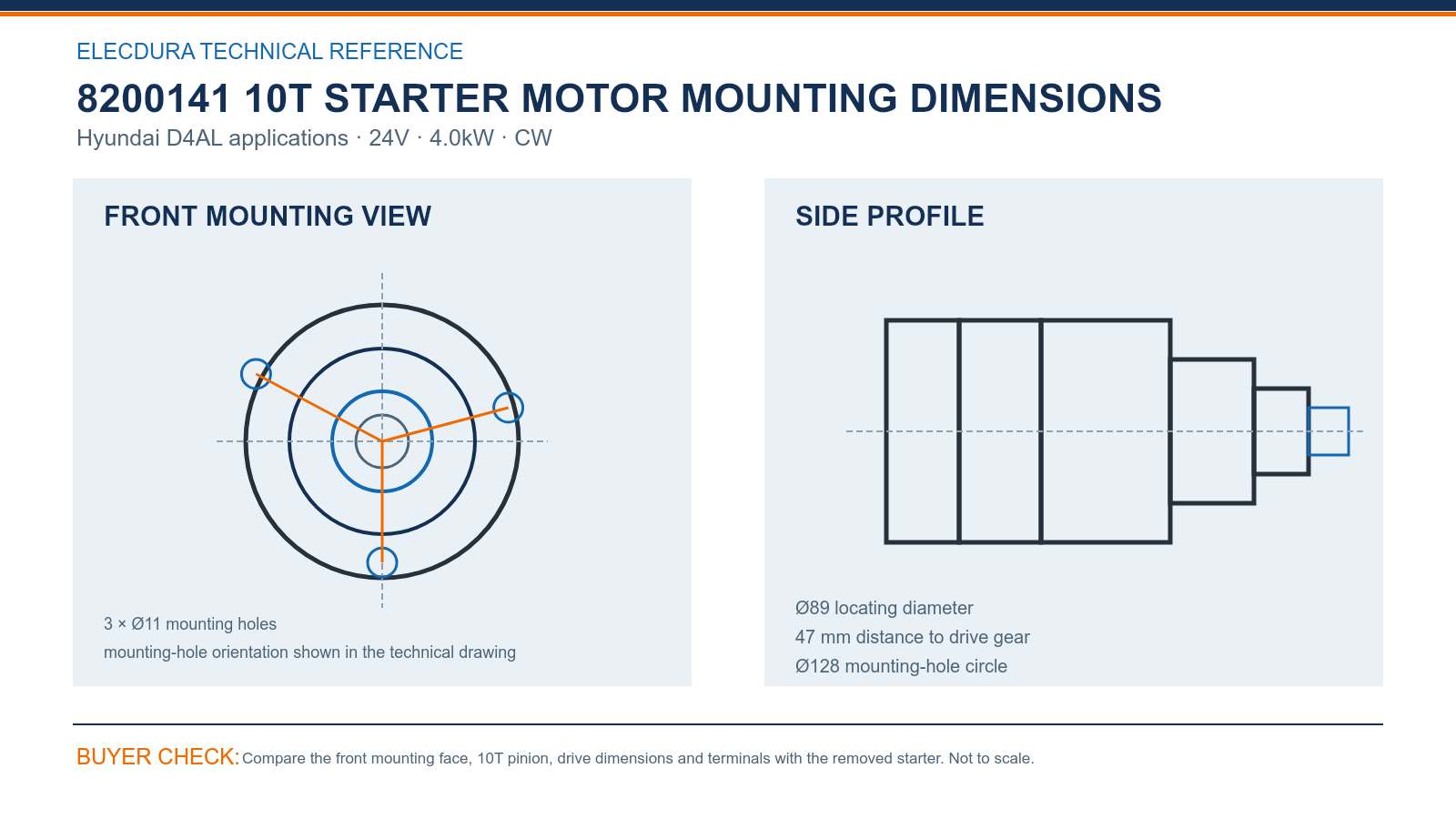

8200141 Starter Motor Drive-End Drawing for Aftermarket Distributors

For 8200141 first-lot sampling, place the old and new starters in the same front-facing position. Check 3 × Ø11 mounting holes, Ø89 locating diameter, Ø128 mounting-hole circle and 47 mm distance to drive gear. Keeping those values with arrival photographs gives purchasing a reusable physical record for later replenishment.

After the 8200141 mounting check, verify 24V, 4.0kW, 10T and CW with module 3.175. The final visual review covers the terminal studs, control connector and pinion. This prevents a physically related starter from being approved only because its reference appears in the same family.

8200141 Starter Motor OE Number Guide for Aftermarket Supply

1. Search group: S1236S, 8200141, 30051600040A, 3610052000, STD5213ES, STD5213KR can help distributor teams locate the relevant starter family.
2. Order boundary: Confirm the complete reference with 24V, 4.0kW, 10T, CW, the drawing and terminal photographs before accepting one physical unit.

8200141 Starter Motor Bulk Order Packing and Lead-Time Support

For a bulk order of 8200141, Elecdura confirms availability, packing, lead time and freight against the required quantity and destination. Standard terms begin at 20 pieces, normally require 7–15 days after confirmation and include an 18-month warranty under the final sales agreement.

For multi-branch supply, show which quantity is needed immediately and which can follow as planned replenishment. The accepted 8200141 sample, dimensional record and terminal photographs can then support carton marking, receiving checks and repeat orders across the customer’s network.

B2B buyers can use the video to review Elecdura’s starter-motor assembly and test process. The approved 8200141 configuration remains defined by 24V, 4.0kW, 10T, CW, mounting geometry and terminals, which should be retained in the purchase record.

8200141 Starter Motor Questions from Commercial Buyers

Why is a straight mounting-face photo useful for confirming 8200141 during a Hyundai D4AL dealer inspection?

Place the removed starter and 8200141 on the same mounting-face orientation. Compare Ø89 locating diameter, Ø128 mounting-hole circle, the 3 × Ø11 mounting holes and the 47 mm distance to drive gear. The drawing is a dimensional reference rather than a scale template, so use suitable measuring tools and verify the terminals separately.

Can urgent service demand and routine 8200141 replenishment share one enquiry in a Hyundai D4AL dealer program?

Separate planned maintenance demand from breakdown coverage and new-account stock. Share the number of supported machines, recent 8200141 usage, transfer time between branches and the desired reserve. The resulting order can combine immediate units and scheduled replenishment while keeping the application and physical specification clearly identified.

Why does 8200141 require a physical comparison for Hyundai applications during dealer sourcing?

For 8200141, ask the workshop for the removed starter label and the exact equipment record. Match 24V, 4.0kW, 10T and CW, then compare the locating diameter, mounting holes and terminals. If one of those items changes, request another quotation instead of accepting the similar housing.

Do all references listed with 8200141 identify an interchangeable unit in a Hyundai D4AL dealer sourcing program?

The references identify a related sourcing family, not automatic interchangeability. Use S1236S, 8200141, 30051600040A, 3610052000, STD5213ES to locate possible matches, then confirm 24V, 4.0kW, 10T, CW and the mounting face. Any difference in drive position, terminal layout or locating diameter requires a separate product decision.

How can a service team rule out cable or battery faults before fitting 8200141 in a Hyundai D4AL dealer workshop?

Record battery voltage at rest and during the start attempt, then test both main cables under load. Check grounds, terminal tightness and the control feed to the solenoid. Supplying those readings with an enquiry for 8200141 helps the workshop avoid replacing a sound starter when the actual fault is elsewhere.

What carton-to-product checks are appropriate for 8200141 during a Hyundai D4AL dealer receiving check?

Use a first-lot sample to confirm 8200141, 24V, 4.0kW, 10T and CW. Inspect the mounting face, terminals and protective packing, then retain the lot reference and images. This gives warehouse and sales teams a shared record before units are distributed to branches or workshops.

Which details allow Elecdura to quote 8200141 without delay in a Hyundai D4AL dealer sourcing program?

List 8200141 together with the supported equipment record, 24V, 4.0kW, 10T and CW. Send old-unit photos, order volume, destination and requested timing, plus any private-label or staged-delivery requirement. This keeps the technical selection and the commercial offer aligned from the first response.

How can a distributor prepare a complete claim file for 8200141 in a Hyundai D4AL dealer review?

For 8200141, provide the delivery lot, installation date, operating hours and a clear fault description. Include photographs of the label, pinion, mounting face and terminals, together with battery and voltage-drop results under cranking load. These records help separate product condition from application, installation, electrical-system or transport-related causes.

8200141 Request a Starter Motor Fleet Supply Quote

Email info@elecdurauto.com with 8200141, the supported Hyundai D4AL record, old-unit photographs, quantity, destination and required arrival date. Elecdura will use those details to confirm the 24V, 4.0kW, 10T CW starter and prepare wholesale pricing with MOQ, lead time, packing and freight.
