S3105S Hyundai HD72 Starter Motor Wholesale Supply

S3105S Starter Motor Fleet Replacement Supply for Hyundai HD72 D4DB and HD78 D4DA

S3105S supports Hyundai HD72 D4DB and HD78 D4DA sourcing where buyers need a defined electrical and drive-end match. Its 24V, 5.0kW, 11T CW specification must remain linked to the 24V 5.0kW 11T module-3 starter for HD72 and HD78 engine combinations; a visually related unit may belong on a different RFQ line.

Before comparing S3105S prices, state whether the request covers an initial sample, urgent breakdown demand or routine distributor replenishment. Include the full OE reference, application, photographs, quantity and destination so the offer remains connected to the physical unit the customer expects to receive.

S3105S Starter Motor Technical Data for Fleet Parts Buyers

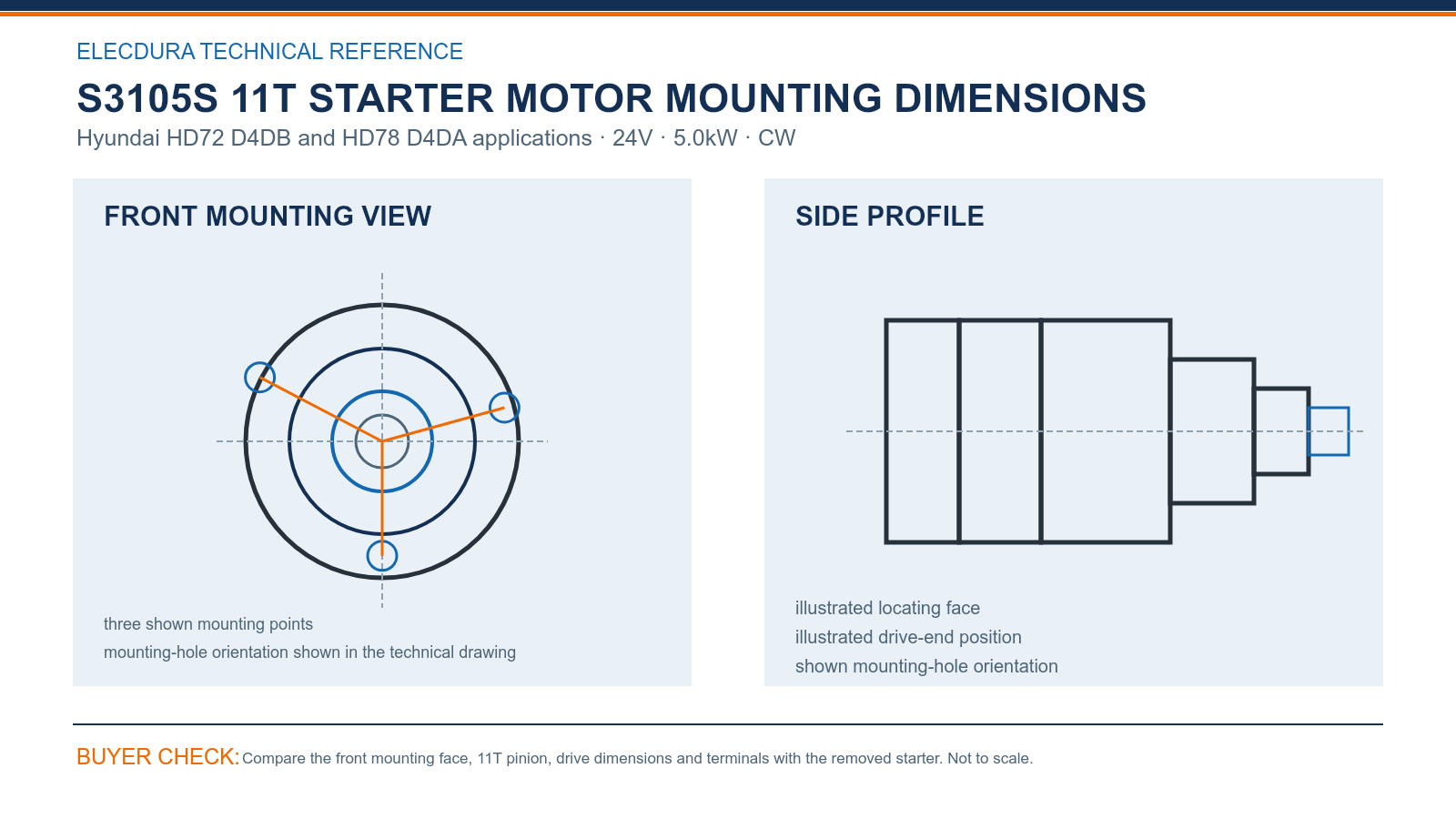

The S3105S dimensional review starts at the mounting face: verify three shown mounting points, shown mounting-hole orientation and illustrated locating face. Then compare the illustrated drive-end position. The drawing is not a scale template, so record actual measurements and review terminal orientation separately.

For S3105S, electrical and mechanical identity must agree: 24V, 5.0kW, 11T, module 3 and CW. Check the terminals and solenoid position before installation. If the old unit differs at one of these points, keep it outside the defined stock line.

S3105S Starter Motor Cross-Reference Review for Fleet Buyers

The S3105S cross-reference group includes S3105S, DRS1262, 36100-45700, 3610041100, 3610045501, 1250433, 600256. These numbers improve search coverage across fleets and supplier systems, but they do not replace a check of 24V, 5.0kW, 11T, CW, mounting geometry and terminals.

If a mixed S3105S enquiry contains different pinions, drive positions or connector layouts, list each complete reference and photograph separately. Elecdura can then return distinct offers instead of placing unlike starters under one broad reference family.

S3105S Starter Motor Fleet Supply and Replenishment Support

Wholesale planning for S3105S can cover a sample stage, routine replenishment and urgent service demand. Elecdura normally works from 20 pieces, confirms a 7–15 day lead time after order approval and provides an 18-month warranty under the agreed commercial terms.

Stock planning should reflect the supported Hyundai HD72 D4DB and HD78 D4DA population, recent consumption and transfer time between service locations. Keeping S3105S, the 11T drive and the approved mounting interface visible in the inventory record reduces emergency substitution and improves later reorder accuracy.

The production video gives importers and fleet buyers a view of Elecdura starter assembly and electrical checks. For S3105S, use it alongside the product-specific reference, application and physical controls on this page, rather than treating a general factory presentation as evidence of fitment.

S3105S Starter Motor Questions from Commercial Buyers

How should a buyer request samples and bulk pricing for S3105S in a Hyundai HD72 workshop sourcing program?

Provide the full reference and application, not only a broad brand name. Attach front, side and terminal views of the removed starter and state quantity, destination, required date and packaging needs. For S3105S, Elecdura will respond with the matching specification, MOQ, availability, commercial terms and freight choices.

How should buyers use the S3105S cross-reference group in a Hyundai HD72 workshop sourcing program?

A number match narrows the search but does not finish it. For S3105S, compare the stated application, electrical output, 11T drive, mounting geometry and terminal side. Buyers handling several references should list each complete number separately, allowing any genuinely different unit to receive its own offer and sample check.

What fitment evidence makes a quotation for S3105S reliable during workshop sourcing?

Use the complete removed-unit number and exact Hyundai HD72 D4DB and HD78 D4DA record. Compare the 11T pinion, three shown mounting points, illustrated locating face and terminal side with the old starter. A housing resemblance is insufficient when the drive position, mounting face or cable connection differs.

What pre-installation circuit review supports replacement with S3105S in a Hyundai HD72 workshop workshop?

Record battery voltage at rest and during the start attempt, then test both main cables under load. Check grounds, terminal tightness and the control feed to the solenoid. Supplying those readings with an enquiry for S3105S helps the workshop avoid replacing a sound starter when the actual fault is elsewhere.

What should be measured on the drive end before releasing S3105S to stock during a Hyundai HD72 workshop inspection?

The first-lot check should cover three shown mounting points, illustrated locating face and illustrated drive-end position. Add the 11T pinion, rotation and terminal position to the inspection sheet. Recording those details helps a warehouse identify a mixed or incorrectly labelled unit before it reaches a workshop or customer.

What should an importer include in the replenishment forecast for S3105S in a Hyundai HD72 workshop program?

Build the forecast around actual equipment counts, failure history and the time needed to replenish each service location. For S3105S, keep the specified pinion and mounting interface visible in the stock record. This reduces emergency substitutions and gives purchasing a clearer basis for MOQ, packing and delivery discussions.

What should a warehouse inspect when S3105S starter motors arrive during a Hyundai HD72 workshop receiving check?

For S3105S, match carton and product labels to the purchase order, then sample 24V, 11T, three shown mounting points and terminal protection. Check the flange and pinion for shipping damage. Record lot numbers and arrival photographs, and isolate any different configuration before it is placed in saleable stock.

What traceability details should accompany a warranty enquiry for S3105S in a Hyundai HD72 workshop review?

Keep the carton or product traceability code and note when and where S3105S was installed. A review should include symptoms, operating time, old and replacement-unit photographs, cable and battery readings and any ring-gear observations. Complete evidence allows technical support to respond without repeated requests for basic information.

S3105S Ask for Starter Motor Export Pricing

Prepare the S3105S enquiry with the exact application, full removed-unit reference, front and terminal-side photos, quantity, destination and target date. Send it to info@elecdurauto.com so Elecdura can return a technically defined offer covering samples or bulk supply, export packing, warranty and delivery options.
