S3156 Hyundai 45D-7E Forklift Starter Motor Wholesale

S3156 Starter Motor Wholesale Fitment for Hyundai 35D-7E and 45D-7E forklift

Forklift dealers, material-handling fleets and Hyundai industrial-parts wholesalers use S3156 to keep Hyundai 35D-7E and 45D-7E forklift demand tied to one 24V, 5.0kW, 11T CW configuration. The practical distinction is the 24V 5.0kW 11T module-3 starter for the 35D-7E and 45D-7E forklift group, which should be checked before a similar heavy-duty housing is accepted.

Build the S3156 RFQ around the complete removed-unit number, exact machine or engine information, mounting-face and terminal-side photographs, quantity and delivery point. These details let Elecdura quote the specified starter, export packing and timing without turning the offer into a general application guess.

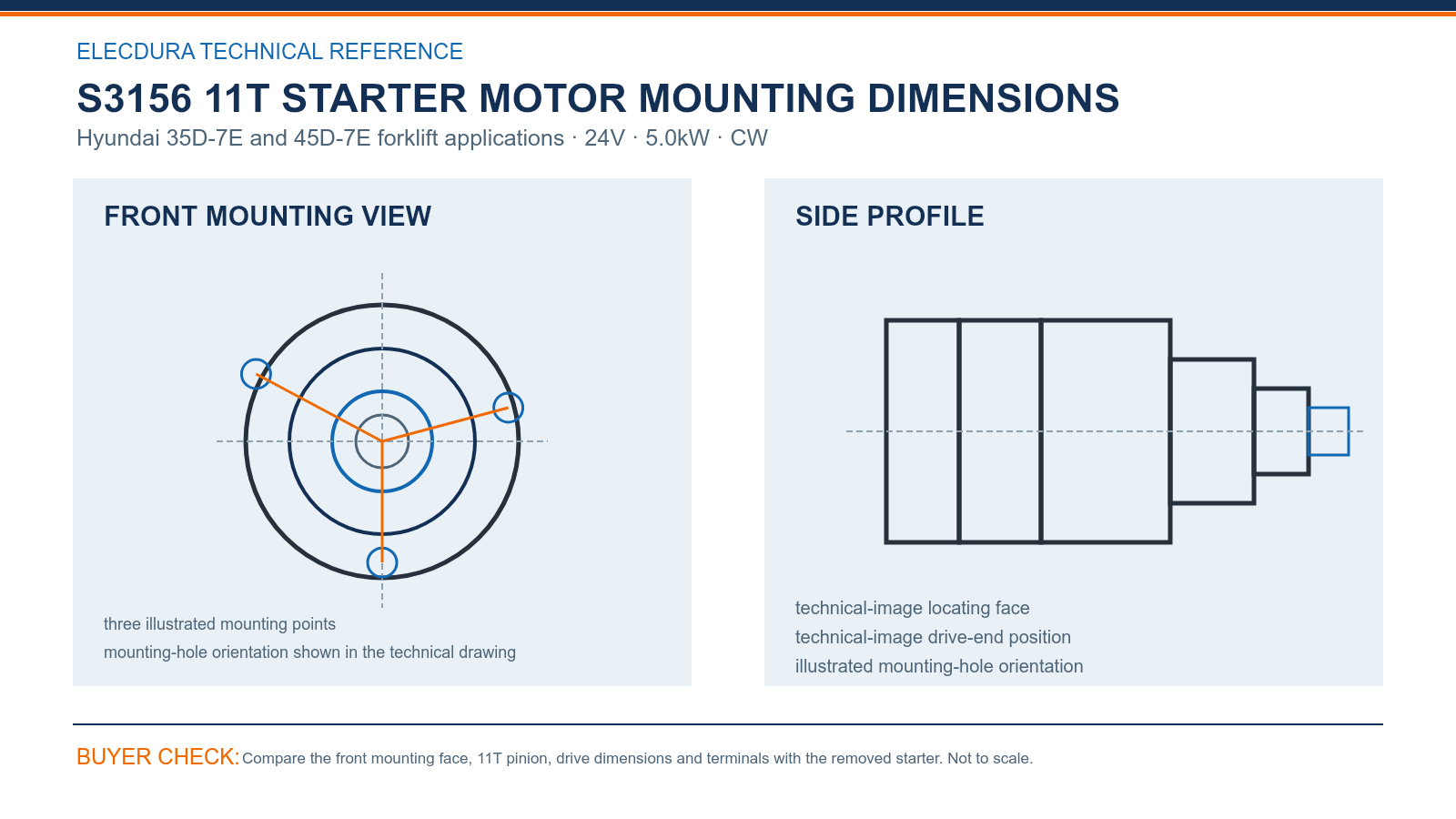

S3156 Starter Motor Specifications and Drawing for Wholesale Buyers

Compare S3156 at the three illustrated mounting points, illustrated mounting-hole orientation and technical-image locating face. The technical-image drive-end position helps verify where the pinion sits relative to the flange, while a straight terminal-side photograph confirms whether the main and control connections remain accessible after installation.

For S3156, count the 11T pinion and confirm module 3, CW rotation, 24V and 5.0kW. The terminal side and solenoid clearance must also agree with the installation. A different pinion or cable position should be quoted separately, even when major cross-references overlap.

S3156 Starter Motor OE Cross-References for Distributor Enquiries

1. Search group: S3156, DRS1264, A433767, 36100-45C00, 1198169, 198169, S0001198169 can help distributor teams locate the relevant starter family.
2. Order boundary: Confirm the complete reference with 24V, 5.0kW, 11T, CW, the drawing and terminal photographs before accepting one physical unit.

S3156 Starter Motor Wholesale Supply and Export Planning

Elecdura supports distributor orders from 20 pieces, normally with a 7–15 day lead time after order confirmation and an 18-month warranty under agreed sales terms. Availability, export packing and delivery timing are confirmed against the requested S3156 quantity, destination and required arrival date.

Plan fleet spares by shift hours and warehouse response requirements. Buyers should also state whether the order supports a single workshop, several branches or a fleet contract, allowing samples, safety stock, carton labels and staged dispatch to be planned around the actual service requirement.

The video introduces Elecdura starter-motor assembly and electrical testing for B2B supply programs. Selection of S3156 remains tied to the stated Hyundai 35D-7E and 45D-7E forklift application, 11T drive, mounting interface and terminals, while the video helps distributor teams review production and testing capability.

S3156 Starter Motor Questions from Commercial Buyers

How can branches reduce emergency transfers of S3156 stock in a Hyundai 45D-7E Forklift fleet program?

Plan fleet spares by shift hours and warehouse response requirements. Add recent usage, equipment population, transfer time and service level. Elecdura can then separate sample, emergency and replenishment quantities and plan packing or staged delivery around the buyer’s schedule.

How should a mixed-reference enquiry for S3156 be prepared in a Hyundai 45D-7E Forklift fleet sourcing program?

Cross-references help purchasing teams search different brand systems, but the order should still resolve to one physical starter. Compare the candidate number with the S3156 electrical rating, pinion and drawing. Keep unmatched housings, terminal positions or drive ends on separate RFQ lines so the supplier can price them correctly.

Can S3156 be selected from the application name alone during fleet sourcing?

Confirm S3156 against the complete OE number, the stated Hyundai 35D-7E and 45D-7E forklift use and clear front, side and terminal photographs. The decisive points are 11T, three illustrated mounting points and technical-image drive-end position. Those controls keep visually related starters from being combined in one order.

Why should voltage-drop results accompany an enquiry for S3156 in a Hyundai 45D-7E Forklift fleet workshop?

Measure cranking voltage and voltage loss across the positive and negative paths, not only open-circuit battery voltage. Review the solenoid command, cable terminals, engine ground and ring gear. The results provide a useful baseline for S3156 installation and for any later service discussion with the supplier.

Which dimensions in the S3156 drawing should receiving teams sample during a Hyundai 45D-7E Forklift fleet inspection?

For S3156, sample the three illustrated mounting points, technical-image locating face, illustrated mounting-hole orientation and technical-image drive-end position. Count the 11T pinion and photograph the terminal side in the same inspection. These points can be checked without dismantling the unit and give receiving teams a practical comparison with the approved sample.

What receiving records are useful for a shipment of S3156 during a Hyundai 45D-7E Forklift fleet receiving check?

Receiving should verify the S3156 label, quantity and packaging before opening sampled cartons. Compare the 11T drive, technical-image locating face, mounting holes and terminal side with the approved record. Any damage, missing protection or physical mismatch should be quarantined with photographs and lot details for prompt review.

How should a buyer request samples and bulk pricing for S3156 in a Hyundai 45D-7E Forklift fleet sourcing program?

Provide the full reference and application, not only a broad brand name. Attach front, side and terminal views of the removed starter and state quantity, destination, required date and packaging needs. For S3156, Elecdura will respond with the matching specification, MOQ, availability, commercial terms and freight choices.

How should a workshop document a service issue involving S3156 in a Hyundai 45D-7E Forklift fleet review?

Submit the purchase reference, lot number, installation date and hours in service, then describe the symptom and operating conditions. Photographs and cranking-circuit measurements should accompany the report. This structured record gives Elecdura enough context to evaluate S3156 without assuming that every no-crank complaint originates inside the starter.

S3156 Request Starter Motor Wholesale Pricing

Send the complete S3156 reference, Hyundai 35D-7E and 45D-7E forklift details, removed-unit label and photographs, quantity, destination and required arrival date. Email info@elecdurauto.com to discuss the specified 24V, 5.0kW, 11T CW starter, MOQ, packing, lead time, warranty and freight.
