36100-82000 Hyundai Trago Starter Motor Wholesale

36100-82000 Starter Motor Distributor Application Guide for Hyundai Granbird, Trago and HD heavy-truck

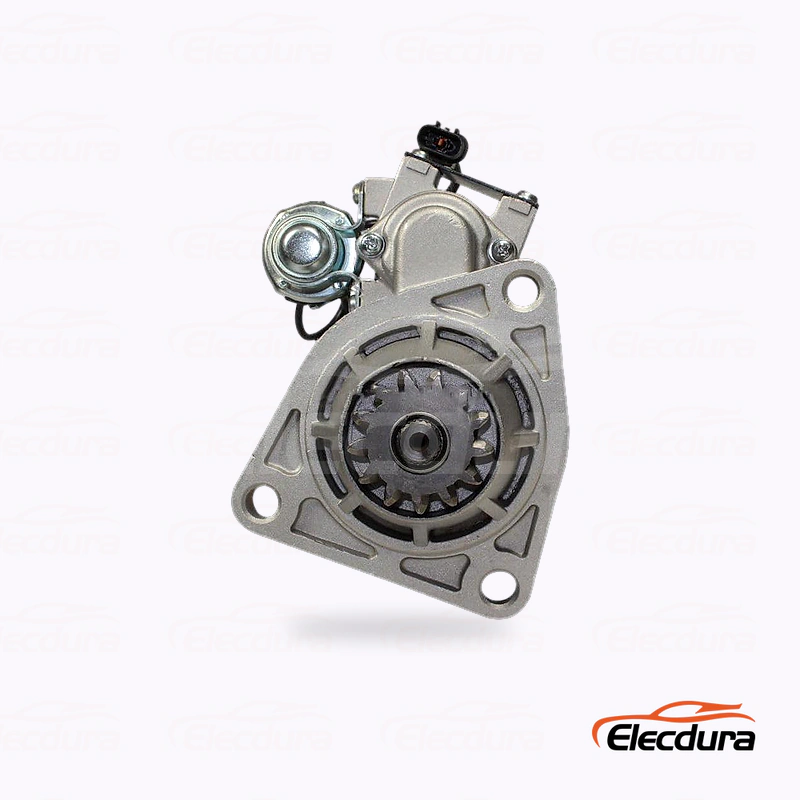

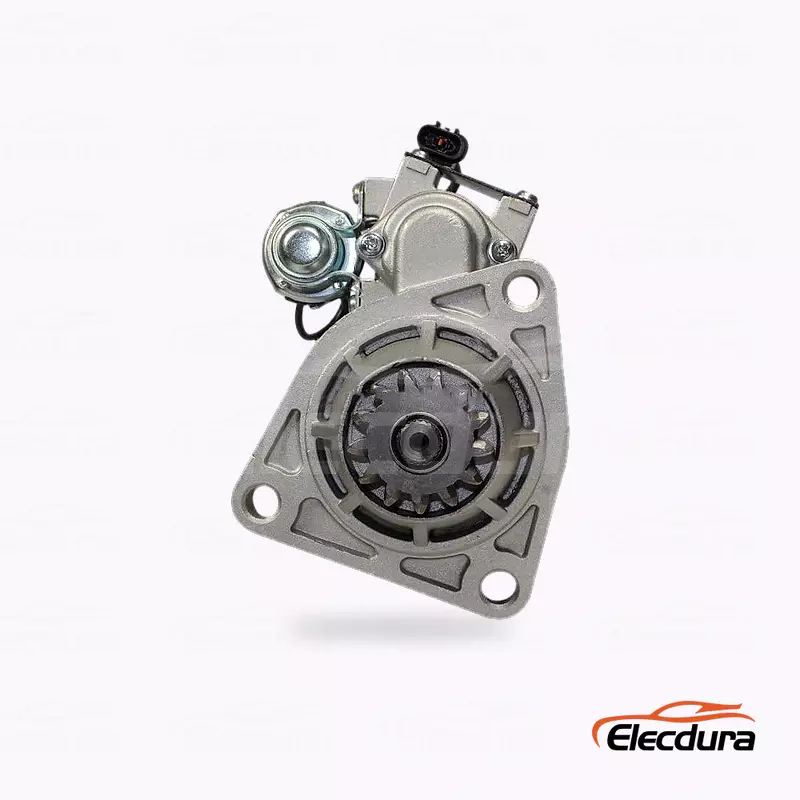

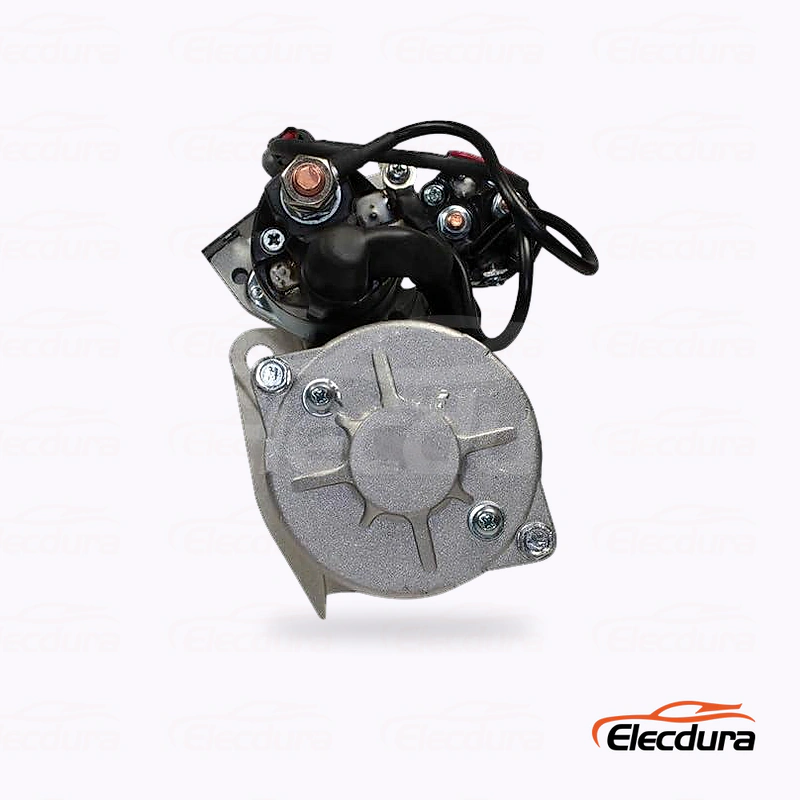

For a fleet parts team, 36100-82000 identifies one Hyundai Granbird, Trago and HD heavy-truck requirement. The 24V 5.5kW 11T module-3.5 unit with a Ø145 mm mounting-hole circle for Hyundai heavy vehicles provides a clear fitment boundary for sample, stock and replacement reviews.

A useful enquiry pairs 36100-82000 with the equipment record, old-starter label and clear front, side and terminal images. Add the order quantity, destination and required date so technical selection, sample planning, carton marking and freight options can be addressed in one response.

36100-82000 Starter Motor Mounting Dimensions for Distributor Approval

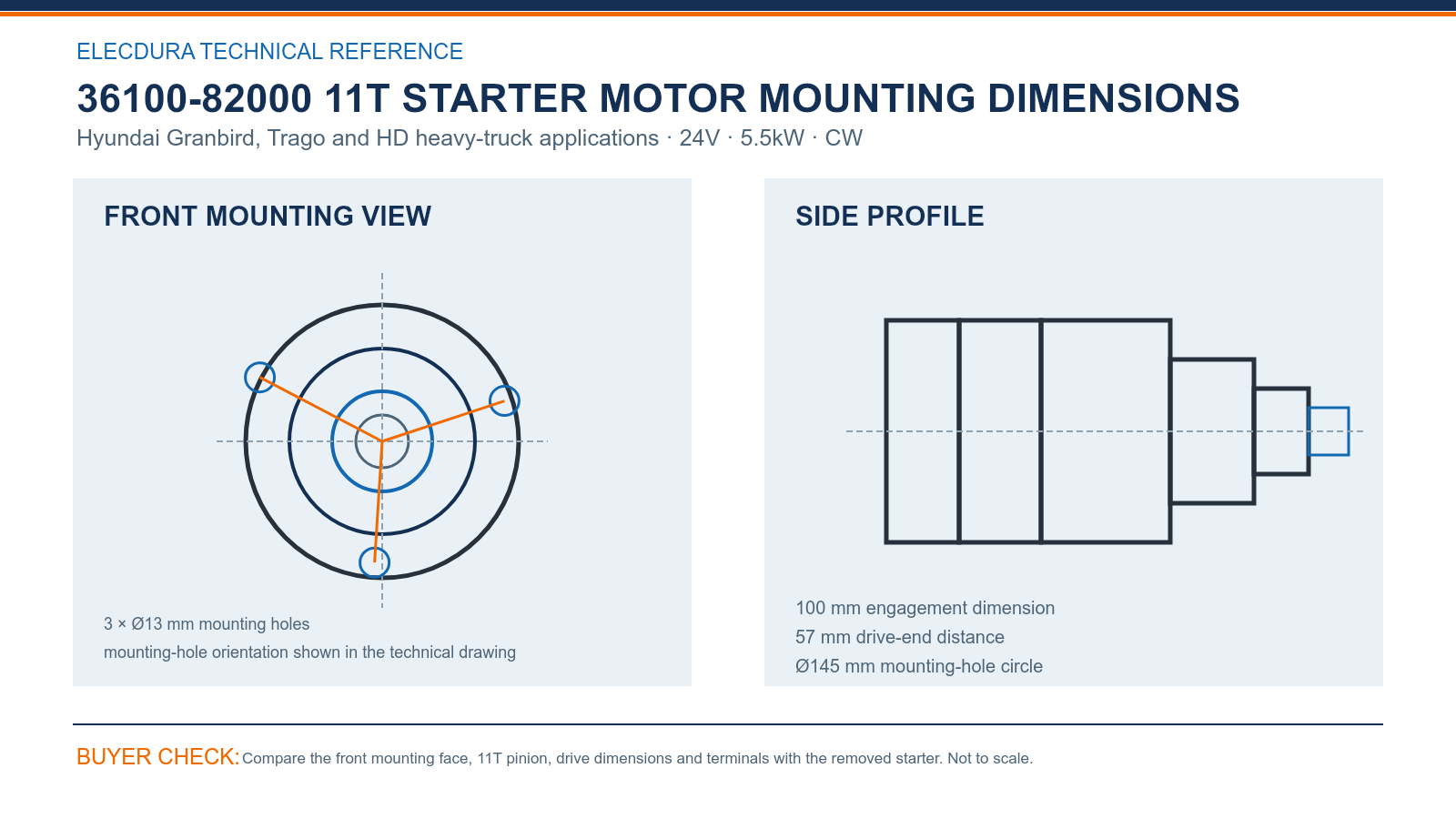

Use the 36100-82000 technical drawing to check 100 mm engagement dimension, 57 mm drive-end distance and Ø145 mm mounting-hole circle. Add the 3 × Ø13 mm mounting holes to the receiving sheet. These are practical controls for an approved sample because they can be measured before the starter is installed or released to branch stock.

Complete the 36100-82000 comparison with 24V, 5.5kW, the 11T drive, module 3.5 and CW rotation. Review pinion condition, terminal location and available cable clearance together. These controls prevent a valid OE search result from being treated as automatic physical interchangeability.

36100-82000 Starter Motor Reference Group for Wholesale Sourcing

• Use the full number: Start with 3610082000, STA2000KR, 600322, S0001250441, 300N11674Z, retaining prefixes, suffixes and separators in the RFQ.
• Confirm the hardware: The final match requires the stated electrical rating, drive, mounting interface and terminal side; unmatched versions should remain separate.

36100-82000 Starter Motor Distributor Stock and Delivery Support

MOQ begins at 20 pieces, with normal lead time of 7–15 days after order confirmation and an 18-month warranty under agreed terms. For 36100-82000, the offer can distinguish samples, available stock and production quantities while confirming carton protection and the shipment plan for the destination.

Identify the Granbird, Trago or HD model and compare the module-3.5 drive and terminals. Once that boundary is fixed, purchasing can separate urgent units from routine replenishment and define branch quantities, stock labels and freight timing without encouraging an unverified substitute.

Elecdura’s video shows starter-motor production and electrical testing used to support wholesale orders. It provides supplier-capability context for 36100-82000; the product decision itself still depends on the complete reference, 24V 5.5kW rating, drive end, mounting face and terminal layout.

36100-82000 Starter Motor Questions from Commercial Buyers

What traceability details should accompany a warranty enquiry for 36100-82000 in a Hyundai Trago branch review?

Keep the carton or product traceability code and note when and where 36100-82000 was installed. A review should include symptoms, operating time, old and replacement-unit photographs, cable and battery readings and any ring-gear observations. Complete evidence allows technical support to respond without repeated requests for basic information.

Which old-unit checks matter most when sourcing 36100-82000 during branch sourcing?

Confirm 36100-82000 against the complete OE number, the stated Hyundai Granbird, Trago and HD heavy-truck use and clear front, side and terminal photographs. The decisive points are 11T, 3 × Ø13 mm mounting holes and 57 mm drive-end distance. Those controls keep visually related starters from being combined in one order.

How should buyers use the 36100-82000 cross-reference group in a Hyundai Trago branch sourcing program?

A number match narrows the search but does not finish it. For 36100-82000, compare the stated application, electrical output, 11T drive, mounting geometry and terminal side. Buyers handling several references should list each complete number separately, allowing any genuinely different unit to receive its own offer and sample check.

What workshop readings are useful when diagnosing a starting complaint involving 36100-82000 in a Hyundai Trago branch workshop?

Load-test the battery set and measure voltage drop on the positive and ground circuits while cranking. Inspect cable lugs, chassis grounds, the start-control signal and ring-gear condition before replacing 36100-82000. These checks distinguish a starter fault from low battery capacity, resistance or a control-circuit problem.

Why is a straight mounting-face photo useful for confirming 36100-82000 during a Hyundai Trago branch inspection?

Place the removed starter and 36100-82000 on the same mounting-face orientation. Compare 100 mm engagement dimension, Ø145 mm mounting-hole circle, the 3 × Ø13 mm mounting holes and the 57 mm drive-end distance. The drawing is a dimensional reference rather than a scale template, so use suitable measuring tools and verify the terminals separately.

Can urgent service demand and routine 36100-82000 replenishment share one enquiry in a Hyundai Trago branch program?

Separate planned maintenance demand from breakdown coverage and new-account stock. Share the number of supported machines, recent 36100-82000 usage, transfer time between branches and the desired reserve. The resulting order can combine immediate units and scheduled replenishment while keeping the application and physical specification clearly identified.

How can a buyer quarantine a mismatched 36100-82000 unit quickly during a Hyundai Trago branch receiving check?

For 36100-82000, count the cartons, compare labels and inspect selected units for flange, pinion and terminal damage. The sample should match 3 × Ø13 mm mounting holes, 100 mm engagement dimension and the specified 11T drive. Hold any exception outside normal inventory until purchasing and the supplier agree on the correct disposition.

What should be included in a wholesale enquiry for 36100-82000 in a Hyundai Trago branch sourcing program?

Send the complete OE number, exact Hyundai Granbird, Trago and HD heavy-truck details, removed-unit photographs, quantity and destination. Add the required arrival date, carton marking, payment preference and any sample request. Elecdura can then quote the specified 24V 5.5kW 11T CW starter with packing, lead time, warranty and freight options.

36100-82000 Send a Starter Motor Distributor Enquiry

For a focused 36100-82000 quotation, share the machine or engine record, old-starter number, mounting and terminal images, order volume, delivery country and timing. You can email the RFQ directly to info@elecdurauto.com; Elecdura will reply with the matching specification, availability, packing and commercial terms.
