G5800-3708100A Yuchai Starter Motor 24V 7.0kW 11T

G5800-3708100A Agricultural Machinery Starter Motor for YUCHAI YC6JYC6G

For warehouse planners requesting production pricing, G5800-3708100A supports tractor, farm-equipment and industrial-engine replacement programs for YUCHAI YC6JYC6G. This agricultural machinery starter motor is defined by its 24V electrical system, 7.0kW output and 11T pinion, giving distributors a practical basis for quotation and stock matching.

For importers defining label requirements, the product is positioned for professional aftermarket supply, with product identification, fitment boundaries, inspection options and commercial terms visible before the buyer requests pricing.

G5800-3708100A Starter Motor Specifications and Technical Drawing

For technical buyers reviewing a replacement proposal, this reference group can cover nearby starter versions. Keep G5800-3708100A, 24V, 7.0kW and 11T together on the RFQ, then compare the flange, drive end and terminal layout before treating another number as a direct replacement.

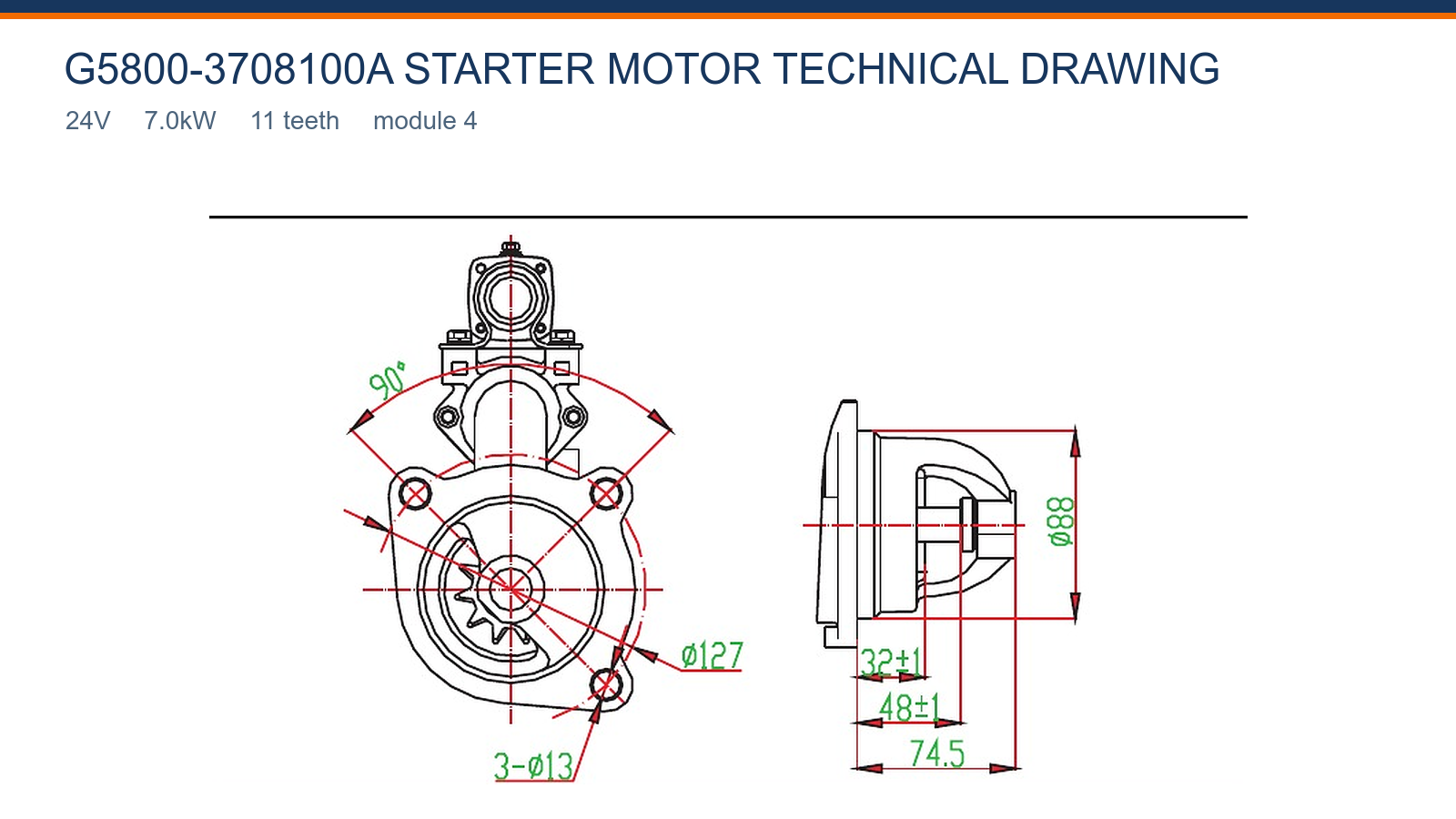

For engine-parts specialists confirming the stated application, the source-faithful technical drawing records the available mounting information for G5800-3708100A, including 3×Ø13, Ø127, 32±1 mm, 48±1 mm, 74.5 mm; use the printed values together with the product views because the drawing supports comparison and should not be scaled from the screen.

G5800-3708100A Aftermarket Replacement and Application

For product managers reviewing drive-end geometry, YUCHAI YC6JYC6G is the stated application for G5800-3708100A. Buyers comparing G5800-3708100A, G5800-3708100G, B7617-3708100 should confirm that the unit taken from service shares the same 24V system, 7.0kW output and 11T drive before adding the item to a distributor order.

For maintenance suppliers comparing nearby starter versions, the original unit in hand should agree with the approved drive-end, side and rear views. Confirm the 11T pinion and module 4, then keep any different flange or terminal layout outside the current RFQ entry.

G5800-3708100A Wholesale Supply for Distributors and Importers

For private-label buyers confirming an incoming batch, wholesale enquiries for G5800-3708100A can combine product matching with packaging and inspection planning. Elecdura offers neutral packaging and private-label review for qualified orders, with 20 pcs MOQ, 7–15 days subject to confirmation and an 18-month warranty under agreed terms.

For purchasing teams preparing a volume quote, available quality support includes armature, solenoid, no-load and load testing. Buyers may define sampling, report format, reference labels, terminal protection and carton marks before production so the shipment can be checked against the approved order specification.

G5800-3708100A Starter Motor Buyer FAQ

Which comparison prevents a mismatch for 24V and 7.0kW for a first wholesale order?

For application specialists comparing nearby starter versions, G5800-3708100A is defined as 24V and 7.0kW. Confirm the machine electrical system and the old starter rating together, because voltage defines the electrical platform while output supports the required engine-starting load. Battery condition, cable size and ground integrity should also suit this rating; a different voltage or output is a separate product, even when the housings appear similar.

Which check should lead module 4 for warehouse identification?

For replacement-parts sellers preparing a technical RFQ, module 4 is part of the gear geometry for G5800-3708100A. Confirm it together with the 11-tooth count and pinion diameter; another module changes tooth pitch even when the number of teeth is unchanged. The old starter or ring-gear specification should therefore support the module match before a substitute is accepted.

Which check should lead 11-tooth pinion identification before stock is assigned?

For service-parts networks checking version-defining data, count all 11 teeth on the G5800-3708100A pinion and compare the gear diameter with the removed starter. Tooth count is a fast screening point, but engagement depth, pitch and rest position still need agreement. If the old unit carries another count, treat it as a different drive version and review the ring gear before fitting.

What should receiving teams compare on YUCHAI YC6JYC6G cranking condition when confirming the quotation line?

For importers confirming electrical ratings, before replacing the starter on YUCHAI YC6JYC6G, test battery state, voltage drop across positive and ground paths, the start signal and ring-gear condition. Note cranking voltage and any abnormal noise. Those observations help distinguish a supply-circuit or engine-load problem from a fault in the 24V, 7.0kW starter and make a product query easier to resolve.

How should a distributor confirm G5800-3708100A label and suffix before accepting a substitute?

For product managers reviewing a replacement proposal, photograph the complete old-unit label for G5800-3708100A, including every prefix, suffix and separator. Shortened numbers can group starters that differ in voltage, output, drive or housing. Pair the label with a front and rear view, then retain the full marking in the RFQ and purchase order so later receiving checks use the same identity.

How should a distributor confirm G5800-3708100A, G5800-3708100G, B7617-3708100 when confirming the quote position?

For maintenance suppliers confirming the stated application, G5800-3708100A, G5800-3708100G, B7617-3708100 should be treated as one inquiry group only after the physical starter is compared. Ask the customer for the complete label and clear views of the drive end, flange and terminals. If a suffix, housing shape or terminal clocking differs, keep it as a separate quote position instead of assuming that the shared number guarantees interchangeability.

Which comparison prevents a mismatch for G5800-3708100A solenoid and cable routing before accepting a substitute?

For equipment-parts dealers checking application evidence, use the side and rear photographs of G5800-3708100A to check solenoid position, battery-stud direction and start-terminal access in YUCHAI YC6JYC6G. Cables should reach without stretching, sharp bends or contact with hot and moving parts. If the customer's old unit is clocked differently, request an installed photo before the order is assigned.

How should a distributor confirm G5800-3708100A drive-end photograph before accepting a substitute?

For purchasing teams preparing an OE-based quote, the drive-end image for G5800-3708100A should be used to count 11 teeth and compare the flange, locating shoulder and pinion rest position. Ask for the replaced starter to be photographed from the corresponding angle. A side view alone may hide the deciding tooth and mounting information, so keep the direct drive-end view with the RFQ.

Request a Wholesale Quote for G5800-3708100A Agricultural Machinery Starter Motor

For distributors planning a repeat order, request pricing for G5800-3708100A by sharing the application, quantity, delivery country and any neutral or private-label packaging needs. Clear label, drive-end, flange and terminal photos help confirm the exact starter before the offer is issued.
