M3400-3708100G Yuchai Starter Motor 24V 8.5kW 11T

M3400-3708100G Agricultural Machinery Starter Motor for YUCHAI 6M

For private-label buyers requesting production pricing, this agricultural machinery starter motor serves YUCHAI 6M replacement demand under reference M3400-3708100G. Its 24V system, 8.5kW rating and 11T drive help importers and distributors identify the required version before discussing volume supply.

For purchasing teams defining label requirements, the goal is a repeatable supply line: one agreed product identity, one packaging definition and one set of incoming checks. This is useful for importers building category coverage as well as fleet suppliers replenishing an existing starter reference.

M3400-3708100G Starter Motor Specifications and Technical Drawing

For fitment reviewers reviewing a replacement proposal, the 11T pinion and module 4 are important replacement identifiers. Match them with the flange and drive projection to protect the ring gear from an incorrect tooth pitch or engagement depth.

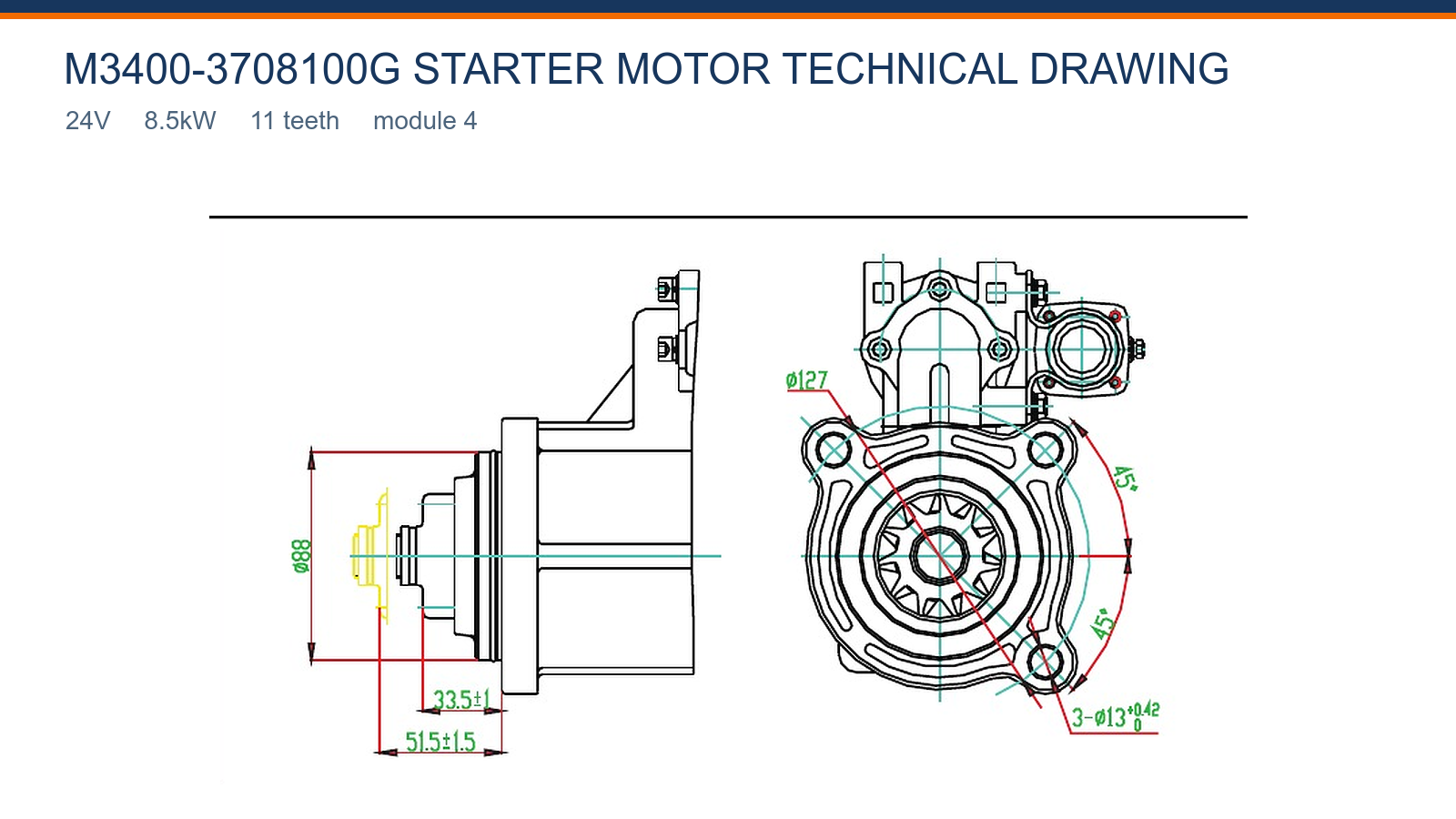

For application specialists confirming the stated application, the source-faithful technical drawing records the available mounting information for M3400-3708100G, including Ø127, 33.5±1 mm, 51.5±1.5 mm; use the printed values together with the product views because the drawing supports comparison and should not be scaled from the screen.

M3400-3708100G Aftermarket Replacement and Application

For distributors comparing the flange and terminals, M3400-3708100G, M3400-3708100B forms the usable OE and cross-reference group for this product, while YUCHAI 6M is the stated application. Cross-reference numbers help buyers find the product, but a direct replacement should still agree on voltage, output, pinion and the visible mounting configuration.

For technical buyers comparing nearby starter versions, do not merge a visually similar unit into this order only because the main number is related. The 11T drive, module 4, flange and terminals should agree with the version shown here.

M3400-3708100G Wholesale Supply for Distributors and Importers

For engine-parts specialists confirming an incoming batch, buyers can discuss 20 pcs MOQ, production planning around 7–15 days after confirmation, neutral cartons or private-label packaging, and an 18-month warranty under the agreed sales terms.

For regional parts suppliers preparing a volume quote, batch consistency should be controlled through the agreed reference, electrical rating, pinion, packaging and inspection points. Elecdura can discuss test documentation and pre-shipment photos that match the needs of the distributor or importer.

M3400-3708100G Starter Motor Buyer FAQ

Which check should lead M3400-3708100G rear-terminal photograph before accepting a substitute?

For product managers comparing nearby starter versions, use the rear view of M3400-3708100G to identify battery and signal terminals, their direction and the clearance around each stud. Match the customer's photograph from the same orientation and consider cable routing in YUCHAI 6M. A correct drive end with an unusable terminal position is not a complete fitment match.

What must be matched before quoting Ø127 during an application review?

For maintenance suppliers preparing a technical RFQ, M3400-3708100G shows Ø127. Measure each diameter at the same shoulder or circle indicated in the drawing, rather than taking an unrelated outside-housing dimension. The locating feature centers the starter at the ring gear, so a diameter mismatch can matter even when the bolt holes appear to align.

Which specification deserves priority for mounting-hole pattern for a documented fitment decision?

For equipment-parts dealers checking version-defining data, A complete mounting-hole callout is not stated for M3400-3708100G. Photograph the old flange straight on and provide hole count, bore diameter and center spacing from the same datum. Those measured points let purchasing separate close housings without transferring hole data from another starter or assuming that a similar silhouette will bolt in.

What evidence best identifies YUCHAI 6M production changes before accepting a substitute?

For purchasing teams confirming electrical ratings, YUCHAI 6M may appear across equipment years or engine revisions, so the application name is an entry point rather than the sole proof of fitment. Match M3400-3708100G, 24V, 8.5kW and 11T to the existing starter. A changed suffix, flange or terminal layout should open a separate review for that machine.

How should a workshop distinguish M3400-3708100G solenoid and cable routing before accepting a substitute?

For distributors checking repeat-order specifications, use the side and rear photographs of M3400-3708100G to check solenoid position, battery-stud direction and start-terminal access in YUCHAI 6M. Cables should reach without stretching, sharp bends or contact with hot and moving parts. If the customer's old unit is clocked differently, request an installed photo before the order is assigned.

How should a distributor confirm module 4 for warehouse identification?

For technical buyers confirming the stated application, module 4 is part of the gear geometry for M3400-3708100G. Confirm it together with the 11-tooth count and pinion diameter; another module changes tooth pitch even when the number of teeth is unchanged. The old starter or ring-gear specification should therefore support the module match before a substitute is accepted.

Which check should lead M3400-3708100G ring-gear engagement before accepting a substitute?

For engine-parts specialists checking application evidence, review the 11T pinion, module 4, rest position and available axial dimensions as one engagement set. Inspect the ring gear for wear before fitting. A correct bolt pattern cannot protect the gear if pitch or projection differs, so drive geometry should be resolved before the starter is energized.

How can an importer validate M3400-3708100G cartons and units when the starter removed from the machine is available?

For regional parts suppliers building a new starter range, sample cartons from different positions in the shipment and compare the M3400-3708100G labels, 24V marking, 11-tooth pinion, flange shape and terminal protection with the PO specification. Photograph any mixed marking, damaged terminal or different drive end at the installation review, and isolate those pieces so the rest of the lot can be assessed consistently.

Request a Wholesale Quote for M3400-3708100G Agricultural Machinery Starter Motor

For aftermarket wholesalers planning a repeat order, prepare the RFQ with M3400-3708100G, M3400-3708100B, the complete application, quantity, target delivery and packaging requirements. We will respond with the defined 24V 8.5kW 11T starter motor line rather than a generic substitute.
