STD3524UW Yuchai 6M Starter Motor Wholesale

STD3524UW Starter Motor Fleet Replacement Supply for Dongfeng and Yuchai 6M, 6112, 6108 and 6L350-20 engine

STD3524UW supports Dongfeng and Yuchai 6M, 6112, 6108 and 6L350-20 engine sourcing where buyers need a defined electrical and drive-end match. Its 24V, 8.0kW, 11T CW specification must remain linked to the 24V 8.0kW 11T module-4 catalog configuration; a visually related unit may belong on a different RFQ line.

For the first STD3524UW order, include the removed-unit label, application details and straight photographs of the drive end and terminals. Quantity, destination, delivery target and any private-label requirement complete the commercial brief and reduce the risk of pricing a related but physically different starter.

STD3524UW Starter Motor Specification Table for B2B Sourcing

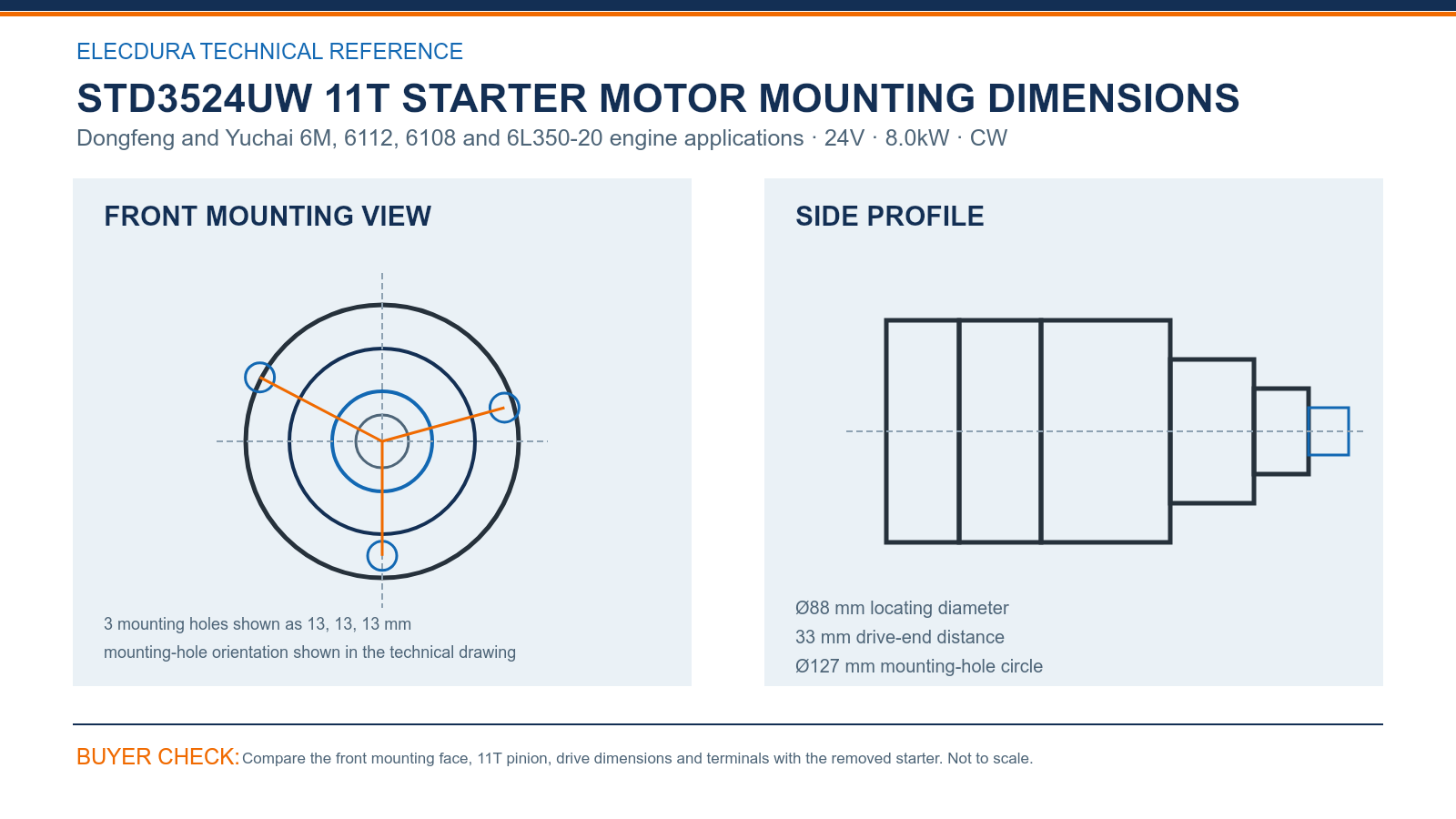

STD3524UW Dongfeng and Yuchai 6M, 6112, 6108 and 6L350-20 engine 24V 8.0kW 11T starter mounting dimensions.

Compare STD3524UW at the 3 mounting holes shown as 13, 13, 13 mm, Ø127 mm mounting-hole circle and Ø88 mm locating diameter. The 33 mm drive-end distance helps verify where the pinion sits relative to the flange, while a straight terminal-side photograph confirms whether the main and control connections remain accessible after installation.

For STD3524UW, electrical and mechanical identity must agree: 24V, 8.0kW, 11T, module 4 and CW. Check the terminals and solenoid position before installation. If the old unit differs at one of these points, keep it outside the defined stock line.

STD3524UW Starter Motor Reference Group for Wholesale Sourcing

The STD3524UW cross-reference group includes STD3524UW, STM3524UW, STM3524WD, STP2524MH, STQ3524LP, STQ3524RN, STD3524WA. Use these numbers to search supplier systems, then confirm 24V, 8.0kW, 11T, CW, mounting geometry and terminals.

For STD3524UW, list and photograph each complete reference when pinions, drive positions or connectors differ. Elecdura can quote each physical starter independently.

STD3524UW Starter Motor Bulk Order Packing and Lead-Time Support

Elecdura can prepare STD3524UW orders for regional inventory, fleet workshops or industrial service demand. The standard starting point is 20 pieces, normally 7–15 days after order confirmation, with an 18-month warranty under agreed terms and packing selected for the destination and shipment method.

A first-lot sample is useful when the fleet carries related starters with similar housings. Retain the approved STD3524UW label, front view and terminal view, then use recent demand and branch transfer time to set reserve stock and delivery priorities.

This video introduces Elecdura production and electrical testing for starter motors supplied to distributors and service networks. The commercial offer for STD3524UW continues to follow the stated application, electrical rating, pinion and mounting details so factory capability and product selection remain clearly connected.

STD3524UW Starter Motor Questions from Commercial Buyers

Before removing STD3524UW, what should the workshop test under load during a Yuchai 6M workshop diagnosis?

Before fitting STD3524UW, verify battery condition, cable size and voltage drop at cranking current. Clean the mounting ground and inspect the ring gear and control circuit. A slow-crank complaint can come from weak batteries, poor connections or mechanical drag, so those causes should be separated from the starter itself.

What should an importer include in the replenishment forecast for STD3524UW in a Yuchai 6M workshop program?

Build the forecast around actual equipment counts, failure history and the time needed to replenish each service location. For STD3524UW, keep the specified pinion and mounting interface visible in the stock record. This reduces emergency substitutions and gives purchasing a clearer basis for MOQ, packing and delivery discussions.

What should a distributor match before ordering STD3524UW for Dongfeng and Yuchai 6M, 6112, 6108 and 6L350-20 engine during workshop sourcing?

Use the full old-unit number and Dongfeng and Yuchai 6M, 6112, 6108 and 6L350-20 engine record. Compare the 11T pinion, 3 mounting holes shown as 13, 13, 13 mm, Ø88 mm locating diameter and terminal side. Reject a candidate when its drive position, mounting face or cable connection differs.

What is the safe way to order STD3524UW from an alternate OE number in a Yuchai 6M workshop sourcing program?

Cross-references help purchasing teams search different brand systems, but the order should still resolve to one physical starter. Compare the candidate number with the STD3524UW electrical rating, pinion and drawing. Keep unmatched housings, terminal positions or drive ends on separate RFQ lines so the supplier can price them correctly.

Which STD3524UW dimensions are practical for a warehouse inspection during a Yuchai 6M workshop inspection?

For STD3524UW, check 3 mounting holes shown as 13, 13, 13 mm, Ø88 mm locating diameter and 33 mm drive-end distance. Record the 11T pinion, rotation and terminal position so the warehouse can isolate a mixed or incorrectly labelled unit before dispatch.

Which first-lot checks protect a distributor receiving STD3524UW during a Yuchai 6M workshop receiving check?

For STD3524UW, count the cartons, compare labels and inspect selected units for flange, pinion and terminal damage. The sample should match 3 mounting holes shown as 13, 13, 13 mm, Ø88 mm locating diameter and the specified 11T drive. Hold any exception outside normal inventory until purchasing and the supplier agree on the correct disposition.

Which commercial details belong in an export enquiry for STD3524UW in a Yuchai 6M workshop sourcing program?

Send the complete OE number, exact Dongfeng and Yuchai 6M, 6112, 6108 and 6L350-20 engine details, removed-unit photographs, quantity and destination. Add the required arrival date, carton marking, payment preference and any sample request. Elecdura can then quote the specified 24V 8.0kW 11T CW starter with packing, lead time, warranty and freight options.

Which photographs and readings help Elecdura review STD3524UW after installation in a Yuchai 6M workshop review?

Keep the carton or product traceability code and note when and where STD3524UW was installed. A review should include symptoms, operating time, old and replacement-unit photographs, cable and battery readings and any ring-gear observations. Complete records allow technical support to respond without repeated requests for basic information.

STD3524UW Start a Starter Motor Wholesale Enquiry

A complete RFQ for STD3524UW should state the application, removed-unit number, physical photographs, quantity, destination and delivery target. Send these details to info@elecdurauto.com for a direct response on the correct 24V 8.0kW 11T CW starter, MOQ, packaging, warranty and shipping choices.
