STM3523UW Yuchai 6M Starter Motor Wholesale

STM3523UW Starter Motor Aftermarket Supply for Yuchai 6M and 6L350-20 engine

STM3523UW defines stock for Yuchai 6M and 6L350-20 engine as 24V, 8.0kW, 11T and CW. Confirm 24V 8.0kW 11T module-4 catalog configuration before releasing a first order or replacing an approved sample.

For the first STM3523UW order, include the removed-unit label, application details and straight photographs of the drive end and terminals. Quantity, destination, delivery target and any private-label requirement complete the commercial brief and reduce the risk of pricing a related but physically different starter.

STM3523UW Starter Motor Specification Table for B2B Sourcing

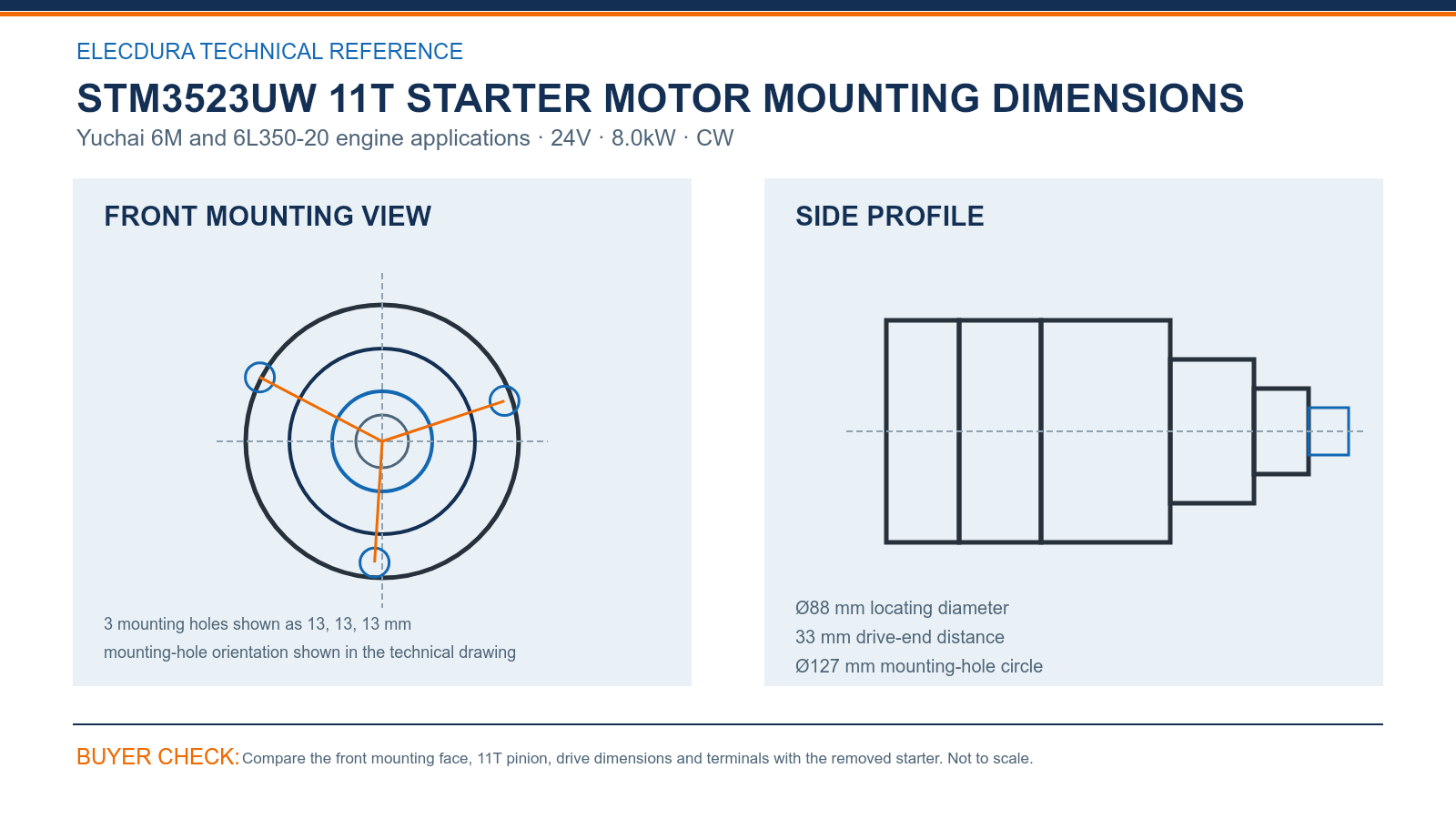

STM3523UW Yuchai 6M and 6L350-20 engine 24V 8.0kW 11T starter mounting dimensions.

The STM3523UW dimensional review starts at the mounting face: verify 3 mounting holes shown as 13, 13, 13 mm, Ø127 mm mounting-hole circle and Ø88 mm locating diameter. Then compare the 33 mm drive-end distance. The drawing is not a scale template, so record actual measurements and review terminal orientation separately.

For STM3523UW, count the 11T pinion and confirm module 4, CW rotation, 24V and 8.0kW. The terminal side and solenoid clearance must also agree with the installation. A different pinion or cable position should be quoted separately, even when major cross-references overlap.

STM3523UW Starter Motor OE Number Guide for Aftermarket Supply

• Use the full number: Start with STM3523UW, STP3523MH, STP4523MH, STQ9400UW, X757517200008, M105R3007SEVPP, retaining prefixes, suffixes and separators in the RFQ.

• Confirm the hardware: The final match requires the stated electrical rating, drive, mounting interface and terminal side; unmatched versions should remain separate.

STM3523UW Starter Motor Distributor Stock and Delivery Support

Elecdura can prepare STM3523UW orders for regional inventory, fleet workshops or industrial service demand. The standard starting point is 20 pieces, normally 7–15 days after order confirmation, with an 18-month warranty under agreed terms and packing selected for the destination and shipment method.

For multi-branch supply, show which quantity is needed immediately and which can follow as planned replenishment. The accepted STM3523UW sample, dimensional record and terminal photographs can then support carton marking, receiving checks and repeat orders across the customer’s network.

Elecdura’s video shows starter-motor production and electrical testing used to support wholesale orders. It provides supplier-capability context for STM3523UW; the product decision itself still depends on the complete reference, 24V 8.0kW rating, drive end, mounting face and terminal layout.

STM3523UW Starter Motor Questions from Commercial Buyers

How can branches reduce emergency transfers of STM3523UW stock in a Yuchai 6M regional program?

Keep the accepted module-4 drive and cable layout with bus-fleet stock records. Add recent usage, equipment population, transfer time and service level. Elecdura can then separate sample, emergency and replenishment quantities and plan packing or staged delivery around the buyer’s schedule.

Why is a straight mounting-face photo useful for confirming STM3523UW during a Yuchai 6M regional inspection?

Align the removed starter and STM3523UW at the mounting face. Compare Ø88 mm locating diameter, Ø127 mm mounting-hole circle, 3 mounting holes shown as 13, 13, 13 mm and 33 mm drive-end distance. Use the drawing for dimensions, measure with suitable tools and check terminals separately.

Can STM3523UW be selected from the application name alone during regional sourcing?

Confirm STM3523UW with the complete OE number, Yuchai 6M and 6L350-20 engine record and clear front, side and terminal photographs. Check 11T, 3 mounting holes shown as 13, 13, 13 mm and 33 mm drive-end distance so visually related starters stay on separate order lines.

Which checks should follow an OE-number match for STM3523UW in a Yuchai 6M regional sourcing program?

A number match narrows the search but does not finish it. For STM3523UW, compare the stated application, electrical output, 11T drive, mounting geometry and terminal side. Buyers handling several references should list each complete number separately, allowing any genuinely different unit to receive its own offer and sample check.

Which cranking-circuit tests should precede replacement of STM3523UW during a Yuchai 6M regional electrical check?

Load-test the battery set and measure voltage drop on the positive and ground circuits while cranking. Inspect cable lugs, chassis grounds, the start-control signal and ring-gear condition before replacing STM3523UW. These checks distinguish a starter fault from low battery capacity, resistance or a control-circuit problem.

What receiving records are useful for a shipment of STM3523UW during a Yuchai 6M regional receiving check?

Receiving should verify the STM3523UW label, quantity and packaging before opening sampled cartons. Compare the 11T drive, Ø88 mm locating diameter, mounting holes and terminal side with the approved record. Any damage, missing protection or physical mismatch should be quarantined with photographs and lot details for prompt review.

How should a buyer request samples and bulk pricing for STM3523UW in a Yuchai 6M regional sourcing program?

Provide the full reference and application, not only a broad brand name. Attach front, side and terminal views of the removed starter and state quantity, destination, required date and packaging needs. For STM3523UW, Elecdura will respond with the matching specification, MOQ, availability, commercial terms and freight choices.

How should a workshop document a service issue involving STM3523UW in a Yuchai 6M regional review?

Submit the purchase reference, lot number, installation date and hours in service, then describe the symptom and operating conditions. Photographs and cranking-circuit measurements should accompany the report. This structured record gives Elecdura enough context to evaluate STM3523UW without assuming that every no-crank complaint originates inside the starter.

STM3523UW Send a Starter Motor Distributor Enquiry

To discuss STM3523UW supply, send the complete application and old-unit identification, mounting-face and terminal photos, requested quantity, destination and timing to info@elecdurauto.com. The reply will address the specified starter, sample or bulk availability, export packing, commercial terms and delivery route.
