L6AL1-3708100 Yuchai 6L-350 Starter Motor Wholesale

L6AL1-3708100 Starter Motor Wholesale Application Support for Yuchai 6L-350 engine

For Yuchai 6L-350 engine, L6AL1-3708100 gives distributors a focused starting point for quotation and branch inventory. Confirm 24V, 8.0kW, 11T and CW, with particular attention to 24V 8.0kW 11T module-4 catalog configuration, before combining demand from different fleets or workshops.

For the first L6AL1-3708100 order, include the removed-unit label, application details and straight photographs of the drive end and terminals. Quantity, destination, delivery target and any private-label requirement complete the commercial brief and reduce the risk of pricing a related but physically different starter.

L6AL1-3708100 Starter Motor Specification Table for B2B Sourcing

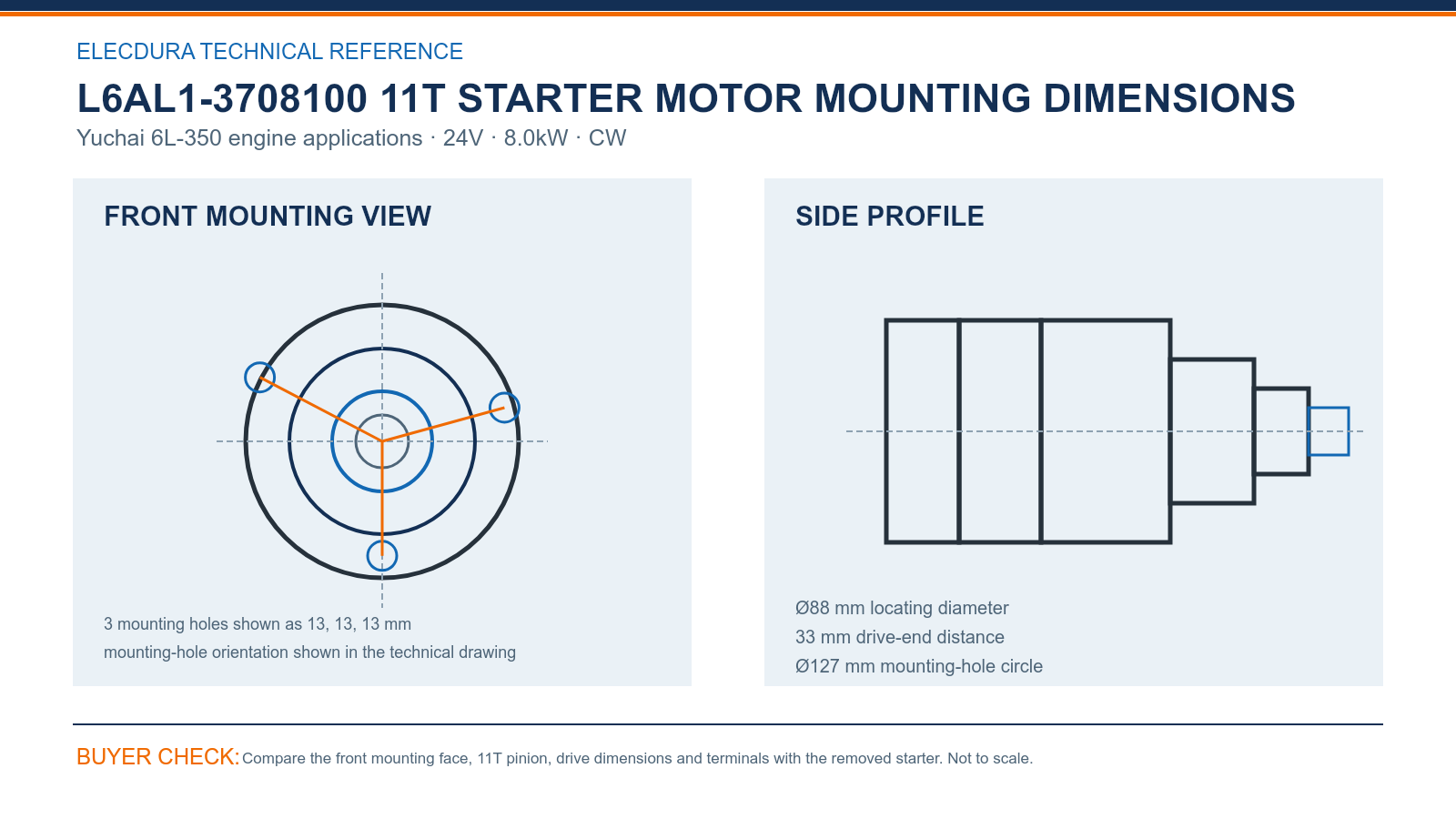

L6AL1-3708100 Yuchai 6L-350 engine 24V 8.0kW 11T starter mounting dimensions.

For L6AL1-3708100 first-lot sampling, place the old and new starters in the same front-facing position. Check 3 mounting holes shown as 13, 13, 13 mm, Ø88 mm locating diameter, Ø127 mm mounting-hole circle and 33 mm drive-end distance. Keeping those values with arrival photographs gives purchasing a reusable physical record for later replenishment.

The L6AL1-3708100 drive-end decision is completed by 11T, module 4 and CW, together with 24V and 8.0kW. Confirm main-terminal and control-terminal positions under the actual cable routing. Similar dimensions do not compensate for the wrong rotation, pinion or electrical rating.

L6AL1-3708100 Starter Motor Reference Matching for B2B Quotations

The L6AL1-3708100 cross-reference group includes L6AL1-3708100. Use these numbers to search supplier systems, then confirm 24V, 8.0kW, 11T, CW, mounting geometry and terminals.

For L6AL1-3708100, list and photograph each complete reference when pinions, drive positions or connectors differ. Elecdura can quote each physical starter independently.

L6AL1-3708100 Starter Motor Wholesale Supply and Export Planning

Wholesale planning for L6AL1-3708100 can cover a sample stage, routine replenishment and urgent service demand. Elecdura normally works from 20 pieces, confirms a 7–15 day lead time after order approval and provides an 18-month warranty under the agreed commercial terms.

Stock planning should reflect the supported Yuchai 6L-350 engine population, recent consumption and transfer time between service locations. Keeping L6AL1-3708100, the 11T drive and the approved mounting interface visible in the inventory record reduces emergency substitution and improves later reorder accuracy.

The production video gives importers and fleet buyers a view of Elecdura starter assembly and electrical checks. For L6AL1-3708100, use it alongside the product-specific reference, application and physical controls on this page, rather than treating a general factory presentation as evidence of fitment.

L6AL1-3708100 Starter Motor Questions from Commercial Buyers

Which first-lot checks protect a distributor receiving L6AL1-3708100 during a Yuchai 6L-350 service-network receiving check?

For L6AL1-3708100, count the cartons, compare labels and inspect selected units for flange, pinion and terminal damage. The sample should match 3 mounting holes shown as 13, 13, 13 mm, Ø88 mm locating diameter and the specified 11T drive. Hold any exception outside normal inventory until purchasing and the supplier agree on the correct disposition.

How should a buyer compare the old unit with the L6AL1-3708100 technical image during a Yuchai 6L-350 service-network inspection?

For L6AL1-3708100, check 3 mounting holes shown as 13, 13, 13 mm, Ø88 mm locating diameter, Ø127 mm mounting-hole circle and 33 mm drive-end distance. Count the 11T pinion and photograph the terminal side. Record these checks against the approved sample without dismantling the unit.

How can an importer avoid mixing L6AL1-3708100 with a similar drive-end version during service-network sourcing?

For L6AL1-3708100 in Yuchai 6L-350 engine, confirm the machine or engine identity and read the full old-unit label. Check 11T, Ø127 mm mounting-hole circle, Ø88 mm locating diameter and terminal orientation. Treat a different drive end or connector position as a separate item when the stated application overlaps.

When does a cross-reference related to L6AL1-3708100 need a separate quotation in a Yuchai 6L-350 service-network sourcing program?

Use the complete alternate number, not a shortened series, and attach photographs of the removed unit. The L6AL1-3708100 group is acceptable only when 24V, 8.0kW, 11T, CW and the physical interface agree. A reference conflict should be clarified before samples or bulk quantities are released.

Why should voltage-drop results accompany an enquiry for L6AL1-3708100 during a Yuchai 6L-350 service-network electrical check?

Measure cranking voltage and voltage loss across the positive and negative paths, not only open-circuit battery voltage. Review the solenoid command, cable terminals, engine ground and ring gear. The results provide a useful baseline for L6AL1-3708100 installation and for any later service discussion with the supplier.

How should Yuchai distributors plan stock for L6AL1-3708100 in a Yuchai 6L-350 service-network program?

Retain the approved engine identity and terminal view for fleet replenishment. Add recent usage, equipment population, transfer time and service level. Elecdura can then separate sample, emergency and replenishment quantities and plan packing or staged delivery around the buyer’s schedule.

What information should accompany a distributor RFQ for L6AL1-3708100 in a Yuchai 6L-350 service-network sourcing program?

A useful RFQ states L6AL1-3708100, the machine or engine model, old-unit label, mounting and terminal photographs, requested quantity and delivery country. Include whether the demand is a sample, urgent service order or scheduled stock. Those details allow pricing to cover the correct unit and realistic shipping plan.

What evidence separates an electrical-system fault from a concern involving L6AL1-3708100 in a Yuchai 6L-350 service-network review?

For a service review of L6AL1-3708100, identify the shipment and unit, describe the starting condition and record installation details. Add photographs of the drive, flange and terminals plus battery, ground and positive-cable test results. If the unit was removed, protect it from additional damage and retain it until the review is complete.

L6AL1-3708100 Ask for Starter Motor Export Pricing

Email info@elecdurauto.com with L6AL1-3708100, the supported Yuchai 6L-350 engine record, old-unit photographs, quantity, destination and required arrival date. Elecdura will use those details to confirm the 24V, 8.0kW, 11T CW starter and prepare wholesale pricing with MOQ, lead time, packing and freight.
