L30L2-3708100 Yuchai Starter Motor 24V 8.0kW 11T

L30L2-3708100 Agricultural Machinery Starter Motor for YUCHAI 6L

For regional parts suppliers requesting production pricing, Elecdura offers L30L2-3708100 as an aftermarket agricultural machinery starter motor for YUCHAI 6L. The 24V, 8.0kW and 11T configuration is intended for professional replacement sourcing by agricultural-machinery distributors, importers and engine-parts wholesalers.

For aftermarket wholesalers defining label requirements, distributors can quote the exact application and starter configuration without turning the page into a generic component guide. Elecdura can also review customer labels, carton requirements and inspection documents for planned orders.

L30L2-3708100 Starter Motor Specifications and Technical Drawing

For product managers reviewing a replacement proposal, this reference group can cover nearby starter versions. Keep L30L2-3708100, 24V, 8.0kW and 11T together on the RFQ, then compare the flange, drive end and terminal layout before treating another number as a direct replacement.

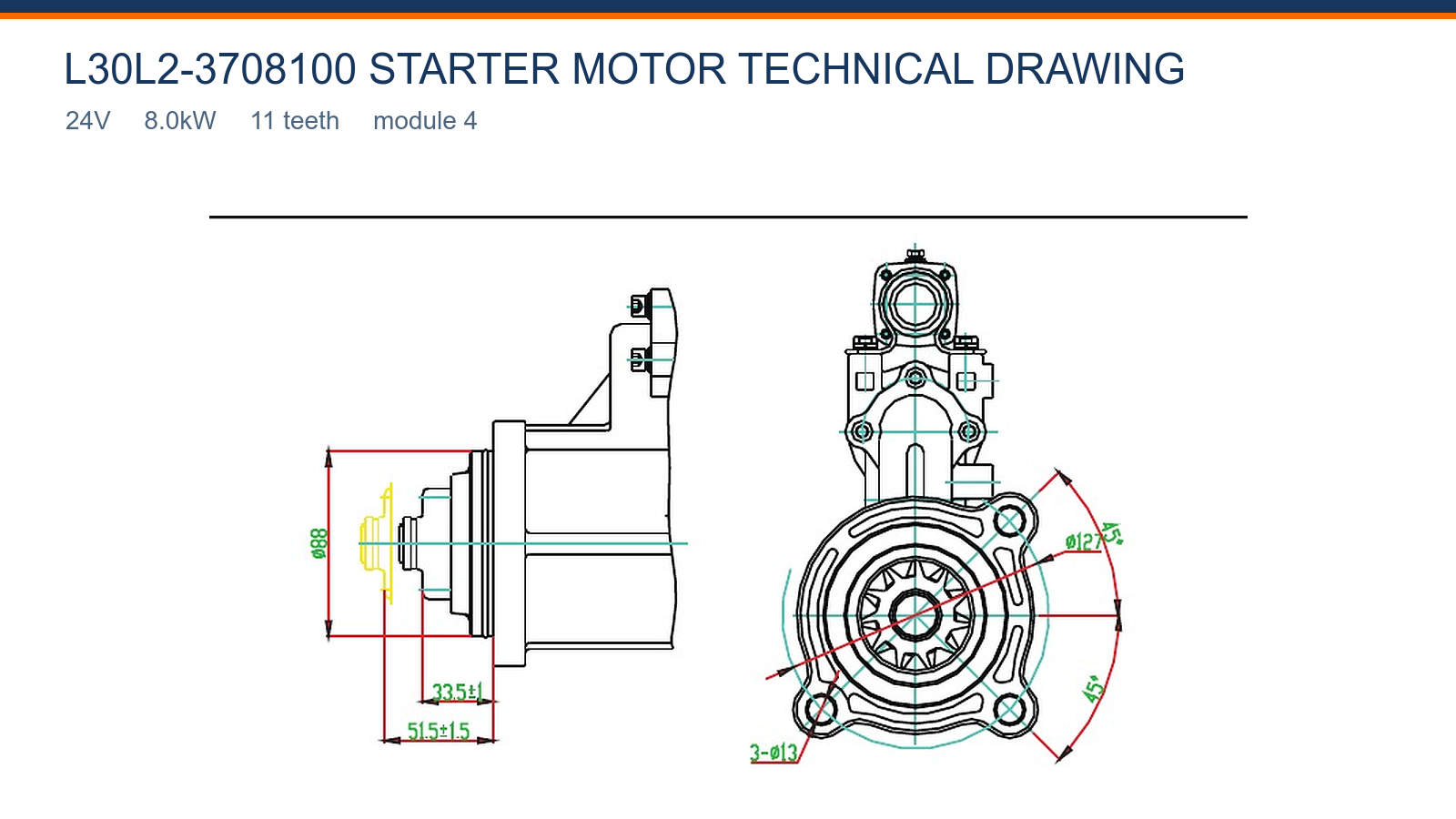

For maintenance suppliers confirming the stated application, the source-faithful technical drawing records the available mounting information for L30L2-3708100, including 3×Ø13, Ø88, 51.5±1.5 mm; use the printed values together with the product views because the drawing supports comparison and should not be scaled from the screen.

L30L2-3708100 Aftermarket Replacement and Application

For fitment reviewers reviewing drive-end geometry, this aftermarket starter motor is organized around L30L2-3708100 for YUCHAI 6L. Related numbers remain useful search and purchasing references, but Elecdura treats a changed rating, pinion, flange or terminal layout as a separate version for quotation.

For application specialists comparing nearby starter versions, A direct replacement decision should combine the OE group with physical comparison. Check the mounting face, 11T drive and cable-stud direction, and ask for a separate review when one of those features differs.

L30L2-3708100 Wholesale Supply for Distributors and Importers

For sales teams confirming an incoming batch, Elecdura supplies L30L2-3708100 for wholesale and distributor orders with a standard MOQ of 20 pcs, an indicative 7–15 day lead time after order confirmation and an 18-month warranty under agreed terms. Neutral packaging and private-label review are available for qualified programs.

For warehouse planners preparing a volume quote, the order can specify testing scope, sampling level, label content and packing details. Reference-label, drive-end and terminal-protection photos may also be requested before shipment for the agreed product version.

L30L2-3708100 Starter Motor Buyer FAQ

How should a workshop distinguish L30L2-3708100 side-profile photograph during an application review?

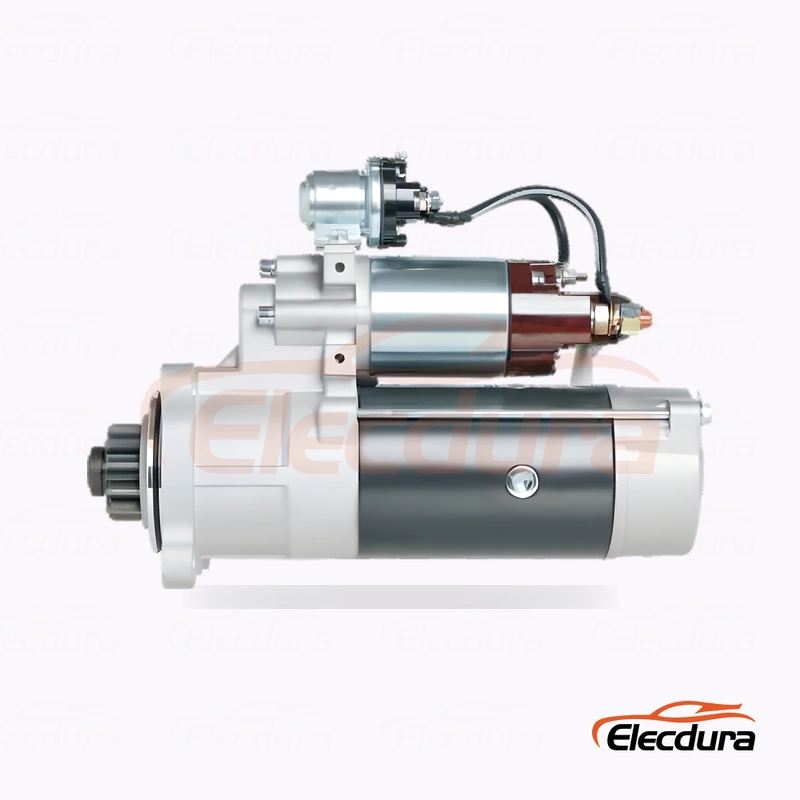

For technical buyers comparing nearby starter versions, the side profile of L30L2-3708100 shows body length, solenoid placement and the relationship between flange and drive. Compare it with a square side view of the removed starter, then use 51.5±1.5 mm where available. This angle helps reveal a housing or projection difference that a front-only photograph can miss.

Which check should lead flange clocking during an application review?

For engine-parts specialists preparing a technical RFQ, no separate angular callout is stated for L30L2-3708100. Align the old and offered starters by the locating face, then photograph bolt positions and terminal clocking from matching viewpoints. This provides a usable orientation check for the purchasing team without assigning an angle taken from another model that only shares a similar flange outline.

Which detail separates 24V system compatibility before stock is assigned?

For fleet-parts buyers checking version-defining data, L30L2-3708100 is a 24V starter and must be connected only to the matching machine electrical system. Read the voltage marking on the old unit and verify the battery arrangement before stock is committed. A housing can look correct while the winding and solenoid are designed for another voltage, so appearance must not override the electrical label.

What should purchasing verify first for L30L2-3708100 solenoid and cable routing before accepting a substitute?

For technical sales teams confirming electrical ratings, use the side and rear photographs of L30L2-3708100 to check solenoid position, battery-stud direction and start-terminal access in YUCHAI 6L. Cables should reach without stretching, sharp bends or contact with hot and moving parts. If the customer's old unit is clocked differently, request an installed photo before the order is assigned.

Which check should lead L30L2-3708100 locating face for repeatable sourcing?

For fitment reviewers reviewing a replacement proposal, the L30L2-3708100 flange should sit flat against the YUCHAI 6L mounting surface without being pulled into place by the bolts. Clean both faces and compare the locating shoulder, hole pattern and any stated diameters. Rocking, a visible gap or bolt misalignment indicates that the version check is incomplete and installation should stop.

How should a distributor confirm L30L2-3708100 inquiry package when several versions look alike?

For wholesale program managers updating a customer item master, A useful inquiry for L30L2-3708100 includes quantity, destination, required date, YUCHAI 6L, the full old-unit number and clear photos of the label, drive end, front housing and terminal arrangement. State neutral or private-label packaging needs at the same time. Elecdura can then quote the 24V, 8.0kW, 11T version against an exact starter specification.

What should receiving teams compare on 51.5±1.5 mm when preparing a technical inquiry?

For replacement-parts sellers checking application evidence, use 51.5±1.5 mm when comparing L30L2-3708100. Measure from the drawing's indicated faces and keep pinion rest position separate from overall body length. These axial values influence how the drive sits and engages, so the set should agree with the removed starter before a fleet or distributor quantity is released.

Which specification deserves priority for L30L2-3708100 label and suffix before accepting a substitute?

For service-parts networks preparing an OE-based quote, photograph the complete old-unit label for L30L2-3708100, including every prefix, suffix and separator. Shortened numbers can group starters that differ in voltage, output, drive or housing. Pair the label with a front and rear view, then retain the full marking in the RFQ and purchase order so later receiving checks use the same identity.

Request a Wholesale Quote for L30L2-3708100 Agricultural Machinery Starter Motor

For importers planning a repeat order, to source L30L2-3708100 for a distributor or importer program, send the OE group, YUCHAI 6L, planned volume and destination. Elecdura will confirm the quoted starter configuration, commercial terms and available inspection support.
