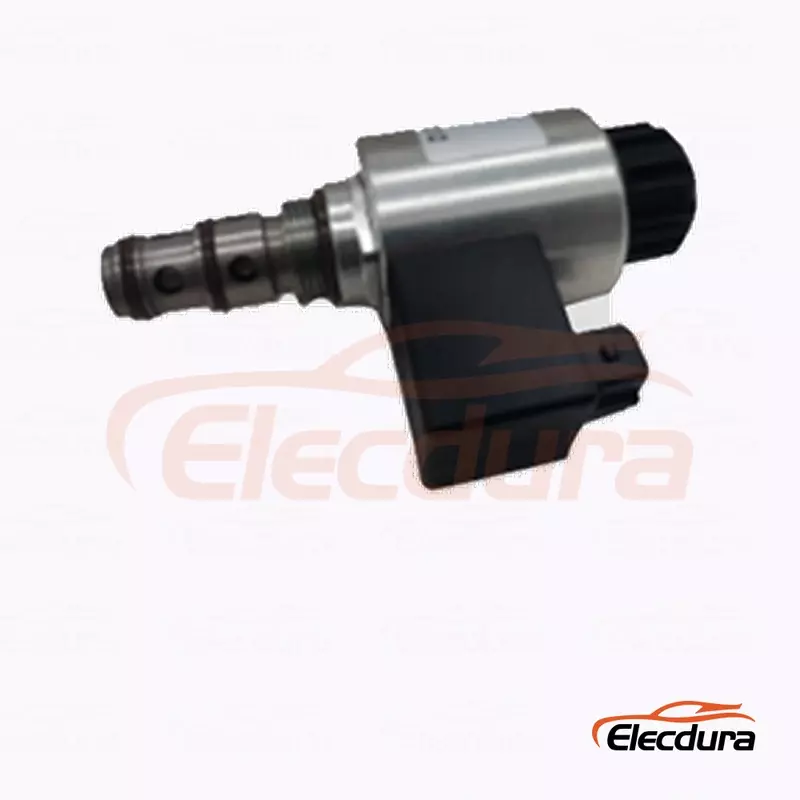

EPN-45AS-2D 12V Universal Two Position Three Way Hydraulic Solenoid Valve for Heavy Equipment B2B Supply

EPN-45AS-2D Two Position Three Way Hydraulic Solenoid Valve Supplier for B2B Replacement

EPN-45AS-2D is a two position three way hydraulic solenoid valve for Hydraulic control circuits using the EPN-45AS-2D marking and matching cartridge geometry. Buyers should confirm the full reference, 12v, integral connector, m24 x 1.5 cartridge thread shown in catalog before approving replacement stock.

EPN-45AS-2D Two Position Three Way Hydraulic Solenoid Valve Specifications for Wholesale Buyers

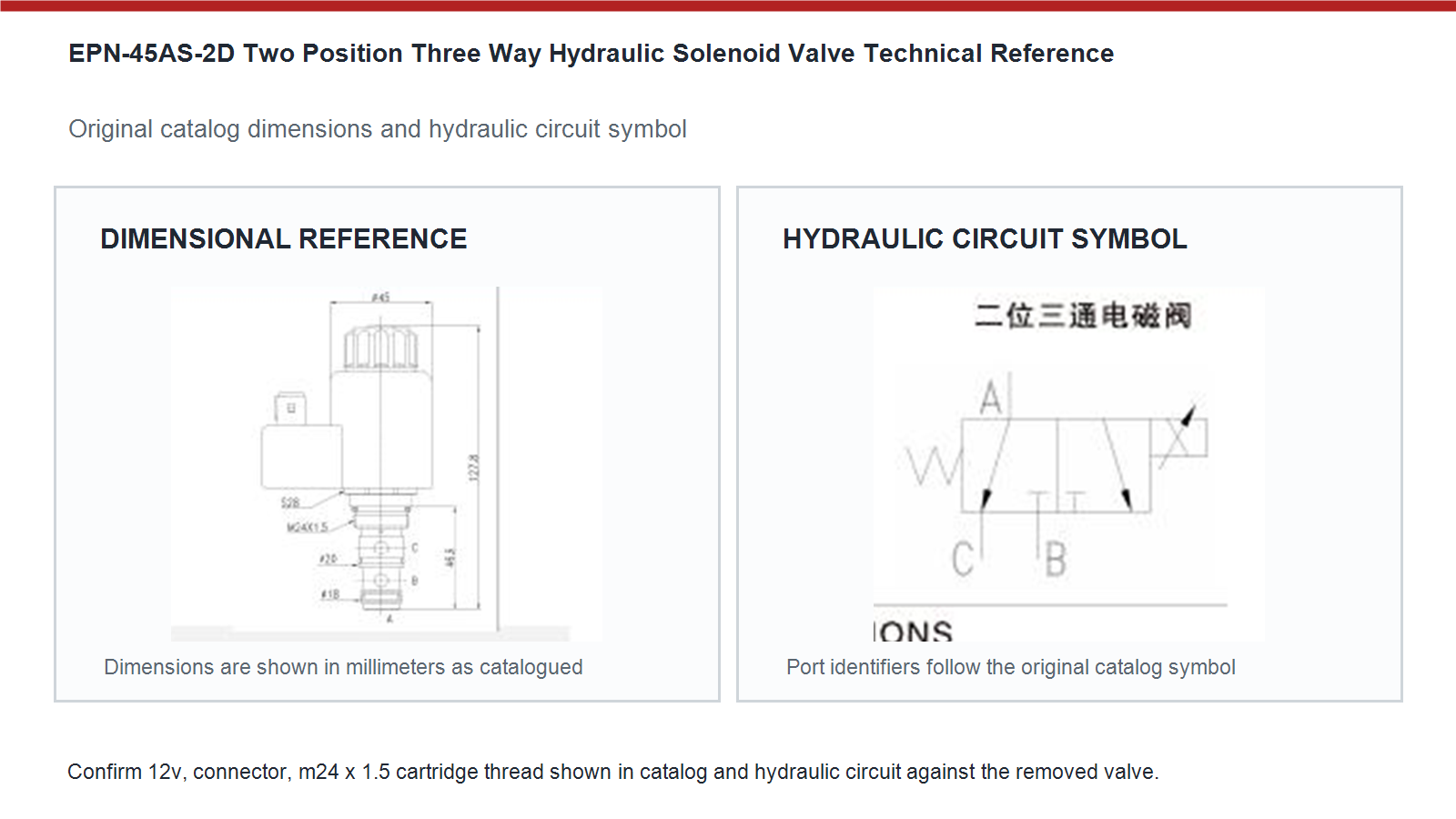

EPN-45AS-2D Hydraulic Solenoid Valve Dimensions and Circuit

Use the original catalog dimensional reference and hydraulic symbol to compare the valve with the removed component and machine schematic before purchase approval.

EPN-45AS-2D Heavy Equipment Solenoid Valve Matching Guide

Complete every control point below before a sample or bulk order is released.

EPN-45AS-2D Hydraulic Solenoid Valve Service Diagnostics

Separate electrical command, component movement and final machine response so the actual wiring or hydraulic fault is not hidden by parts replacement.

EPN-45AS-2D Two Position Three Way Hydraulic Solenoid Valve Technical FAQ

Which evidence approves EPN-45AS-2D before a wholesale order when a new supplier lot enters dimensional inspection?

When a new supplier lot enters dimensional inspection, keep the verified measurements and test result in the service record. Use the complete old marking, 12v electrical version, connector face, m24 x 1.5 cartridge thread shown in catalog, sealing positions and the machine hydraulic schematic. A reference alone cannot prove that the normal and energized flow paths match. Record the machine model, serial number and removed-valve photographs with the approved sample so repeat orders follow the same engineering basis.

How should 12V be verified for EPN-45AS-2D when an incoming production lot is released?

When an incoming production lot is released, keep the verified measurements and test result in the service record. Read the voltage marking on the removed coil and measure supply at the loaded connector while the controller commands the valve. Do not infer voltage only from battery count because converters, harness changes and mixed fleets can produce another coil supply. Keep the confirmed value on the inquiry, purchase order, carton label and incoming inspection record.

What does the 240 bar reference mean for EPN-45AS-2D when a controller output fault is suspected?

When a controller output fault is suspected, keep the verified measurements and test result in the service record. Treat 240 bar as a component reference that must remain within the actual circuit requirement, not as permission to ignore the machine service data. Confirm which ports see pressure in both switching states, review return pressure and verify the cavity or flange. Pressure capability cannot correct a wrong spool function, cartridge depth or manifold relationship.

What should be checked if EPN-45AS-2D does not switch when a hydraulic schematic uses different port labels?

When a hydraulic schematic uses different port labels, keep the verified measurements and test result in the service record. Measure supply and ground at the loaded connector, then check coil resistance and verify that the controller issues the command. If electrical input is correct, inspect oil cleanliness, filter condition, moving-element freedom and manifold contamination. Separate electrical command from hydraulic response before replacing another valve so a harness or blocked pilot passage is not missed.

How can premature heating be prevented on EPN-45AS-2D when contamination is found in the circuit?

When contamination is found in the circuit, keep the verified measurements and test result in the service record. Verify commanded voltage under load, coil duty cycle, connector resistance and whether the hydraulic element reaches its intended position. Low voltage can prevent full magnetic pull, while excessive voltage or continuous energization can overheat the winding. Contamination that restricts movement can add operating stress, so correct the electrical or hydraulic cause before installing another unit.

Which connector details distinguish EPN-45AS-2D from a close substitute when warehouse stock must remain voltage-separated?

When warehouse stock must remain voltage-separated, keep the verified measurements and test result in the service record. Compare the connector face, key position, pin count, latch direction and cable exit with the removed component. Also determine whether suppression is built into the coil because it can affect controller diagnostics. Photograph the connector straight on beside a ruler and include terminal condition in the RFQ when several harness revisions exist in the fleet.

How does contamination affect EPN-45AS-2D when cold-start commissioning is completed?

When cold-start commissioning is completed, keep the verified measurements and test result in the service record. Fine debris can restrict the moving element, damage sealing lands or block a pilot passage even when the coil energizes normally. Review the filtration requirement, inspect the removed valve for particles and flush the affected circuit when contamination is found. Replacing the valve without correcting dirty oil can reproduce slow response, sticking or repeated electrical stress.

Request a Bulk Quote for EPN-45AS-2D Two Position Three Way Hydraulic Solenoid Valve

Send the complete old marking or component evidence, confirmed voltage, machine information, clear photos, measurements and required quantity for a fitment-focused B2B quotation.
