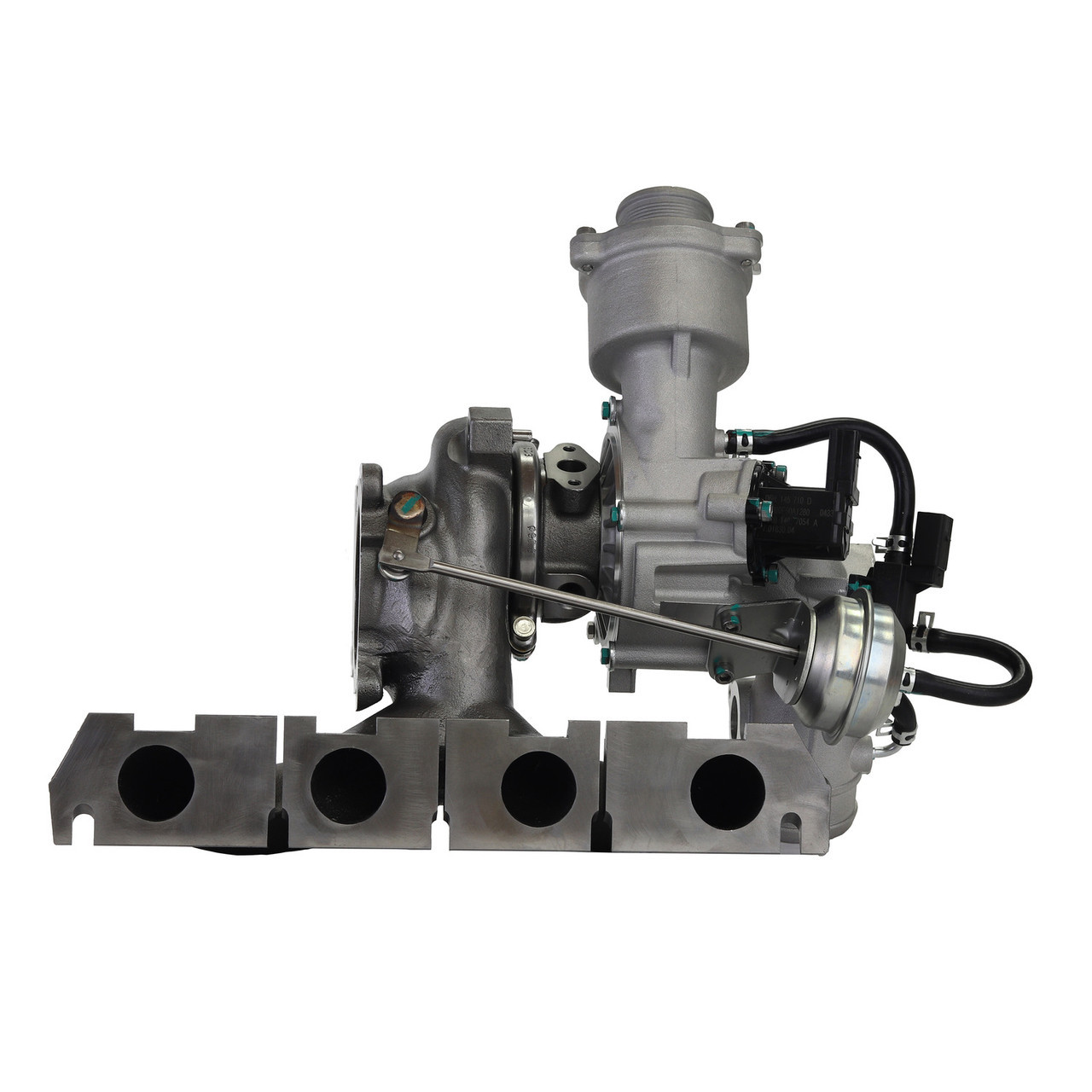

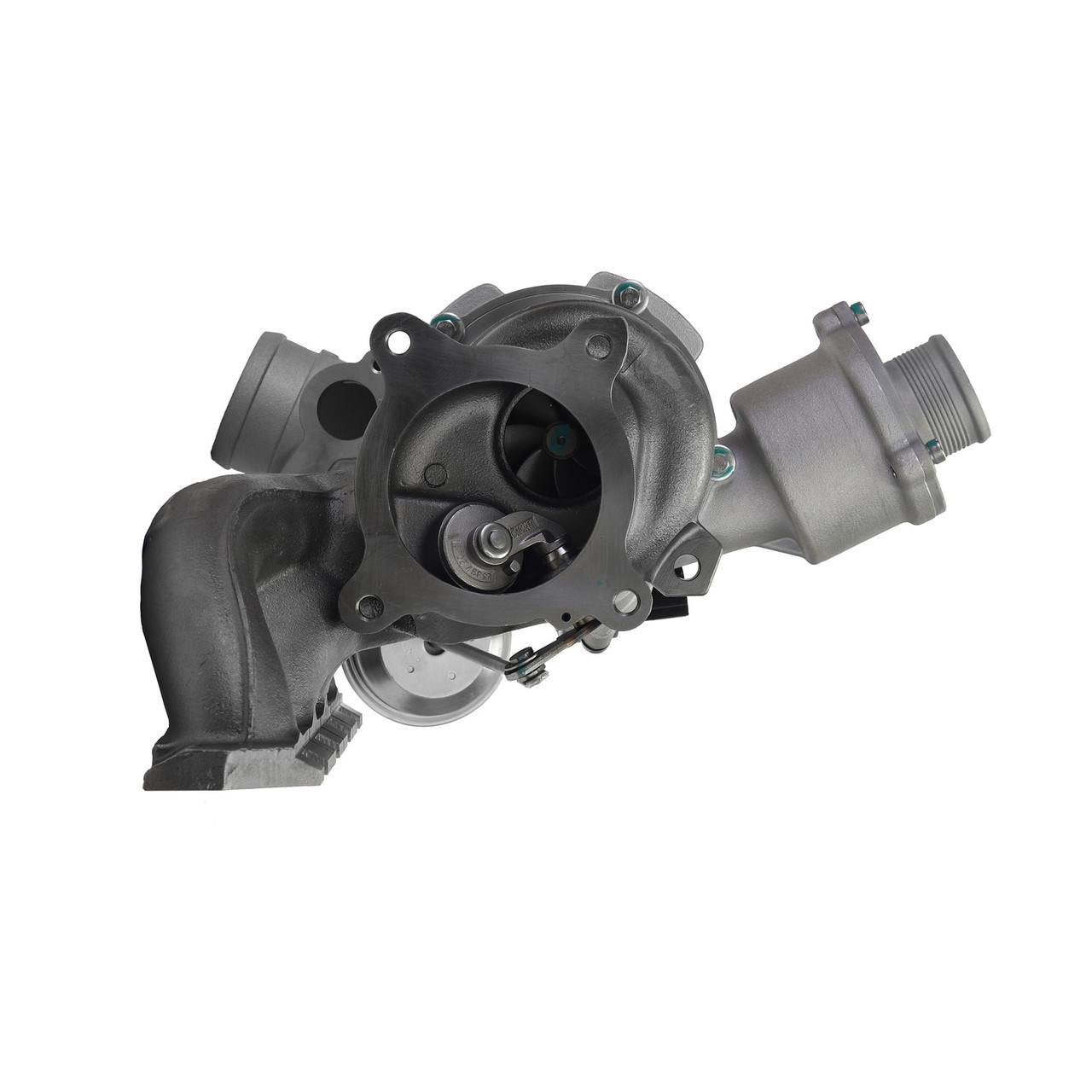

Key Benefits of the 2011 Audi A4 Turbocharger
Elecdurauto's 2011 Audi A4 turbocharger is engineered to restore factory-level boost pressure, throttle responsiveness, and fuel economy—offering an affordable enhancement for aging 2.0T engines. Designed as a direct-fit turbo replacement for OE number 06H145702Q, this unit delivers dependable fitment, streamlined installation, and performance matching OEM standards.
Direct Replacement for Audi 2.0T Turbo (2009–2012): 2011 Audi A4 turbocharger offers a bolt-on turbo solution for Audi A4, A5, A6, and Q5 models powered by the 2.0L TFSI engine, utilizing the original part 06H145702S.
Pre-Calibrated Electronic Actuator: Matched to OE specs — install and go, no reprogramming needed.

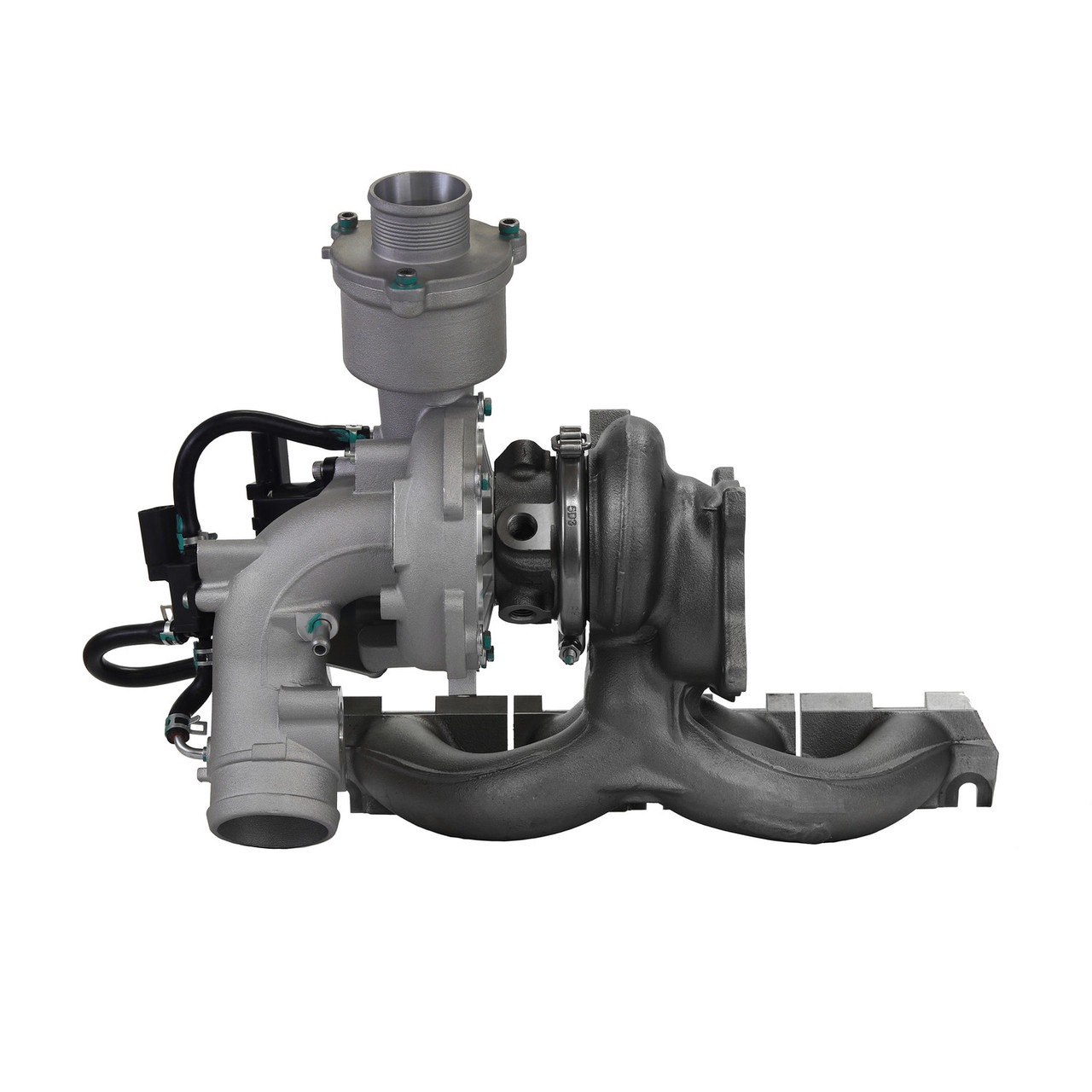

Heavy-Duty Construction: Equipped with a forged aluminum compressor wheel and cast iron turbine housing for long-term reliability under load.
Advanced Balancing Technology: Both thermal and high-speed dynamic balancing reduce vibration and premature wear.
Global Emission Compliant: Meets Euro V and Tier 4 standards — ideal for regulated markets.
Export-Ready Inventory: Units are stocked and ready to ship with fast international logistics.
Built for Value-Driven Buyers: Ideal for fleets and wholesale buyers focused on durability, fitment, and cost savings.
2011 Audi A4 Turbocharger Technical Specifications
| Specification | Description |
| Product Name | Turbocharger Assembly |
| Compatible Vehicles | 2008–2012 Audi A4, A5, Q5 with 2.0 TFSI engine |
| Fitment Type | Direct Bolt-On Replacement |
| Condition | 100% Brand New |
| Dimensions (L × W × H) | 16.5 × 14.0 × 11.0 inches (estimated) |
| Weight | 14.50 lbs (6.6 kg) (estimated) |
| Actuator Included | Yes – Pre-calibrated pneumatic wastegate actuator |
| Cooling Method | Liquid-cooled (Coolant) |
| Wastegate Type | Integrated Electronic Wastegate |
| Gasket / Seal Kit Included | Yes |
| Oil Supply Line Included | No |
| Exhaust Manifold Included | Yes – Integrated Cast Manifold |
| Exhaust Brake Included | No |
| Temperature Sensor Included | No |
| Speed Sensor Included | No |
| Position Sensor Included | Yes – Integrated Position Sensor |
| Geometry Type | Fixed Geometry |
| CHRA (Core Assembly) | Replaceable Cartridge (CHRA) |
| Compressor Wheel | Machined Billet Aluminum |
| Compressor Outlet Diameter | 1.496 in / 38 mm (estimated) |
| Balancing Method | VSR High-Speed & Thermal Balanced |
| Emission Compliance | Euro 5 |
Vehicle Compatibility with 2011 Audi A4 Turbocharger
| Year | Make | Model | Body & Trim | Engine & Transmission |
| 2009 | Audi | A4 | Base, Cabriolet | 2.0L L4 - Turbocharged Gas, Automatic/Manual |
| 2010 | Audi | A4 | Base, Avant | 2.0L L4 - Turbocharged Gas, Automatic/Manual |
| 2011 | Audi | A4 | Base, Avant | 2.0L L4 - Turbocharged Gas, Automatic/Manual |
| 2012 | Audi | A4 | Base, Avant | 2.0L L4 - Turbocharged Gas, Automatic/Manual |
| 2013 | Audi | A4 | Base, Avant | 2.0L L4 - Turbocharged Gas, Automatic/Manual |
| 2014 | Audi | A4 | Base, Avant | 2.0L L4 - Turbocharged Gas, Automatic/Manual |
| 2015 | Audi | A4 | Base, Avant | 2.0L L4 - Turbocharged Gas, Automatic/Manual |
| 2016 | Audi | A4 | Base, Avant | 2.0L L4 - Turbocharged Gas, Automatic/Manual |
| 2009 | Audi | A4 Quattro | Base, Avant, Cabriolet | 2.0L L4 - Turbocharged Gas, Automatic/Manual |
| 2010 | Audi | A4 Quattro | Base, Avant | 2.0L L4 - Turbocharged Gas, Automatic/Manual |
| 2011 | Audi | A4 Quattro | Base, Avant | 2.0L L4 - Turbocharged Gas, Automatic/Manual |
| 2012 | Audi | A4 Quattro | Base, Avant | 2.0L L4 - Turbocharged Gas, Automatic/Manual |
| 2013 | Audi | A4 Quattro | Base, Avant | 2.0L L4 - Turbocharged Gas, Automatic/Manual |
| 2014 | Audi | A4 Quattro | Base, Avant | 2.0L L4 - Turbocharged Gas, Automatic/Manual |
| 2015 | Audi | A4 Quattro | Base, Avant | 2.0L L4 - Turbocharged Gas, Automatic/Manual |
| 2016 | Audi | A4 Quattro | Base, Avant | 2.0L L4 - Turbocharged Gas, Automatic/Manual |
| 2010 | Audi | A5 | Base, Cabriolet | 2.0L L4 - Turbocharged Gas, Automatic/Manual |
| 2011 | Audi | A5 | Base, Cabriolet | 2.0L L4 - Turbocharged Gas, Automatic/Manual |
| 2012 | Audi | A5 | Base, Cabriolet | 2.0L L4 - Turbocharged Gas, Automatic/Manual |
| 2013 | Audi | A5 | Base, Cabriolet | 2.0L L4 - Turbocharged Gas, Automatic/Manual |
| 2014 | Audi | A5 | Base, Cabriolet | 2.0L L4 - Turbocharged Gas, Automatic/Manual |
| 2010 | Audi | A5 Quattro | Base, Cabriolet | 2.0L L4 - Turbocharged Gas, Automatic/Manual |
| 2011 | Audi | A5 Quattro | Base, Cabriolet | 2.0L L4 - Turbocharged Gas, Automatic/Manual |
| 2012 | Audi | A5 Quattro | Base, Cabriolet | 2.0L L4 - Turbocharged Gas, Automatic/Manual |
| 2013 | Audi | A5 Quattro | Base, Cabriolet | 2.0L L4 - Turbocharged Gas, Automatic/Manual |
| 2014 | Audi | A5 Quattro | Base, Cabriolet | 2.0L L4 - Turbocharged Gas, Automatic/Manual |
| 2015 | Audi | A5 Quattro | Base, Cabriolet | 2.0L L4 - Turbocharged Gas, Automatic/Manual |
| 2016 | Audi | A5 Quattro | Base, Cabriolet | 2.0L L4 - Turbocharged Gas, Automatic/Manual |
| 2017 | Audi | A5 Quattro | Base, Cabriolet | 2.0L L4 - Turbocharged Gas, Automatic/Manual |
| 2012 | Audi | A6 | Premium, Premium Plus | 2.0L L4 - Turbocharged Gas, Automatic |
| 2013 | Audi | A6 | Premium, Premium Plus | 2.0L L4 - Turbocharged Gas, Automatic |
| 2014 | Audi | A6 | Premium, Premium Plus | 2.0L L4 - Turbocharged Gas, Automatic |
| 2013 | Audi | A6 Quattro | Premium, Premium Plus | 2.0L L4 - Turbocharged Gas, Automatic |
| 2014 | Audi | A6 Quattro | Premium, Premium Plus | 2.0L L4 - Turbocharged Gas, Automatic |
| 2013 | Audi | allroad | Premium, Premium Plus, Prestige | 2.0L L4 - Turbocharged Gas, Automatic |
| 2014 | Audi | allroad | Premium, Premium Plus, Prestige | 2.0L L4 - Turbocharged Gas, Automatic |
| 2015 | Audi | allroad | Premium, Premium Plus, Prestige | 2.0L L4 - Turbocharged Gas, Automatic |
| 2016 | Audi | allroad | Premium, Premium Plus, Prestige | 2.0L L4 - Turbocharged Gas, Automatic |
| 2011 | Audi | Q5 | Premium, Premium Plus | 2.0L L4 - Turbocharged Gas, Automatic |
| 2012 | Audi | Q5 | Premium, Premium Plus | 2.0L L4 - Turbocharged Gas, Automatic |
| 2013 | Audi | Q5 | Premium, Premium Plus, Prestige | 2.0L L4 - Turbocharged Gas, Automatic |
| 2014 | Audi | Q5 | Premium, Premium Plus, Prestige | 2.0L L4 - Turbocharged Gas, Automatic |
| 2015 | Audi | Q5 | Premium, Premium Plus, Prestige | 2.0L L4 - Turbocharged Gas, Automatic |
| 2016 | Audi | Q5 | Premium, Premium Plus, Prestige | 2.0L L4 - Turbocharged Gas, Automatic |
| 2017 | Audi | Q5 | Premium, Premium Plus, Prestige | 2.0L L4 - Turbocharged Gas, Automatic |

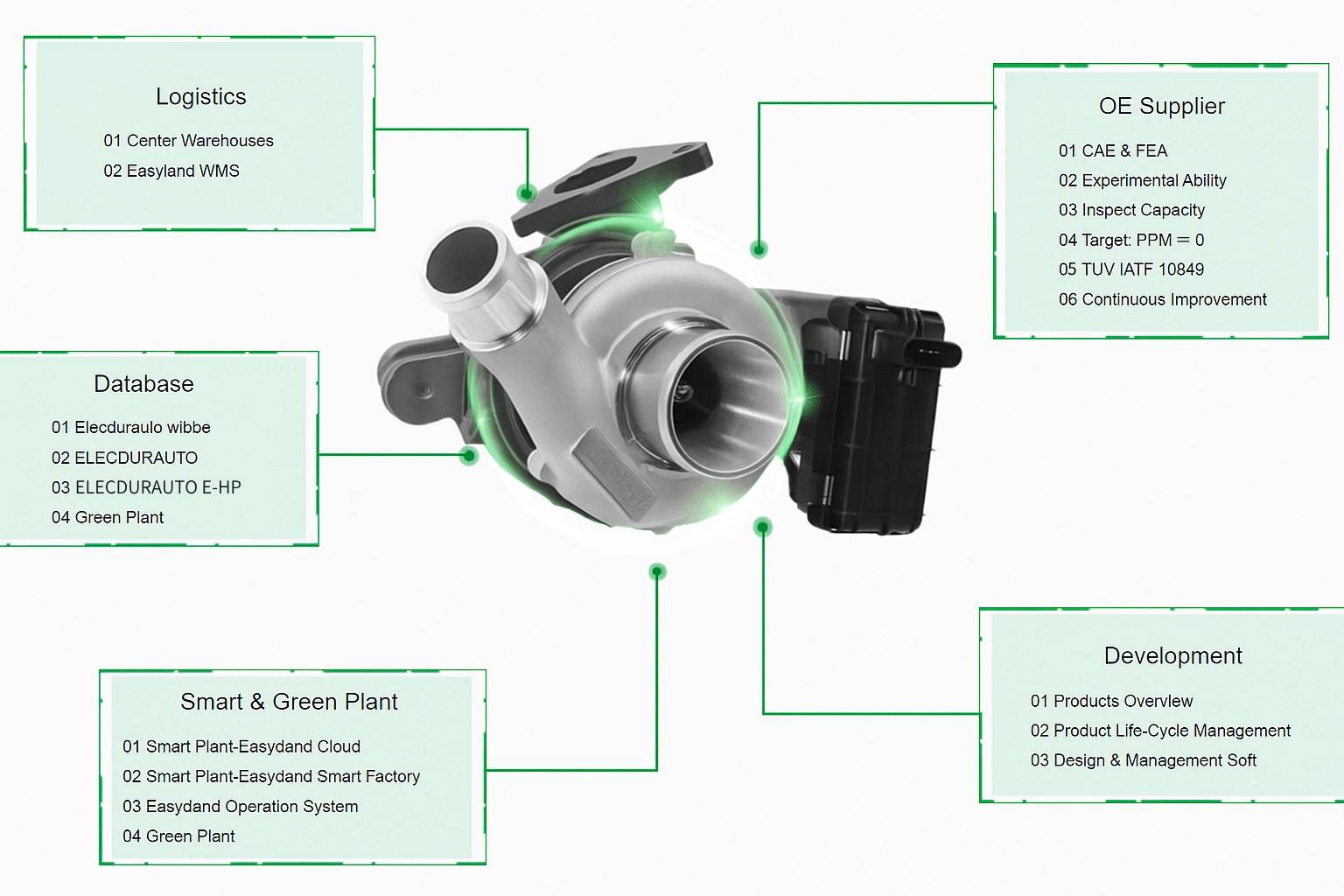

OE-Level Support System Behind Every 2011 Audi A4 Turbocharger
At Elecdurauto, we ensure that every 2011 Audi A4 Turbocharger—engineered to replace OE number 06H145702Q—meets stringent OEM-grade standards through a fully integrated production system. Our process is designed to deliver exceptional quality, reliability, and performance, making our turbochargers a top choice for Audi enthusiasts worldwide.
![OE-Level Support System Behind Every Turbocharger]()
2011 Audi A4 Turbocharger Production Workflow
Elecdurauto follows a fully integrated production process to ensure every turbocharger meets strict quality and performance standards. From raw material inspection and CNC machining to automated assembly and dynamic testing, each step is optimized for precision, consistency, and efficiency. This end-to-end system guarantees reliable output for both OEM replacement and aftermarket demand.
![Material Incoming Quality Control]()
Material Incoming Quality Control
![Precision CNC Machining Cluster]()
Precision CNC Machining Cluster
![Automated Material Loading Lathe (LU3000EX)]()
Automated Material Loading Lathe
![Three-Axis CMM Inspection (Xondex)]()
Three-Axis CMM Inspection
![In-Process Quality Monitoring]()
In-Process Quality Monitoring ![Automated Assembly Workstation (with QR Traceability)]()
Automated Assembly Workstation
![Functional Testing & Assembly Validation]()
Functional Testing & Assembly Validation
![Turbocharger Performance Test Bench]()
Turbocharger Performance Test Bench
OEM & Aftermarket Uses for 2011 Audi A4 Turbocharger
2011 Audi A4 Turbocharger Certifications & Industry Standards
![ISO 9001, ISO 14001, ISO 45001, IATF 16949 certified ignition coil manufacturer for OEM and aftermarket supply]()
Why Choose Elecdurauto for Your 2011 Audi A4 Turbocharger
Elecdurauto is more than a turbocharger supplier — we are a precision manufacturing partner trusted by global distributors, fleets, and aftermarket brands. Backed by world-class production capabilities, OEM-grade engineering, and a deep understanding of B2B demands, we deliver value far beyond the product.
1. World-Class Manufacturing Infrastructure
Over $45 million USD in total investment
Annual capacity: 1,000,000+ complete turbos and 2,000,000 CHRA units
Equipped with CNC machines and semi-automated lines from the US, UK, Germany, Japan, and Switzerland
Advanced R&D and testing center for turbochargers and core components
EMS 4.0 smart factory system with full digital integration (ERP, MES, PLM, CRM, SCM)
2. Precision. Speed. Flexibility.
Covers 500+ turbo models compatible with major OE brands
Supports small-batch, multi-spec orders with fast delivery (7–15 working days)
Maintains safety stock for fast-moving SKUs and urgent shipments
Flexible shipping: door-to-door by air, sea, or express (DHL, FedEx, Maersk)
3. Engineered for Performance & Durability
Turbochargers feature Inconel turbine wheels and forged aluminum compressors
Tested for thermal endurance (950°C–1100°C) and long-cycle durability
Designed to reduce emissions, increase torque, and improve fuel economy
Ideal for both automotive and marine applications with international-level quality
4. OEM-Standard Quality & Traceability
Manufactured to IATF 16949, ISO 9001, CE, RoHS certified standards
Strict QA at every step — from raw materials to final balance tests
Supports OEM & private label services (laser logo, QR traceability, custom packaging)
1-Year Unlimited Mileage Warranty & free QC reports included with every order
5. Customer-Driven R&D & Customization
100% customer-oriented design and reverse engineering services
Tailored development for special materials, designs, or performance upgrades
From full turbo assemblies to individual components — we are your one-stop turbo center
FAQs About the 2011 Audi A4 Turbocharger Replacement
1. Is this turbocharger compatible with my 2011 Audi A4 2.0 TFSI engine?
Yes, this 2011 Audi A4 turbocharger is engineered as a direct-fit replacement, matching OE number 06H145702Q. It's a seamless turbo replacement for the 2011 Audi A4 with 2.0 TFSI engine, requiring no modifications for installation.
2. What are the signs that my Audi A4 turbocharger needs replacing?
Common symptoms include sluggish acceleration, excessive exhaust smoke, oil leaks around the turbo, or an illuminated check engine light. These issues often stem from worn internals or a failing Audi A4 turbo unit, signalling the need for a turbo replacement for the 2011 Audi A4.

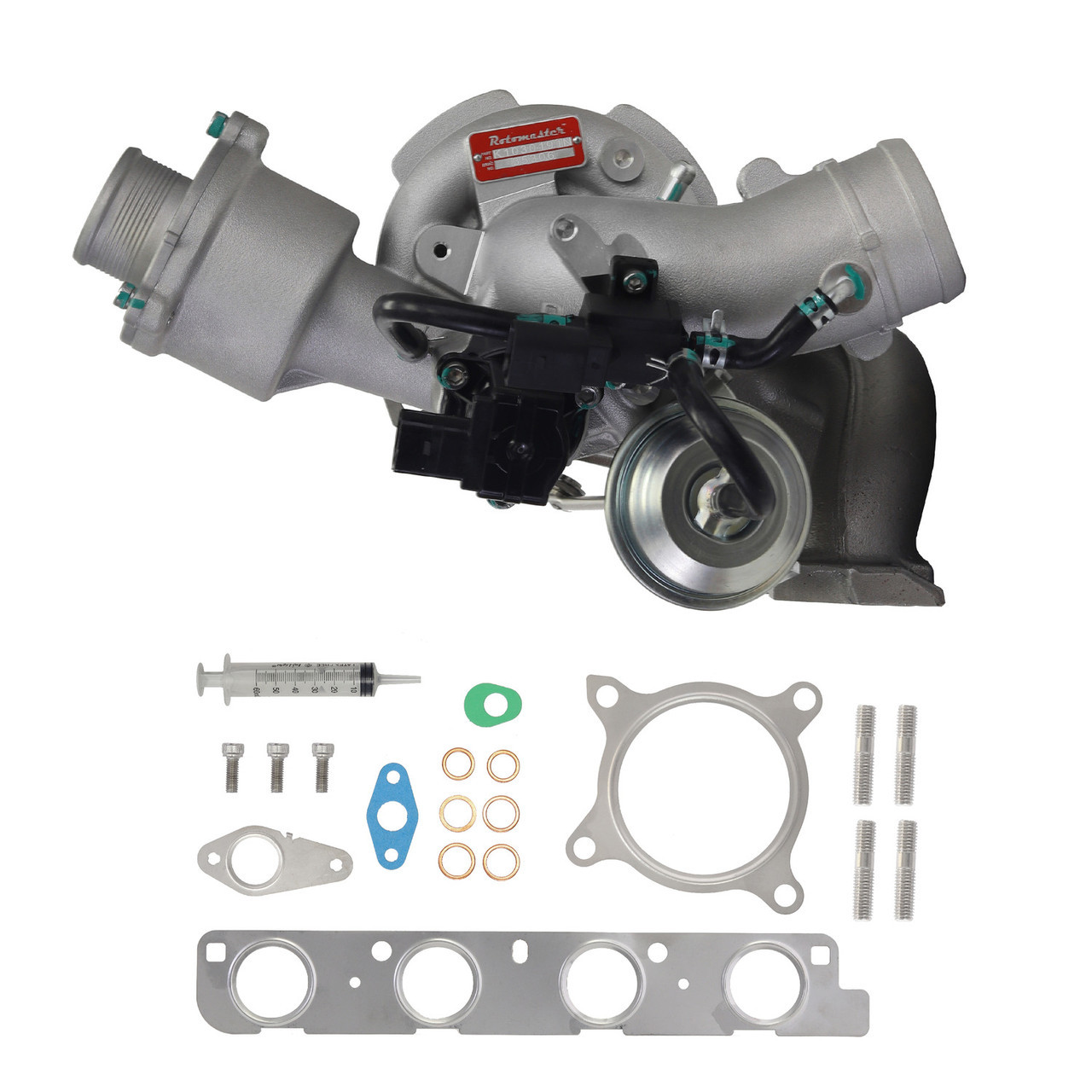

3. Does this Audi A4 turbo assembly come with an actuator and installation gaskets?
Absolutely. This Audi A4 turbocharger replacement includes a pre-calibrated electronic actuator and a full set of gaskets and seals, providing a complete turbo kit for the 2011 Audi A4, ready for installation.
4. How long does the installation of the 2011 Audi A4 turbocharger take?
A qualified mechanic can typically install this turbo for the Audi A4 in 2–3 hours, depending on the engine bay's accessibility. Detailed instructions are available to streamline the 2011 Audi A4 turbo replacement process.
5. What's the warranty on this 06H145702Q-compatible turbocharger?
Elecdurauto Audi A4 turbo comes with an 18-month unlimited mileage warranty from Elecdurauto, covering defects in craftsmanship or materials. Each turbocharger for 2011 Audi A4 includes a quality control report for assurance.
6. Can I use this turbocharger for tuned or modified Audi A4 applications?
Built to OE standards, this Audi A4 turbo upgrade supports mild tuning or stage 1 remaps, provided boost levels stay within safe limits. It's a reliable choice for enhancing your 2011 Audi A4 turbo performance.
7. Do you provide private labeling or customized packaging for distributors?
Yes. We offer full OEM/ODM services, including private label branding, barcode packaging, and model-specific labeling for retail and wholesale channels.
8. How fast can you ship this 2011 Audi A4 turbo internationally?
Orders for this Audi A4 turbo replacement ship within 3–5 days via DHL, FedEx, or sea freight. International delivery typically takes 7–15 business days for your 2011 Audi A4 turbocharger.
9. Is this turbocharger compatible with Amazon FBA or Mercado Libre fulfillment?
Yes, this turbo for the 2011 Audi A4 features FBA-ready packaging with compact sizing, model-specific barcodes, and tracking, making it ideal for e-commerce platforms like Amazon or Mercado Libre.
